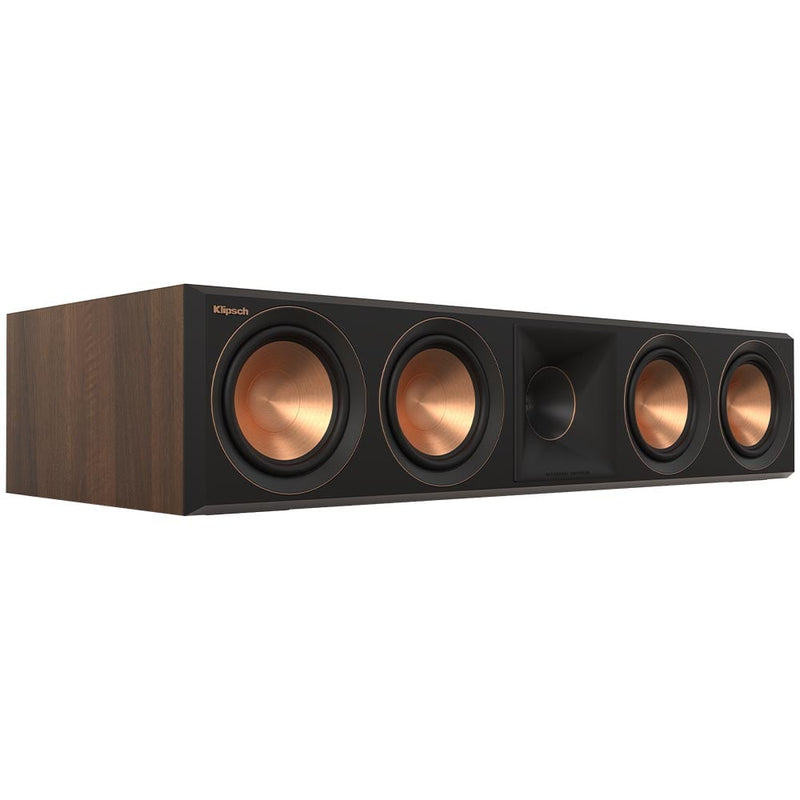

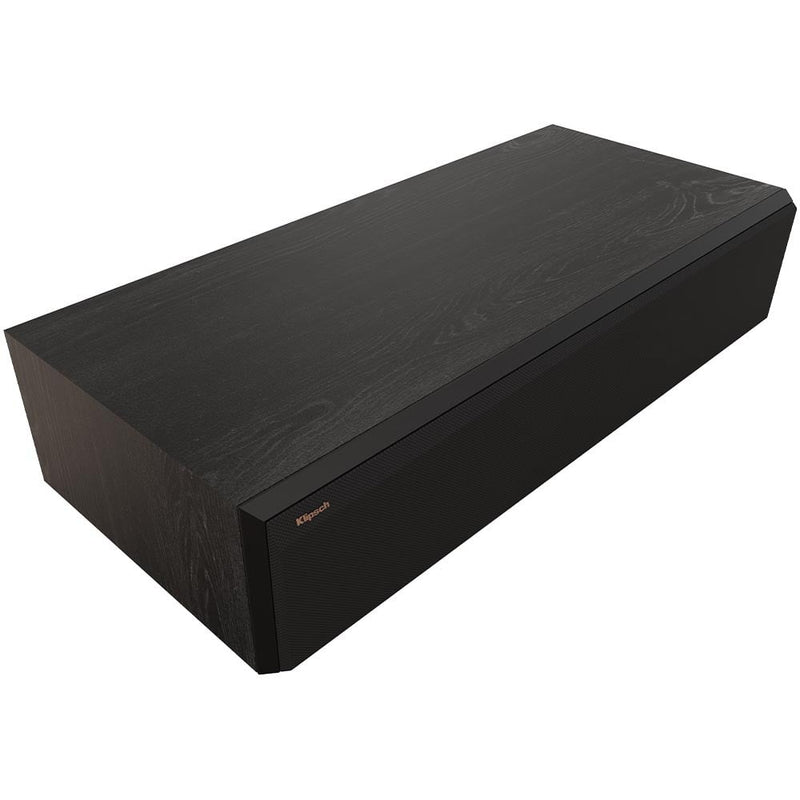

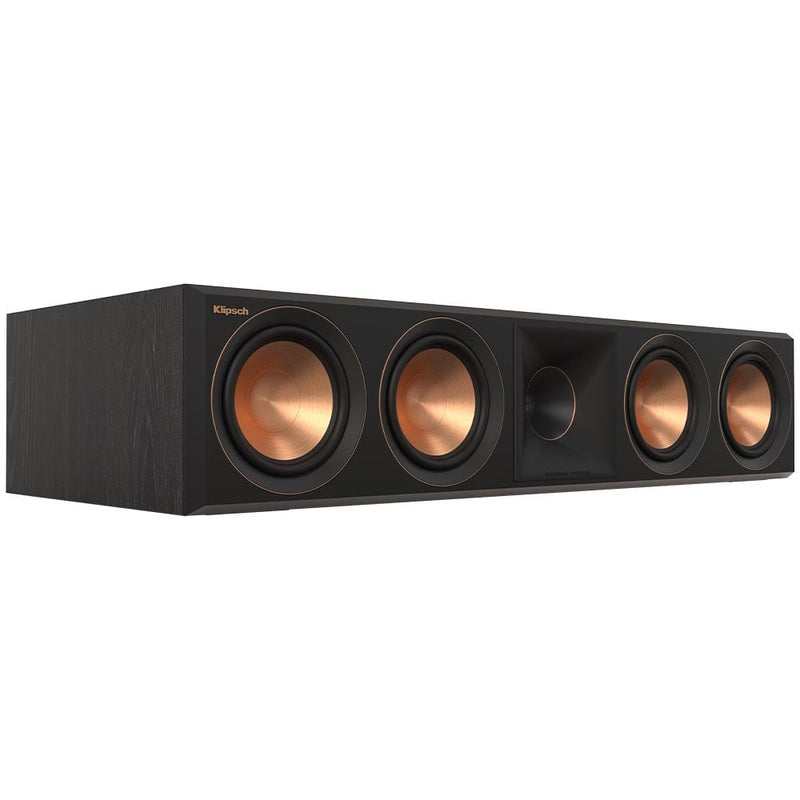

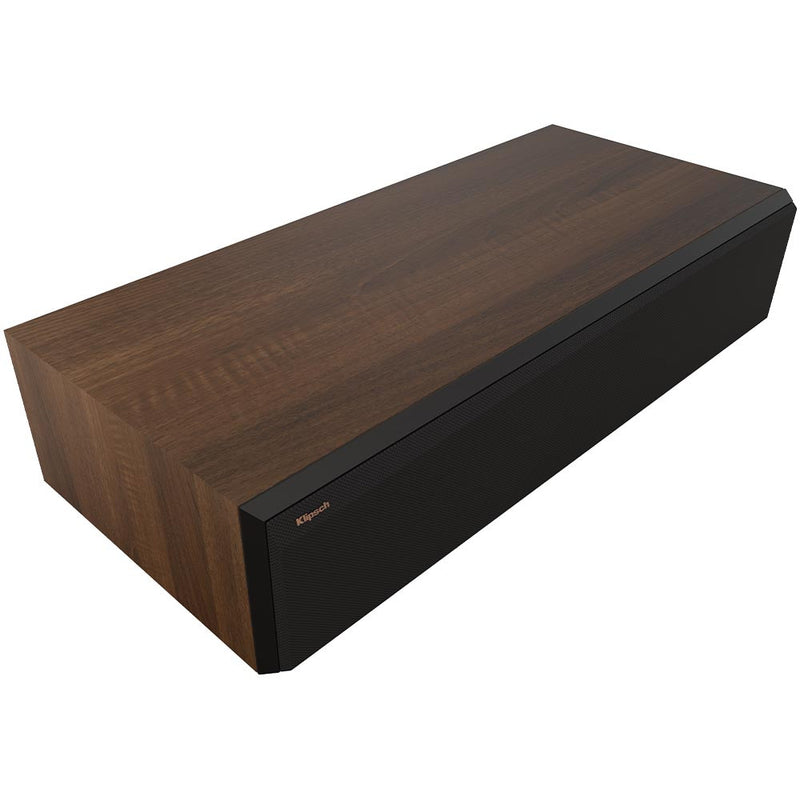

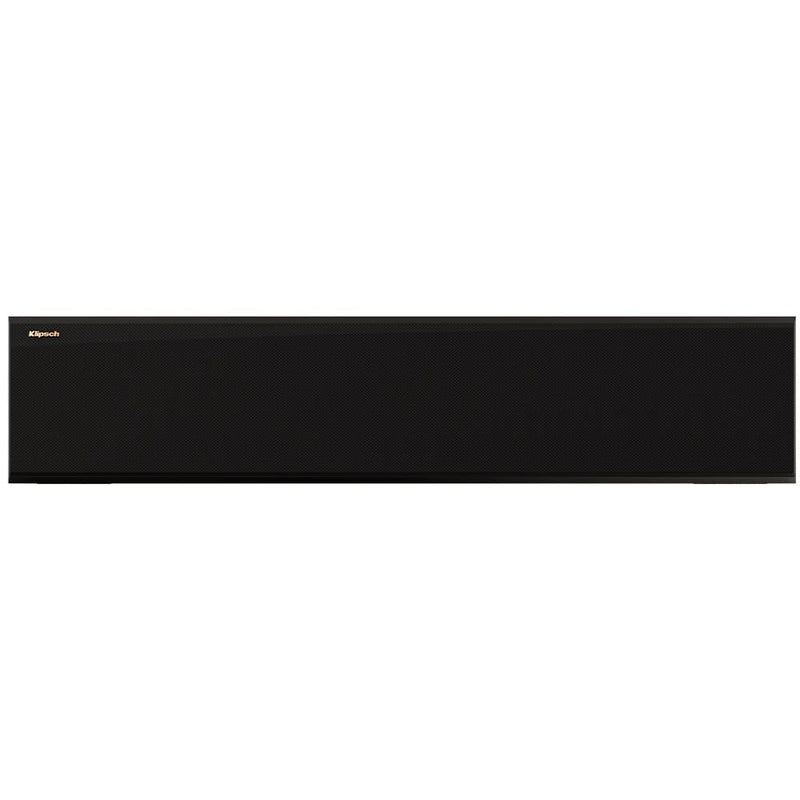

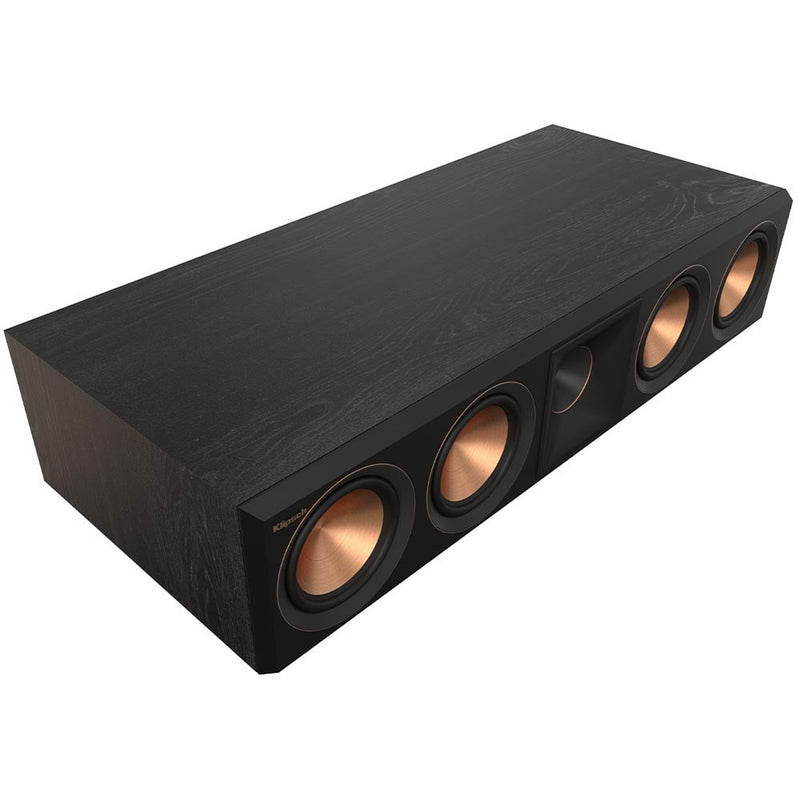

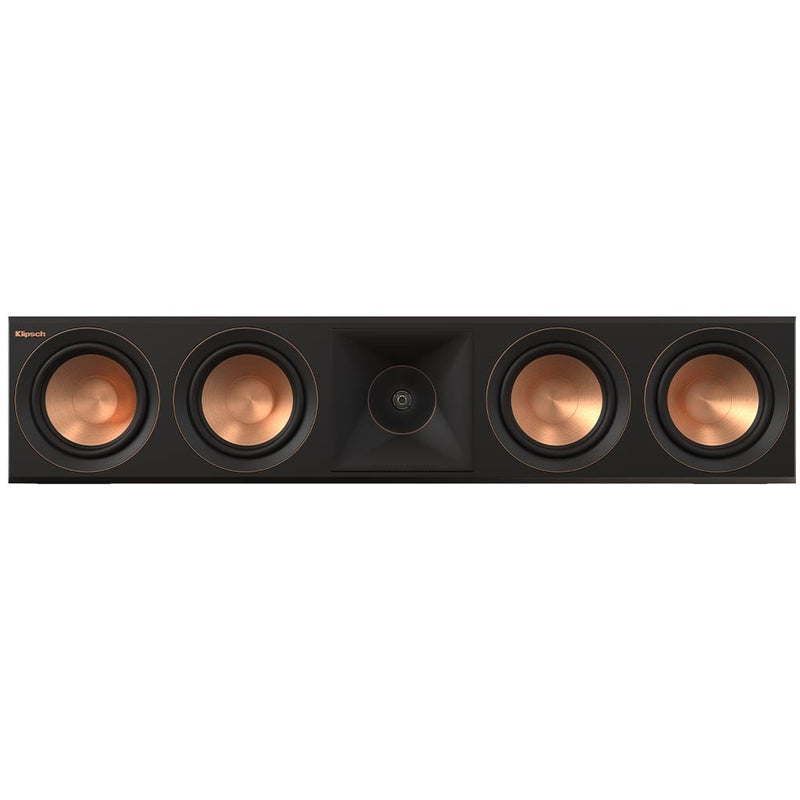

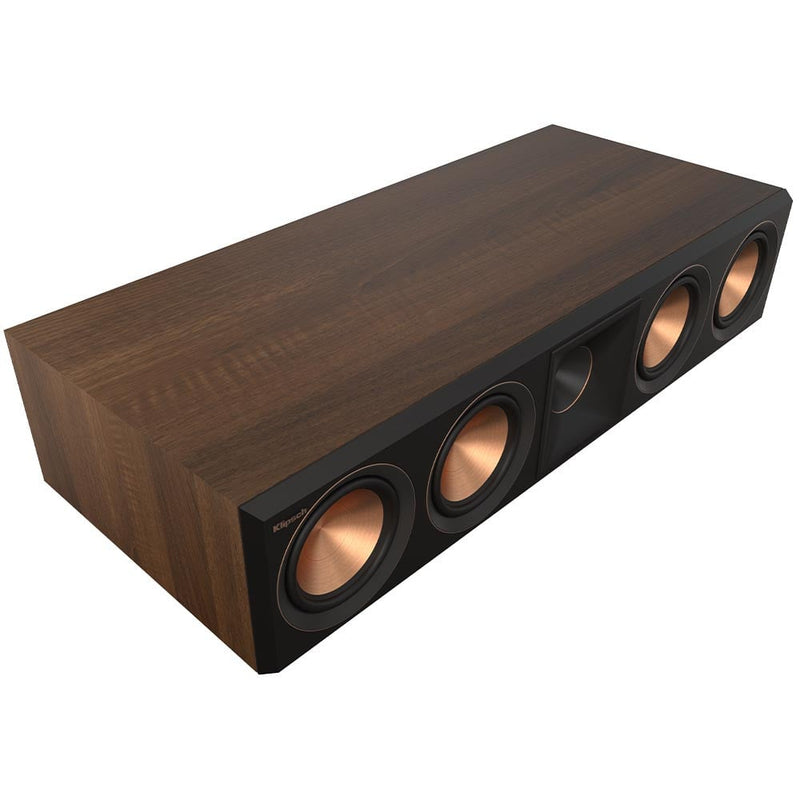

Klipsch RP-504C II Center Channel Speaker

Klipsch RP-504C II Center Channel Speaker - Klipsch

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

SPECIFICATIONS

• FREQUENCY RESPONSE: 50-25kHz +/- 3dB
• POWER HANDLING (CONT/PEAK): 150W/600W
• SENSITIVITY*: 96dB @ 2.83V / 1m*
• NOMINAL IMPEDANCE: 8 Ohms Compatible
• HIGH FREQUENCY DRIVER: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
• CROSSOVER FREQUENCY: 650Hz/1950Hz
• LOW FREQUENCY DRIVER: Quad 5.25" Cerametallic Cone Woofers with Faraday rings
• INPUTS: Single aluminum binding posts
• ENCLOSURE MATERIAL: MDF (Internally Braced)

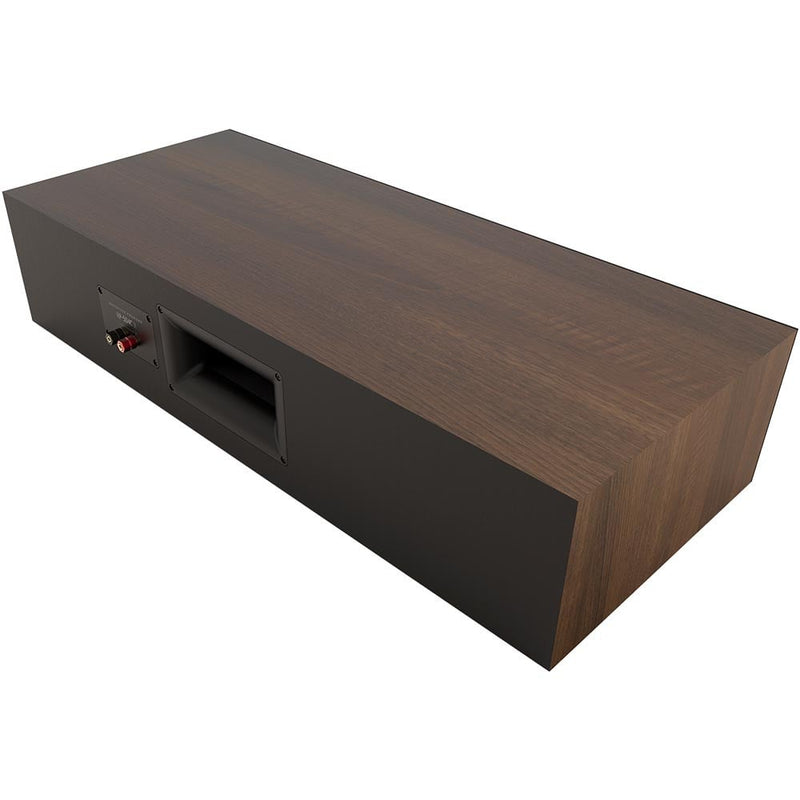

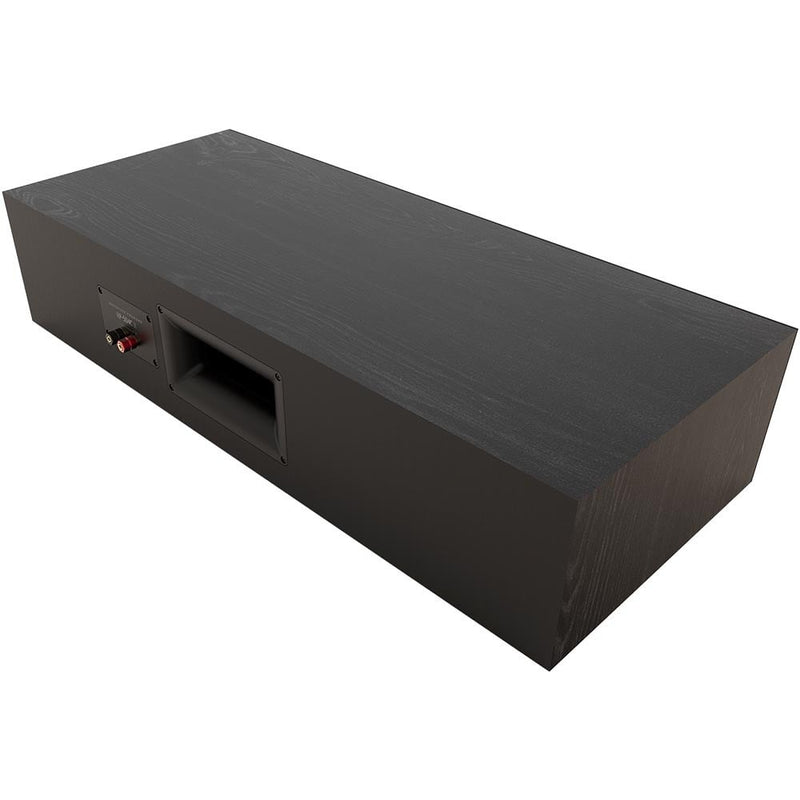

• ENCLOSURE TYPE: Bass Reflex via rear-firing Tractrix® Port
• HEIGHT: 6.87" (17.4 cm)
• WIDTH: 32.06" (81.4 cm)
• DEPTH: 15.08" (38.3 cm)
• WEIGHT: 36.3lb (16.45kg)
• FINISH: Ebony, Walnut
• Accessories: Angle Screw
• Ebony Version MPN: 1070018
• Walnut Version MPN: 1070042
• *SPL at 1M, half-space anechoic with 2.83V input, in-room sensitivity
