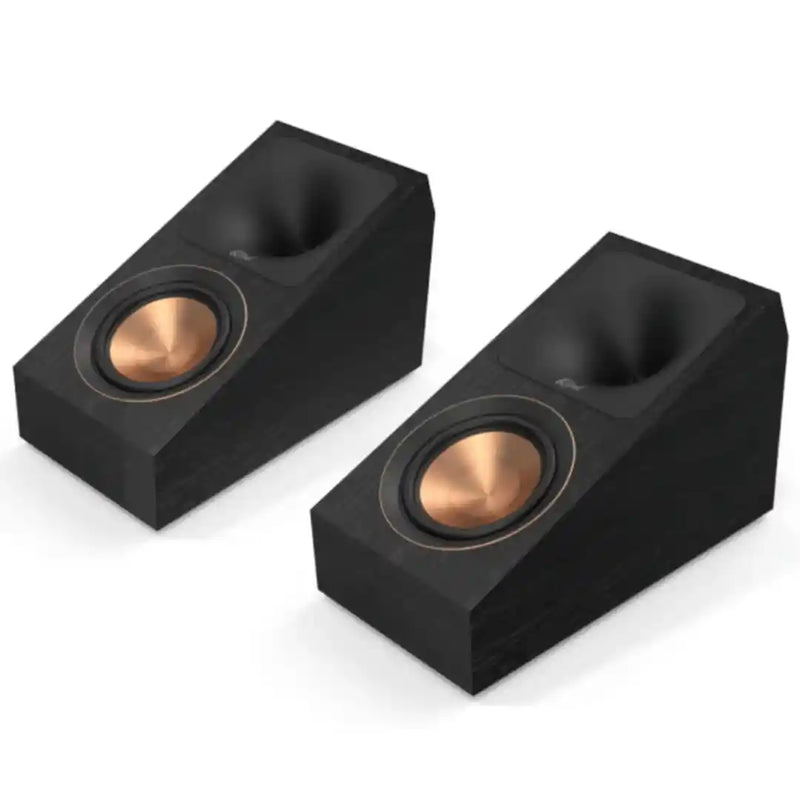

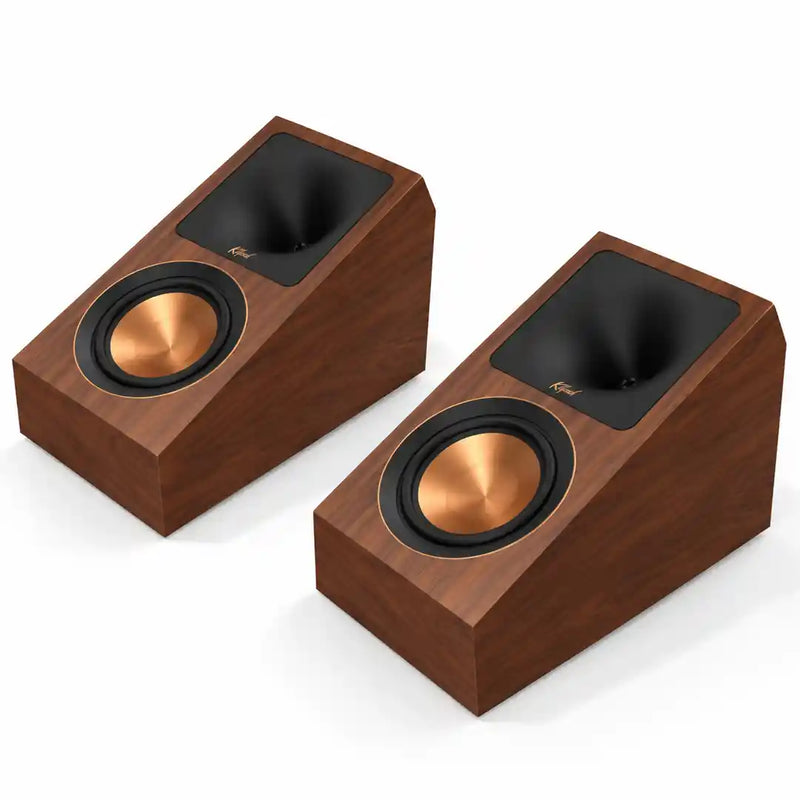

The Klipsch Reference Premiere III RP-5103SA Dolby Atmos Surround Speaker is a versatile elevation speaker designed to add immersive overhead effects to a Reference Premiere III home theater without requiring in-ceiling speakers. Position the RP-5103SA on top of compatible floorstanding or bookshelf speakers and its angled acoustic design directs Dolby Atmos height information toward the ceiling, allowing reflected sound to create the sensation of effects originating above the listening area.
The RP-5103SA can also be wall-mounted, giving system designers additional flexibility when a conventional upward-firing installation is not practical. Its two-way acoustic system combines a 5.25-inch Cerametallic woofer with Faraday-ring motor technology and a 1-inch titanium LTS vented tweeter mounted to Klipsch's new flush-mounted BMC axial Tractrix horn. A compact sealed enclosure, single binding posts, and included rubber feet make the RP-5103SA easy to integrate into a wide range of immersive home theater systems.
Key Features & Innovations
Dolby Atmos elevation speaker — the Klipsch Reference Premiere III RP-5103SA Dolby Atmos Surround Speaker can be positioned on top of a compatible floorstanding or bookshelf speaker to direct height-channel information toward the ceiling for reflected overhead effects.
Wall-mount capability — the versatile RP-5103SA can also be mounted to a wall, providing additional installation flexibility when placement on top of another speaker is not practical.
5.25-inch Cerametallic woofer — Klipsch's signature copper-hued Cerametallic cone combines low mass with high rigidity for responsive midrange reproduction and dynamic movie effects.
Faraday-ring woofer technology — a Faraday ring incorporated into the woofer motor system helps improve linearity and reduce distortion as the driver moves through its operating range.
1-inch titanium LTS vented tweeter — Klipsch's Linear Travel Suspension design helps minimize diaphragm distortion, while the vented tweeter construction reduces unwanted resonances behind the diaphragm.
Flush-mounted BMC axial Tractrix horn — Reference Premiere III introduces a high-density BMC horn material engineered to reduce resonance, while its flush-mounted geometry helps minimize wave breakup and improve off-axis response.
Dolby Atmos-tuned acoustic response — Klipsch specifies the RP-5103SA's frequency response, sensitivity, and crossover performance as conforming to Dolby Atmos specifications, reflecting its specialized role as an elevation speaker.
75W continuous / 300W peak power handling — the RP-5103SA provides substantial dynamic capability for height-channel effects when driven by a compatible Dolby Atmos AV receiver or multichannel amplifier.
Sealed acoustic-suspension enclosure — the compact sealed cabinet eliminates the need for a bass-reflex port, supporting flexible placement on top of another speaker or close to a wall.
Included rubber feet — eight rubber feet are included to provide a stable, protective interface when the speakers are positioned on top of compatible floorstanding or bookshelf loudspeakers.
FAQ — Klipsch RP-5103SA
What is the RP-5103SA designed to do?
The RP-5103SA is designed primarily as a Dolby Atmos elevation speaker. When positioned on top of a compatible floorstanding or bookshelf speaker, its angled drivers direct sound toward the ceiling so reflected audio can create the impression of effects coming from above the listening position.
Can the RP-5103SA be mounted on a wall?
Yes. Klipsch specifically designed the RP-5103SA for versatile placement. In addition to being used as an upward-firing Dolby Atmos elevation module, it can be wall-mounted for installations where placing the speaker on top of another loudspeaker is not practical.
What is the frequency response of the RP-5103SA?
Klipsch does not publish a conventional numerical frequency-response range for the RP-5103SA. Instead, its frequency response is specified as conforming to Dolby Atmos specifications. The sensitivity and crossover specifications are presented the same way.
How much amplifier power can the RP-5103SA handle?
The RP-5103SA is rated for 75 watts continuous and 300 watts peak. It should be connected to a compatible height-channel output from a Dolby Atmos AV receiver or multichannel power amplifier.
What is the impedance of the RP-5103SA?
The RP-5103SA has a nominal impedance of 8 ohms and a specified minimum impedance of 3.2 ohms at 217Hz.
How does the RP-5103SA differ from the RP-5203S?
The RP-5103SA is a specialized Dolby Atmos elevation speaker that can be placed on top of another loudspeaker or mounted to a wall. The RP-5203S is a larger dedicated wide-dispersion surround speaker designed primarily for conventional side- and rear-surround channels. Which model is appropriate depends on the channel location and the desired home theater layout.
