Klipsch PSM-800-T Full-range 8” Indoor/Outdoor Professional Surface Mount Loudspeaker (Each)

Klipsch PSM-800-T Full-range 8” Indoor/Outdoor Professional Surface Mount Loudspeaker (Each) - Klipsch

MORE BASS, LESS SPACE WITH THE ALL-NEW TRACTRIX® HYPERFOLD PORT™
Klipsch is all about high efficiency, low distortion. Building upon that legacy, Klipsch is introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 RATED FOR COMMERCIAL ENVIRONMENTS
Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-800-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be water resistant and rainproof for the most challenging commercial environments.

MULTIPLE TAP SETTINGS
The PSM-800-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

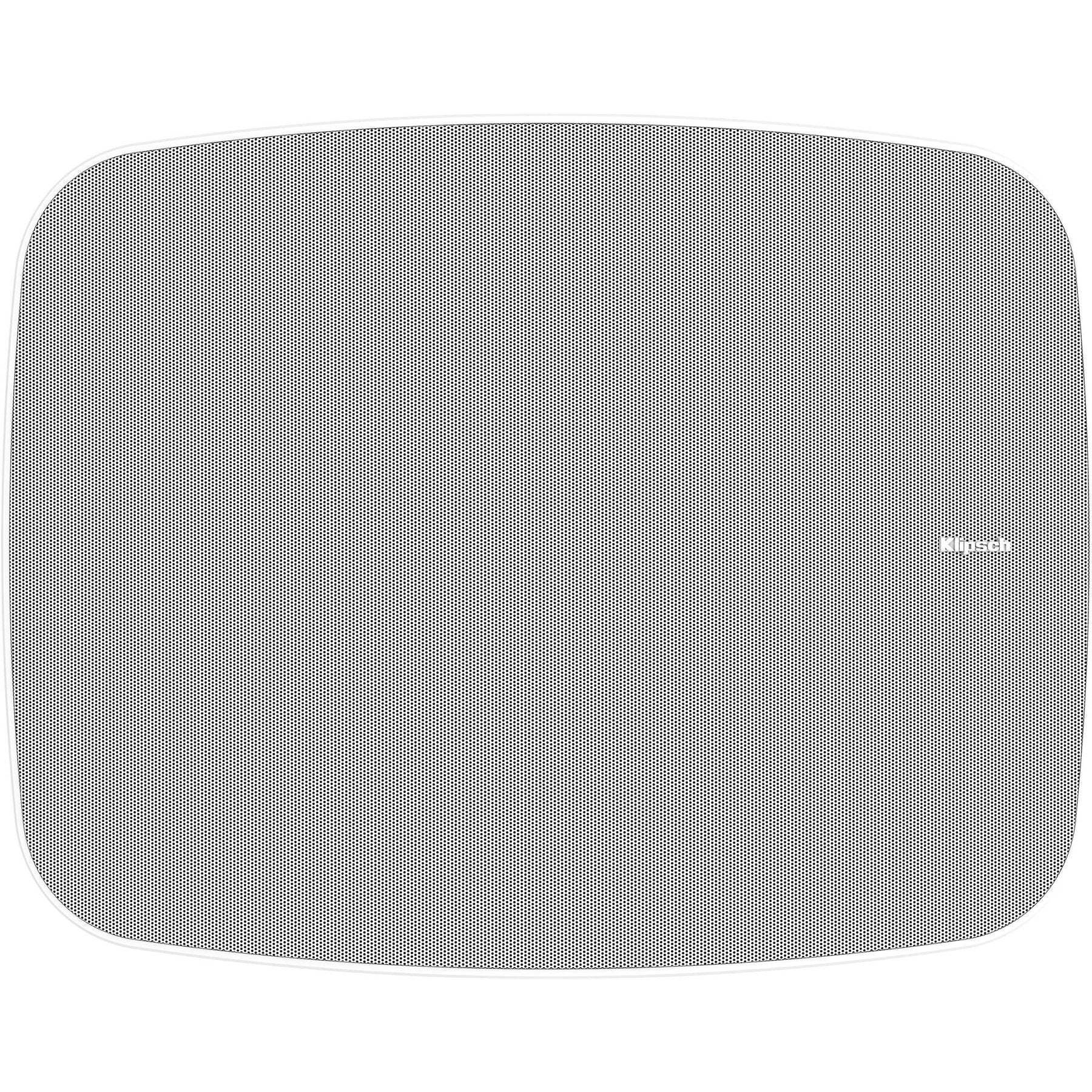

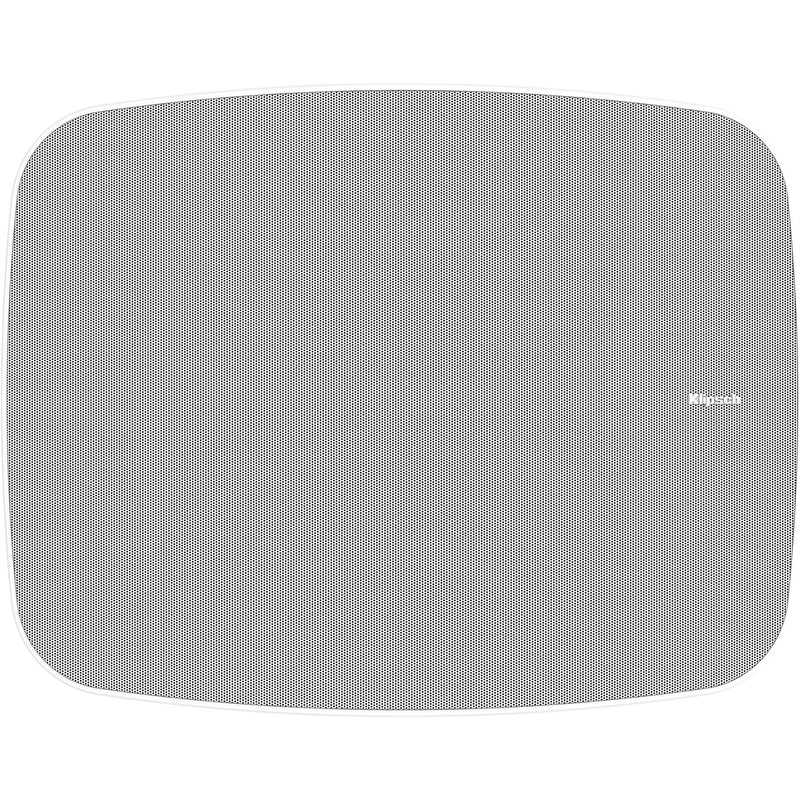

SET SCREWS ON GRILLE
The included set screws on each grille ensures a secure fit between the speaker and grille , while making sure the grilles stay on the enclosures regardless of the environment.

1” TITANIUM COMPRESSION DRIVER FOR EFFORTLESS, HIGH-CLARITY DETAIL
Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PSM-800-T gives any space extra-wide coverage while providing even and consistent energy for your project.

PHOENIX CONNECTOR FOR SIMPLIFIED INSTALLATION
The PSM-800-T employs a phoenix connector for quick and intuitive connection.

Product Details:

• FREQUENCY RESPONSE: 52Hz-20kHz +/- 4dB, 44Hz -10dB
• POWER HANDLING: 100 watts (21V) 50Hz-10kHz (400 watts peak)
• CALC. MAX. CONT. OUTPUT: 109dB
• SENSITIVITY: 92dB
• COVERAGE: 100° +/- 20° 1kHz-20kHz
• DIRECTIVITY INDEX: 7dB +/- 1.5dB 800Hz-20kHz
• NOMINAL IMPEDANCE: 8 ohms 4.2 ohms at 150Hz minimum
• ACOUSTIC CROSSOVER: 2kHz
• TRANSDUCERS: 8” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge
• ENCLOSURE MATERIAL: All Weather ABS Plastic, Paintable
• IP RATING: IPX6
• ENCLOSURE TUNING: Vented via 3 folded Tractrix ports
• INPUT CONNECTORS: 4 pin euro block
• TRANSFORMER TAPS
• 70V: 100W, 50W, 25W,12.5W
• 100V: 100W, 50W, 25W
• Bypass position: 8 ohms nominal
• DIMENSIONS [WITH BRACKET]: 15.5”(394mm) x 12”(305mm) x 9.31”(237mm) [11.12”(283mm)]
• WEIGHT: 15.75 lbs (7.15kg)
• Black Version UPC: 743878057768
• Black Version MPN: 1072009
• White Version UPC: 743878057751
• White Version MPN: 1072010

What to expect in the box:

• Klipsch PSM-800-T Commercial 70V/100V 2-way speaker
• Mounting bracket (installed)
• 4-Pin Euroblock connector (installed)
• Two 6mm machine screws
• Owner's manual
