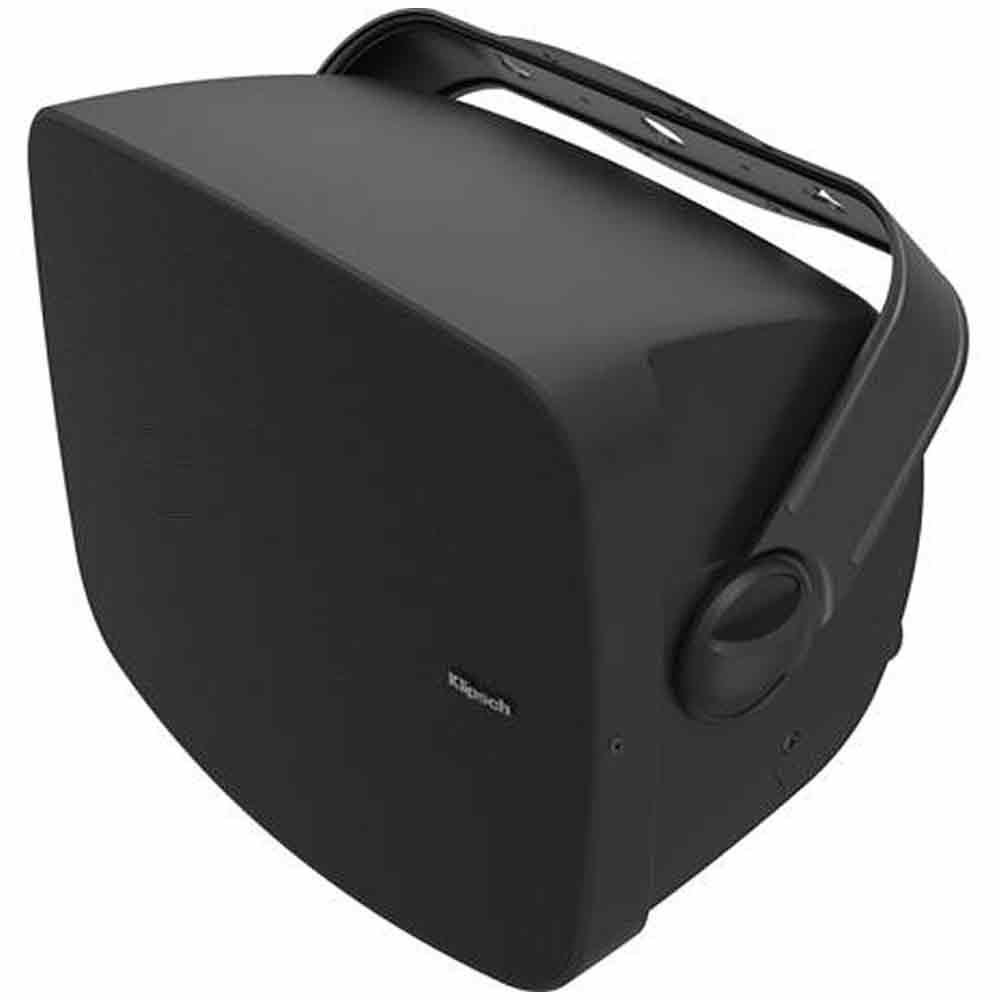

Klipsch PSM-650-T Full-range 6.5” Indoor/Outdoor Professional Surface Mount Loudspeaker (Each)

Klipsch PSM-650-T Full-range 6.5” Indoor/Outdoor Professional Surface Mount Loudspeaker (Each) - Klipsch

MORE BASS, LESS SPACE WITH THE ALL-NEW TRACTRIX® HYPERFOLD PORT™
Klipsch is all about high efficiency, low distortion. Building upon that legacy, Klipsch is introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 RATED FOR COMMERCIAL ENVIRONMENTS
Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-650-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be water resistant and rainproof for the most challenging commercial environments.

MULTIPLE TAP SETTINGS
The PSM-650-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

SET SCREWS ON GRILLE
The included set screws on each grille ensures a secure fit between the speaker and grille , while making sure the grilles stay on the enclosures regardless of the environment.

1” TITANIUM COMPRESSION DRIVER FOR EFFORTLESS, HIGH-CLARITY DETAIL
Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using Klipsch’s patented mumps technology, the PSM-650-T gives any space extra-wide coverage while providing even and consistent energy for your project.

PHOENIX CONNECTOR FOR SIMPLIFIED INSTALLATION
The PSM-650-T employs a phoenix connector for quick and intuitive connection.

Product Details:

• FREQUENCY RESPONSE: 56Hz-20kHz +/- 4dB, 46Hz -10dB
• POWER HANDLING: 80 watts (19V) 50Hz-10kHz (320 watts peak)
• CALC. MAX. CONT. OUTPUT: 106dB
• SENSITIVITY: 90dB
• COVERAGE: 100° +/- 20° 900Hz-20kHz
• DIRECTIVITY INDEX: 7dB +/- 1.5dB 800Hz-20kHz
• NOMINAL IMPEDANCE: 8 ohms 4.5 ohms at 160Hz minimum
• ACOUSTIC CROSSOVER: 2kHz
• TRANSDUCERS: 6.5” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge
• ENCLOSURE MATERIAL: All Weather ABS Plastic, Paintable
• IP RATING: IPX6
• ENCLOSURE TUNING: Vented via 3 folded Tractrix ports
• INPUT CONNECTORS: 4 pin euro block
• TRANSFORMER TAPS
• 70V: 60W, 30W, 15W,7.5W
• 100V: 60W, 30W, 7.5W
• Bypass position: 8 ohms nominal
• DIMENSIONS [WITH BRACKET]: 12.81”(326mm) x 10.19”(259mm) x 7.57”(193mm) [9.19”(234mm)]
• WEIGHT: 11.25 lbs (5.11kg)
• Black Version UPC: 743878057744
• Black Version MPN: 1072006

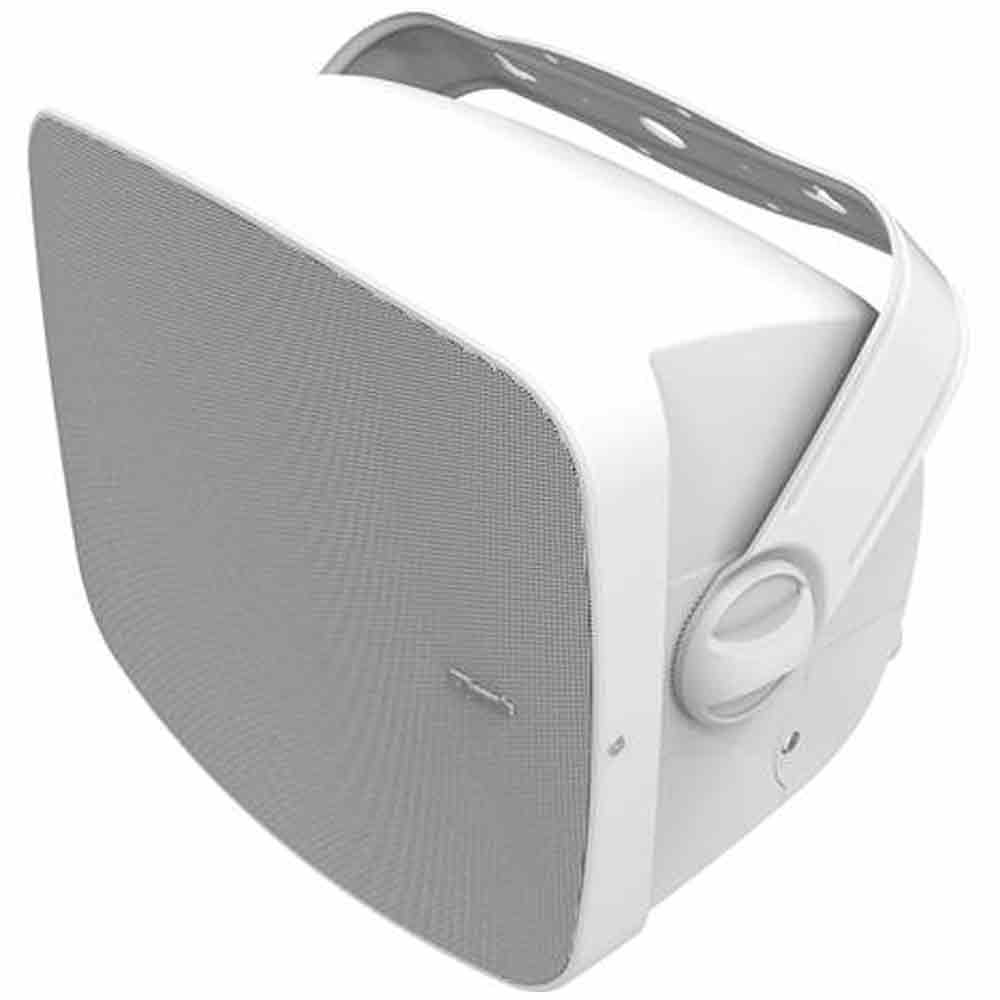

• White Version UPC: 743878057737
• White Version MPN: 1072008

What to expect in the box:

• PSM-650-T
