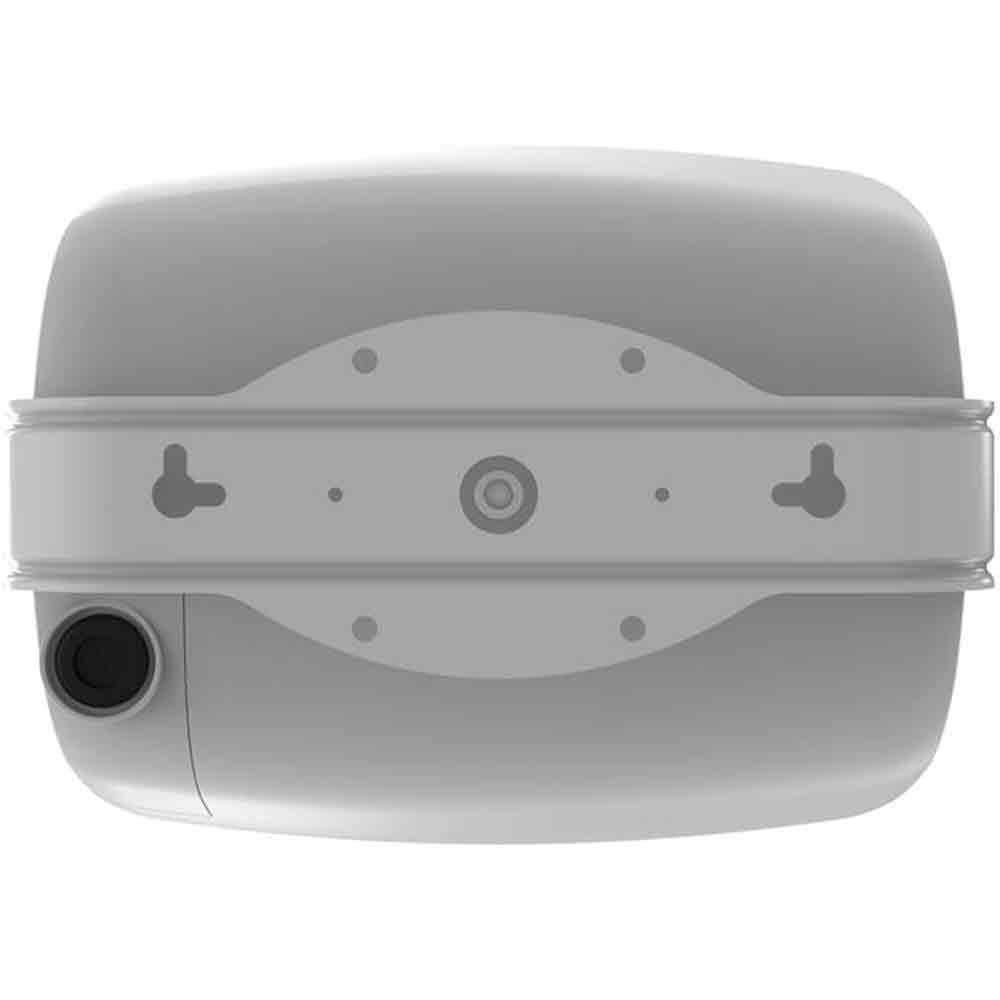

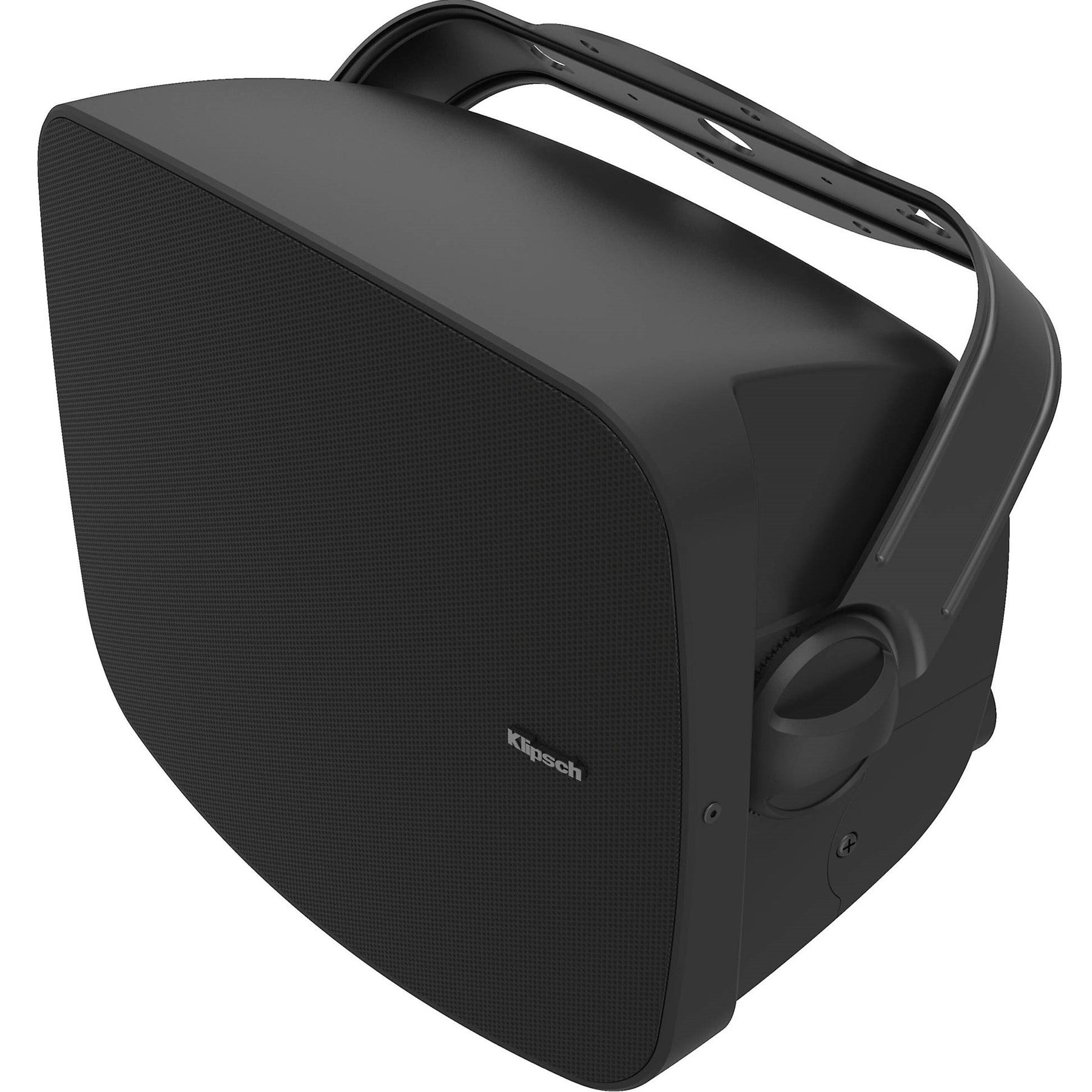

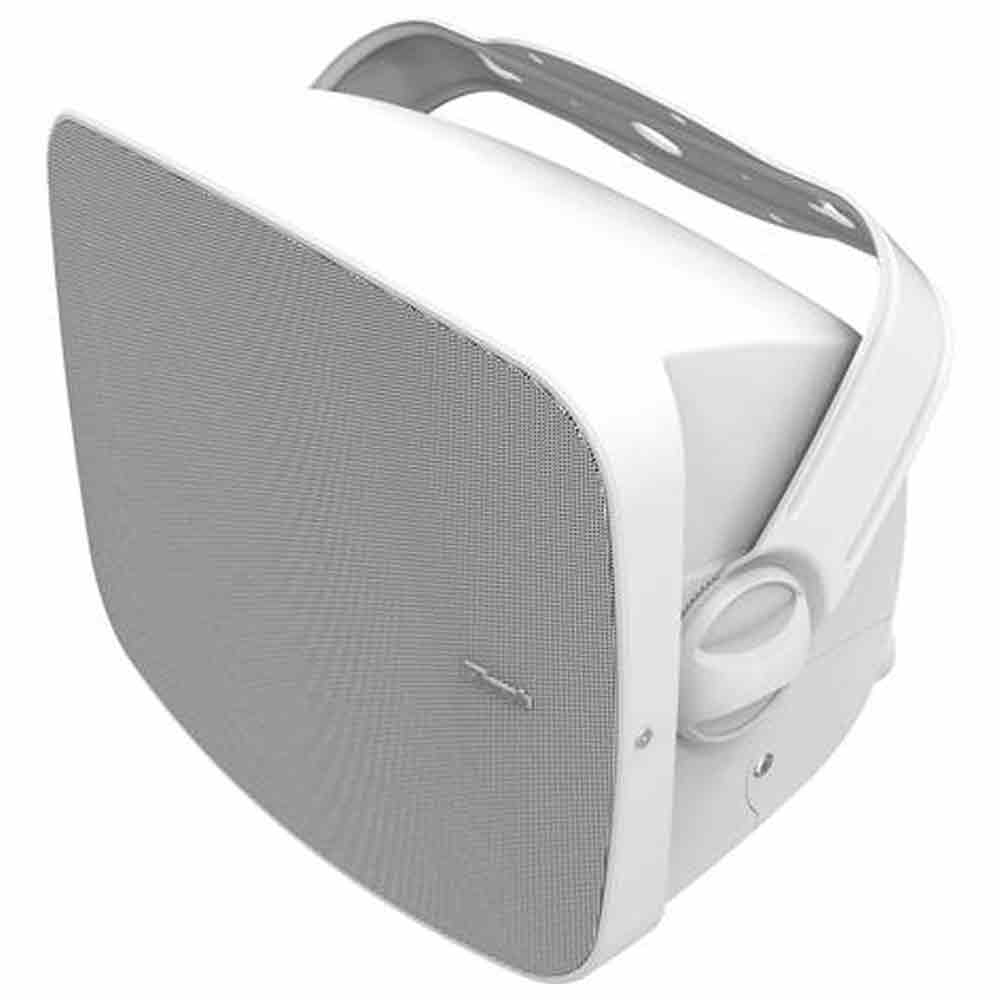

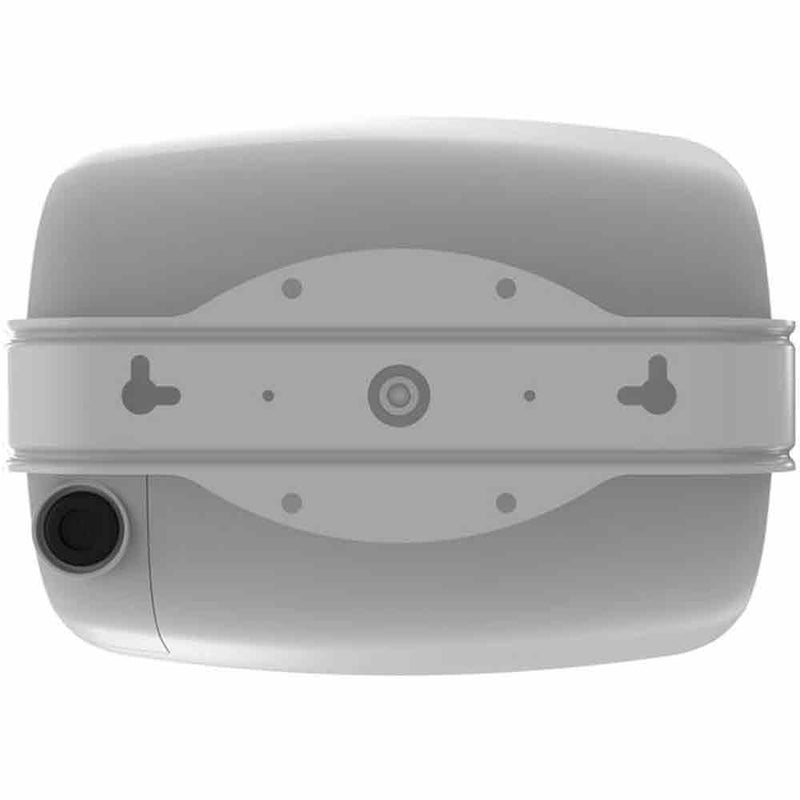

Klipsch PSM-525-T Full-Range 5.25” Indoor/Outdoor Professional Surface Mount Loudspeaker (Each)

Klipsch PSM-525-T Full-Range 5.25” Indoor/Outdoor Professional Surface Mount Loudspeaker (Each) - Klipsch

MORE BASS, LESS SPACE WITH THE ALL-NEW TRACTRIX® HYPERFOLD PORT™
Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX6 RATED FOR COMMERCIAL ENVIRONMENTS
Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-525-T is IPX6 Rated. Your clients will rest easy knowing their new speakers will be water resistant and rainproof for the most challenging commercial environments.

MULTIPLE TAP SETTINGS
The PSM-525-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8 ohm operation for installations that do not require a transformer.

SET SCREWS ON GRILLE
The included set screws on each grille ensures a secure fit between the speaker and grille , while making sure the grilles stay on the enclosures regardless of the environment.

1” TITANIUM COMPRESSION DRIVER FOR EFFORTLESS, HIGH-CLARITY DETAIL
Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PSM-525-T gives any space extra-wide coverage while providing even and consistent energy for your project.

PHOENIX CONNECTOR FOR SIMPLIFIED INSTALLATION
The PSM-525-T employs a phoenix connector for quick and intuitive connection.

Product Details:

• FREQUENCY RESPONSE: 58Hz-20kHz +/- 4dB, 48Hz -10dB
• POWER HANDLING: 65 watts (16.7V) 55Hz-10kHz (260 watts peak)
• CALC. MAX. CONT. OUTPUT: 104dB
• SENSITIVITY: 89dB
• COVERAGE: 100° +/- 20° 1kHz-20kHz
• DIRECTIVITY INDEX: 7dB +/- 1.5dB 1kHz-20kHz
• NOMINAL IMPEDANCE: 8 ohms 4.3 ohms at 175Hz minimum
• ACOUSTIC CROSSOVER: 2kHz
• TRANSDUCERS: 5.25” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge
• ENCLOSURE MATERIAL: All Weather ABS Plastic, Paintable
• IP RATING: IPX6
• ENCLOSURE TUNING: Vented via 3 folded Tractrix ports
• TRANSFORMER TAPS
• 70V: 30W, 15W, 7.5W, 3.8W
• 100V: 30W, 7.5W, 3.8W
• Bypass position: 8 ohms nominal
• DIMENSIONS [WITH BRACKET]: 12.13”(309mm) x 9.5”(242mm) x 6.5”(166mm) [8.38”(213mm)]
• WEIGHT: 7.75 lbs (3.52kg)
• Black Version UPC: 743878057720
• Black Version MPN: 1072004
• White Version UPC: 743878057713
• White Version MPN: 1072005

What to expect in the box:

• PSM-525-T
