Klipsch • Heritage Series

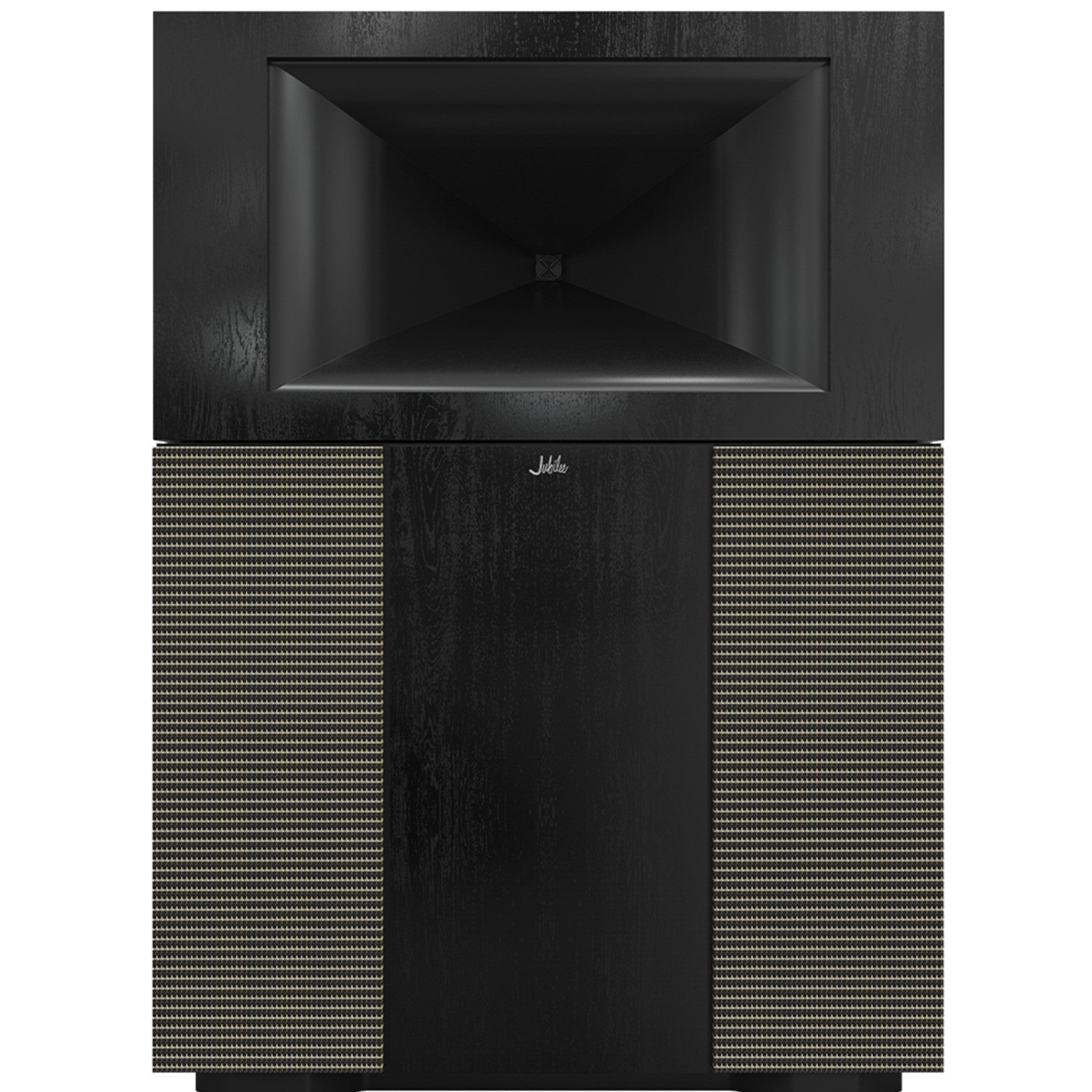

Klipsch Jubilee
Flagship, fully horn‑loaded two‑way loudspeaker with external DSP crossover
Made in USA (Hope, AR) Active DSP crossover included 18Hz–20kHz (±1.75/‑3dB) 125 dB max SPL
Overview
The Klipsch Jubilee is the culminating vision of Paul W. Klipsch — a fully horn‑loaded, ultra‑efficient loudspeaker engineered to deliver live‑music realism in the home. A patented horn‑loaded, vented low‑frequency enclosure mates seamlessly to a large‑format 7” titanium compression driver via an external active DSP crossover. The result is effortless dynamics, startling clarity, and bass extension down to the deep‑room foundations.
Highlights
- Fully horn‑loaded two‑way system with external active DSP crossover (LF/HF trim, phase & time alignment)
- Patented horn‑loaded vented LF system for high output with minimal distortion
- All‑new K‑693 7” axiperiodic titanium diaphragm compression driver with 5” voice coil
- Dual K‑283 12” fiber‑composite woofers in high‑efficiency LF enclosure

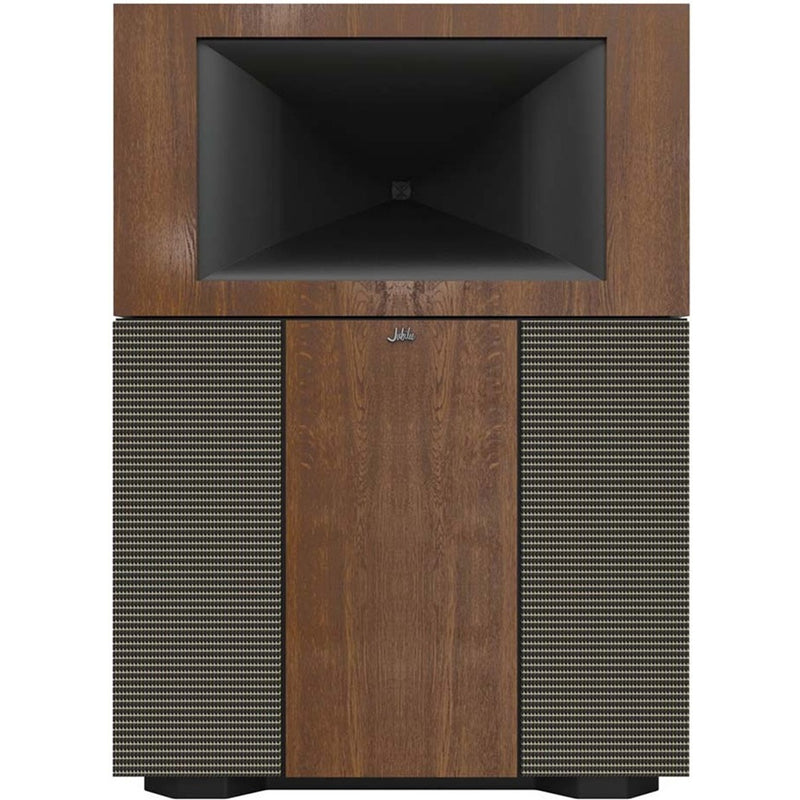

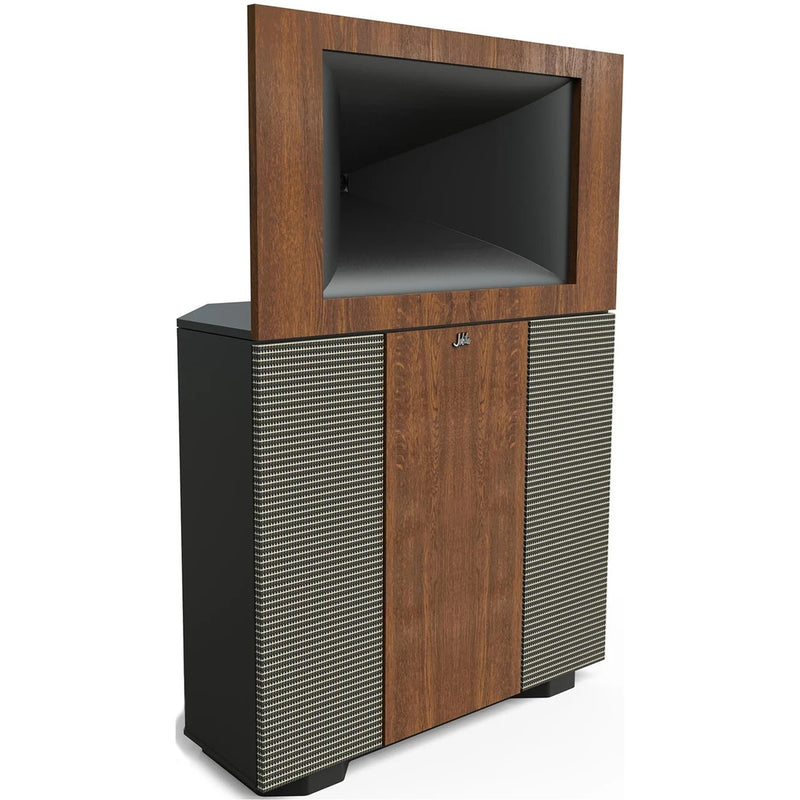

- Book‑matched real‑wood veneers; grain‑matched pairs; finishes: Satin Black Ash or American Walnut
- Designed and assembled in the USA (Hope, Arkansas)
Note: Jubilee requires bi‑amplification and use of the supplied active DSP crossover.
Technology
Active DSP crossover network precisely manages phase, delay, EQ, and gain to blend LF and HF sections for seamless coherence and room‑tailored tuning.
Horn‑loaded vented bass system combines the advantages of vented alignment with horn loading for exceptionally low distortion and scale.
Large‑format compression driver lowers the crossover point below the critical vocal band for natural presence and effortless dynamics.
Why Buy from Audiolab
- Factory‑authorized Klipsch Heritage dealer with dedicated demo support
- White‑glove delivery & in‑home setup available on request
- System design for bi‑amp integration, amplification matching, and room optimization
- Post‑install support and calibration options
FAQ
Do I need two amplifiers?
Yes. Jubilee must be bi‑amped via the included active DSP crossover. You can use a four‑channel amplifier or two separate stereo/mono amplifiers.
Can you install and calibrate them?
Yes. Audiolab offers delivery, setup, and system calibration services. Ask for a turnkey quote.
