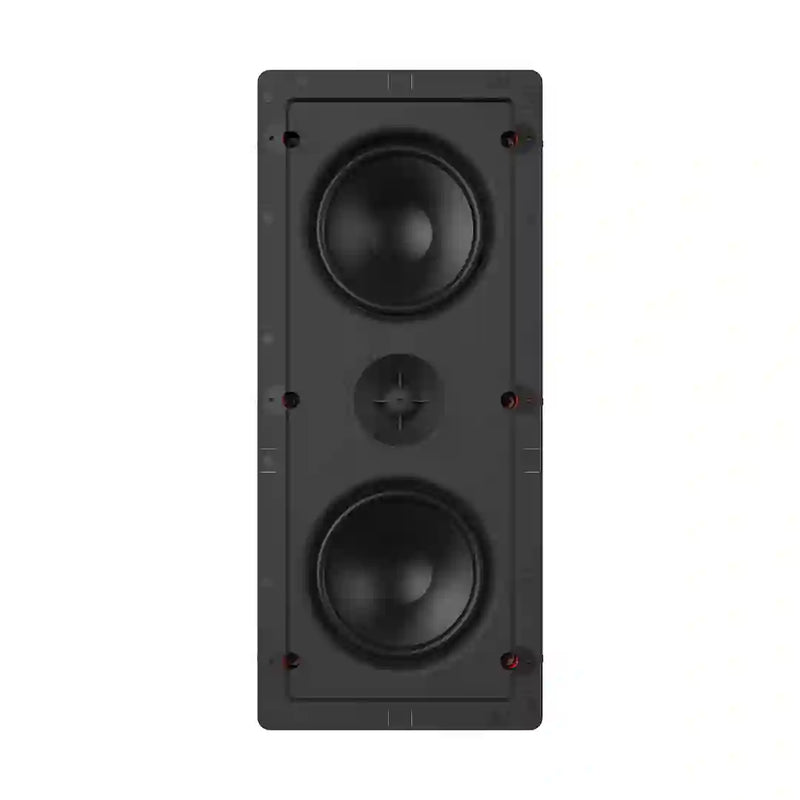

The Klipsch Designer Series DS-250W-LCR In-Wall Speaker delivers dynamic Klipsch sound from a slim architectural loudspeaker designed specifically for left-, center-, and right-channel applications. Dual 5.25-inch polypropylene woofers provide clear midrange and controlled bass, while a 1-inch silk-dome tweeter mated to a 90° × 90° Tractrix horn delivers detailed high frequencies with the efficiency and controlled dispersion associated with Klipsch horn-loaded designs.
Equally suited to a discreet home theater or architectural two-channel system, the DS-250W-LCR combines strong output capability with a narrow in-wall footprint. Its 92dB sensitivity and 60-watt RMS / 240-watt peak power handling provide ample dynamic capability for movies and music, while Klipsch's Sky Hook installation system and bezel-free magnetic grille simplify installation and create a clean finished appearance.
Key Features & Innovations
Purpose-built LCR architecture — the Klipsch Designer Series DS-250W-LCR In-Wall Speaker is designed for left-, center-, or right-channel applications, making it possible to build a consistent architectural front soundstage using the same speaker model across all three positions.
Dual 5.25-inch polypropylene woofers — two lightweight, rigid woofers provide substantial cone area for clear midrange reproduction, controlled bass, and the dynamic capability required for movie soundtracks and music.
1-inch silk-dome tweeter — the soft-dome high-frequency driver provides smooth, detailed reproduction of dialogue, vocals, instruments, and cinematic effects.
90° × 90° Tractrix horn — the tweeter is mated to Klipsch's signature horn architecture to improve acoustic efficiency and provide controlled high-frequency dispersion throughout the listening area.
92dB sensitivity — high efficiency allows the DS-250W-LCR to achieve substantial output while making effective use of available amplifier power.
60W RMS / 240W peak power handling — increased power capability helps the speaker reproduce demanding home theater and music content with strong dynamic impact.
73Hz–20kHz frequency response — the DS-250W-LCR provides broad midrange and high-frequency coverage while integrating naturally with a dedicated subwoofer for deep bass and low-frequency effects.
Home theater or two-channel flexibility — although designed as an LCR speaker, the DS-250W-LCR can also be used to create a discreet architectural stereo system where conventional cabinet speakers are undesirable.

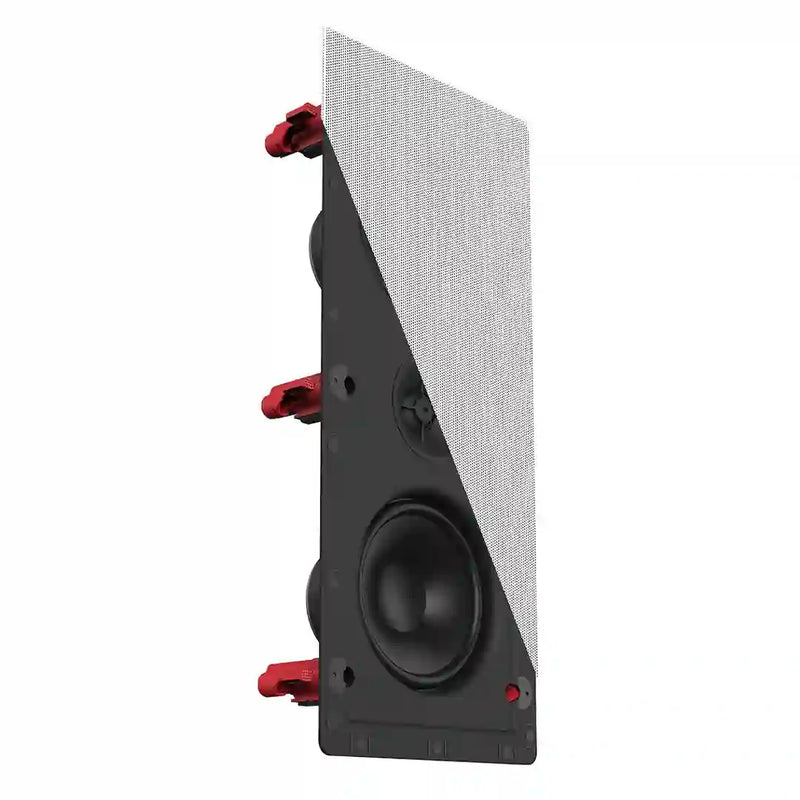

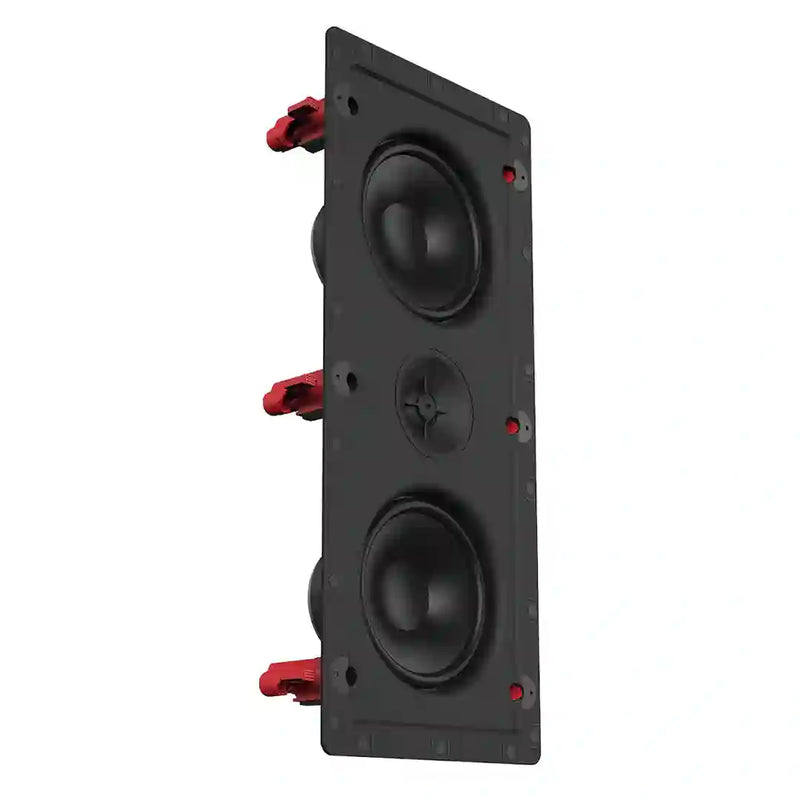

Patented Sky Hook installation system — Klipsch's tool-free mounting technology automatically engages the mounting legs when the speaker is inserted into the wall opening.
Preset clamping force — the Sky Hook system applies controlled pressure against the mounting surface, helping create a secure installation while reducing the possibility of overtightening.
Faster installation — Klipsch states that its Sky Hook system can reduce installation time by up to 75 percent compared with conventional architectural speaker mounting systems.
Infinite-baffle architecture — the speaker is designed to operate within the wall cavity without requiring a conventional standalone speaker enclosure.

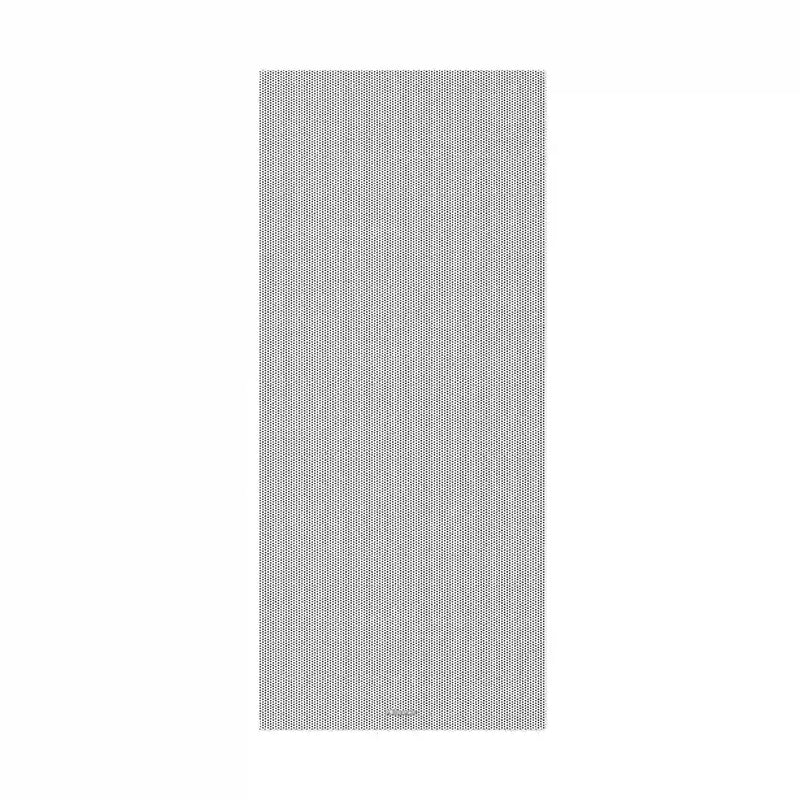

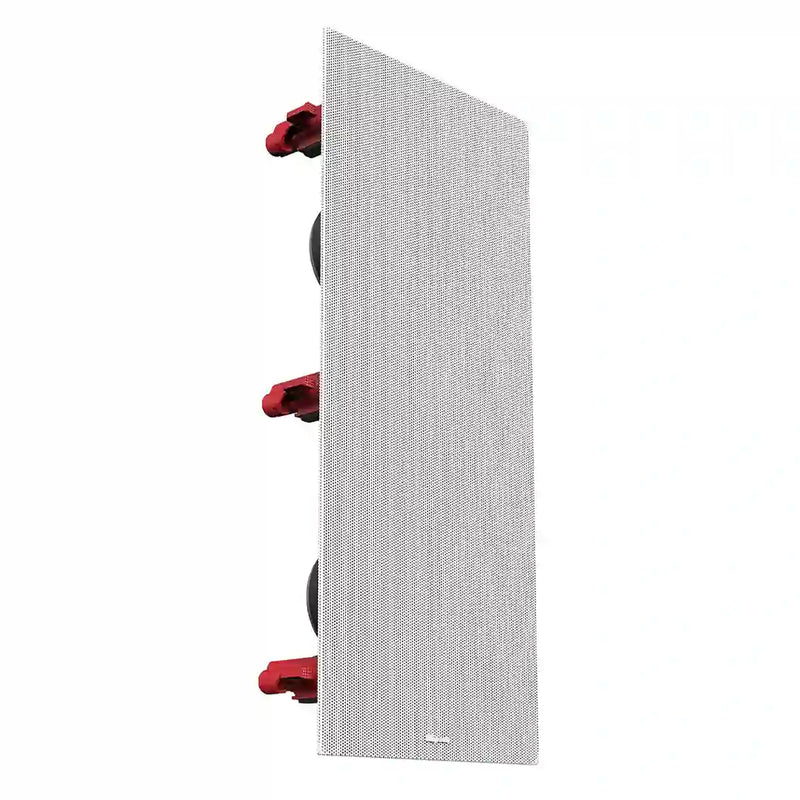

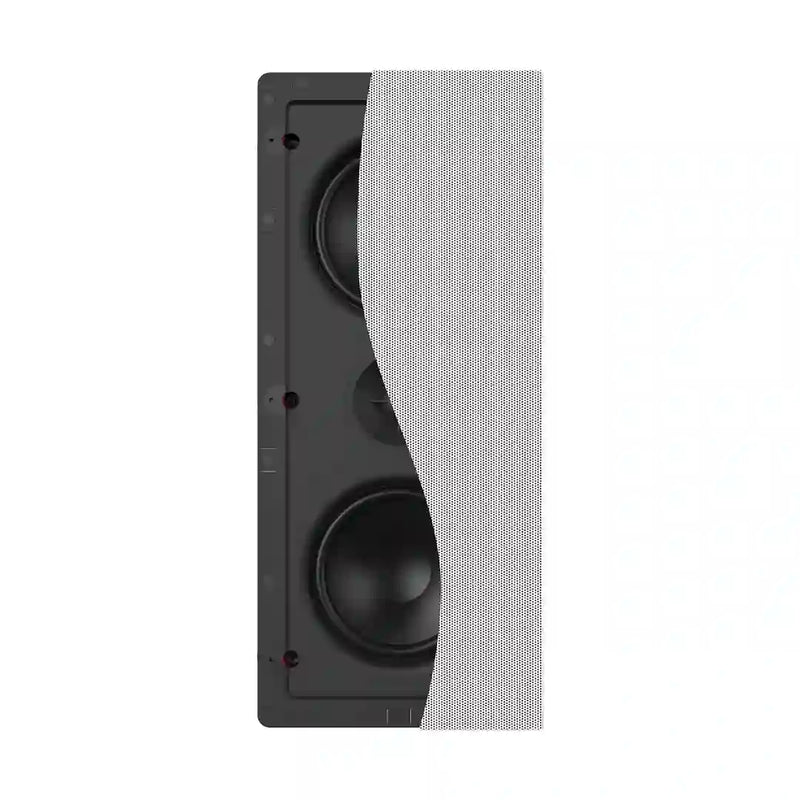

Bezel-free magnetic grille — the flat magnetic steel grille eliminates the prominent trim found on many traditional architectural speakers for a cleaner finished appearance.
Paintable white grille — the included grille can be painted to coordinate with the surrounding wall, helping the installed speaker visually disappear into the room.
FAQ — Klipsch DS-250W-LCR
What does LCR mean on the DS-250W-LCR?
LCR stands for left, center, and right. The DS-250W-LCR is designed so the same speaker model can be used for any of the three primary front channels in a home theater, helping create consistent tonal character across the front soundstage.
Can I use three DS-250W-LCR speakers across the front of a home theater?
Yes. Using the same DS-250W-LCR for the left, center, and right channels is an excellent application for this model. Matching all three front speakers helps maintain consistent sound as dialogue, music, and effects move across the screen.
How is the DS-250W-LCR different from the DS-160W?
The DS-250W-LCR uses two 5.25-inch polypropylene woofers compared with the single 6.5-inch woofer in the DS-160W. The DS-250W-LCR is specifically designed for LCR applications and offers higher 92dB sensitivity and 60W RMS / 240W peak power handling, making it particularly well suited to the front soundstage of an architectural home theater.
Can the DS-250W-LCR be used for two-channel music?
Yes. Klipsch identifies the DS-250W-LCR for both home theater and two-channel systems. A pair can provide a discreet architectural stereo solution when traditional bookshelf or floorstanding speakers are not desired.
Does the DS-250W-LCR need a subwoofer?
For home theater, a dedicated subwoofer is strongly recommended. The DS-250W-LCR has a specified frequency response of 73Hz–20kHz ±3dB, so directing deep bass and low-frequency effects to a properly integrated subwoofer provides substantially greater extension and system headroom.
What is the Klipsch Sky Hook installation system?
Klipsch's Sky Hook system automatically engages the mounting legs as the speaker is inserted into the wall cutout. The system applies a preset clamping force for a secure fit while helping prevent overtightening and reducing installation time.
Can the DS-250W-LCR grille be painted?
Yes. The included flat magnetic grille is white and paintable, allowing it to be matched more closely to the surrounding wall for a discreet architectural installation.
