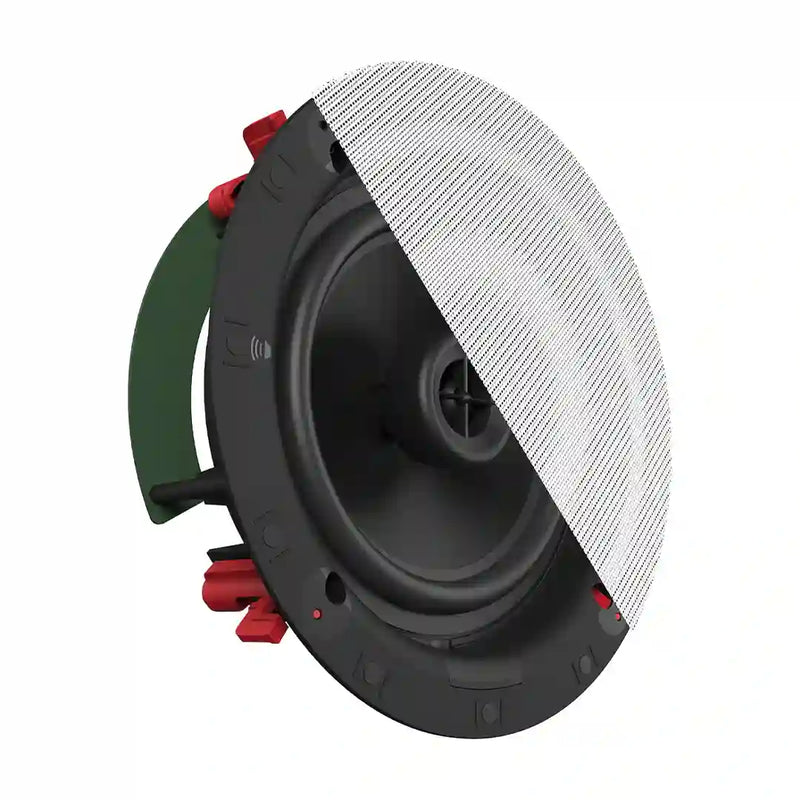

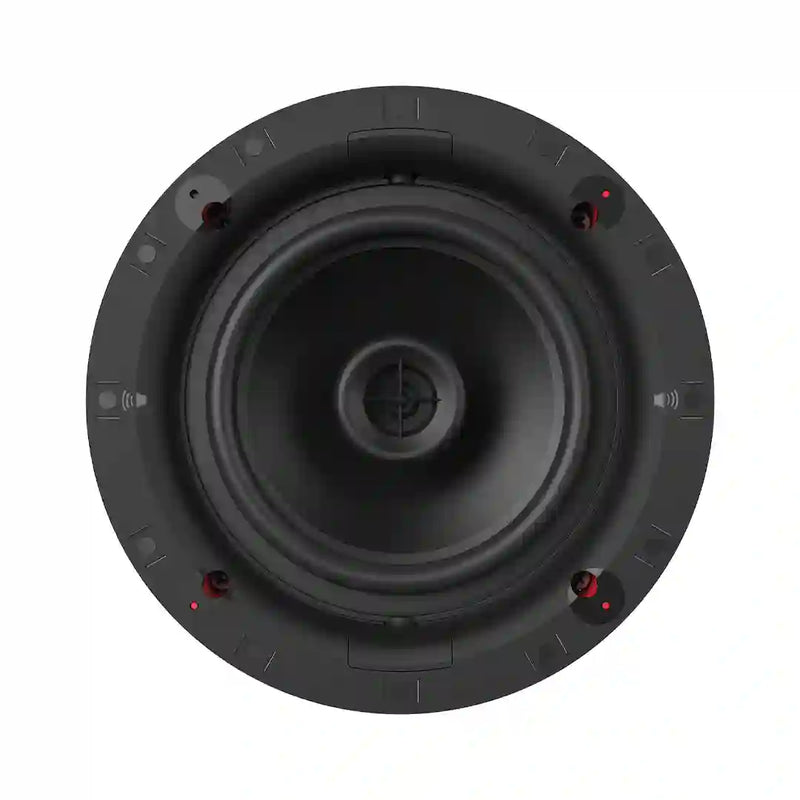

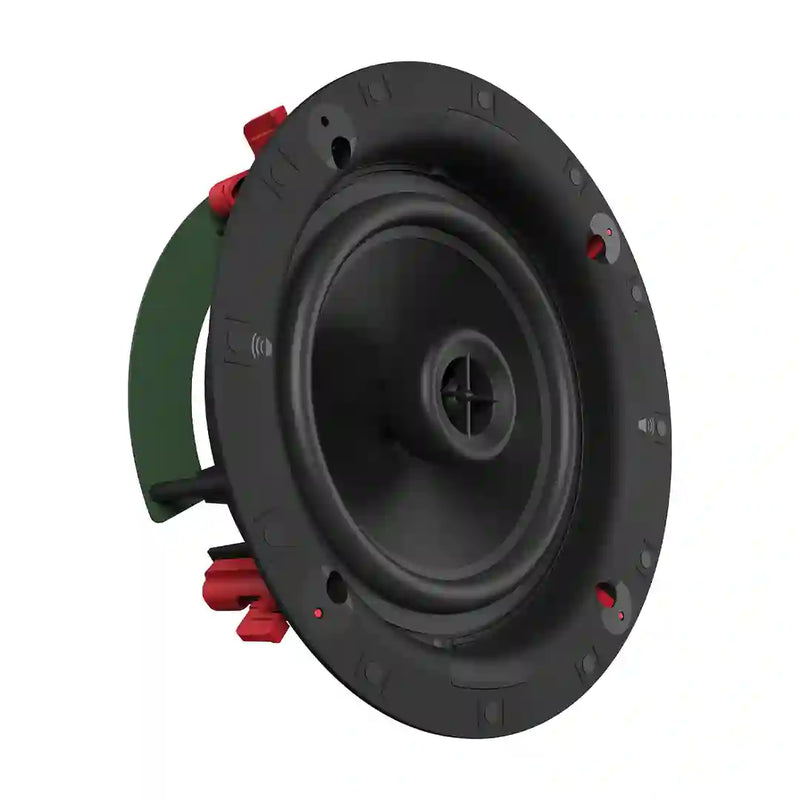

Klipsch Designer Series DS-180CDT In-Ceiling Speaker (Each)

Architectural in-ceiling loudspeaker • 8" Polypropylene woofer • 1" Silk Dome tweeter with Controlled Dispersion Technology® • SkyHook® toolless installation system • magnetic bezel-free grille

The Klipsch Designer Series DS-180CDT In-Ceiling Speaker (Each) delivers deep bass, articulate high frequencies, and seamless architectural integration for high-performance home theater and multi-room audio installations. Featuring an expansive 8-inch polypropylene woofer mated with a 1-inch silk dome tweeter housed in a swiveling Controlled Dispersion Technology® (CDT) array, this high-output speaker directs sound where you want it while the patent-pending SkyHook® Cinch by Swarm system makes installation fast and effortless.

Key Features & Innovations

  • Controlled Dispersion Technology® (CDT) — the Klipsch Designer Series DS-180CDT In-Ceiling Speaker (Each) features a swiveling tweeter and woofer assembly that can be angled up to 15 degrees to direct high and mid frequencies straight toward primary seating areas.
  • Patent-pending SkyHook® toolless installation system — automatically engages the securing dogs when the speaker is inserted into the ceiling cutout, reducing total installation time by up to 75% without needing power tools.
  • Large 8-inch Polypropylene Woofer — high-excursion woofer cone delivers rich, room-filling low frequencies and impactful mid-bass response ideal for larger spaces or demanding surround systems.
  • 1-inch Silk Dome Tweeter on Tractrix® Horn — provides smooth, clear high frequencies with wide dispersion and minimal distortion for natural vocal and instrumental presence.

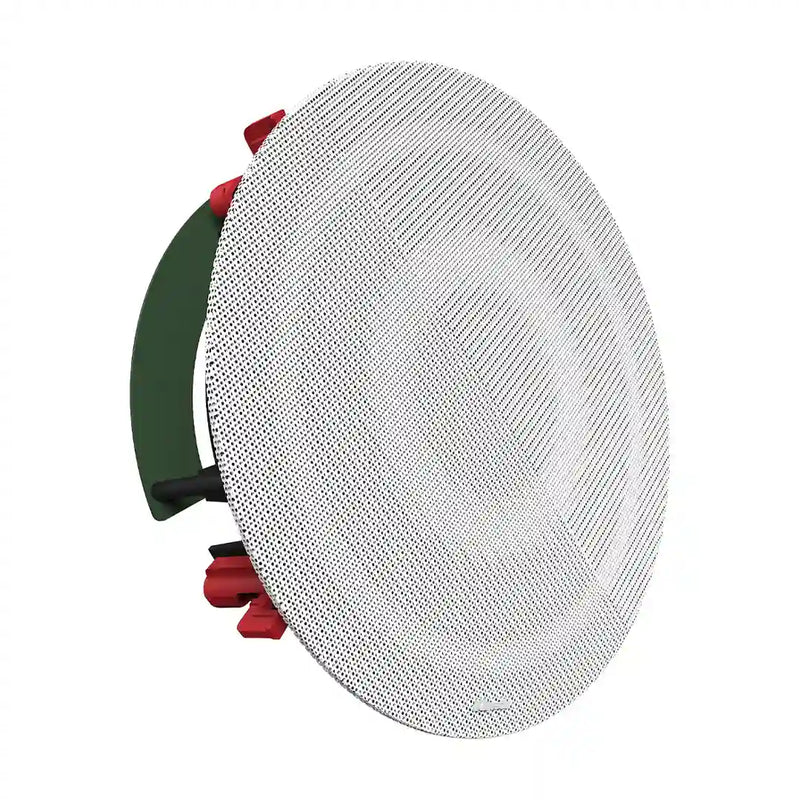

  • Magnetic paintable bezel-free steel grille — magnetic, low-profile grille fits flush against drywall and can be painted to match any room color scheme for a discreet, virtually invisible appearance.

FAQ — DS-180CDT

Is this speaker sold individually or as a pair?

This product listing is for a single (each) Klipsch Designer Series DS-180CDT In-Ceiling Speaker (Each). Please select the total quantity needed for your multi-room or Dolby Atmos height configuration.

What is the difference between the DS-180CDT and the DS-160CDT?

The DS-180CDT features a larger 8-inch woofer (compared to the 6.5-inch woofer on the DS-160CDT), offering deeper bass extension, greater power handling, and higher output for larger rooms.

Can this in-ceiling speaker be used for Dolby Atmos height channels?

Yes. Thanks to its swiveling CDT driver architecture, sound can be aimed directly at the listening position, making it an ideal overhead speaker for Dolby Atmos, DTS:X, and Auro-3D installations.

How does the SkyHook mounting system function?

The SkyHook mechanism automatically springs out and clamps the speaker securely against the ceiling drywall when pushed into the cutout hole, eliminating the risk of over-tightening screws.
