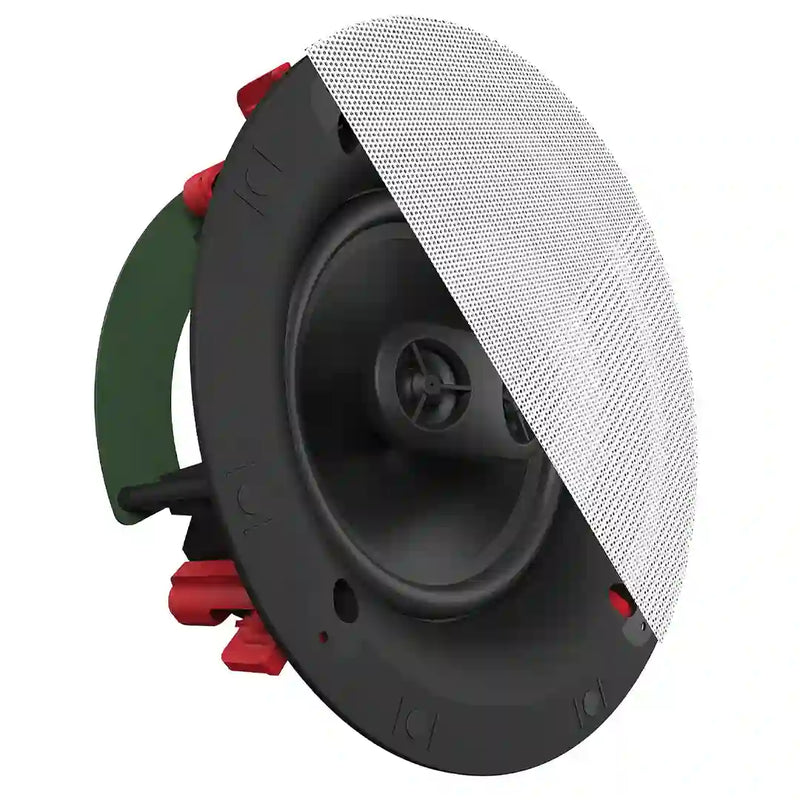

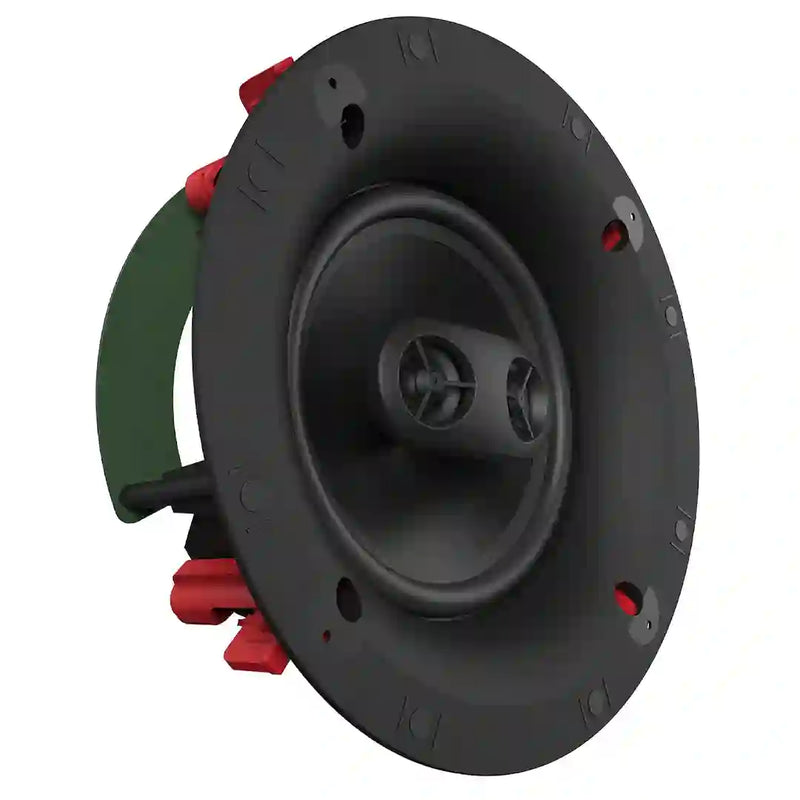

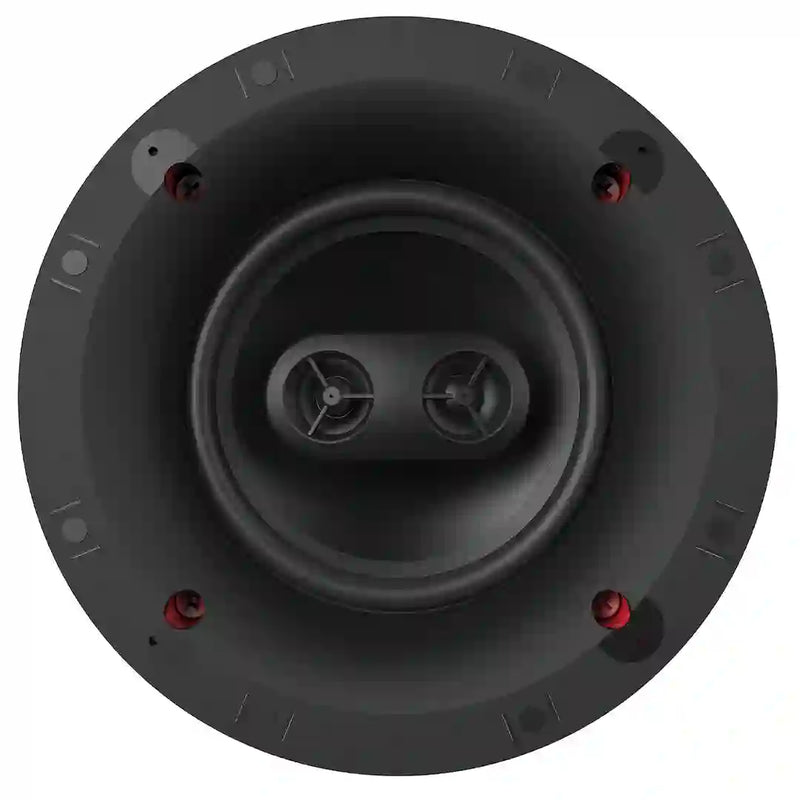

The Klipsch Custom Series CS-16CSM In-Ceiling Speaker delivers true stereo sound from a single architectural speaker, making it an ideal solution for rooms where installing a traditional left-and-right speaker pair isn't practical. A 6.5-inch dual-voice-coil polymer woofer works with two independent 0.75-inch polymer dome tweeters to reproduce both stereo channels from one ceiling location while maintaining the clean, discreet appearance of an installed audio system.
Designed primarily for distributed and whole-home audio applications, the CS-16CSM is especially useful in bathrooms, kitchens, hallways, dressing rooms, offices, and other compact spaces where a pair of speakers may be unnecessary or difficult to position. Klipsch's patented Sky Hook installation system simplifies mounting, while the bezel-free magnetic grille can be painted to coordinate with the surrounding ceiling for an unobtrusive finished installation.
Key Features & Innovations
Single-point stereo design — the Klipsch Custom Series CS-16CSM In-Ceiling Speaker reproduces both left and right channels from a single ceiling location, providing stereo sound where installing two separate speakers isn't practical.
6.5-inch dual-voice-coil polymer woofer — two independent voice coils allow the woofer to receive information from both stereo channels while using a single shared cone for bass and midrange reproduction.
Dual 0.75-inch polymer dome tweeters — separate high-frequency drivers reproduce the left and right channels independently, helping create a stereo presentation from one architectural speaker.
Ideal for compact rooms — the single-speaker stereo configuration is particularly useful in bathrooms, kitchens, hallways, offices, dressing rooms, and other areas where installing a conventional stereo pair would be impractical.
65Hz–20kHz frequency response — broad bandwidth provides balanced reproduction for background and distributed music systems, with a subwoofer available when deeper bass extension is desired.
91dB sensitivity — the efficient design allows the CS-16CSM to produce useful output with a wide variety of compatible distributed-audio and stereo amplifiers.
40W RMS / 160W peak power handling — provides ample dynamic capability for whole-home and distributed music applications.
Patented Sky Hook installation system — Klipsch's tool-free mounting system automatically engages the mounting legs when the speaker is inserted into the ceiling opening, helping simplify and accelerate installation.
Preset clamping force — the Sky Hook mounting mechanism applies controlled pressure to the ceiling surface, helping provide a secure installation while reducing the possibility of overtightening.
Faster architectural installation — Klipsch states that its Sky Hook system can reduce installation time by up to 75 percent compared with conventional mounting systems.
Infinite-baffle architecture — the CS-16CSM is designed to operate within the ceiling cavity without requiring a conventional standalone speaker enclosure.
Bezel-free magnetic grille — the round magnetic grille provides a clean architectural appearance with minimal visible trim around the speaker.
Paintable white grille — the grille can be painted to coordinate with the surrounding ceiling, helping the finished speaker blend discreetly into the room.
Optional installation accessories — the CS-16CSM is compatible with the Klipsch IK-650-C II installation kit and ME-650-C fire-rated enclosure, both available separately.
FAQ — Klipsch CS-16CSM
What does single-point stereo mean?
A single-point stereo speaker reproduces both the left and right channels of a stereo system from one speaker location. The CS-16CSM accomplishes this with a dual-voice-coil woofer and two separate tweeters, allowing one ceiling speaker to receive and reproduce both channels.
Does the CS-16CSM replace a pair of in-ceiling speakers?
It can when the goal is to provide stereo music in a compact area from a single ceiling opening. For larger rooms where stereo imaging and a wider soundstage are priorities, two appropriately positioned conventional speakers are generally preferable. The CS-16CSM is particularly useful where space, room layout, or installation constraints make a traditional pair impractical.
How is the CS-16CSM different from the CS-16C II?
The CS-16C II is a conventional mono speaker designed to reproduce one audio channel. The CS-16CSM uses a 6.5-inch dual-voice-coil woofer and two 0.75-inch tweeters so that it can reproduce both the left and right channels from a single speaker. This makes the CS-16CSM especially useful for single-speaker stereo applications.
Where is the CS-16CSM most useful?
The CS-16CSM is particularly well suited to bathrooms, kitchens, hallways, dressing areas, offices, smaller bedrooms, and other spaces where stereo music is desired but installing two separate ceiling speakers isn't practical.
What is the Klipsch Sky Hook installation system?
Klipsch's Sky Hook system automatically engages the mounting legs as the speaker is inserted into the ceiling cutout. The system uses a preset clamping force to provide a secure fit while reducing installation time and helping prevent overtightening.
Does the CS-16CSM need two amplifier channels?
Yes. Because the CS-16CSM reproduces both left and right stereo channels, it is designed to connect to both channels of a compatible stereo or distributed-audio amplifier. The dual-voice-coil woofer and dual tweeters allow the speaker to maintain the two-channel signal within a single speaker assembly.
Can the CS-16CSM grille be painted?
Yes. The included round magnetic grille is white and paintable, allowing it to be matched more closely to the surrounding ceiling for a discreet architectural installation.
