The JBL Synthesis SSW-5 Powered Subwoofer brings powerful, accurate low-frequency reproduction to high-performance home theater and music systems with a 12" pure-pulp cone, cast-frame woofer driven by an advanced 1,000-watt RMS amplifier. Engineered to complement JBL Synthesis SCL Series loudspeakers, the SSW-5 combines a large 4" voice coil, dual front-firing tuned ports, flexible crossover and level controls, single-band parametric EQ, and both balanced XLR and unbalanced RCA connectivity for seamless system integration. Its black ash wood veneer cabinet and magnetically attached cloth grille provide a refined appearance suited to dedicated cinemas, media rooms, and high-performance listening spaces.
Key Features & Innovations
12" pure-pulp cone woofer — the JBL Synthesis SSW-5 Powered Subwoofer uses a 12" (300mm) black pure-pulp cone, cast-frame woofer with a substantial 4" (100mm) voice coil engineered for powerful dynamics and accurate low-frequency reproduction.
Advanced 1,000-watt RMS amplifier — high-output onboard amplification provides the power and control required for demanding movie soundtracks and music playback without the need for a separate external subwoofer amplifier.
Dual front-firing tuned ports — the bass-reflex enclosure uses two front-firing ports to enhance low-frequency efficiency while providing placement flexibility in dedicated theaters and multipurpose listening rooms.

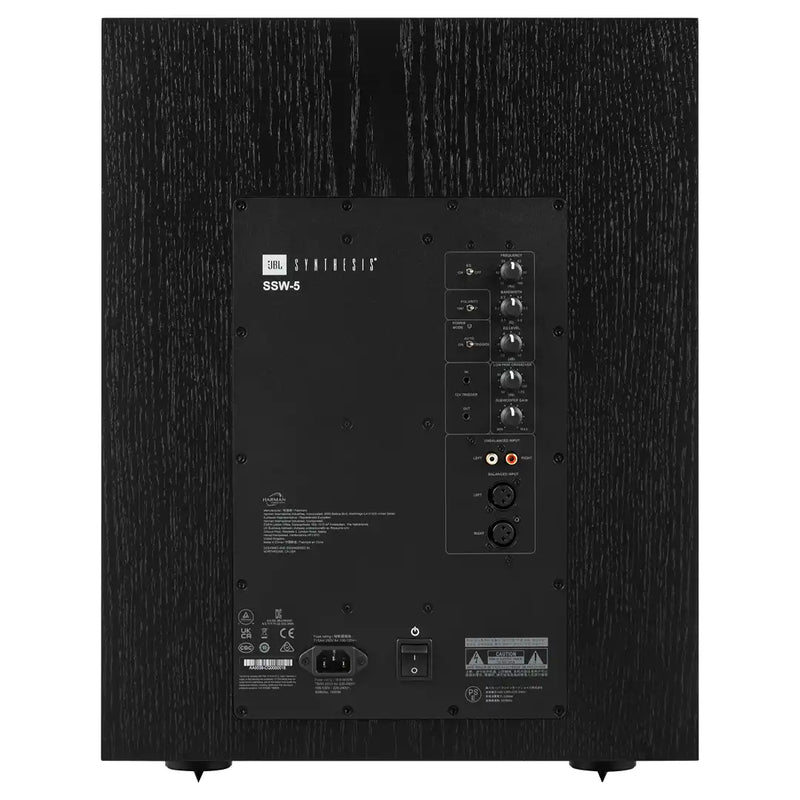

Flexible onboard system tuning — adjustable level, polarity, variable crossover, LFE selection, auto-power functionality, and single-band parametric EQ provide installers with extensive control over integration with the main loudspeakers and listening environment.
Balanced and unbalanced connectivity — dual balanced XLR and dual unbalanced RCA inputs allow the JBL Synthesis SSW-5 Powered Subwoofer to integrate with a wide variety of JBL Synthesis processors, AV receivers, preamplifiers, and professionally designed theater systems.
FAQ — SSW-5
How much amplifier power does the JBL SSW-5 have?
The SSW-5 features a built-in 1,000-watt RMS amplifier designed to provide high-output, controlled bass reproduction. Because amplification is integrated directly into the subwoofer, no separate power amplifier is required.
What size room is the SSW-5 designed for?
The JBL Synthesis SSW-5 Powered Subwoofer is designed to deliver powerful low-frequency performance in medium to large rooms. Multiple SSW-5 subwoofers can also be incorporated into a properly designed system to increase output and help provide more consistent bass response across multiple listening positions.
Does the SSW-5 have balanced XLR inputs?
Yes. The SSW-5 provides two balanced XLR inputs as well as two unbalanced RCA inputs, offering flexible connectivity for both high-performance custom installations and conventional home audio systems.
Can the SSW-5 be adjusted for different rooms and speaker systems?
Yes. The JBL Synthesis SSW-5 Powered Subwoofer includes adjustable crossover, level and polarity controls along with a single-band parametric EQ. The crossover can be continuously adjusted from 50Hz to 150Hz or switched to LFE operation when bass management is handled by an external processor.
