Dual-voice-coil single-stereo in-ceiling speaker • 6.5" dual-voice-coil Polycellulose woofer • dual 0.75" Aluminum dome tweeters with Acoustic Lens waveguides • XL-2 dog-leg mounting system • magnetic paintable bezel-free grille

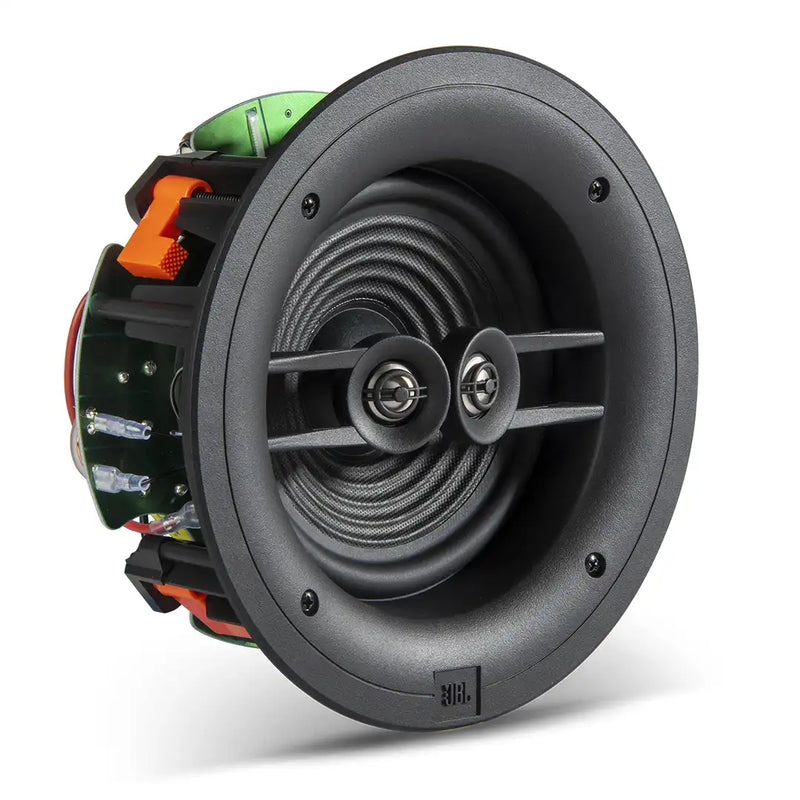

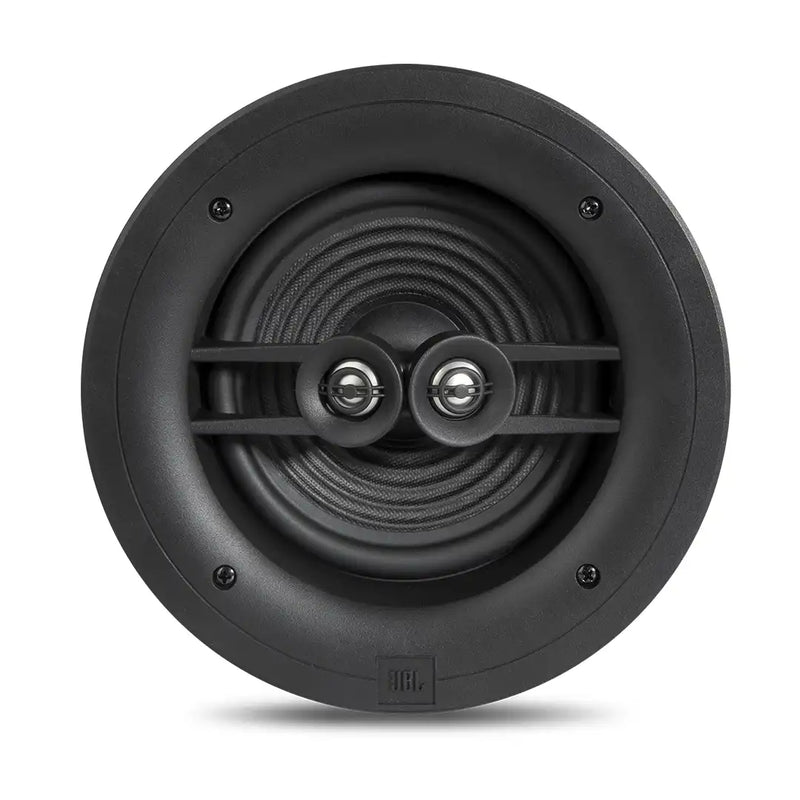

The JBL Stage 260CDT 2-Way 6.5-Inch Dual Tweeter In-Ceiling Loudspeaker (Each) delivers complete single-point stereo audio performance from a single compact architectural ceiling cutout. Featuring a 6.5-inch dual-voice-coil Polycellulose cone woofer combined with dual 0.75-inch aluminum dome tweeters equipped with Acoustic Lens waveguides, this specialized speaker reproduces left and right audio channels simultaneously. Engineered for space-restricted areas like hallways, bathrooms, walk-in closets, and entryway nooks, the Stage 260CDT brings room-filling stereo sound to places where installing a traditional stereo pair is impractical.
Key Features & Innovations
Single-point stereo architectural solution — the JBL Stage 260CDT 2-Way 6.5-Inch Dual Tweeter In-Ceiling Loudspeaker (Each) plays left and right stereo channels from a single cutout, delivering rich ambient music in compact living spaces.
Dual-voice-coil 6.5-inch Polycellulose woofer — rigid, lightweight polycellulose woofer cone receives independent left and right channel inputs to generate clean, impactful low frequencies.
Dual 0.75-inch aluminum dome tweeters — twin high-frequency drivers with Acoustic Lens waveguides direct detailed treble response across the entire room for even sound distribution.

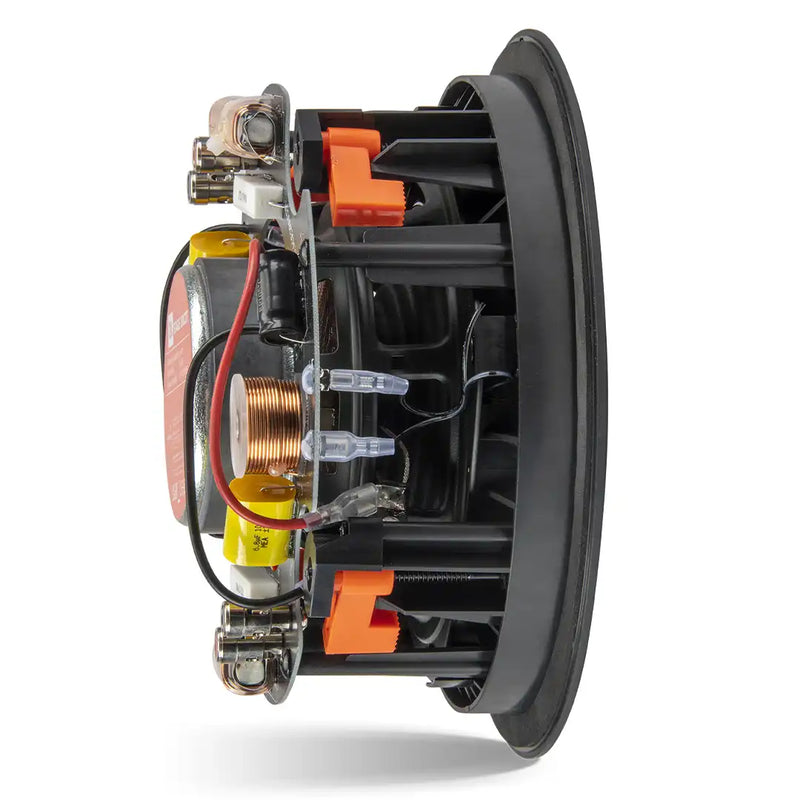

XL-2 dog-leg mounting mechanism — rugged mounting clamps adapt to ceiling material thicknesses up to 2 inches, ensuring quick, secure installation without rattling.

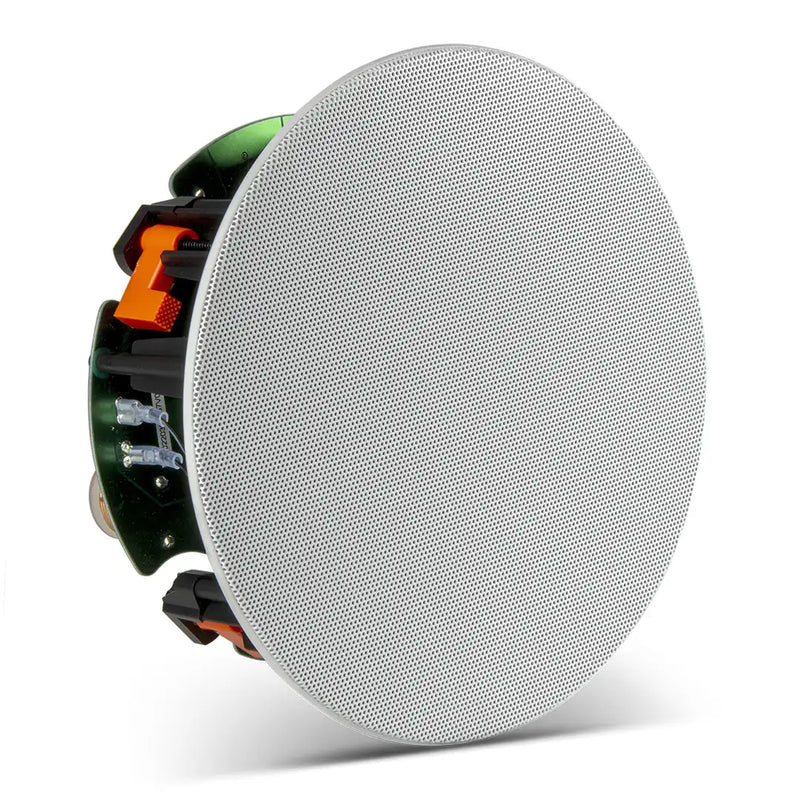

Zero-bezel magnetic steel grille — paintable, ultra-low-profile magnetic grille snaps into place effortlessly to blend invisibly with your ceiling finish.
FAQ — Stage 260CDT
How is the Stage 260CDT wired to an amplifier or receiver?

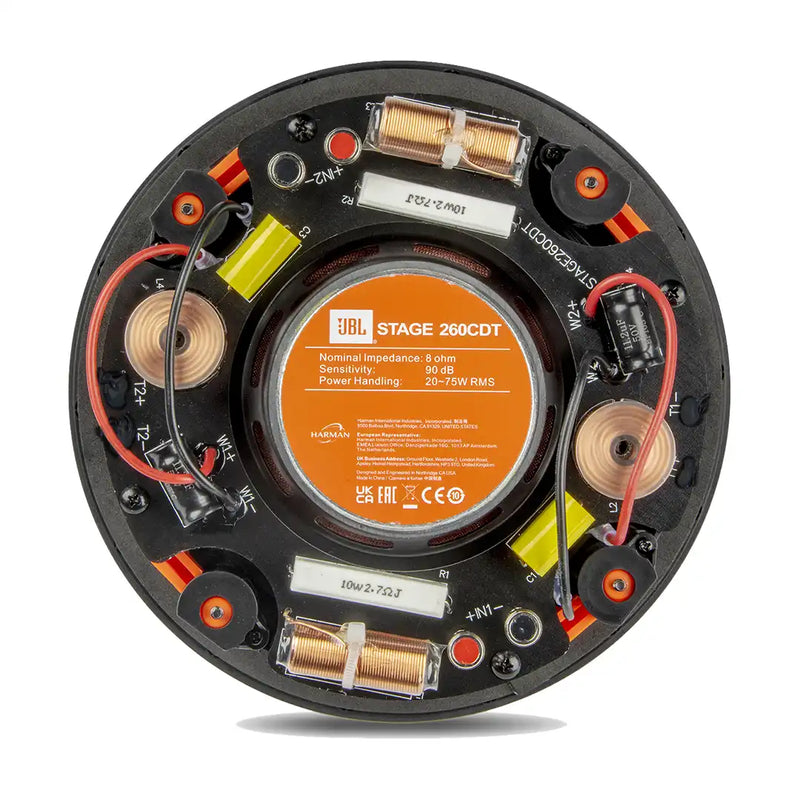

The speaker features two sets of input terminals on the crossover network (left channel + and -, right channel + and -), allowing a standard 4-conductor speaker cable run from a stereo amplifier zone.
When should I choose a dual-tweeter speaker over a standard single-tweeter model?
The JBL Stage 260CDT 2-Way 6.5-Inch Dual Tweeter In-Ceiling Loudspeaker (Each) is ideal for smaller rooms, corridors, or irregular spaces where installing two separate speakers would result in uneven sound coverage or visual clutter.
Is the front magnetic grille paintable?
Yes. The bezel-free magnetic steel grille can be painted with light coats of spray paint to match your room’s ceiling color perfectly.
What cut-out diameter is required for installation?
The speaker requires a round ceiling cut-out diameter of 8.0 inches (203 mm) with a minimum mounting depth of 4.1 inches (104 mm).
