JBL SYNTHESIS

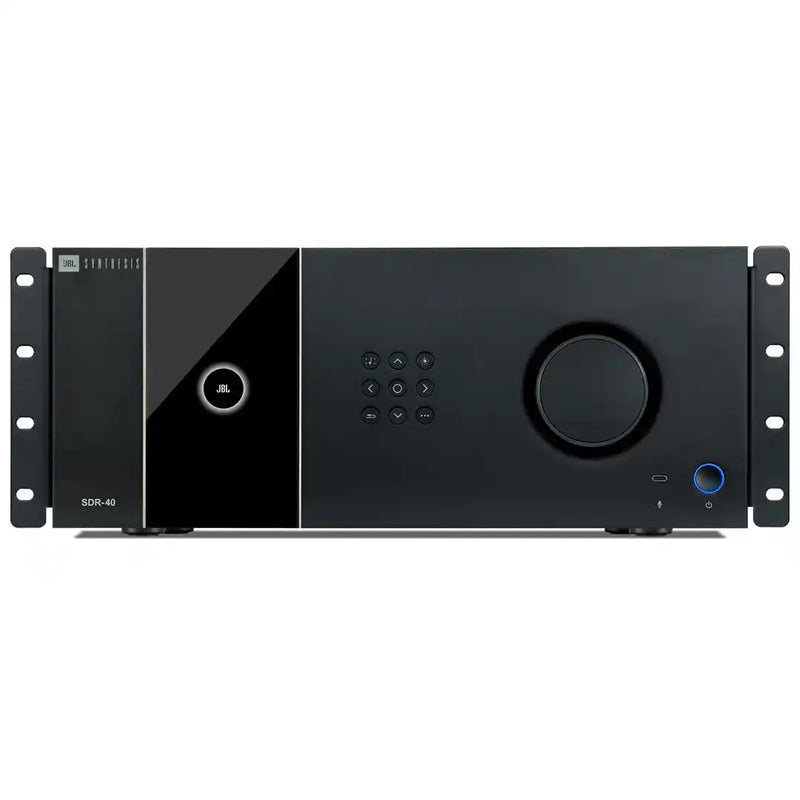

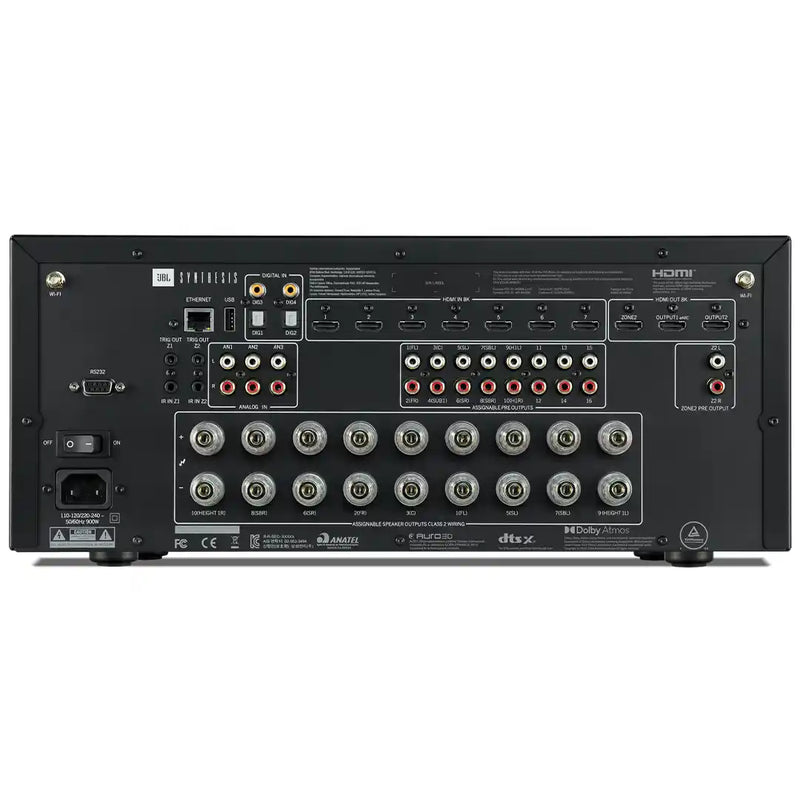

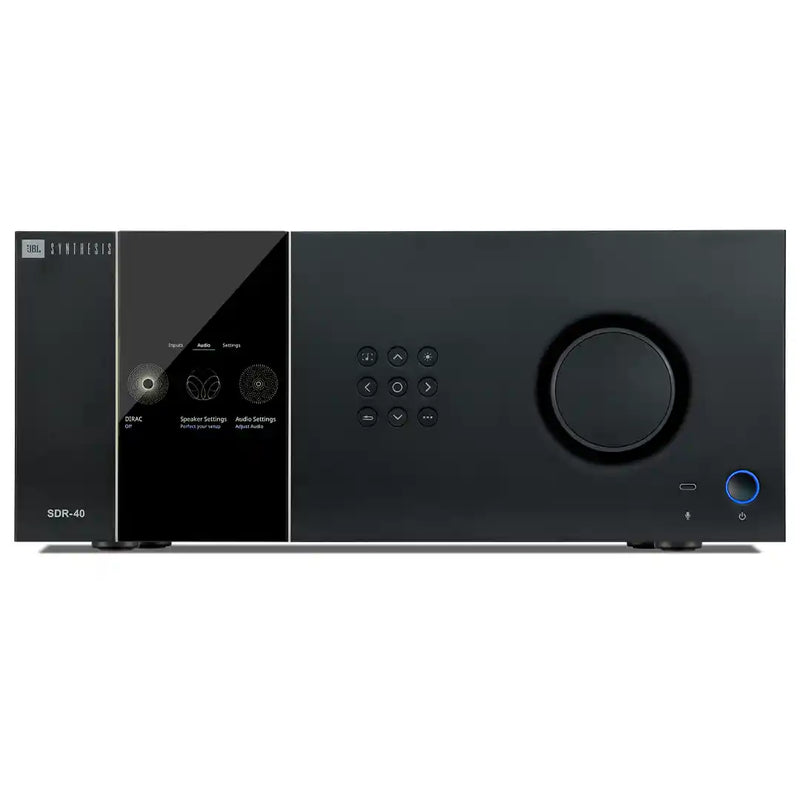

JBL SDR-40 9-Channel AV Amplifier with 16-channel Immersive Audio Processing

16-channel immersive AV receiver • 9-channel Class G amplification • 100W × 9 into 8Ω • Dirac Live & Bass Control • HDMI 2.1a • 8K/60 & 4K/120 • Dolby Atmos, DTS:X Pro, IMAX Enhanced & AURO-3D

The JBL SDR-40 9-Channel AV Amplifier combines reference-level immersive audio processing with powerful onboard amplification in a single high-performance home theater component. With 16 channels of processing and nine channels of Class G amplification, it provides the flexibility needed for sophisticated surround and height-speaker layouts while allowing additional channels to be driven by external power amplifiers. Designed for premium home cinema installations, the SDR-40 supports Dolby Atmos, DTS:X Pro, IMAX Enhanced, AURO-3D, and MPEG-H, while Dirac Live Room Correction and Dirac Live Bass Control help optimize speaker and subwoofer performance for the listening environment. HDMI 2.1a connectivity, high-resolution network streaming, extensive channel assignment, and 16 RCA preamp outputs make the SDR-40 a versatile foundation for both dedicated theaters and high-performance multipurpose AV systems.

Key Features & Innovations

  • 16-channel immersive audio processing — the JBL SDR-40 9-Channel AV Amplifier can process up to 16 channels, allowing extensive configuration flexibility for surround speakers, height channels, and multiple subwoofers.
  • Nine channels of Class G amplification — nine built-in amplifier channels provide 100 watts per channel into 8 ohms with all nine channels driven, while Class G topology combines high output capability with improved efficiency.
  • High dynamic power capability — with two channels driven, the SDR-40 delivers 145 watts per channel into 8 ohms and 220 watts per channel into 4 ohms, providing substantial headroom for demanding movie and music playback.
  • Matrix Channel Assignment — all processing channels can be reassigned, with subwoofer assignment available on designated channels, allowing the system layout to be tailored to the specific room and speaker configuration.
  • Dirac Live Room Correction & Bass Control — advanced room optimization addresses frequency and time-domain response while coordinating low-frequency performance across the listening area. Dirac Active Room Treatment is available as an optional upgrade.
  • Dolby Atmos, DTS:X Pro, IMAX Enhanced & AURO-3D — comprehensive immersive-audio support enables sophisticated object-based and multichannel home theater installations.
  • HDMI 2.1a with 8K and high-frame-rate support — seven HDMI inputs support resolutions up to 8K/60Hz and 4K/120Hz, along with Dolby Vision, HDR10+, HDR10+ Gaming, HLG, VRR, ALLM, CEC, and eARC.
  • High-resolution network streaming — built-in support includes Apple AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready playback, Internet Radio, podcasts, and UPnP.

FAQ — JBL SDR-40

How many speakers can the JBL SDR-40 power directly?

The SDR-40 includes nine channels of built-in Class G amplification. It can process up to 16 channels total, so additional channels can be powered using external amplifiers connected to its RCA preamp outputs.

How much power does the SDR-40 produce?

With all nine channels driven, the SDR-40 is rated at 100 watts per channel into 8 ohms. With two channels driven, output increases to 145 watts per channel into 8 ohms or 220 watts per channel into 4 ohms.

Does the SDR-40 include Dirac room correction?

Yes. It includes Dirac Live Room Correction and Dirac Live Bass Control. Dirac Active Room Treatment, or ART, is available as an optional upgrade.

Can the SDR-40 support a 16-channel home theater system?

Yes. The processor supports up to 16 channels. Nine channels can be powered directly by the receiver, while external amplifiers can be connected to the remaining preamp outputs as required by the system design.

Does the SDR-40 support 4K/120Hz and 8K video?

Yes. Its HDMI 2.1a platform supports resolutions up to 8K at 60Hz and 4K at 120Hz, along with Variable Refresh Rate, Auto Low Latency Mode, Dolby Vision, HDR10+, HDR10+ Gaming, and HLG.
