Reference-Level 36-Channel Processing for Flagship JBL Synthesis Home Cinema Systems
The JBL SDP-80 36 Channel Immersive Audio Processor is the flagship surround preamplifier designed for large-scale JBL Synthesis theaters requiring exceptional channel count, advanced room optimization and precise system integration. With 36 channels of native high-resolution digital processing, the SDP-80 supports Dolby Atmos, DTS:X Pro and Auro-3D while providing the flexibility required for sophisticated immersive layouts with extensive surround, height and subwoofer configurations.
At the heart of the SDP-80 is Trinnov's advanced Optimizer technology combined with JBL Synthesis-specific performance enhancements, Harman target curves and loudspeaker EQ data. HDMI 2.1 switching supports video bandwidth up to 40Gbps for 8K at 60Hz or 4K at 120Hz with HDR, while extensive balanced analog, AES digital, network and control connectivity allow the processor to serve as the central platform in a fully engineered reference home cinema.
Highlights & Benefits
-
36 Channels of Native Processing — Supports extremely sophisticated immersive theater layouts without requiring separate external surround processors.
-
Trinnov Optimizer Room Correction — Advanced acoustic measurement and optimization tools provide precise speaker alignment, EQ and room-response correction.
-
Dolby Atmos, DTS:X Pro & Auro-3D — Full support for today's leading object-based immersive audio formats.
-
HDMI 2.1 with 8K/60 & 4K/120 — Eight HDMI inputs support up to 40Gbps bandwidth, HDCP 2.3, HDR and high-frame-rate video for premium cinema and gaming systems.
-
JBL Synthesis System Integration — Factory Harman target curves and JBL Synthesis loudspeaker EQ files support precise integration with JBL Synthesis speakers, subwoofers and amplification.
Technology & Design
Trinnov Optimizer — The JBL SDP-80 36 Channel Immersive Audio Processor incorporates Trinnov's advanced optimization platform for measuring and correcting loudspeaker response within the listening room. The system is designed to address frequency response, speaker alignment and room interaction while maintaining the performance targets established for a JBL Synthesis system.
JBL Synthesis Sound Field Management Integration — In a properly engineered JBL Synthesis installation, Sound Field Management can be used to optimize multiple subwoofers for smoother bass response across multiple seating positions. This technology helps reduce modal variation and improve low-frequency consistency throughout the theater.

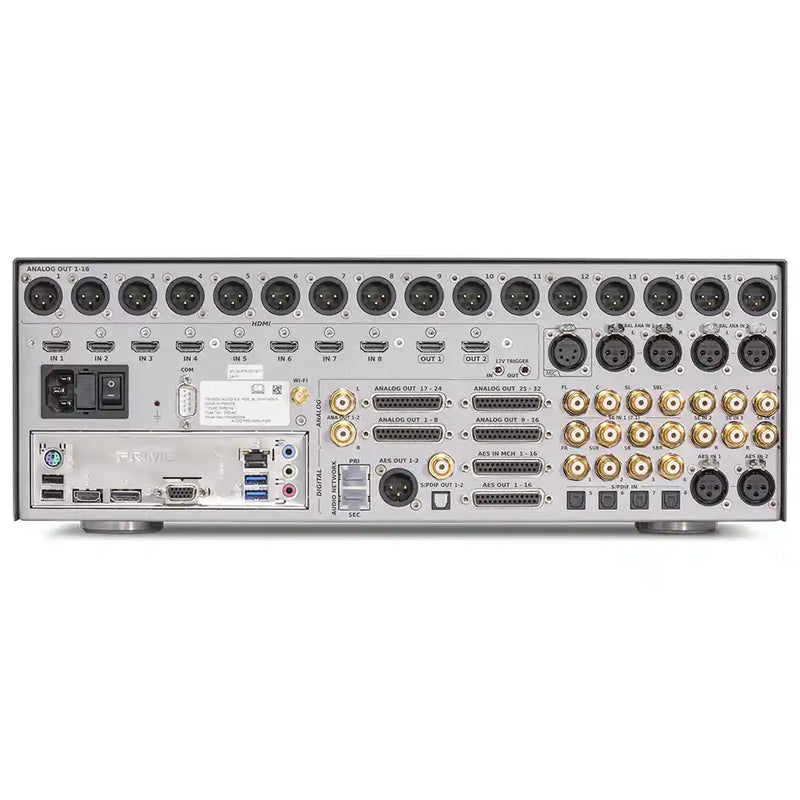

High-Resolution 36-Channel Architecture — The processor provides native high-resolution digital processing across 36 channels and includes 16 direct XLR analog outputs plus four balanced DB25 connectors covering channels 1–32. Digital AES connections provide additional flexibility for sophisticated high-channel-count system designs.
PC-Based Expandable Processing Platform — The SDP-80 is built around a computer-based architecture running Trinnov's audio software, allowing sophisticated configuration through its graphical interface. It can be controlled locally with a monitor, keyboard and mouse, or remotely using VNC, browser-based tools and compatible automation platforms.
FAQ — JBL SDP-80
How many channels can the JBL SDP-80 process?
The JBL SDP-80 provides 36 channels of native high-resolution digital audio processing, making it suitable for very large Dolby Atmos, DTS:X Pro and Auro-3D theater configurations.
Does the SDP-80 support HDMI 2.1?
Yes. It includes eight HDMI 2.1 inputs supporting up to 40Gbps bandwidth, HDCP 2.3, video up to 8K at 60 frames per second and 4K at 120 frames per second with HDR.
What room correction does the SDP-80 use?
The SDP-80 uses Trinnov Optimizer technology with JBL Synthesis-specific performance enhancements, Harman target curves and JBL Synthesis loudspeaker EQ files. It can also be used as part of a JBL Synthesis system incorporating Sound Field Management for advanced multi-subwoofer optimization.
Is the SDP-80 Roon Ready?
Yes. JBL Synthesis lists the SDP-80 as Roon Ready for high-resolution network music playback through its Ethernet connection.
