JBL Conceal C86 8-Inch 6-Element Dual Panel Invisible Loudspeaker (Each)

Flagship 3-way architectural invisible loudspeaker system • dual-panel design with separate low-frequency & high-frequency panels • patented FidelityGlass™ acoustic radiating surfaces • 8" high-power woofer • 4x 1.18" neodymium midrange drivers & 1" neodymium HF exciter • integrated acoustic backboxes • paintable & plaster-over finish

The JBL Conceal C86 8-Inch 6-Element Dual Panel Invisible Loudspeaker (Each) represents the pinnacle of architectural acoustic design, delivering audiophile-caliber dynamics and clarity while remaining entirely concealed behind standard wall surfaces. Formatted as an expansive two-panel system, it separates the low-frequency transducer from the mid/high-frequency drivers across two dedicated FidelityGlass™ radiating surfaces. Once framed flush into drywall, mudded, taped, and painted or covered with wallpaper, this six-element invisible loudspeaker vanishes into the room decor while filling large architectural spaces with broad hemispherical dispersion, punchy tactile bass, and transparent dialog articulation.

Key Features & Innovations

  • Decoupled Dual-Panel Acoustic Architecture — the JBL Conceal C86 8-Inch 6-Element Dual Panel Invisible Loudspeaker (Each) utilizes two independent panels (one dedicated to an 8-inch low-frequency driver and one housing a 5-element MF/HF array) to prevent bass vibration intermodulation distortion.
  • Patented FidelityGlass™ Radiating Diaphragms — engineered acoustic panels provide structural stiffness while flexing smoothly under drive, radiating full-spectrum sound transparently through plaster, drywall compound, paint, and wallpaper without high-frequency attenuation.
  • High-Output 8-Inch Bass Driver with 1.5-Inch Voice Coil — heavy-duty woofer operates within an integrated acoustic backbox to generate deep, low-distortion low frequencies down to 45 Hz with authoritative punch.
  • Precision 5-Transducer Mid/High Driver Array — features four 1.18-inch (30 mm) neodymium midrange exciters and one 1-inch (25 mm) neodymium high-frequency exciter, creating an expansive 180-degree dispersion pattern with seamless vocal detail.

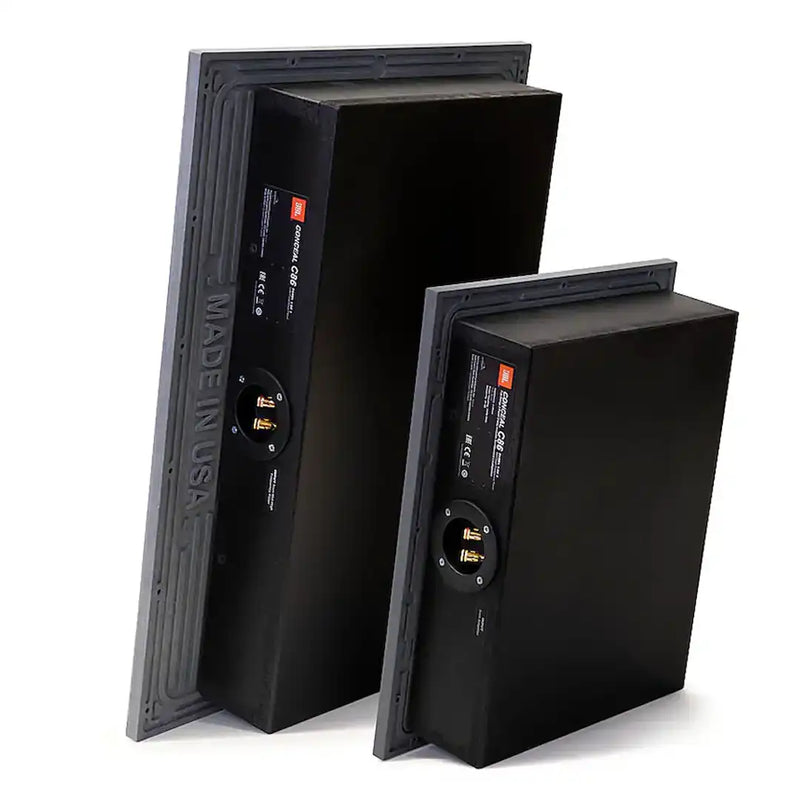

  • Factory-Integrated Acoustic Backbox Enclosures — both panels come outfitted with fully sealed wooden backboxes to deliver predictable in-wall acoustic loading while significantly attenuating sound leakage into adjoining rooms.

FAQ — JBL Conceal C86

Does a single unit of the JBL Conceal C86 8-Inch 6-Element Dual Panel Invisible Loudspeaker (Each) include two panels?

Yes. Each single speaker channel of the JBL Conceal C86 8-Inch 6-Element Dual Panel Invisible Loudspeaker (Each) consists of two matched panels: a low-frequency panel and a high/mid-frequency panel that wire together via an internal crossover link.

How is the dual-panel system installed into a wall?

Both panels fit between standard 16-inch on-center wall studs (installed vertically or side-by-side) and secure directly to the framing. The face is flush with 1/2-inch or 5/8-inch drywall, taped, mudded with joint compound, sanded smooth, and finished with wall paint or light wallpaper.

What amplifier power is recommended for the C86?

JBL recommends driving the C86 with robust amplification delivering between 50 and 200 Watts RMS per channel into 4 Ohms to ensure clean, dynamic, uncompressed acoustic peaks.

Can this speaker be used in luxury home theaters?

Yes, the C86 is engineered specifically for reference hidden theaters and premium multi-room distributed audio systems, providing wide 180-degree dispersion that ensures even coverage across all seating positions.
