GoldenEar Triton Five 5.1 Home Theater Bundle
Triton Five
The Triton Five is a larger version of the Award Winning Triton Seven, with greater dynamic range and even deeper bass extension, plus important refinements carried over from the Triton One development program. As with all of GoldenEar's Triton Towers, the Triton Five’s high-resolution sonic performance makes it ideal for use in two channel systems of the highest quality, as well as complete multi-channel surround music and home theater systems. “They absolutely rock the speaker world’s foundation to the core … delivering the kind of musical bliss some pay upwards of $10,000 for”, raves Caleb Denison of Digital Trends.
Product Details:
Driver Complement
- One High-Velocity Folded Ribbon AMT Tweeter
- Two 6" High-Definition Cast-Basket Mid/Bass Drivers
- Four 8" Planar Sub-Bass Radiators
- Passive Radiator Surface Area: 32.74in2 (211.24cm2)
- Efficiency: 90dB 1W/1M @ 4Ω (2.83V/1M)
- Frequency Response: 40Hz – 25kHz typical (-6dB on axis @ 40Hz, anechoic bass response)
- Nominal Impedance: 4Ω
- Recommended Amplification: 15 – 400Wpc
Dimensions
- Tower: 6.6" wide (front) x 8.1" wide (rear) x 12.4" deep x 44.3" high (with base, no spikes)
- Base: 11" wide x 16.5" deep
- Weight: Product: 40 lbs. Shipping: 56 lbs.
SuperCenter XL Center Channel
The larger SuperCenter XL center channel speaker benefits from dual 6-3/4˝ x 8˝ quadratic planar low frequency radiators, giving it significant low frequency extension and exceptional dynamic range. The SuperCenter XL is perfect for larger home theater systems.
Product Details:
Driver Complement
- One High-Velocity Folded Ribbon AMT Tweeter
- Two 5.25" Cast-Basket Mid/Bass Drivers
- Two 6.75" x 8" Quadratic Planar Low-Frequency Radiators
- Passive Radiator Surface Area: 30.45in2 (196.49cm2)
- Efficiency: 90dB 1W/1M @ 4Ω (2.83V/1M)
- Frequency Response: 38Hz–25kHz typical (-6dB on axis @ 64Hz, anechoic bass response)
- Nominal Impedance: 4Ω
- Recommended Amplification: 20 -250Wpc
- Dimensions: 28.9" (73.5 cm) W x 5.75" (14.6 cm) H x 11" (28.0 cm) D
- Weight: Product: 21 lbs (9.5 kg) / Shipping: 28 lbs (12.7 kg)
ForceField 30
Packed into its compact, elegant cabinet, the ForceField 30 combines one 8” ultra-long-throw high-output bass driver, one 9” x 11” downward-firing passive radiator, and a 1000W ForceField digital amplifier.
Product Details:
Driver Complement
- One 8" Long-Throw High-Output Bass Driver
- One 9" x 11" Quadratic Planar Back-Wave-Driven Radiator
- Passive Radiator Surface Area: 69.36in2 (447.5cm2)
- Frequency Response: 26Hz–170Hz (-6dB on axis, anechoic)
- Amplifier: 1000W peak/500W RMS, DSP-Controlled, MOSFET Output Stage (50-ohm load – 5 seconds sustained 55Hz sinusoidal signal) Note: Not tested to FTC standard (8-ohm load – 5 minutes sustained 1kHz sinusoidal signal)
- Right/Left Line-Level Input: 12dB per octave continuously variable from 40–150Hz
- Low-Level Input (Mono): Unfiltered (no low-pass), direct coupled
Power Requirements/Consumption
- Low Voltage Model: 100-120V at 50 or 60Hz/1400 Watts
- High Voltage Model: 220-240V at 50 or 60Hz/1400 Watts
- Dimensions: 11.4" (28.9cm) W x 16" (40.6cm) D x 12.7" (32.2cm) H (with feet)
- Weight: Product: 31.5lbs (14.3kg); Shipping: 36.5lbs (16.6kg)
Aon 3
The compact, 14″ Tall Aon 3 Bookshelf Monitor incorporates a 7″, High-Definition, Multi-Vaned Phase Plug (MVPP™), cast-basket Mid-Bass Driver, coupled to two 8″ Inertially-balanced side-mounted Low Frequency Radiators and the GoldenEar High-Velocity Folded Ribbon Tweeter (HVFR™).
Product Details:
Driver Complement
- One High-Velocity Folded Ribbon AMT Tweeter
- One 7" Cast-Basket Mid/Bass Driver
- Two 8" Side-Mounted Planar Low-Frequency Radiators
- Passive Radiator Surface Area: 32.74in2 (211.24cm2)
- Efficiency: 88dB 1W/1M @ 4Ω (2.83V/1M)
- Frequency Response: 40Hz–25kHz typical (-6dB on axis @ 66Hz, anechoic bass response)
- Nominal Impedance: 4Ω
- Recommended Amplification: 10 - 250Wpc
- Dimensions: 9" (22.9cm) W x 11" (27.9cm) D x 14" (35.6cm) H
- Weight: Product: 15lbs (6.8kg); Shipping: 17lbs (7.7kg)
SuperSat 3
The SuperSat 3 is an elegantly curved, compact satellite speaker designed for use when very high-performance yet small size is desired. (It is also the ideal matching Surround/Rear speaker and on-wall Height channel speaker for any GoldenEar-based system.) Four SuperSat 3s and one SuperSat 3C, combined with a ForceField 3 powered subwoofer, make up the superlative and award winning SuperCinema 3, a sub/sat 5.1 multichannel system.
Product Details:
Driver Complement
- One High-Velocity Folded Ribbon AMT Tweeter
- Two 4.5" High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Drivers
- Efficiency: 91 dB 1W/1M @ 4Ω (2.83V/1M)
- Frequency Response: 90Hz–25kHz typical (-6dB on axis @ 180Hz, anechoic bass response)
- Nominal Impedance: 4Ω
- Recommended Amplification: 20 - 200Wpc
- Dimensions: 12.6" (30.5cm) H/W x 4.75" (12.1cm) W/H x 2.8" (7 cm) D
- Weight: 5lbs (2.3kg); Shipping: 6lbs (2.7kg)
Invisa 525
The Invisa 525 and 650 are designed for in-ceiling and in-wall use. The driver motor structures and cone/voice coil assemblies (5.25″ in the 525 and 6.5″ in the 650) are based on those utilized in GoldenEar’s Triton and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.
Product Details:
Driver Complement
- One Pivotable High-Velocity Folded Ribbon AMT Tweeter
- One 5.25" (13.33cm) High-Definition Cast-Basket Mid/Bass Driver
- Efficiency: 90dB 1W/1M @ 4Ω (2.83V/1M)
- Frequency Response: 45Hz–35kHz typical (-6dB on axis @ 100Hz, anechoic bass response)
- Nominal Impedance: 4Ω
- Recommended Amplification: 10 - 200Wpc
Dimensions
- Speaker: 7.2" (19.6cm) diameter x 3.5" (8.6cm) D
- Square Grille: 7.7" (19.6cm) x 7.7" (19.6cm)
- Round Grille: 7.7" (19.6cm) diameter
- Cutout: 6.2" (15.7cm) diameter
- Weight: Product: 3.5lbs (1.7kg); Shipping: 5lbs (2.3kg)

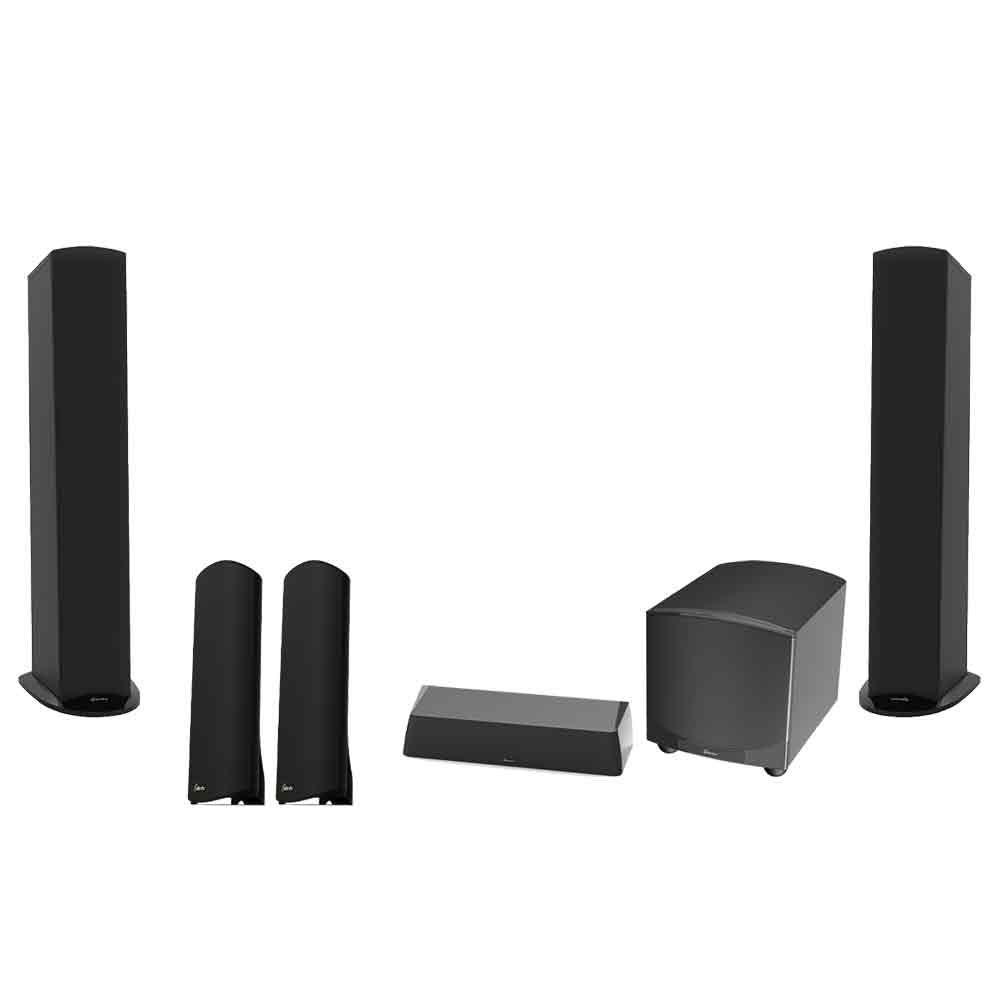

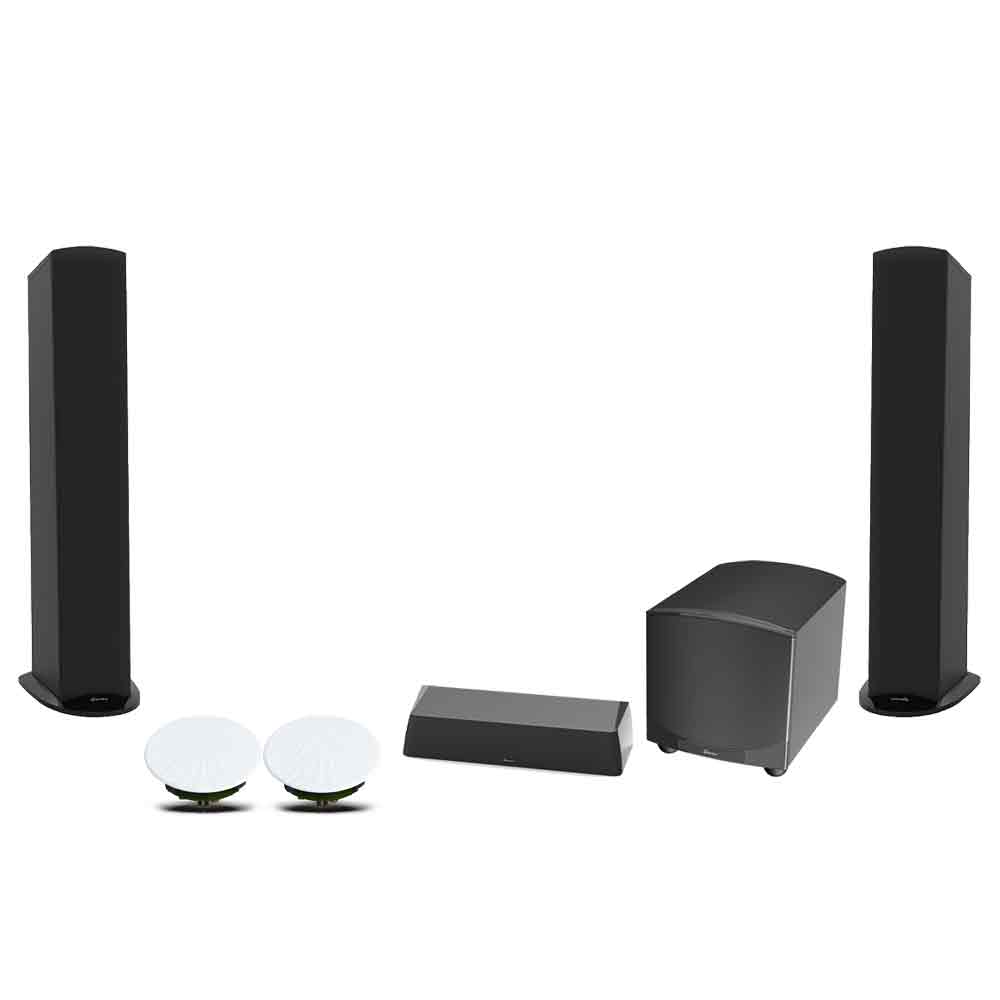

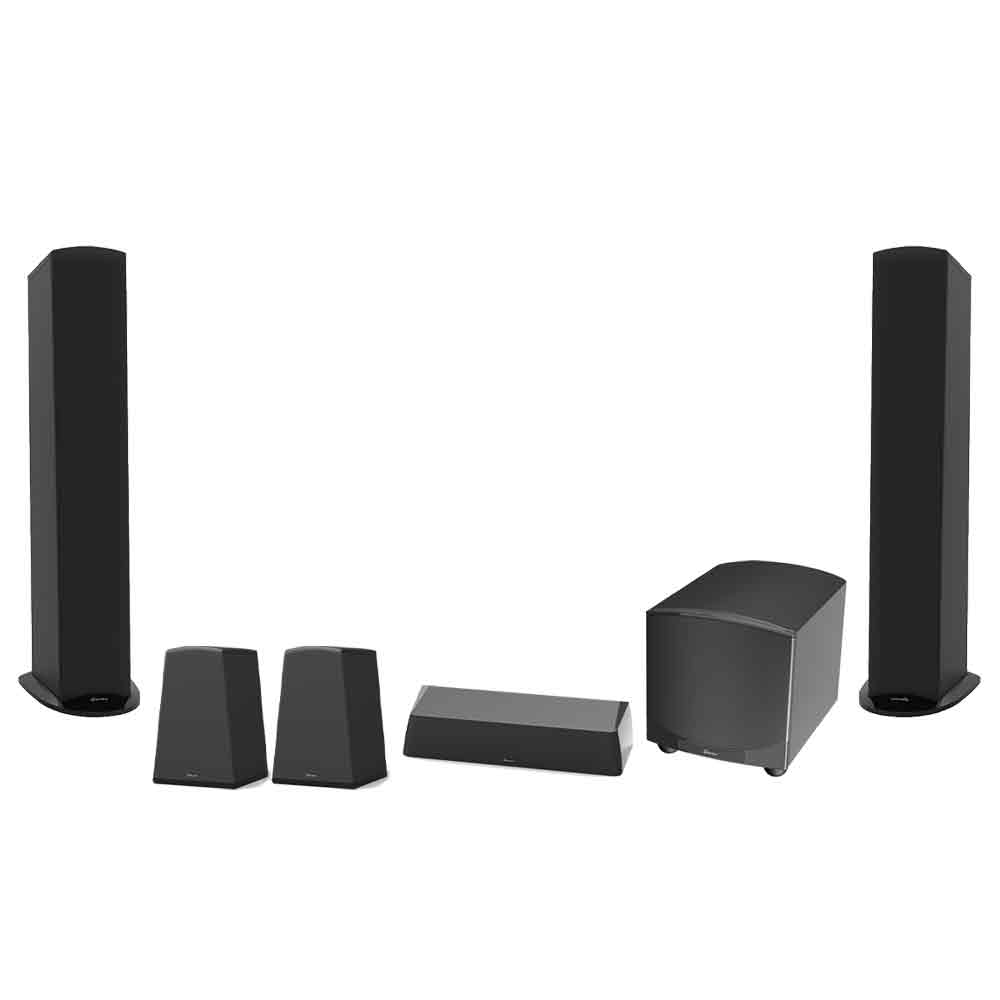

What to expect in the box:
- Triton Five (Pair)
- SuperCenter XL Center Channel
- ForceField 30 (Pair)
- Aon 3 (Pair) or SuperSat 3 (Pair) or Invisa 525 (Pair)
