Furman M-8X AR Voltage Regulator

$799.95
$799.95
Availability: In Stock
Have Questions or Need Advice?
Audiolab Advisor
Consult with a System Expert
From our PA Showroom

Free Shipping, no minimum!

60-Day Returns

Have a Trade-In? Fill Out Our Form.

Furman

Furman M-8X AR Merit Series 15 Amp Voltage Regulator

15 Amp Capacity • Automatic Voltage Regulation • EVS Protection • 9 Regulated AC Outlets

Meet the M-8X AR

The Furman M-8X AR is a professional-grade voltage regulator designed to protect sensitive audio, video, recording, and electronic equipment from unstable AC power conditions. Utilizing Furman's automatic voltage regulation technology, the M-8X AR continuously monitors incoming AC power and corrects voltage fluctuations to maintain a stable 120V AC output (±5V). This helps eliminate problems caused by brownouts, low-voltage conditions, over-voltage events, and inconsistent utility power while helping connected equipment perform reliably and safely.

Ideal for recording studios, live sound systems, DJ rigs, broadcast facilities, home theaters, and commercial AV installations, the M-8X AR provides nine regulated and conditioned outlets, advanced protection circuitry, comprehensive voltage monitoring, and Furman's trusted Extreme Voltage Shutdown technology.

Highlights & Benefits

  • Automatic Voltage Regulation — Maintains a stable 120V AC output even when incoming voltage fluctuates.
  • 15 Amp Capacity — Supports professional audio, video, recording, and IT equipment.

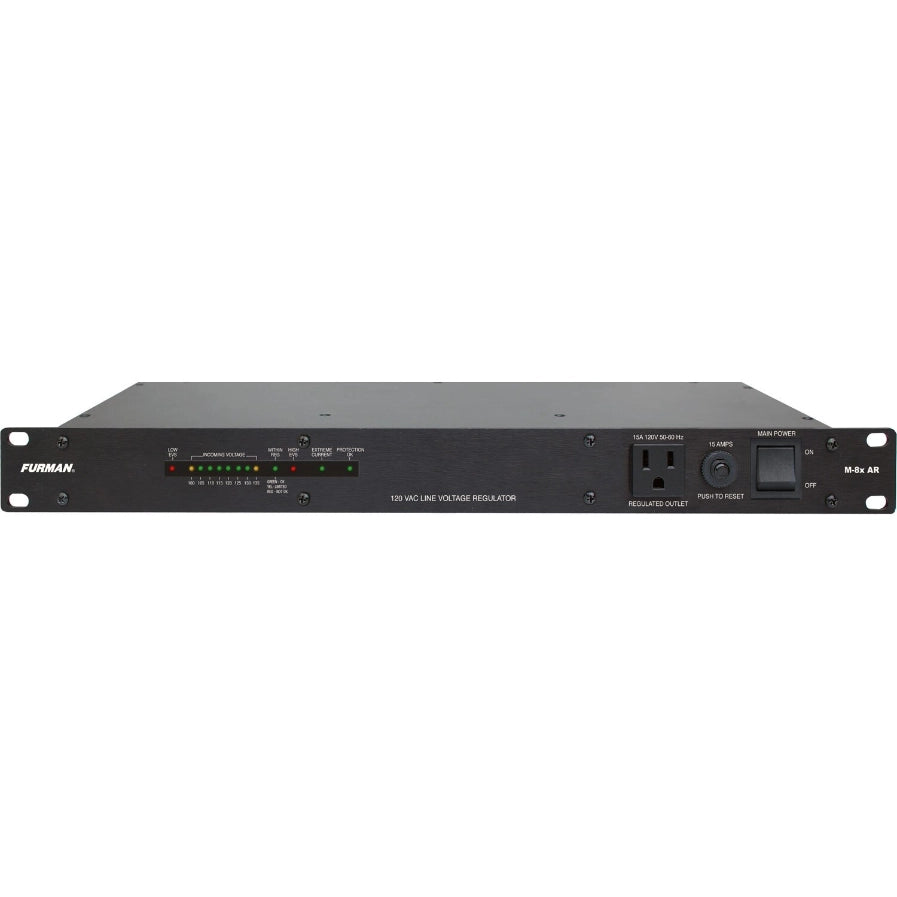

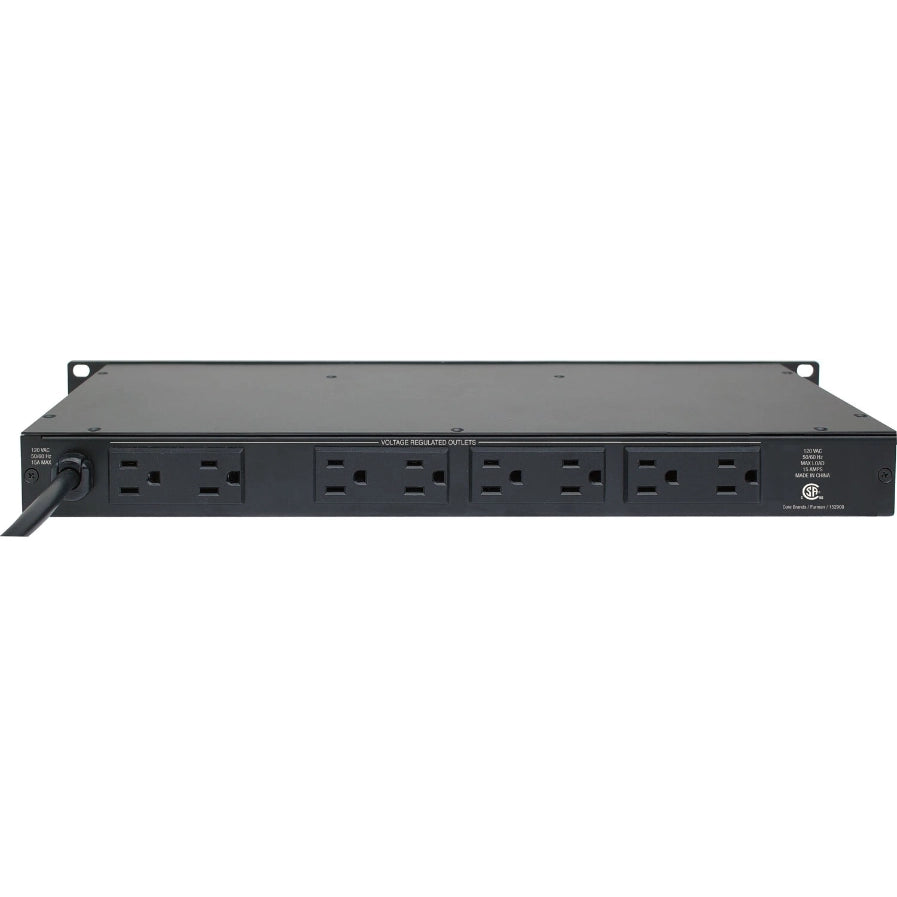

  • 9 Regulated AC Outlets — Eight rear-panel outlets plus one front-panel convenience outlet.
  • Extreme Voltage Shutdown (EVS) — Protects connected equipment from dangerous over-voltage conditions.
  • Extreme Current Shutdown (ECS) — Automatically disconnects power during severe over-current events.
  • Voltage Monitoring Display — Eight-segment bi-color LED meter displays incoming line voltage.
  • Toroidal Autoformer Design — Provides efficient voltage correction with low magnetic field leakage.
  • Rack-Mount Form Factor — Standard 1RU design integrates easily into professional equipment racks.

Technology & Design

Automatic Voltage Regulation allows the M-8X AR to compensate for input voltage variations between approximately 97V and 141V while maintaining regulated output power near 120V AC. This protects equipment from performance issues caused by low-voltage or over-voltage conditions.

Extreme Voltage Shutdown (EVS) continuously monitors incoming power and automatically disconnects connected equipment when unsafe voltage conditions exceed the regulator's operating range. Once safe power conditions return, operation is automatically restored.

Extreme Current Shutdown (ECS) protects both the regulator and connected equipment from severe over-current conditions while avoiding nuisance shutdowns caused by normal amplifier inrush currents.

Low-Noise Toroidal Transformer Technology delivers voltage correction with minimal stray magnetic field leakage, making the M-8X AR well-suited for sensitive recording and audio environments.

Professional Power Management makes the M-8X AR an excellent solution for recording studios, live production systems, DJ setups, instrument rigs, houses of worship, broadcast facilities, and commercial AV systems.

FAQ — M-8X AR

What does the M-8X AR do?

The M-8X AR automatically regulates incoming AC voltage to maintain stable output power while protecting connected equipment from brownouts, voltage sags, and over-voltage conditions.

How many outlets does the M-8X AR provide?

The unit includes nine regulated outlets: eight on the rear panel and one convenience outlet on the front panel.

What is EVS protection?

Extreme Voltage Shutdown (EVS) automatically disconnects power if incoming voltage rises above or falls below safe operating limits, helping protect valuable electronics.

Is the M-8X AR a power conditioner or a voltage regulator?

The M-8X AR is primarily a voltage regulator with conditioning and surge protection features. Unlike basic power strips, it actively corrects voltage fluctuations to maintain consistent output power.

What applications is it designed for?

The M-8X AR is ideal for professional audio systems, recording studios, broadcast facilities, DJ rigs, instrument setups, commercial AV systems, and home entertainment installations.

Why Buy From Us

  • Authorized Furman Dealer
  • 5% Reward Points on All Purchases
  • Price Match Guarantee
  • Free Shipping Nationwide
  • Expert Power Management Support
