Furman Elite Series ELITE-20 PF I Power Conditioner

Furman Elite Series ELITE-20 PF I Power Conditioner - Furman

The Elite-20 PF i also features remote control capability via 12V triggering, compatible with the 12V triggering devices commonly found in power receivers and pre-amp processors. Additional products (such as a remote subwoofer) can be daisy-chained from the 12V output jack for an additional triggered unit. The 12V triggering feature may be bypassed if desired.

The essence of the Elite-20 PF i is Furman's unique Power Factor Technology. For the first time, low-level analog, digital, and video components are not modulated or distorted by the power amplifier's extreme AC current demands. Further, the power amplifier is fed a highly filtered, extremely low-impedance supply of AC power. The Elite-20 PF i, in fact, has in excess of 4 Amps of continuous current reserve (over 55 amps peak charge) for the most extreme peak power demands. This technology enables power amplifiers and powered subwoofers to operate at maximum efficiency, reaching levels of performance previously unattainable.

No longer will your amplifier's performance be at the mercy of your home's incoming AC power or inferior AC protection/filtering devices. The net effect is as if your power amplifier virtually doubled in power and improved immeasurably in quality.

When employing the Elite-20 PF i, you will immediately notice far clearer, stunningly focused sound and visual images from your system. Video presentation will be crisp and colors true with greater gray and black scale definition, as well as noticeably improved depth and clarity. Sonic transients will be startlingly fast with bass fundamentals that shake foundations with their weight and visceral impact. Mid and high frequencies will bloom with sweet, non-glaring ease as imaging improves dramatically, all the while remaining true to your system's inherent virtues.

General

• Line Voltage120 (Volts)
• Number of Outlets13
• Number of Isolated Banks3

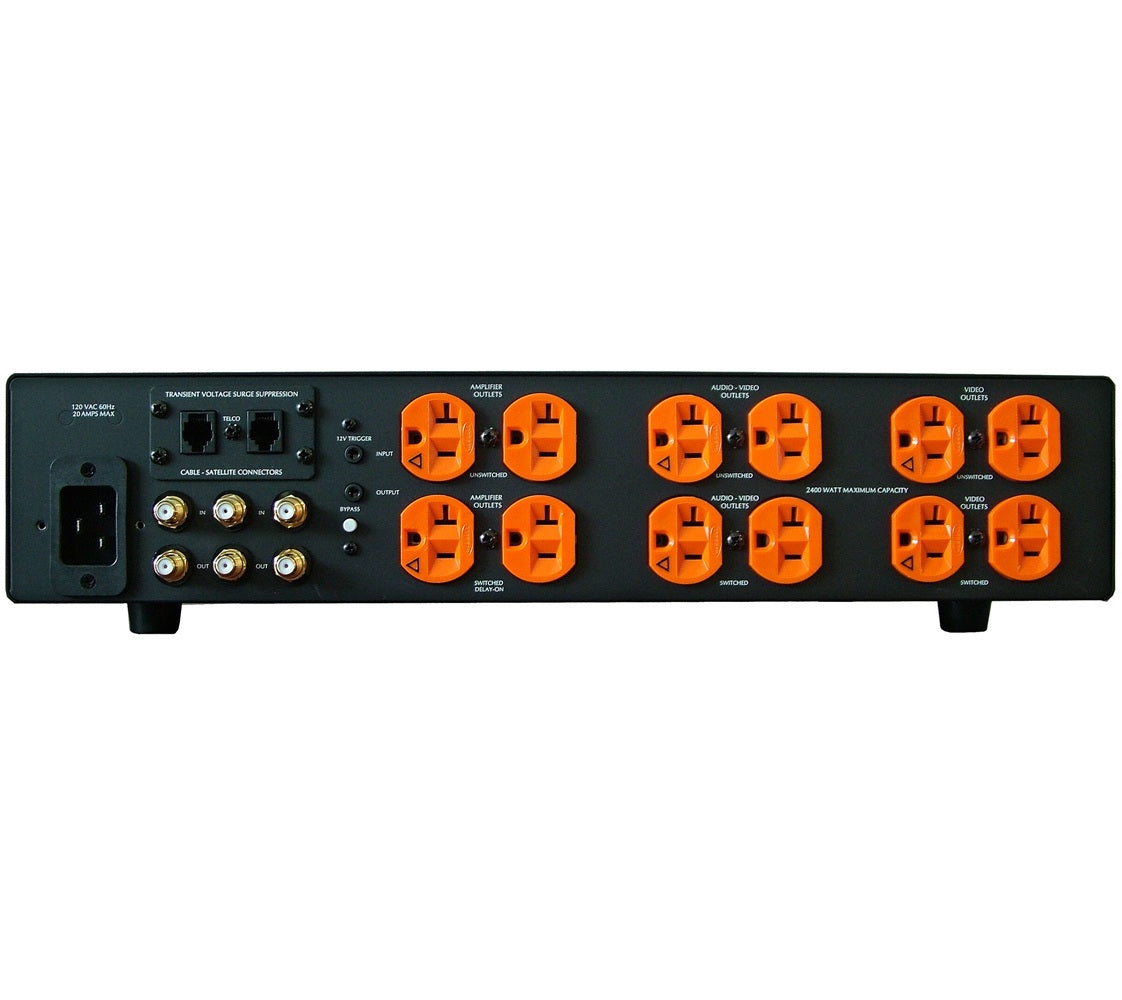

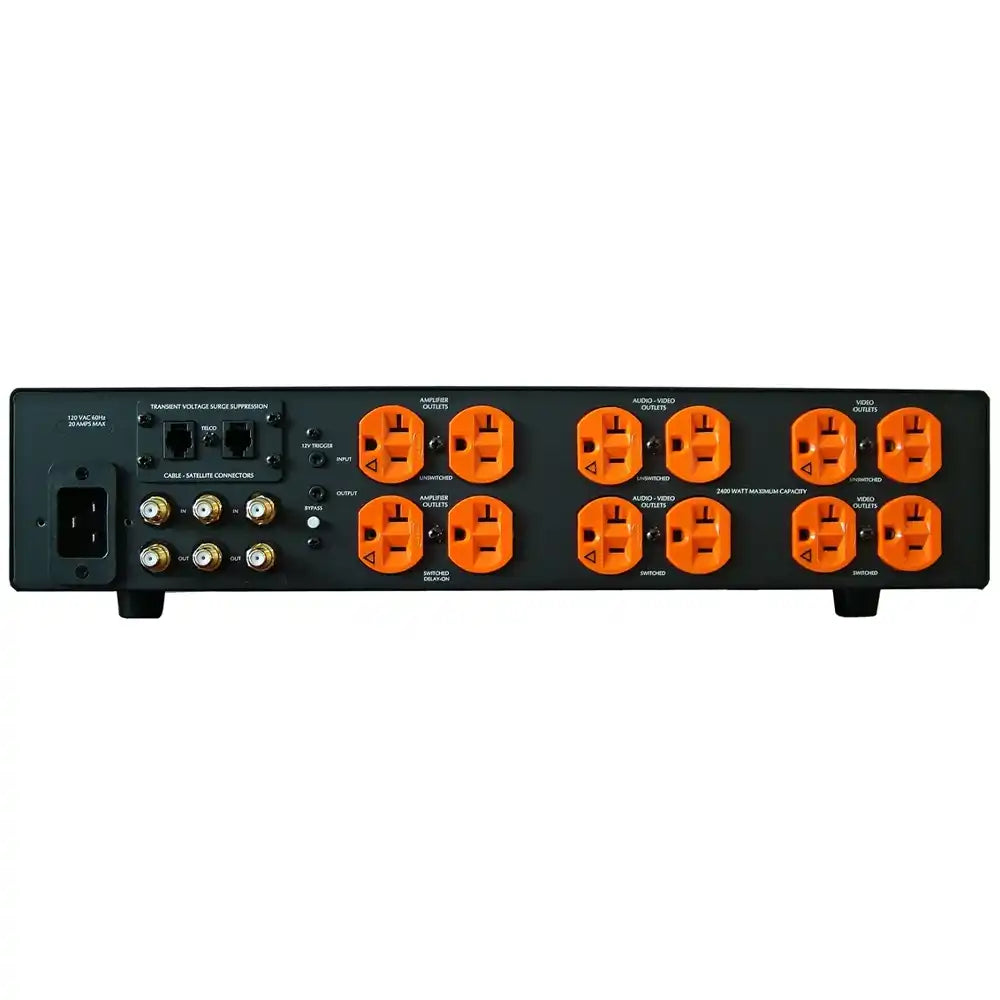

• Outlet Descriptions

  1 (Ultra-Linearly filtered outlet - front panel)

  8 (Ultra-Linearly filtered outlets with additional ultrasonic filtering for either video or audio components, 4 with 12V triggering)

  4 (Power Factor Technology amplifier outlets – 4.5 amps RMS reserve - reactive load - over 55 amps peak charge, 2 with 5 second delay via 12V triggering)

• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)No

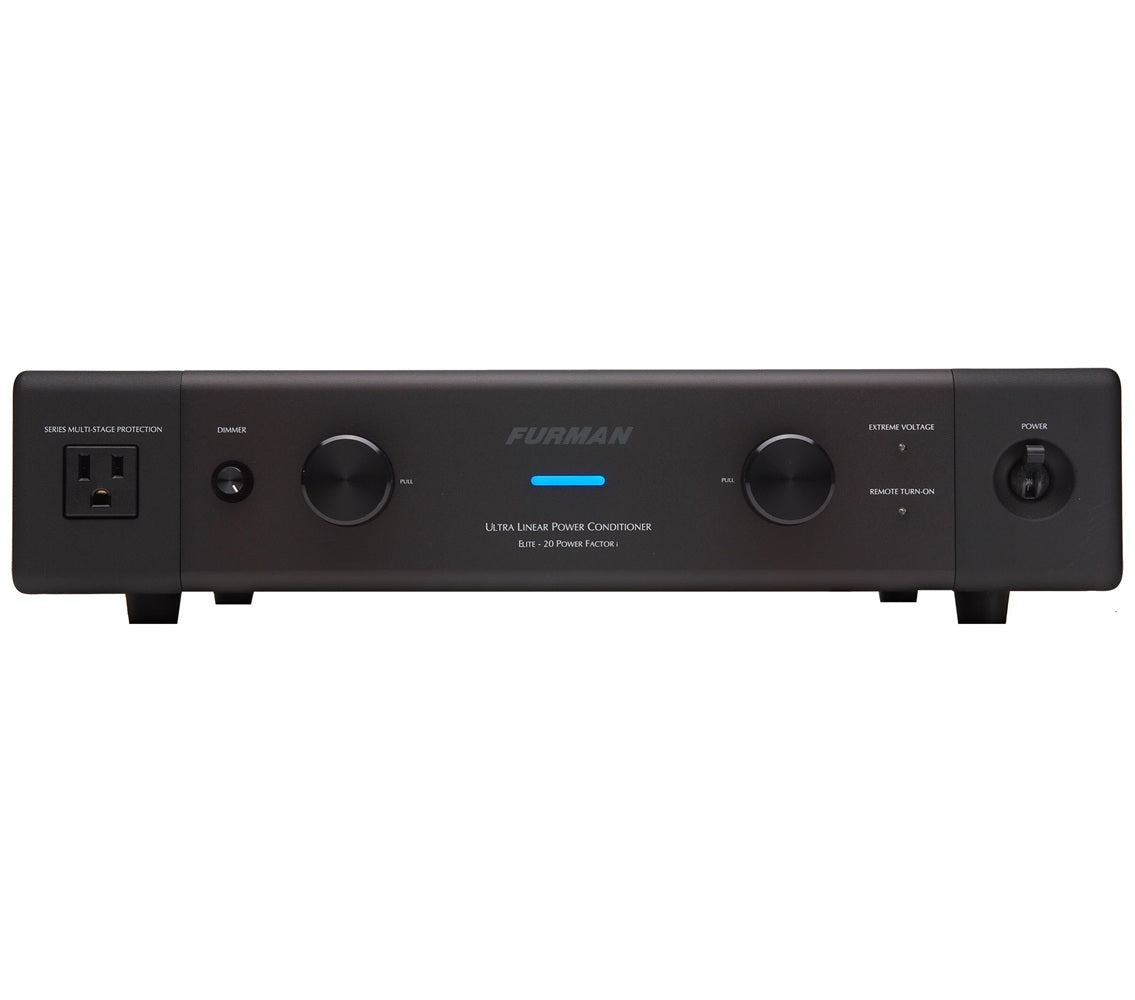

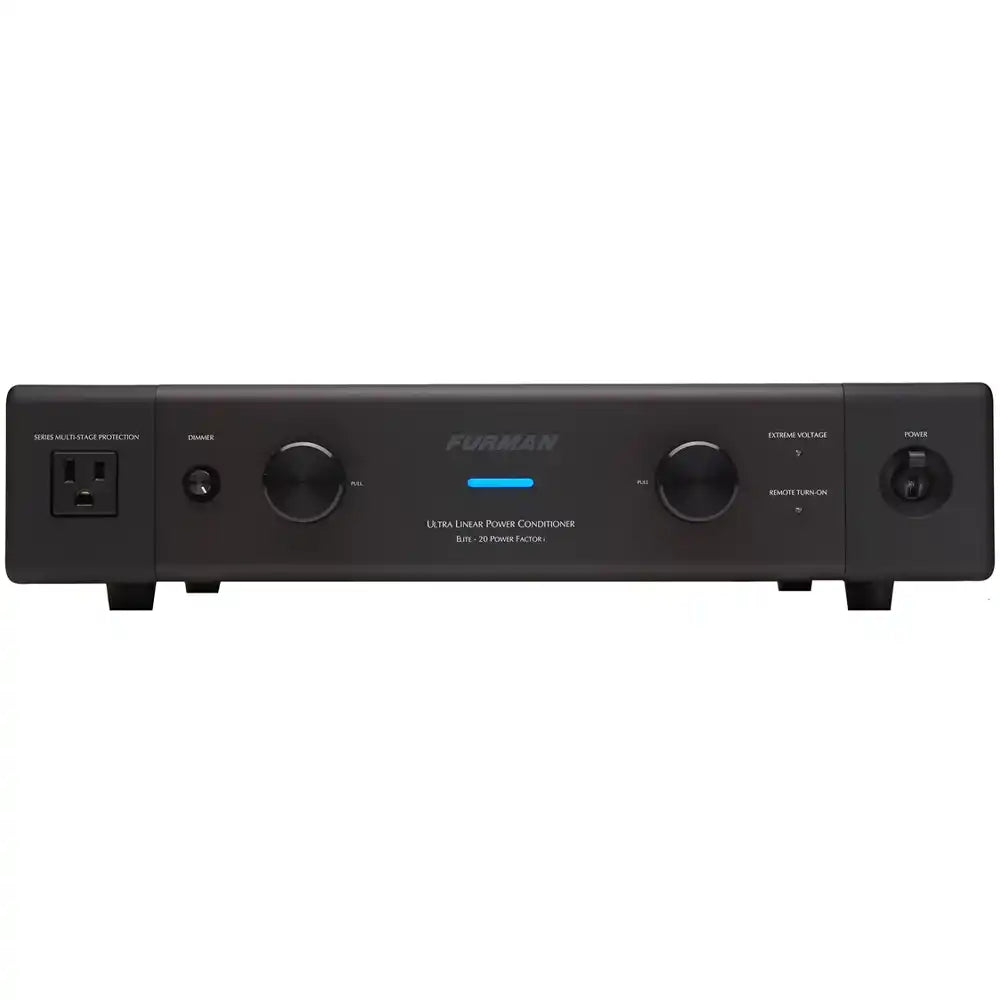

• Front Media Light(s)2 Retractable LED lamps
• ControlOn/Off switch and light dimmer knob on front panel. 12 Volt triggering for remote control.
• Voltage RegulationNo
• ComplianceNRTL-C
• USB ChargingN/A
• Low Voltage Trigger12 V, In/Out
• Dimensions4" H x 17" W x 14.75" D (Standard 2 RU height without feet)
• Weight18 lbs
• Power Consumption12 Watts for display and control circuits independent of actual load

AC Protection

• AC Protection Technology
  • Extreme Voltage Shutdown
  • Series Multi-Stage Protection
  • Non-sacrificial protection with zero ground contamination
• Automatic Voltage ShutoffYes
• Under-Voltage Shutoff85V
• Over-Voltage Shutoff140V ±3V
• Maximum Current Rating20 (Amps)
• Initial Clamping Level188 VAC peak @ 3,000 Amps

Filtration

• Filtration Technology LiFT
• Filtration Rating

  Transverse (Differential) Mode:
  > 40 dB from 5Khz. - 100 kHz.
  >80 dB from - 100 kHz. – 1GHz.

  Common Mode:
  >40dB from 10Hz. – 30 kHz.
  >20 from 40 kHz. – 1MHz.
  (Linear attenuation curve from 0.05 – 100 ohms line impedance)

Signal Line Protection

• Signal Line Protection1 Tel
  3 Cable/Satellite
