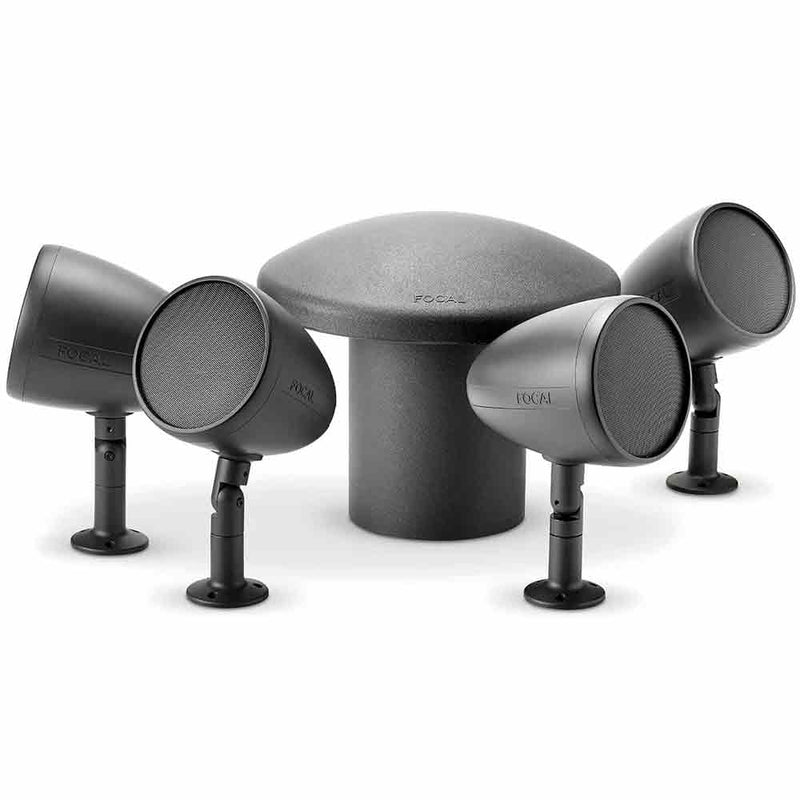

Focal Bundle OD 4.1 Outdoor Speaker Bundle
Focal OD SAT 5 2-Way Outdoor Speaker
HIGH-END SOUND AND DISCRETION
With its discreet design, adapting perfectly to any outdoor space, the OD Sat 5 loudspeaker delivers Focal Sound quality in all weathers and for a long time. IP55 certified and featuring anti-UV treatment, it withstands adverse weather and extreme climates.
With the benefit of Focal’s know-how, OD Sat 5 offers high-end sound quality. It includes a bass-midrange speaker driver with Iris IP cone (5 1/8” / 13cm) and Focal's exclusive Aluminium ‘M’-shaped inverted dome tweeter. Its integrated transformer also makes it 70/100V compatible and can cover large spaces with no loss of power.

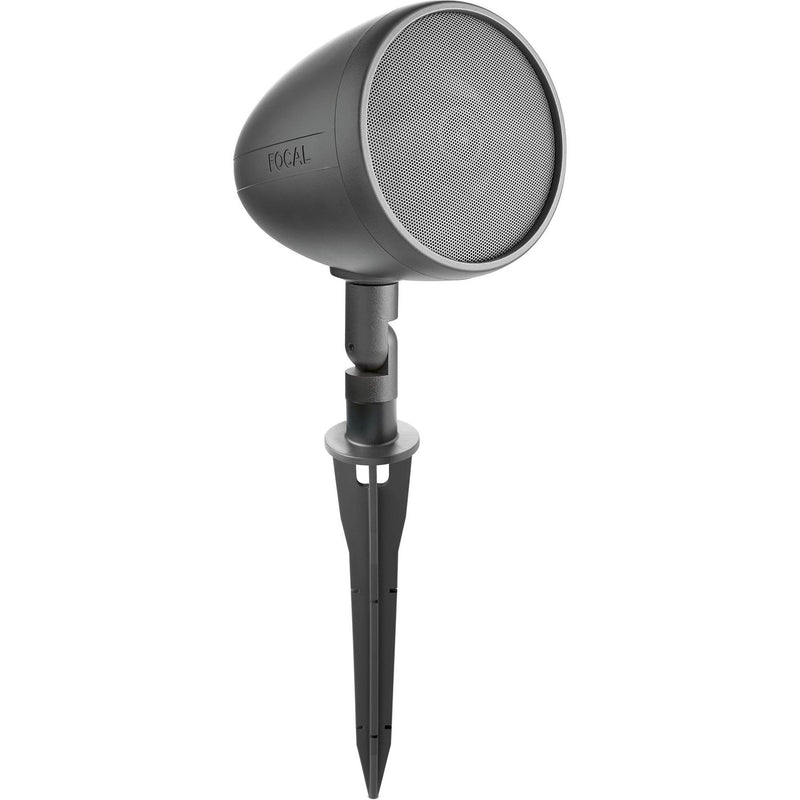

The OD Sat 5 loudspeaker can be fixed to the wall using the brackets supplied, or anchored in the ground for the ideal system in an outdoor environment. Available in Light or Dark finish, it is as discreet as it is stylish.
Resistant to water and all weathers: IP55 CERTIFICATION
The OD Sat 5 loudspeaker is IP55 certified. IP, or Ingress Protection, is a standard from the International Electrotechnical Commission relating to a product's degree of water resistance and protection against the ingress of solids and dust.
Focal OD SUB 12 Outdoor Subwoofer
POWERFUL BASS IN ALL WEATHERS
The OD Sub 12 subwoofer takes Focal's high-quality sound into your outdoor spaces! Its speaker driver with Iris cone (11 3/4” / 30cm) delivers a deep and powerful bass (400W), and for a long period of time: IP45 certified, it withstands adverse weather and extreme climates.
With the benefit of Focal’s know-how, OD Sub 12 delivers high-end sound quality and integrates a transformer, making it 70/100V compatible and able to cover large spaces, with no loss of power.

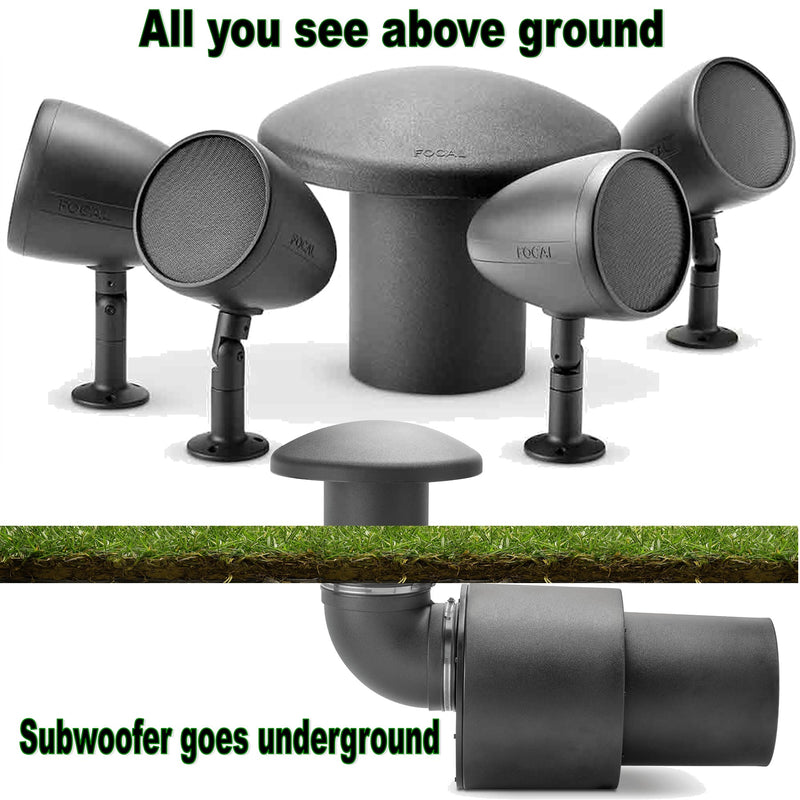

Available in Light or Dark finish, its partially underground use allows it to blend into any outdoor setting. It is the ideal subwoofer to have in your garden for sensational outdoor music listening sessions.
A complete system: CHOICE OF SYSTEM
The three outdoor products from the Littora 200 line – OD Stone 8, OD Sat 5 and OD Sub 12 – have been designed and developed by the Focal engineers to offer the same high-end sound and harmonious aesthetic, whether used together or separately.
Resistant to water and all weathers: IP55 CERTIFICATION
The OD Sub 12 subwoofer is IP55 certified. IP, or Ingress Protection, is a standard from the International Electrotechnical Commission relating to a product's degree of water resistance and protection against the ingress of solids and dust.
OD SAT 5 Product Details:
-
- Type of speaker: 2-way outdoor speaker
- Speaker drivers: 5" (12.7cm) Midbass, Iris IP cone 1" (2.5cm) Aluminium 'M'-shaped tweeter
- Bandwidth: 90Hz – 28kHz
- Impedance: 8Ώ
- Minimal impedance: 5.2Ώ at 250Hz
- Sensitivity: 88dB
- Power: 50W RMS – 100W Peak
- Recommended amp power 8Ώ: 20W – 100W
- Transformer positions: 70V – 100V / 5W, 10W, 20W, 40W
- Temperature tolerance: -20° / 65°
- IP rating: IP55
- Angle coverage: 90°
- Dimensions (WxDxH): 12 5/8" x 12 5/8" x 8 1/4" (32x32x21cm)
- Weight: 5.5lbs (2.5kg)
OD SUB 12 Outdoor Subwoofer Product Details:
- Woofer with 12" (30cm) Iris IP cone: deep and powerful bass (400W)
- Adjustable vent height
- IP55-certified technical design (water and dust)
- Robust design
- Compatible with OD Sat 5 for a complete system
- System is perfect for pairing with OD Stone 8
- Type of speaker: Outdoor subwoofer
- Speaker drivers: 11 3/4" (30cm) woofer with Iris IP cone
- Bandwidth: 40Hz – 120Hz
- Impedance: 6Ώ
- Minimal impedance: 5Ώ at 55Hz
- Sensitivity: 90dB
- Power: 100W RMS – 400W Peak
- Recommended amp power 8Ώ: 50W – 300W
- Maximum power (70/100V): 300W (150W RMS)
- Temperature tolerance: -20° / 65°
- IP rating: IP55
- Dimensions (WxDxH): 15" x 36 1/4" x 22" (38x92x56cm)
- Weight: 41.89lbs (19kg)
What to expect in the box:
- (1) OD Sub 12 12" Outdoor Subwoofer
- (4) OD SAT 5 5" 2-Way Outdoor Speaker
