Focal 1000 ICLCR5 Bass-Reflex 3-Way In-Ceiling Loudspeaker (Single) - Focal
IN-CEILING HI-FI SOUND
The 1000 ICLCR5 loudspeaker is the Home Cinema solution installed in the ceiling for a high-caliber sound experience. Made in France, it brings together exclusive technologies, like the ‘W’ cone of the speaker driver and the pure Beryllium tweeter.
Thanks to its sophisticated design and its adjustable midrange-treble plate, the listening point is perfectly targeted for a listening experience without compromise. The tweeter level can also be set so that it adjusts to your listening room. In addition, this bass-reflex in-ceiling loudspeaker is suited to several types of application: left, central or right front channels and left or right rear channels. Finally, the ready-to-paint magnetic grilles supplied with the product ensure it is totally unobtrusive. The installation is quick and requires no tools, thanks to the patented Easy Quick Install system.
This 1000 Series range of loudspeakers embodies Focal excellence for the most sensational—and discreet—listening experience.
*The design and dimensions are identical to the 300 Series products. If you have any 300 Series products, you can upgrade your Focal system very easily.
Custom assembly: THE ULTIMATE HOME CINEMA EXPERIENCE
With the ability to be positioned horizontally or vertically, 1000 IWSUB Utopia has been designed to assemble perfectly with the 1000 IWLCR Utopia 3-way in-wall loudspeaker, enhancing the performance of your Home Cinema installation. The option to customize the impedance of the speaker drivers according to the number of products assembled allows the system's performance to be adjusted to enjoy an exceptional, bespoke installation.
Features:
- Bass-reflex 3-way in-ceiling loudspeaker
- Quick, easy, no-tool product assembly
- Speaker drivers developed and manufactured in France by Focal

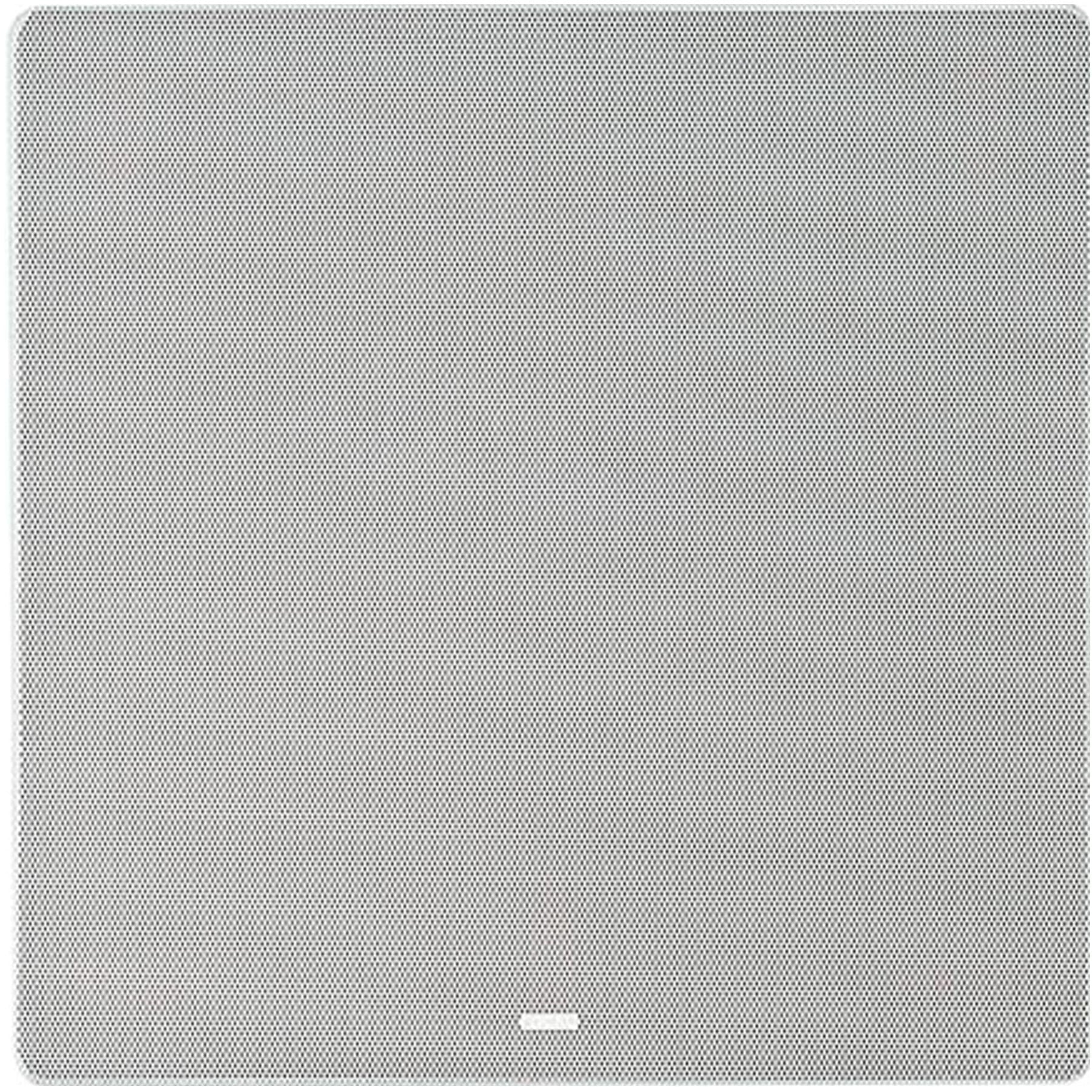

- Delivered with square magnetic grilles ready for painting
- Off-axis response control (tweeter/midrange position and gain setting)
- Fully integrated in-ceiling Home Cinema solution for total discretion
- One speaker, 5 applications: front left, central or right-hand channels; back left and right-hand channels)
Specs
- Type of speaker: 3-way bass-reflex in-ceiling
- Speaker drivers: 2 x 5 ⅛ " (13cm) ‘W’ cone Bass, 4" (10cm) ‘W’ cone, Midrange, 1" (25mm) Beryllium inverted dome tweeter
- Sensitivity (2.83V/3 feet - 1m): 91dB
- Bandwidth (+/-3dB): 53Hz – 40kHz
- Low-frequency cut-off (-6dB): 43Hz
- Nominal impedance: 8 ohms
- Minimal impedance: 2.9 ohms
- Recommended amp power: 50 – 180W
- Ext. size (H x L x D): 14 ⅝ x 14 ⅝ x 7 ⅝ " (370x370x195mm)
- Mounting dimensions (H x L): 13 ⅜ x 13 ⅜ " (340x340mm)
- Mounting depth: 7 ½ " (190mm)
- Net weight (with grille): 18.30lbs (8.3kg)
- Box size (length x depth x height): 18 ¾ x 18 ¾ x 11 ⅝ "(475x475x295mm)
- Total weight (with packaging): 24.47lbs (11.1kg)
