Focal 100 ICW6-T 70v-100v In-Ceiling Speaker With Adjustable Transformer (each) - Focal

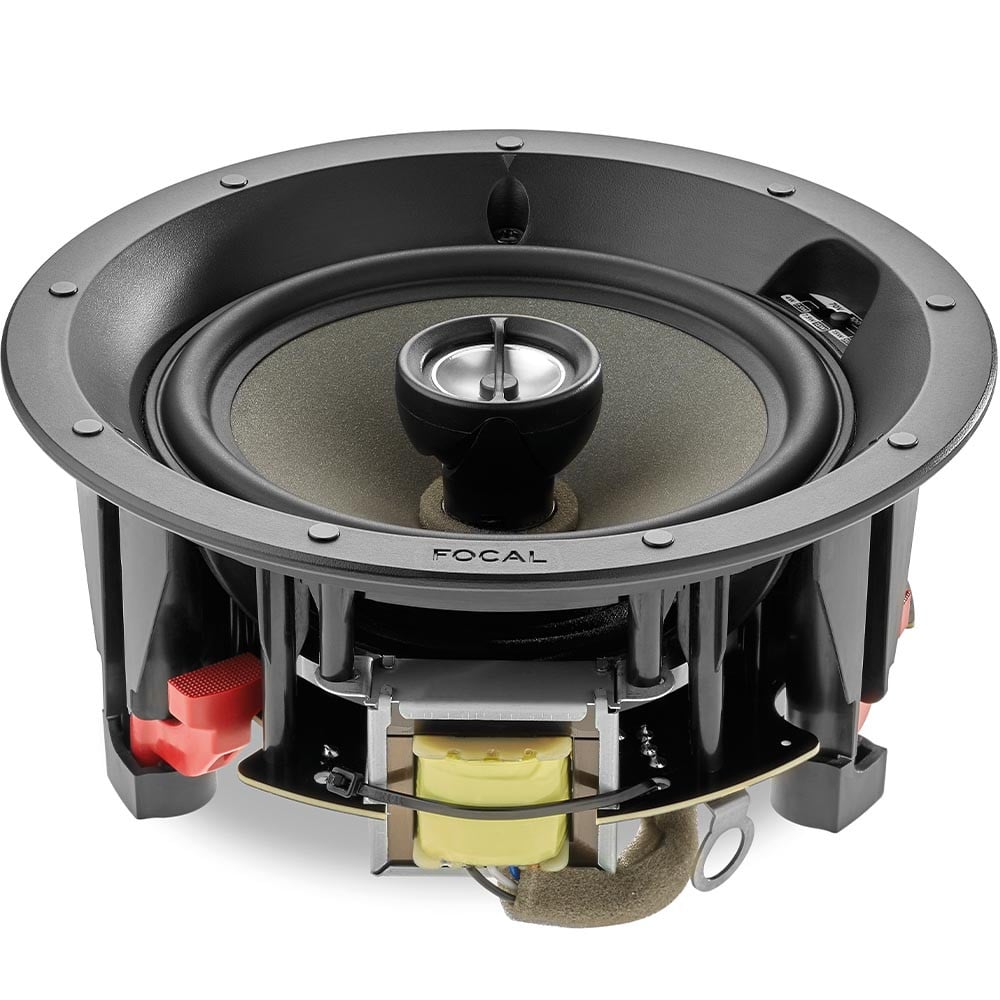

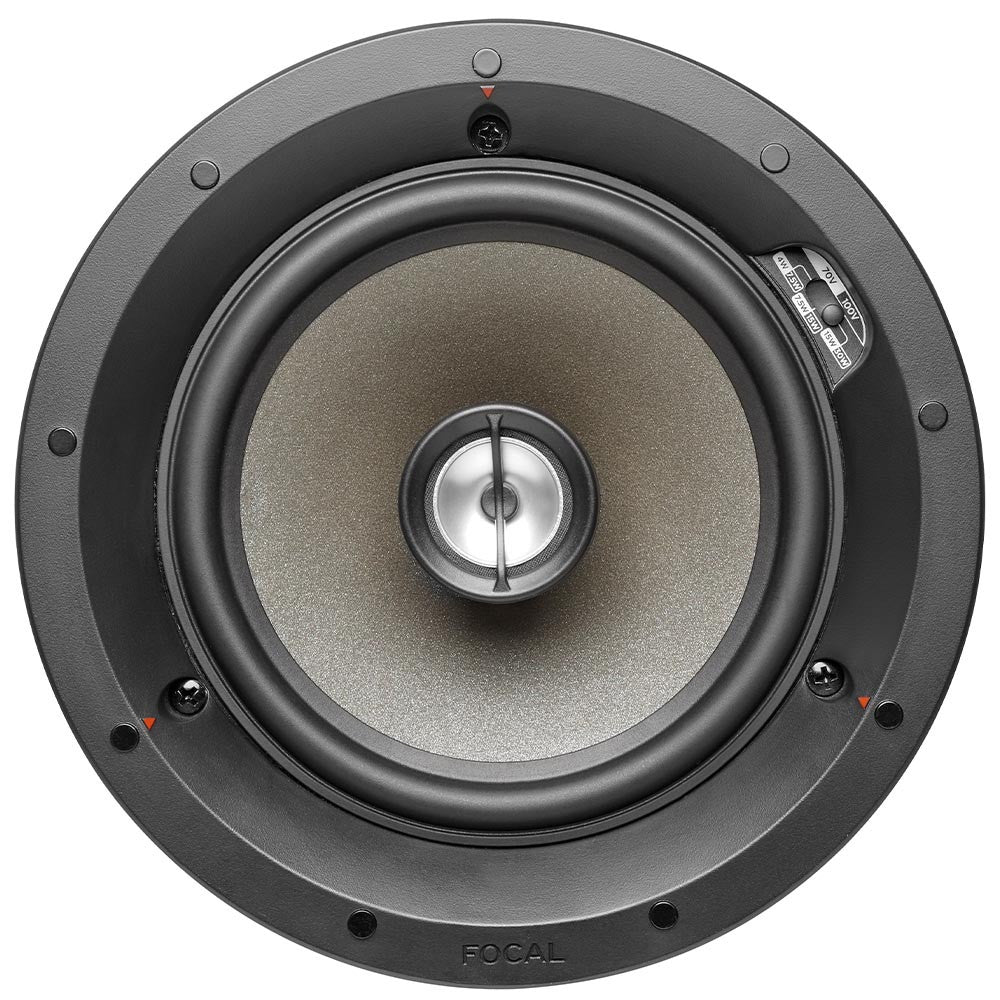

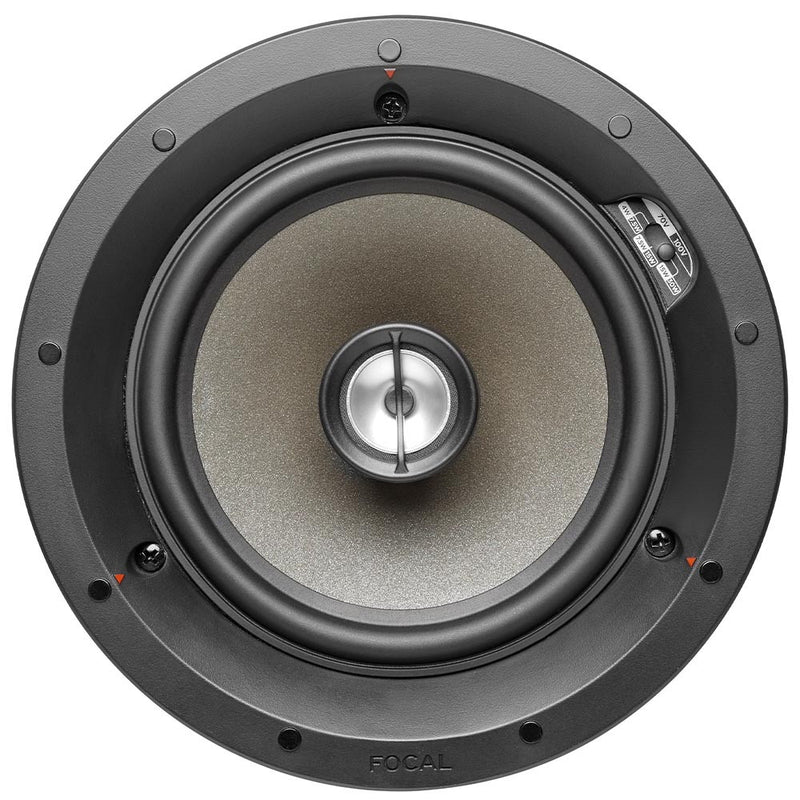

Designed and developed in France by Focal, the 100 ICW6-T loudspeaker is composed of a 6’’ (16.5cm) midrange speaker driver with Poly-glass cone and a 1’’ (25mm) Aluminum tweeter. Like all the products in the 100-T Series, it has an adjustable transformer which adjusts the power for a 70 volt/100 volt system. The transformer thus makes it possible to link the loudspeakers together and cover a vast listening area!
The 100 ICW6-T speaker driver also has very low directivity, which removes any “shower effect” and creates high-quality, uniform sound throughout the whole space. Compact and with a round or square ready-to-paint grille, the 100 ICW6-T is easy to install and discreet wherever it is positioned.
Features:
- Humidity resistant speaker.
- 61/2" (16.5cm) Poly-glass cone. Natural midrange without coloration and rich bass.

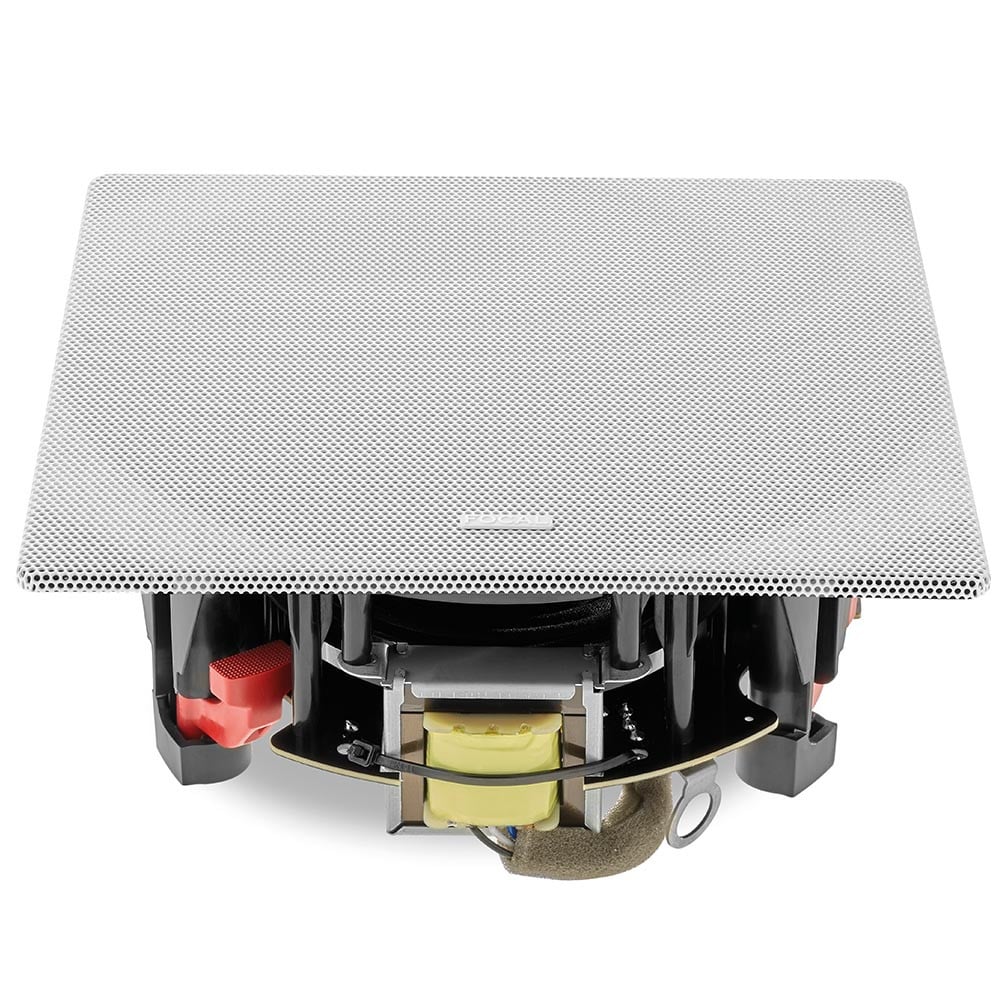

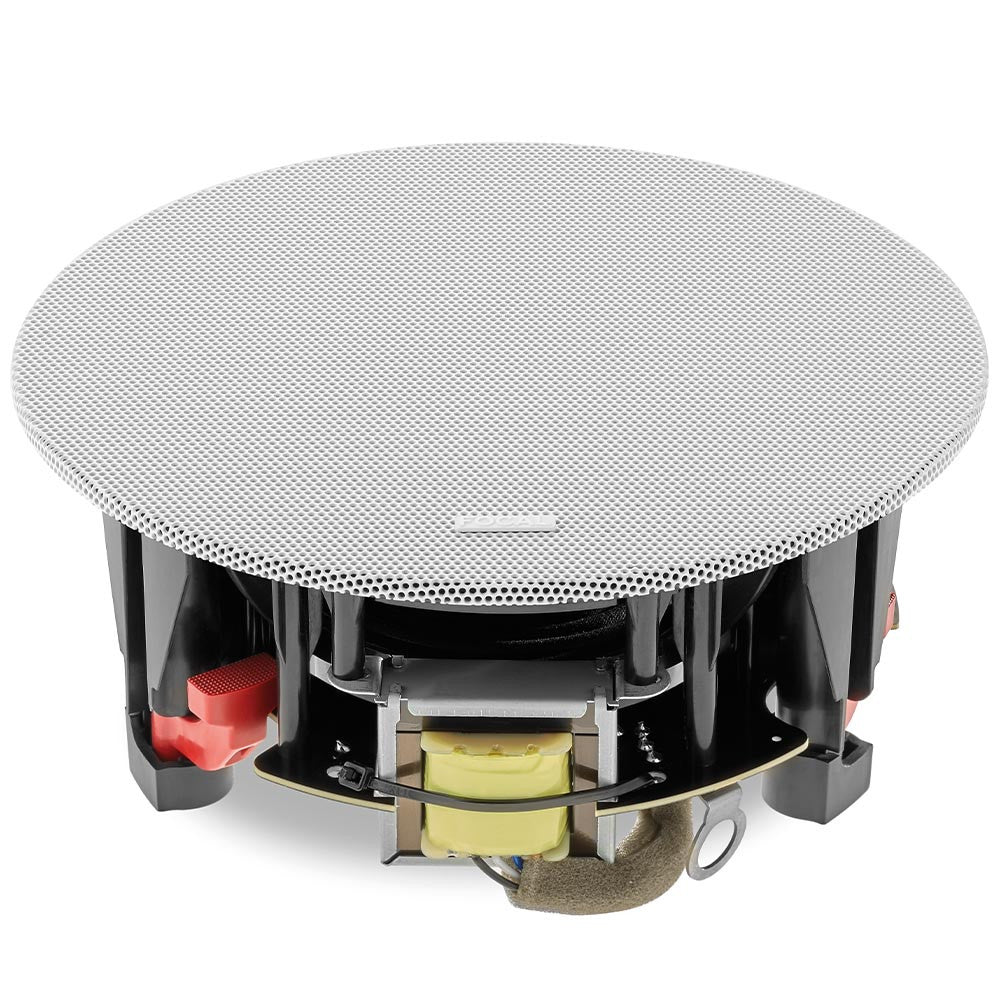

- Magnetic grilles (round or square) included with the product.
- ODC crossover for controlled directivity and wider sound dispersion. Avoids having a ‘shower’ effect.
- System compatible with wall/ceiling from 5/16" to 19/16" (8 to 40mm).
- Ultra-rigid unibody. No vibrations.
- 1" (25mm) aluminum inverted dome tweeter. Improved sound dispersion.

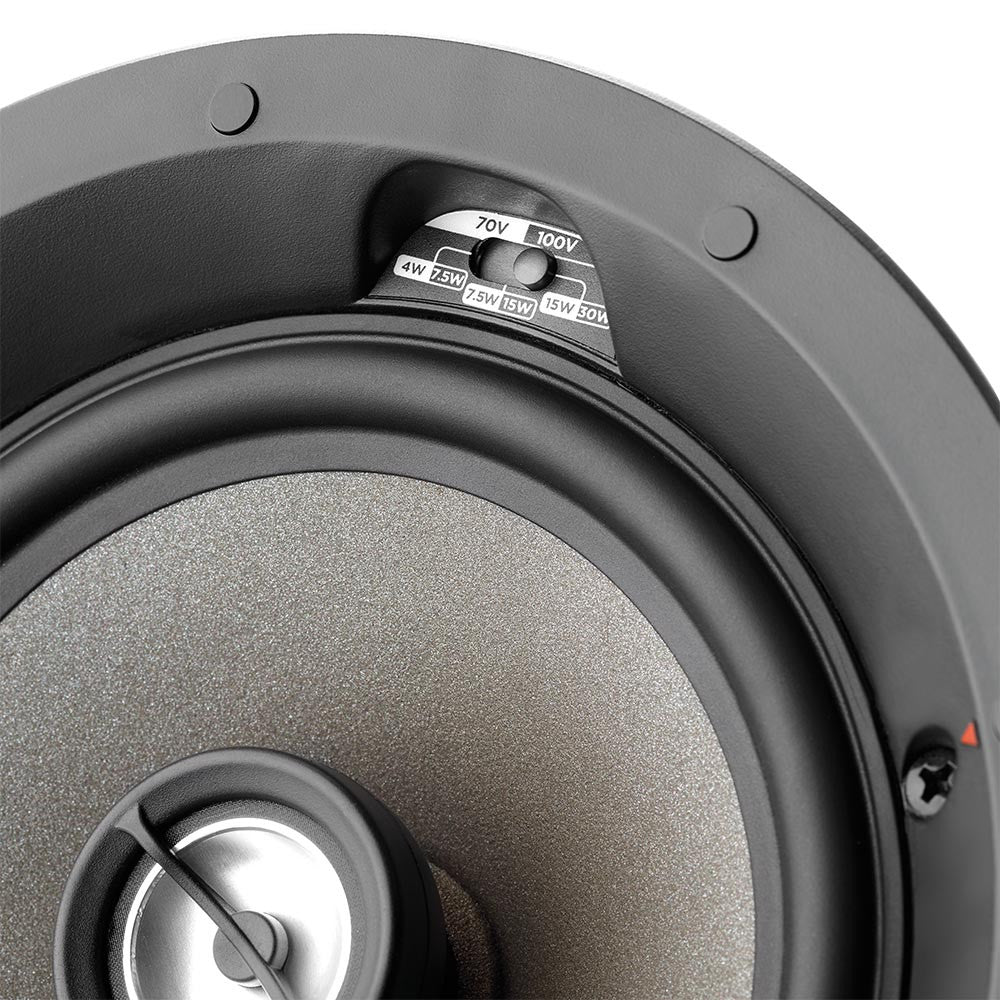

- Power adjustment of the 100V/70V amplifier.
- Four mounting brackets with optimized grips to ensure quick and easy installation. Screw system that prevents screws from falling out when dismantling the product.
Key Points:
- Product designed and developed in France by Focal
- Compact product with shallow mounting depth
- 100V/70V mode by switch
- Ready-to-paint grille
Technical Specifications:
- Type: In-wall/In-ceiling - 2-way coaxial for 100V/70V line installation
- Drivers: 61/2" (16.5cm) Poly-glass Mid-bass, 1" (25mm) Aluminum inverted dome Tweeter
- Sensitivity (2.83V/1m): 89dB
- Frequency response (+/-3dB): 62Hz - 23kHz
- Low frequency point (-6dB): 50Hz
- Power in 70V: 4/7,5/15W
- Power in 100V: 8/15/30W
- Recommended amplifier power: 25 - 100W
- External dimensions (Ø/Depth): 8 3/16 x 3 3/4" (208x95mm)
- Cut-Out diameter: 7 1/4" (184mm)
- Depth from wall: 3 5/8" (91mm)
- Net weight (with front grille): 3.75lbs (1.7kg)
- Packing dimensions (WxDxH): 8 ¼ x 8 ¼ x 6 11/16" (270x270x170mm)
- Total weight (with packaging): 6.61lbs (3kg)
