EverSolo DMP-A8 Network Streamer, DAC & Preamplifier - EverSolo
Ultimate Perfection: Accurate Representation of Sound
The DMP-A8 is a brand new audio product created by Eversolo, and it's capable of almost everything, combining Music Streamer, DAP, DAC, and Preamp all in one device.
Aluminum Chassis: Unique Appearance
The DMP-A8 is made from aviation aluminum and features a NC machined body for a solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements to suit the preferences of experts.
Large LCD Touchscreen with: Exclusive User Interface
Equipped with a large 6" LCD high-definition touchscreen, the DMP-A8 features a professionally tailored streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps. It provides a seamless interactive experience.

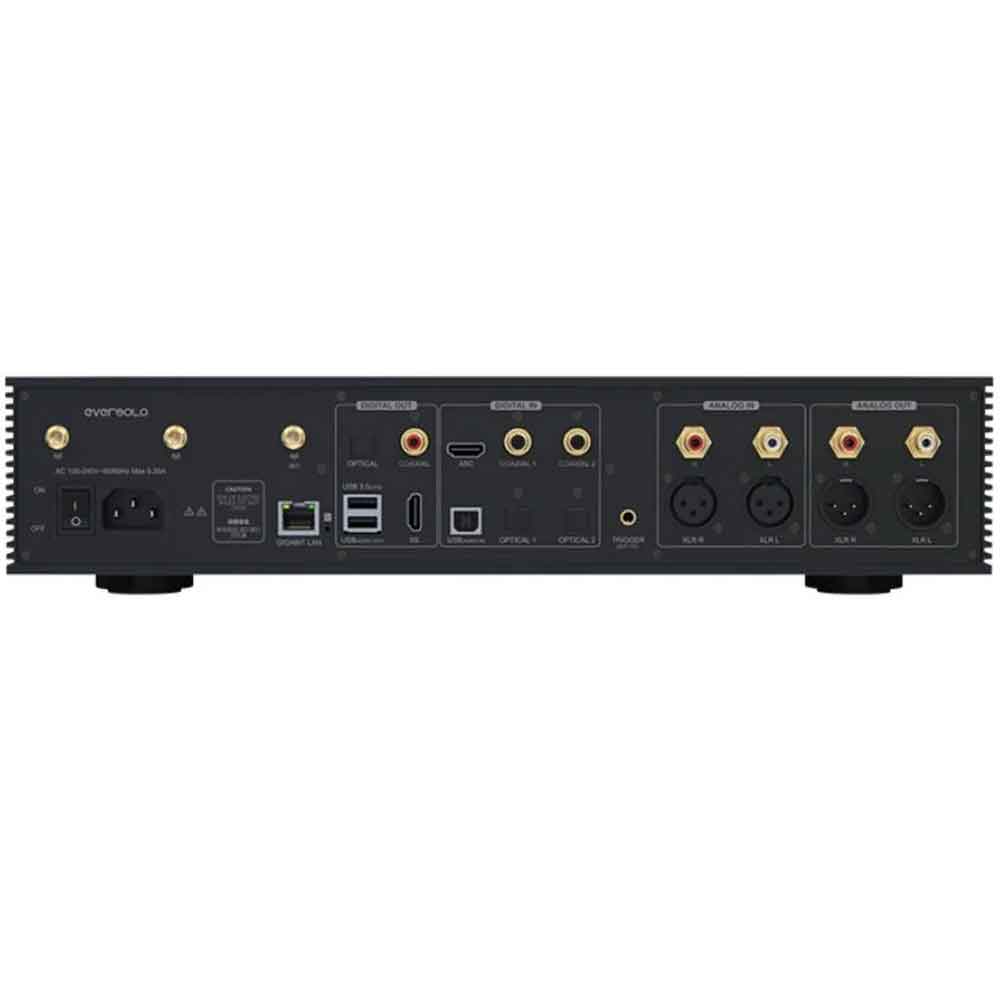

Rich Inputs and Outputs
DMP-A8 can be used as a digital turntable to connect with various high-end DAC by HDMI IIS, USB, opti-cal, and coaxial outputs. As a DAC, it supports a wide range of digital inputs: 2 coaxial, 2 optical, USB B input to connect PCs and mobile devices. As a high-performance preamplifier, it supports analog inputs XLR and RCA. It also supports APTX HD Bluetooth audio input, making it easy to connect with various digital audio sources. The DMP-A8 can be directly paired with active speakers or power amplifier via analog preamp outputs RCA and XL. The Trigger out port can achieve the linkage with power amplifier systems.
Flexible Storage Expansion
An M.2 NVMe SSD slot is built in at the bottom of the DMP-A8, allowing for convenient SSD installation without disassembling the device. The DMP-A8 supports SSD up to 4 TB, with faster speed and less noise, providing stable storage for high-quality local music. Addition-ally, storage devices can be connected externally through the USB OTG port of DMP-A8.
Dual Power Supplies Design
In order to eliminate interference and noise between the system circuit and the audio circuit, and to enhance sound purity, separate designs are employed for the power supply of the system and the audio circuit. The linear power supply is composed of a multi-winding toroidal transformer, specifically designed to match the characteristics of analog audio circuits. The high-quality switching power supply is tailored for the system cir-cuit. It significantly reduces ripple and magnetic leakage interference, providing strong support for high-qual-ity audio processing. Furthermore, it incorporates a patented smart switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.
Dual High-precision Clocks
There are 2 ultra-low phase noise femtosecond high-precision clocks for audio decoding circuit (45.1584MHz and 49.152MHz), which correspond to the decoding of 44.1KHz and 48KHz multiplied sampling rates respectively. This effectively suppresses Jitter, ensuring highly accurate conversion and decoding of digital-to-analog audio signals, providing ultra-high dynamic range and resolution for analog audio output and reproduces the real sound details from music studio.
HDMI ARC
The DMP-A8, equipped with HDMI ARC (Audio Return Chan-nel) input, can be connected to display devices such as TVs and projectors that have HDMI ARC capability. This allows the separation and transfer of audio signals from the HDMI signal to the DMP-A8, providing the TV with a higher quality sound
What to expect in the box:
- DMP-A8 Network Streamer, DAC & Preamplifier
- Power cable
- Remote Control
- Screwdriver
- user manual
Product Details:
- Model: EVERSOLO DMP-A8
- Display: 6" LCD touchscreen
- Internal Memory: 4GDDR4 +64GeMMC
- DAC: AK4191EQ+AK4499EX
- Audio Processor: XMOS XU316
- Op-amp Chip: OPA1612
- Power Supply: High-quality, low-noise linear + digital dual power supply
- SSD: Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).
- USB-A Port: USB3.0*2
- Ethernet: RJ-45(10/100/1000Mbps)
- WiFi: WiFi 2.4G+5G dual band
- Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
- Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
- Streaming: Roon Ready,Air Play, DLNA, Tidal Connect etc.
- Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC
- USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
- Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, Dop64
- HDMI ARC: Support up to stereo PCM 192KHz 24Bit
- Analog preamp audio input: XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
- USB Audio Output: Support up to stereo DSD512，PCM 768KHz 32Bit
- IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
- Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
- Analog Audio Output: Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
- XLR Output Audio Characteristics: Output level: 4.2V
- Frequency response: 20Hz~20KHz(±0. 25dB)
- Dynamic range: > 128dB
- SNR: >128dB
- THD+N: <0.00009%(-120dB) @No-wt
- Crosstalk: >-121dB
- RCA Output Audio Characteristics
- Output level: 2.1V
- Frequency response: 20Hz~20KHz (±0. 25dB)
- Dynamic range: > 125dB
- SNR: >125dB
- THD+N: <0.00010%(-119dB)@A-WT
- Crosstalk: >-121dB
- Control Method: Mobile App，Touch screen control，IR+Bluetooth remote control
- PSU: AC 110~240V 50/60Hz
- Rated Power: 16W
- Dimensions: W 15.28”*L 9.76”* H 3.54”
