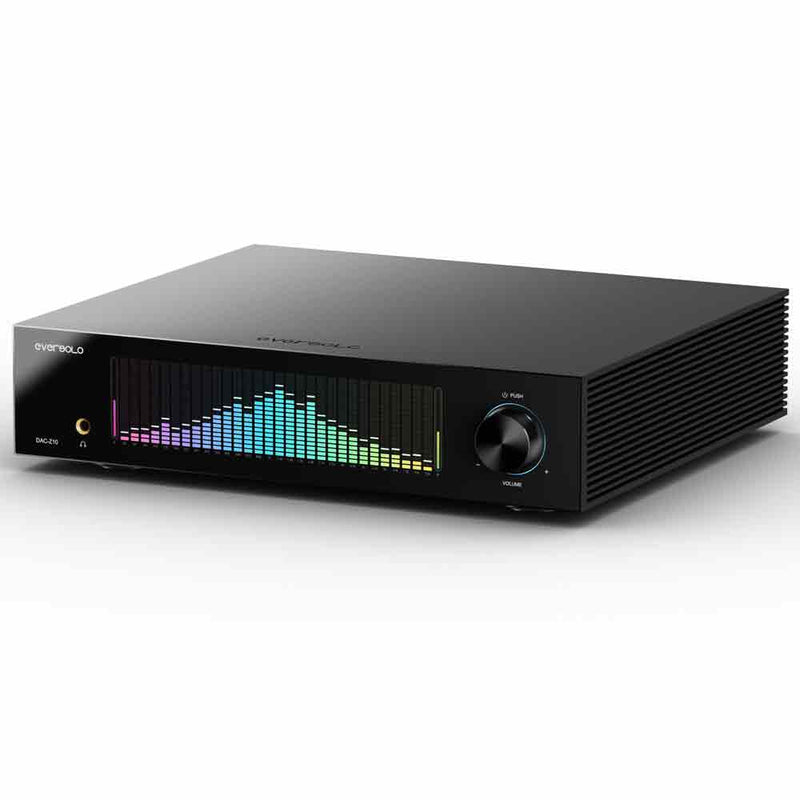

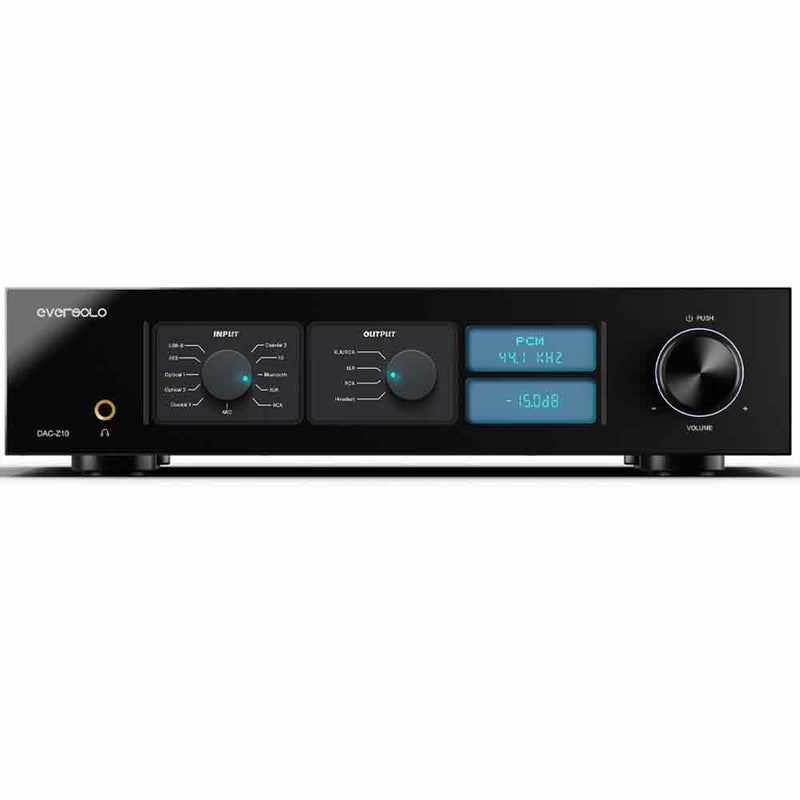

Overview — EverSolo DAC-Z10 Digital to Analog Converter And Preamplifier
The EverSolo DAC-Z10 Digital to Analog Converter And Preamplifier is built to be the control center for a modern hi-fi system:
a high-resolution DAC, a fully balanced analog preamplifier, and a capable headphone amplifier in one chassis. Its dual-mono AKM implementation
pairs AK4191 + AK4499 per channel for strong separation and low noise, while an R2R resistor-ladder volume approach
supports precise level control for driving power amplifiers or active speakers directly. Add wide-ranging digital inputs (including HDMI ARC/eARC and I²S),
plus analog XLR/RCA inputs, and you have a flexible hub for streamers, TVs, transports, and legacy sources.
For systems that prioritize transparency, the DAC-Z10’s balanced preamp stage and high-resolution decoding make it an ideal DAC + preamp upgrade without adding multiple boxes.
Highlights & Benefits

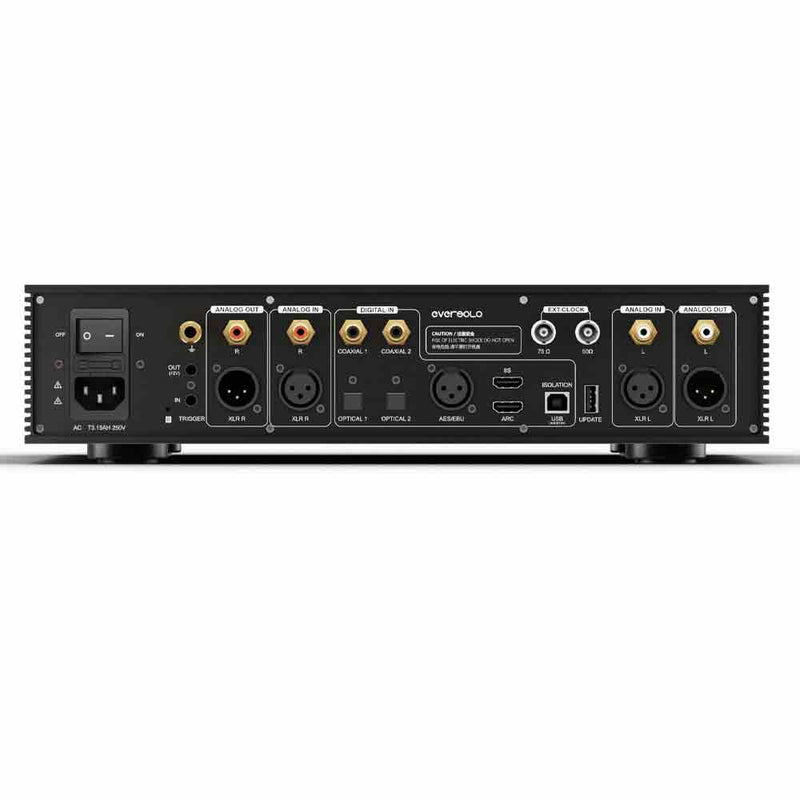

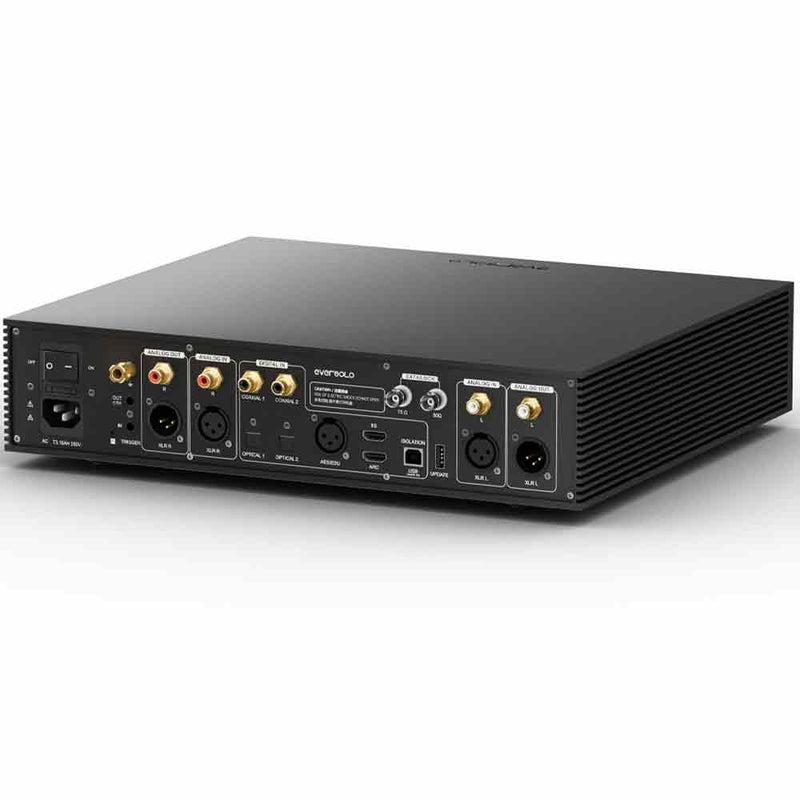

True hub flexibility — USB audio, I²S/HDMI, AES/EBU, dual coaxial, dual optical, and HDMI ARC/eARC inputs cover streamers, TVs, and transports.
Dual-mono AKM conversion — dedicated AK4191 + AK4499 per channel for strong channel separation and a refined, low-noise presentation.
Fully balanced analog preamp — XLR and RCA analog inputs/outputs with up to +10 dB analog gain for proper system matching.
Precision volume control — R2R resistor-ladder volume avoids the pitfalls of crude digital attenuation and supports direct-to-amp setups.
Reference-ready upgrade — the EverSolo DAC-Z10 Digital to Analog Converter And Preamplifier can serve as the digital front end and analog control point for high-performance two-channel systems.
Technology & Design
Dual-mono layout — left and right channels use dedicated DAC chipsets and signal paths for improved separation and stability.
Clocking support — accepts 10 MHz or 25 MHz external clock input with selectable 50 Ω or 75 Ω impedance for advanced digital rigs.
Headphone output — 6.35 mm single-ended headphone output with multiple gain modes for a wide range of headphone impedances.

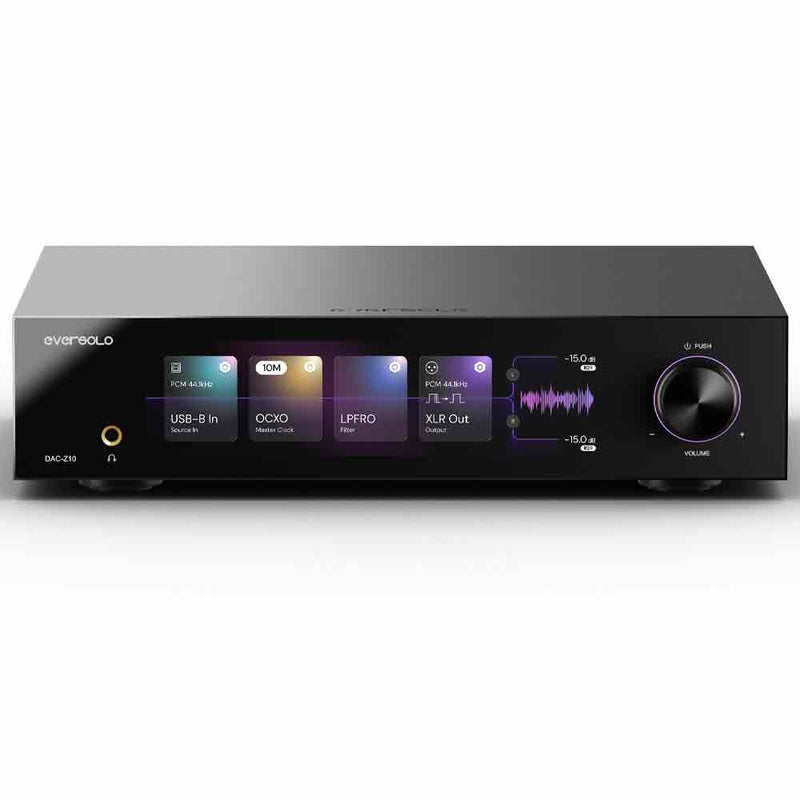

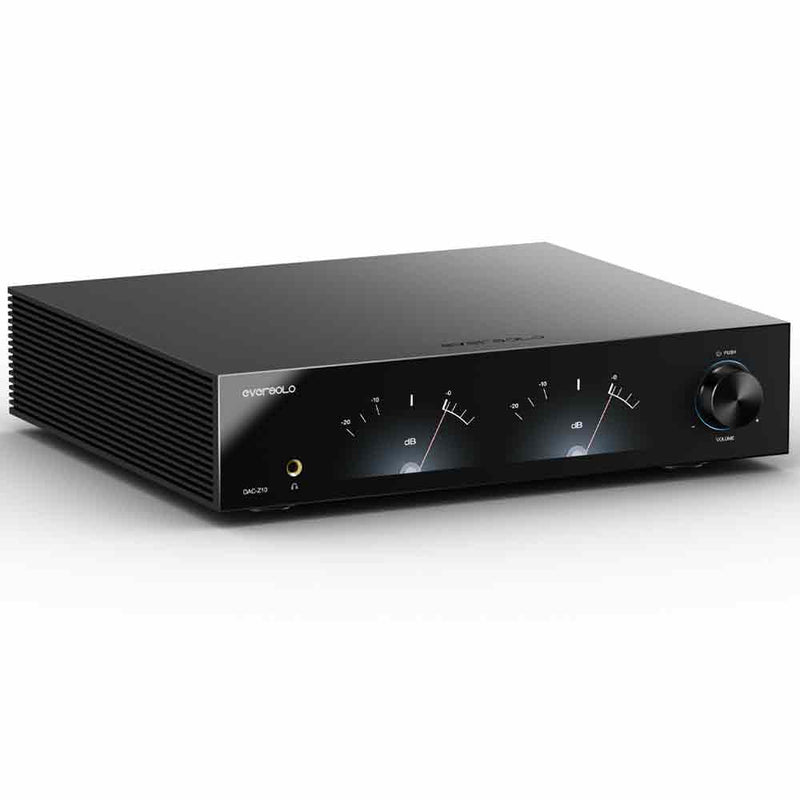

Front display + control — large IPS touchscreen with multiple VU meter styles, plus remote and app control options.
FAQ
Can I connect my TV?
Yes. Use HDMI ARC/eARC for easy TV-to-hi-fi integration, then feed a power amp or active speakers via the DAC-Z10’s preamp outputs.
Will it work as a standalone preamp?
Yes. The balanced analog preamp stage supports both XLR and RCA inputs and outputs, with up to +10 dB analog gain.
What high-resolution formats are supported?
USB and I²S inputs support up to PCM 768 kHz / 32-bit and DSD512 (stereo). S/PDIF inputs support up to PCM 192 kHz / 24-bit (and DSD64 DoP where supported).
