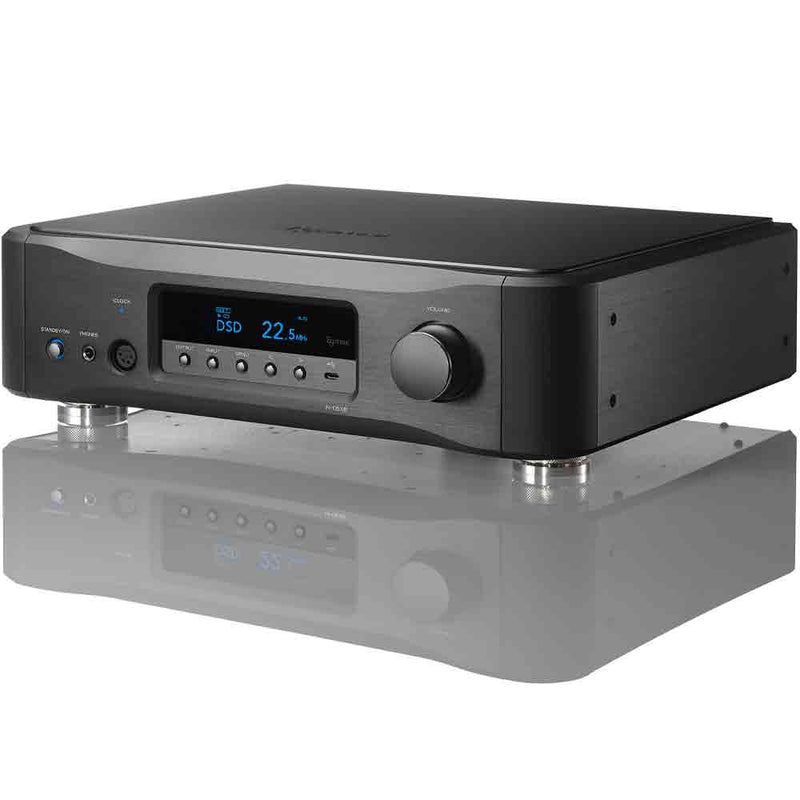

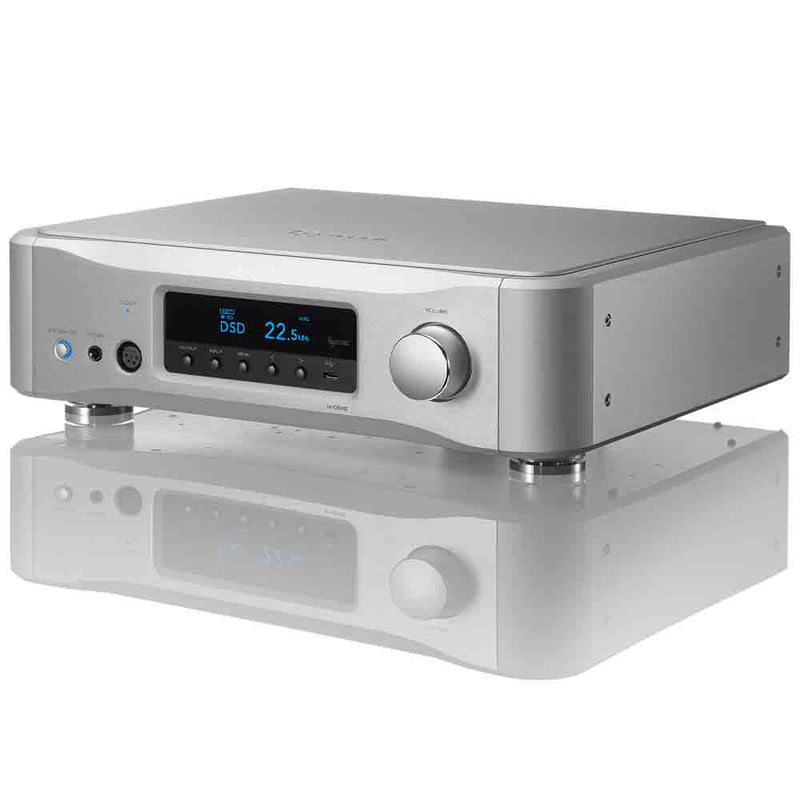

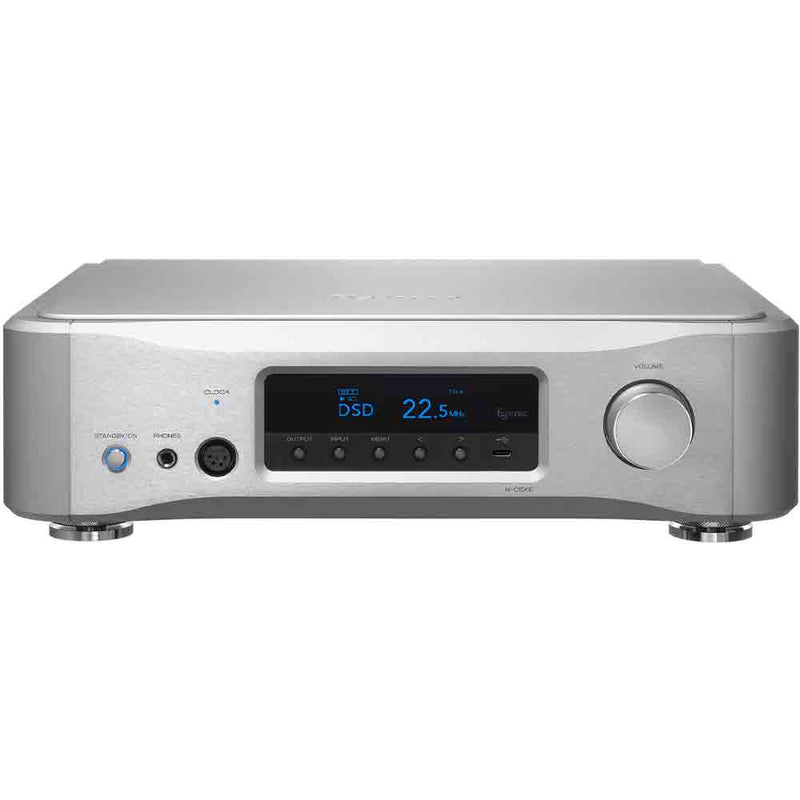

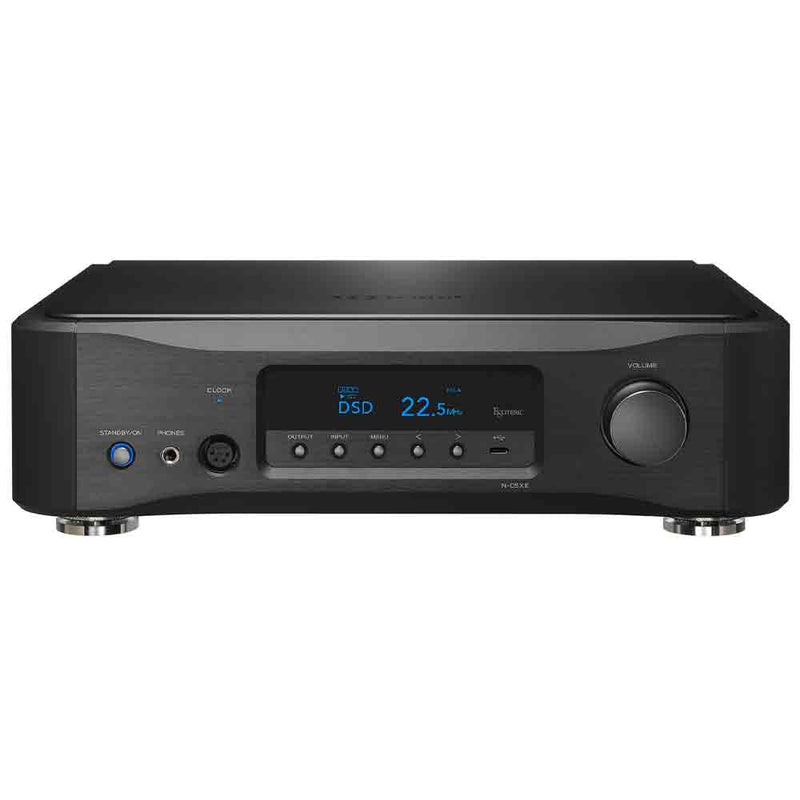

The Esoteric N-05XE Network DAC Preamplifier is designed to deliver reference-grade digital playback in a streamlined, space-efficient system. At its core are Esoteric’s next-generation technologies: an optical network-compatible Network Engine G4 and the Master Sound Discrete DAC G2, a discrete FPGA-based conversion platform that avoids off-the-shelf DAC ICs. The result is a component that can serve as a full-featured network streamer, a D/A converter, and a dual-mono balanced preamplifier, with a high-quality built-in headphone amplifier for personal listening.
Fully dual-mono construction keeps left/right analog and power supply circuits independent for lower interference and cleaner channel separation.
True one-box digital hub — The Esoteric N-05XE Network DAC Preamplifier can function as streamer, DAC, and fully balanced preamp, simplifying high-end system building.
Optical-network capable streaming — Network Engine G4 supports optical network connections via an SFP port and includes a dedicated large linear power supply for refined playback.
Discrete, FPGA-based conversion — Master Sound Discrete DAC G2 uses a multilevel ΔΣ approach with separate processing paths optimized for PCM and DSD.
Serious headphone performance — Dual-mono, parallel single-ended headphone amplification rated at 1,200 mW + 1,200 mW into 32 Ω.
Modern streaming ecosystem — Supports popular control and service options including TIDAL Connect, Qobuz Connect, Roon, and Spotify Connect (service availability varies by region).
Technology & Design
Master Sound Discrete DAC G2 — A next-generation discrete DAC architecture that uses FPGA-based circuitry with independent processing algorithms for PCM and DSD. A proprietary high-precision clock circuit is also employed for timing stability.
Esoteric Network Engine G4 — Built for high-performance streaming and file playback with optical network support via SFP, native DSD 22.5 MHz playback capability, and a music server function supporting up to two USB drives.
Dual-mono balanced preamplifier — A dual-mono, dual balanced preamp section derived from Esoteric’s Grandioso design approach, with dedicated attenuator power supply and a high-current buffer stage for consistent drive.

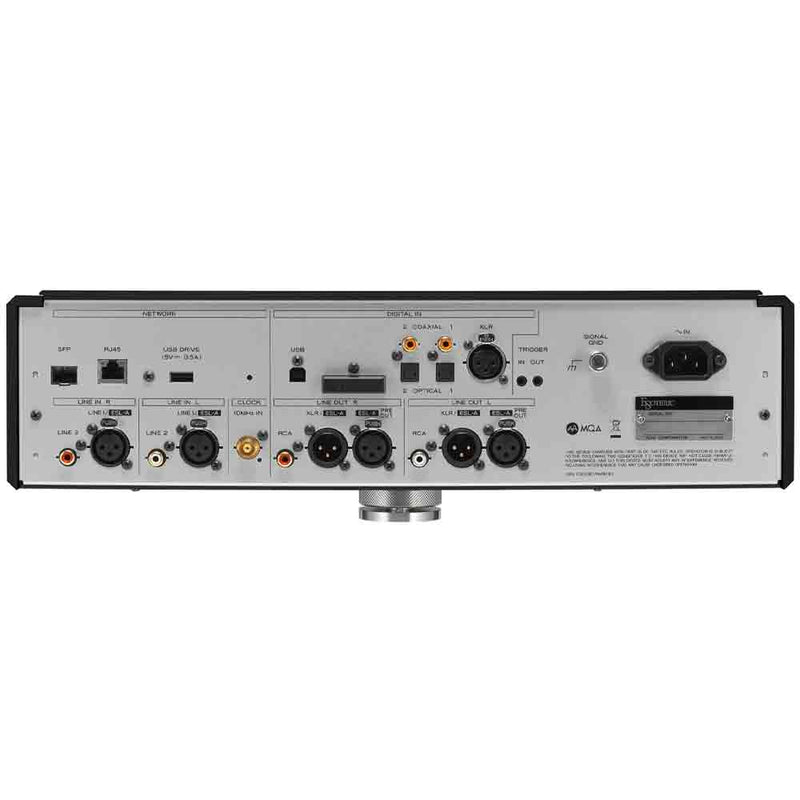

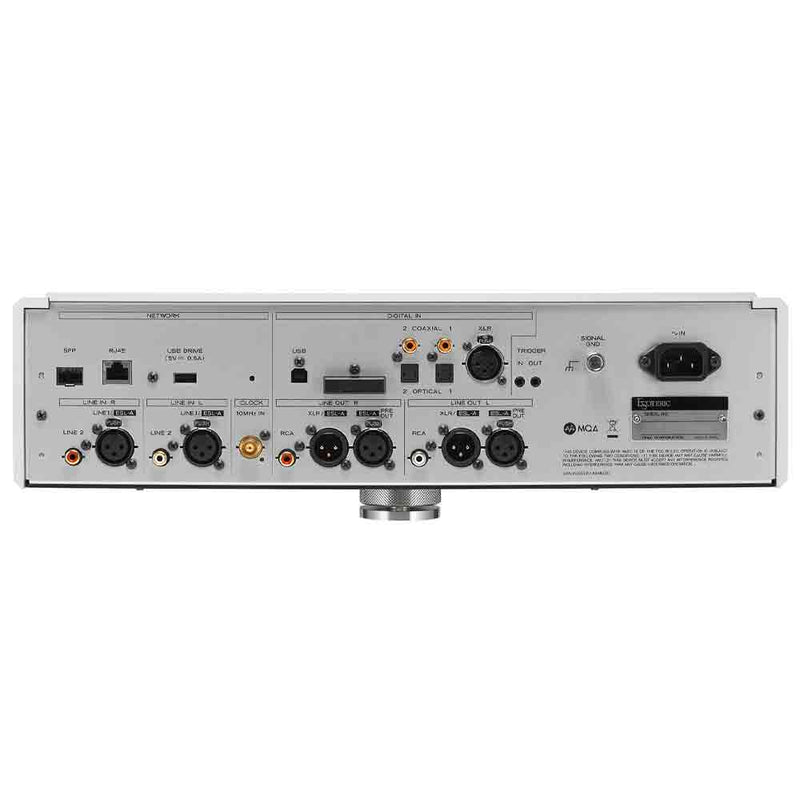

Connectivity for complete digital systems — Includes a wide range of digital inputs and integration features such as a front USB-C DAC input, an ES-Link (XLR) digital input for compatible Esoteric transports, and a 10 MHz clock input for external master clock synchronization.
Wireless convenience — Bluetooth support is included with high-quality codec support noted by the manufacturer and press coverage.
FAQ — N-05XE
What role does it play in a system?
It can serve as a network streamer, DAC, and balanced preamp in one chassis, allowing you to connect a power amplifier directly and keep the signal path clean and simple.
Does it support optical networking?
Yes. The Network Engine G4 supports optical network connections via an SFP port.
Is it suitable for high-end headphones?
Yes. The built-in headphone section is a dedicated dual-mono design with both 4-pin XLR and 6.3mm outputs, rated at 1,200 mW + 1,200 mW into 32 Ω.
