Denon PMA-600NE Integrated Amplifier with 45 Watts Per Channel and Bluetooth Support - Denon
Designed for the aspiring music enthusiast, the Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system. The PMA-600NE allows for the most vivid and emotional reproduction of vinyl and hi-res audio with digital inputs and a built-in phono equalizer. Listen to your favorite music via Bluetooth as well for seamless streaming of nearly unlimited songs.
From deep bass to detailed highs, enjoy your favorite high-resolution audio content with the 192kHz/24bit D/A converter. At 45 Watts into 8 ohms per channel, the PMA-600NE supplies enough power to drive your speakers for optimal sound. Connect the PMA-600NE to your favorite components with the two Optical and one Coaxial digital input. Powered by the Denon Advanced High Current (AHC) single-push-pull circuit power amplifier, the PMA-600NE provides exceptional sound quality that balances high power with delicate, musical details.
High Power 70w Integrated Amplifier
Power your loudspeakers with the Denon PMA-600NE integrated amplifier. Engineered with remarkable Denon amplifier technology, the PMA-600NE delivers 70 Watts of power-per-channel (4ohm, 1kHz, THD 0.7%). This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
Build Integrity with Thoughtfully Selected Components
With more than a 100-year legacy of designing premium audio components, trust that your Denon product has undergone rigorous testing to deliver a first-rate reliable listening experience. The overall aesthetic, sound quality and design integrity of the PMA-600NE and its Hi-Fi components are built to last.
Bluetooth Support and Digital Connectivity
Extend your audio experience with nearly unlimited sources. Pair the PMA-600NE to your smart device or computer via Bluetooth, and listen to your favorite music wirelessly. Connect your TV, media player, computer or any digital source via the Optical and Coaxial digital inputs for an exceptional audio performance with the built-in DAC.
Optical and Coaxial Digital Inputs
The PMA-600NE features two Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve sound and visual quality of your TV audio, Blu-ray, media players and more. Also, use it to input high-resolution sound from an audio source on your computer.
Analog Mode
Analog Mode allows the PMA-600NE to operate as a purely analog amp, disabling digital inputs as well as Bluetooth while you listen to an analog source. Turn on Analog Mode to close power to the dedicated digital power source and stop operation of the digital input and Bluetooth circuity, avoiding any high frequency influence on the analog section of the PMA-600NE. Enjoy your favorite analog sources with uninhibited clarity and detailed reproduction.
MM Phono Equalizer
The PMA-600NE includes a phono equalizer that supports playing from sources with a MM cartridge. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design of the PMA-600NE phono equalizer significantly improves sound.
Main Transformer with Individual Wiring
To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-600NE has separate coiled wires for the audio and control circuits. An integrated micro-processor features Stop Mode for even greater sound quality while you listen.
Micro-Processor Stop Mode
The micro-processor of the PMA-600NE features a Stop Mode that automatically ceases all operations of the micro-processor when it’s not needed for playback. By stopping the oscillation of the micro-processor clock during these listening moments, the audio signal is protected from external noise and enhances sound quality.
Signal Level Divided
The Signal Level Divided Construction (SLDC) chassis developed by Denon is used in the audio circuit to ensure that delicate musical signals are faithfully amplified and transmitted to the speakers. Listen with exemplary quality, every time.
Features:
Power Amplifier Section
- Rated Output: 45W + 45W (8ohm, 20Hz-20kHz, THD 0.07%), 70W + 70W (4ohm, 1kHz., THD 0.7%)
- Total Harmonic Distortion: .01% (Rated Output –3dB), 8ohm 1kHz
- Input Sensitivity MM: 2.5 mV / 47 kohm
- SN Ratio MM: 84 dB (5mV inputs signal)
- CD/Network/Aux/Recorder: 100 mV
- Input Sensitivity: 110 mV / 30 kohms
- S/N Ratio: 105 dB
Others
Tone Controls
General
- Power Supply: AC 120V, 60kHz
- Power Consumption: 185W
- Maximum Dimensions (W x H x D): 17.1” x 12.1” x 4.76”
- Weight: 15 LBS
- UPC: 883795004909
- MPN: PMA600NEBKE3

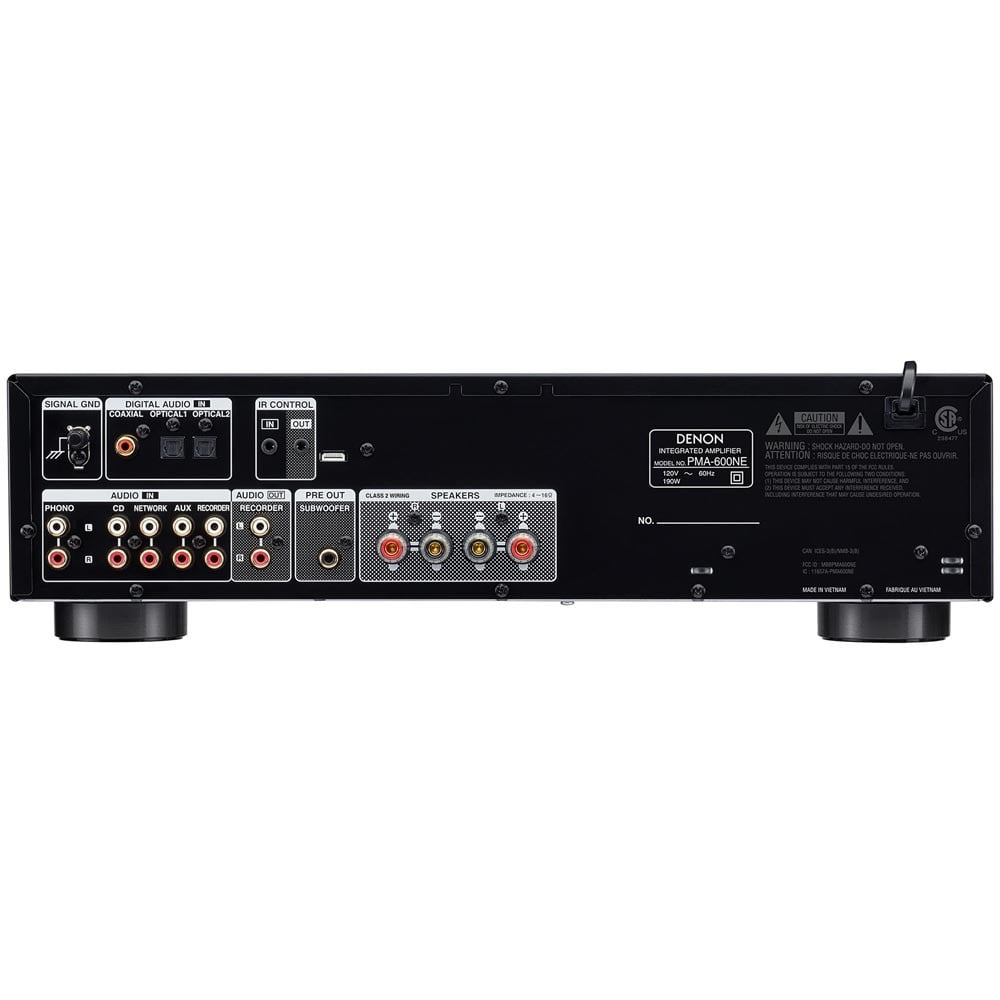

Ports IN
- Phono (MM): x 1
- CD: x 1
- AUX: x 1
- Optical Input: x 2
- Coaxial Input: x 1
- Recorder (Playback): x 1
- IR Control
Ports OUT
- Preout (Subwoofer)
- Recorder Out
- IR Control
- Speaker Terminal: x 1 pair
