Denon PMA-1700NE Integrated Amplifier - Denon
Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer.
Powerful sound from an integrated amplifier
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.
Faithful audio reproduction
Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.
Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.
High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
TECHNICAL SPECIFICATIONS:
General
- Unit (W x D x H): 17.1 x 16.1 x 5.3in
- Cabinet Size (W x D x H): 434 x 374 x 135mm, 17.1 x 14.7 x 5.3in
- Net weight: 17.6kg, 38.8lb
- Packaging Dimensions (W x D x H): 548 x 520 x 249mm, 21.6 x 20.5 x 9.8in
- Packaging gross weight: 20.4kg, 45lb
- Carton Color: 2 Color
- Cushion / Packing: 4 Separate / Sheet
- Panel Color: SP / BK
- Front (Center) Panel: Aluminum
- Side cover: SECC with 4 straight emboss
- Side screw: SP: Nickel / BK: Black
- Rear Panel: SECC t1.0mm
- Chassis Material: SECC t1.2mm
- Bottom Layer: Single
- Volume Knob: Aluminum
- Input Selector: Aluminum
- Bass/Treble/Balance/ Phono Select knobs: Aluminum
- Power button: Aluminum
- Other knob/button (LOUDNESS, SOURCE DIRECT etc): Mold (Source Direct, Analog Mode, MM/MC)
- Foot: ABS resin with rigid rib w/Hot stamp (H : 20mm)
- Heatsink for Power Amplifier: Extruded Aluminum
Specifications
- Rated Output Power: 70W + 70W (8ohm,20Hz-20kHz,THD0.07%), 140W + 140W (4ohm, 1kHz, THD0.7%)
- Speaker Impedance: A or B : 4 ~ 16ohm, A + B : 8 ~ 16ohm
- Frequency Response: 5Hz - 100kHz (0~ -3dB)
-
Total Harmonic Distortion: 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
- Dumping Factor: 100 and over
- Input Sensitivity: Phono input: MM: 2.5 mV / 47 kohm, MC: 200
- RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
- Phono Maximum Input: MM : 130mV / 1kHz, MC : 10mV / 1kHz
- Input Sensitivity: CD/LINE/RECORDER: 125 mV / 19 kohm
- Input Sensitivity: Power Amp input: 0.85V / 47kohm (EXT. PRE)
- Signal to Noise Ratio: PHONO (MM): (89dB), PHONO (MC): (74dB), CD: (107dB)
- Tone Control: BASS : 100Hz ±8dB, TREBLE : 10kHz ±8dB
- Power Consumption: 295W
- at Standby: 0.2W TV auto-play off, 0.4W TV auto-play on

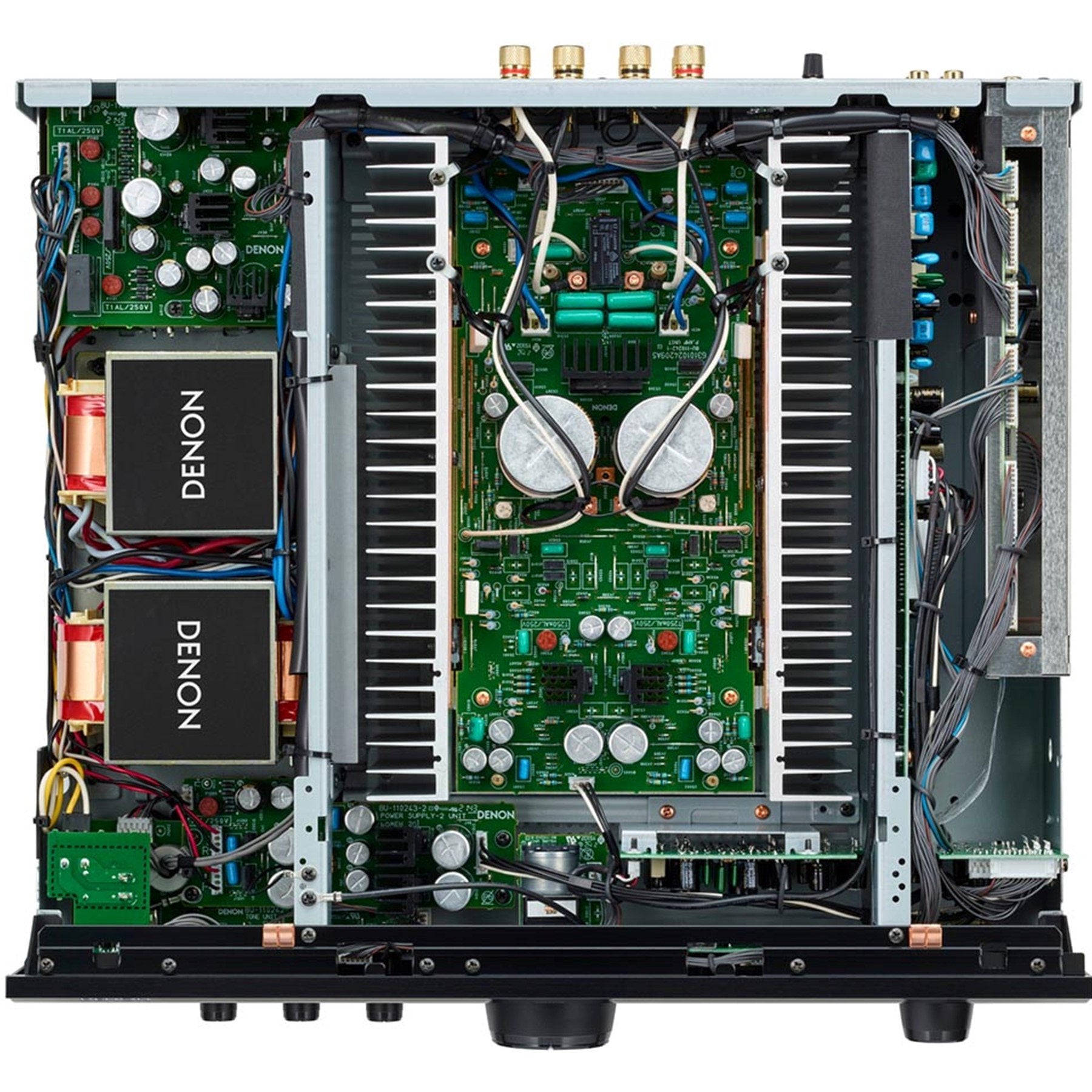

Audio Feature
- Power Amplifier Circuit: New UHC-MOS, Single Push Pull (7)
- Power Trans: Dual El Core
-
Pre Amplifier Circuit: Variable Gain Preamplifier (OP AMP)
- Volume: Electric (MUSES 72323)
- Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
- Type of Tone Control: Electric Controlled by Potentiometer
- Headphone Circuit: Use Power amplifier
- Source Direct: Yes
- Analog Amp Mode: Yes (button on front panel)
- Other: 70
- DAC Circuit: PCM1795
- Digital Filter: Fixed
- Digital Processing: Advanced AL32 Processing Plus
- DAC Master Clock Design (Not Support Network Playback): Yes
- Asynchronous mode (for USB-B input): Yes
- Isolator (for USB-B input): Yes, Full Isolation

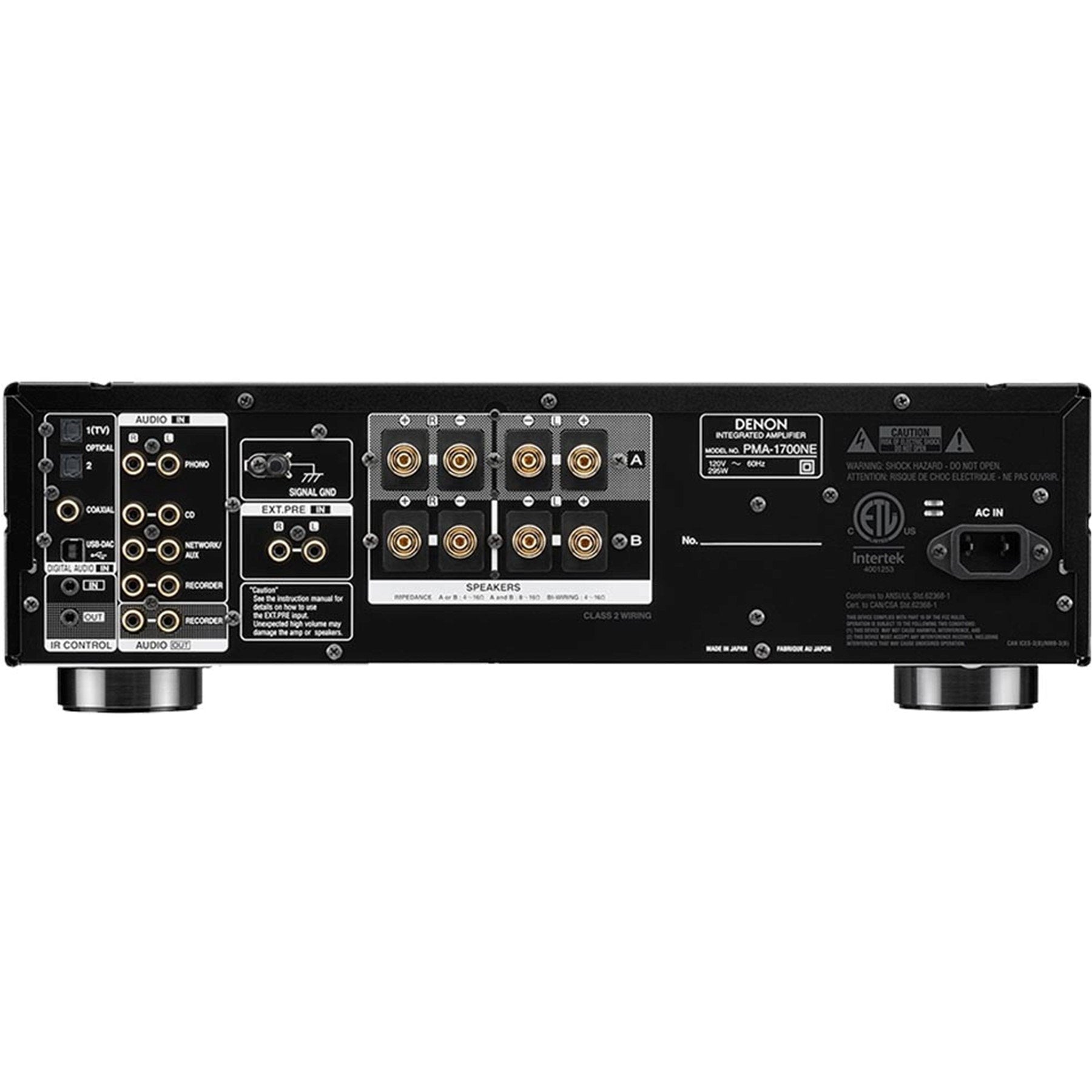

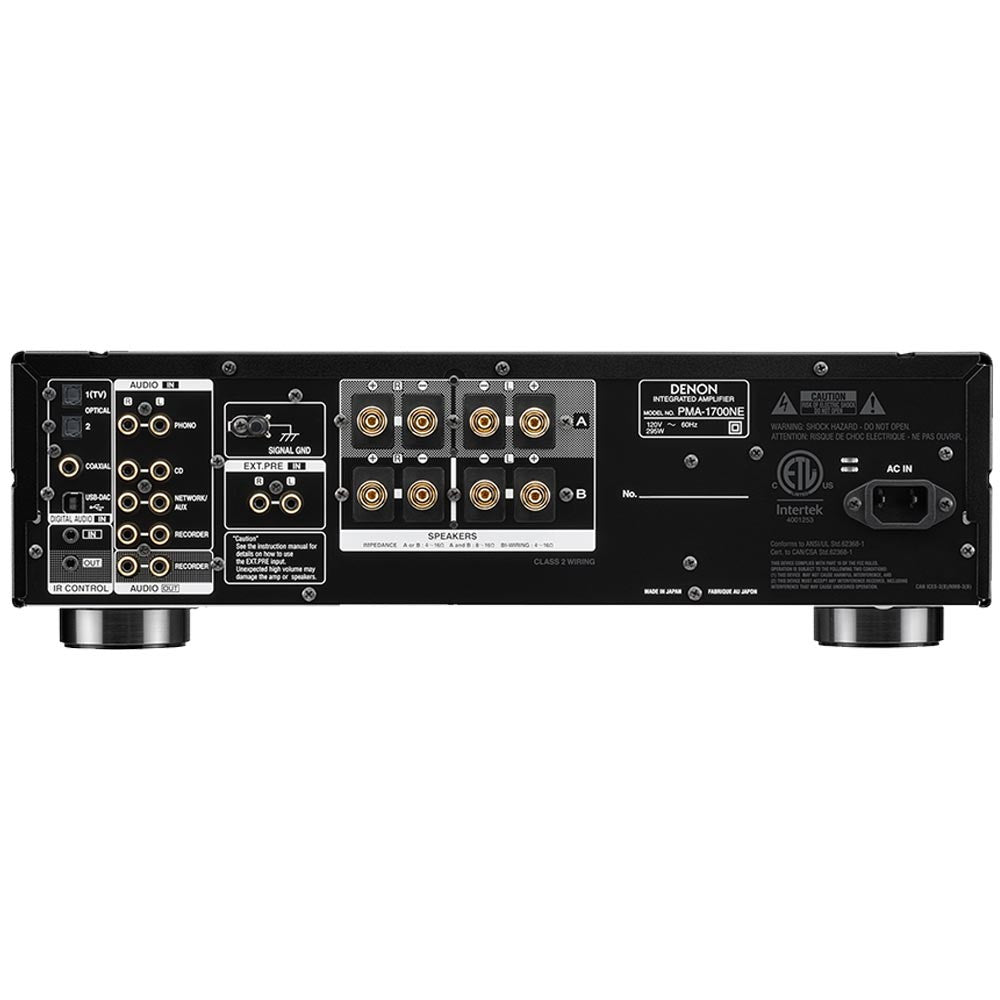

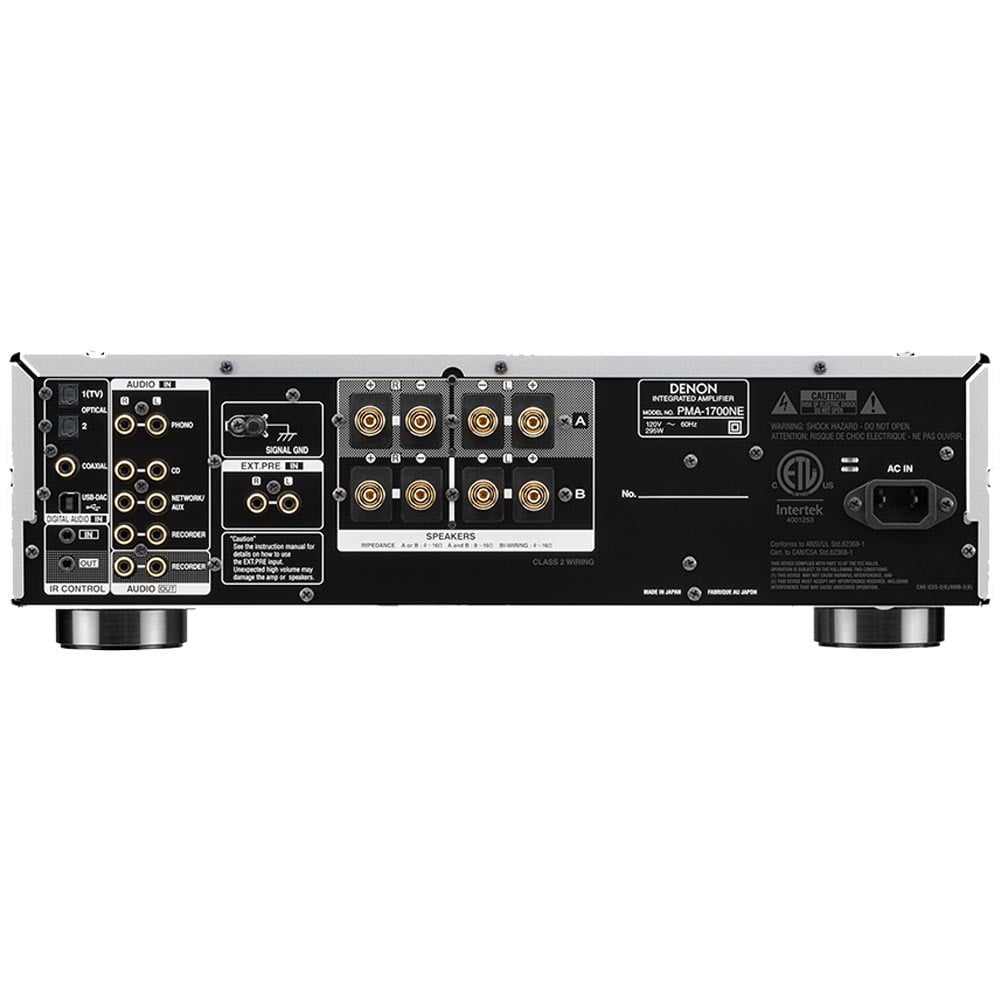

Connectivity
- Phono Input: Yes (MM / MC) *default=MM
- Analog Input (include Phono) / REC Out (RCA): 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
- Optical input / output (Maximum Support): 2 / 0 (192kHz/24bit)
- Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
- Ext. Pre Input (Power Amp Direct): Yes(Ext.Pre)
- 2 sets of Speaker Output: Yes (Bi-wiring)
- Speaker Terminal: Gold Plated
- Headphone Output: 1 (Turn off the speaker when inserting headphone)
- Remote Control Bus Terminal: Yes (mini)
- AC Inlet: Yes
- Wi-Fi: No
- HEOS: No
- USB B (USB DAC): 1 (Rear)
- Module or Main Device: New XMOS (XU210-256-TQ128 )
- PCM Sample Rate: ~384kHz/32bit
- DSD Audio Streaming (DoP): ~11.2MHz
- Roon Certification: Yes(Roon Tested) TBD

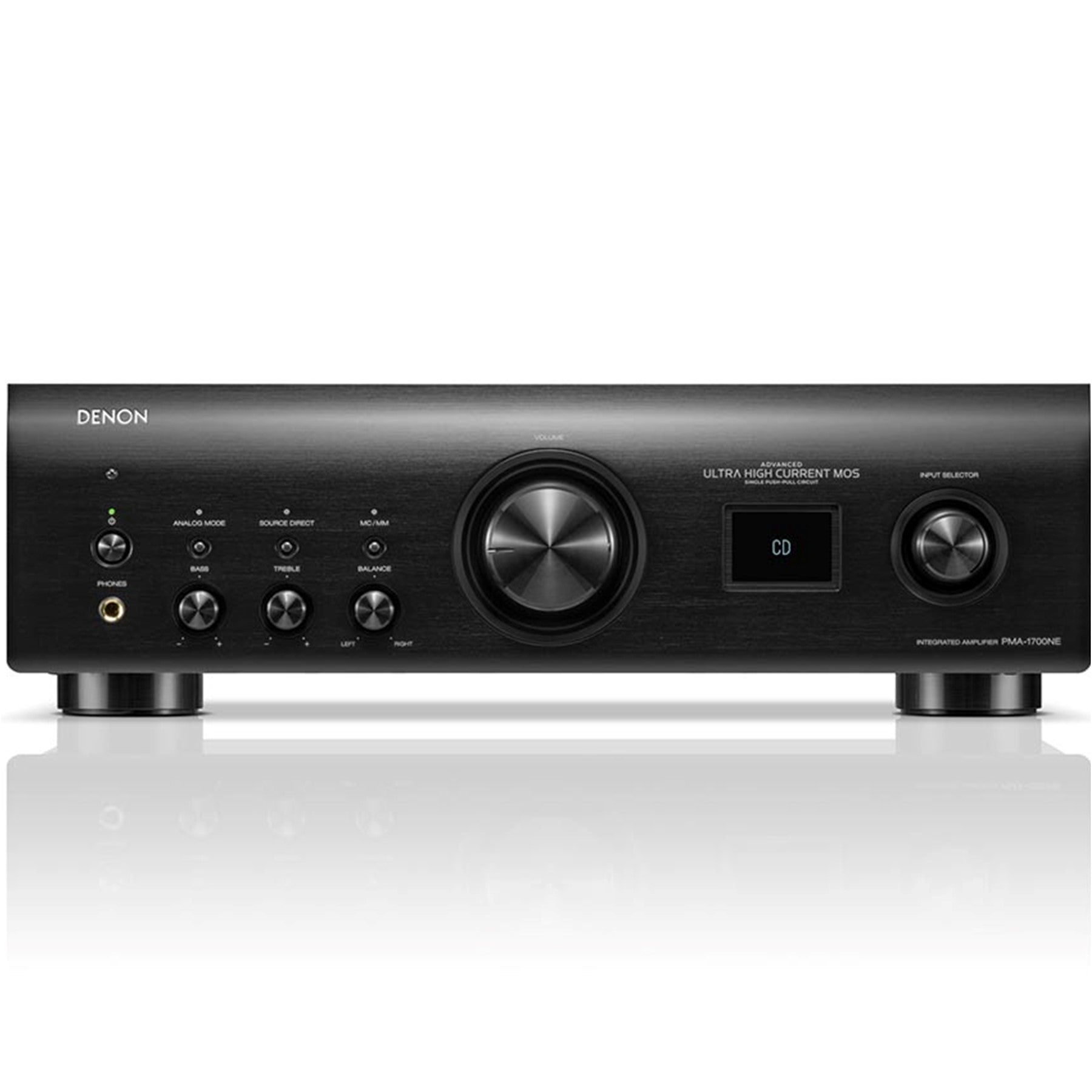

Control

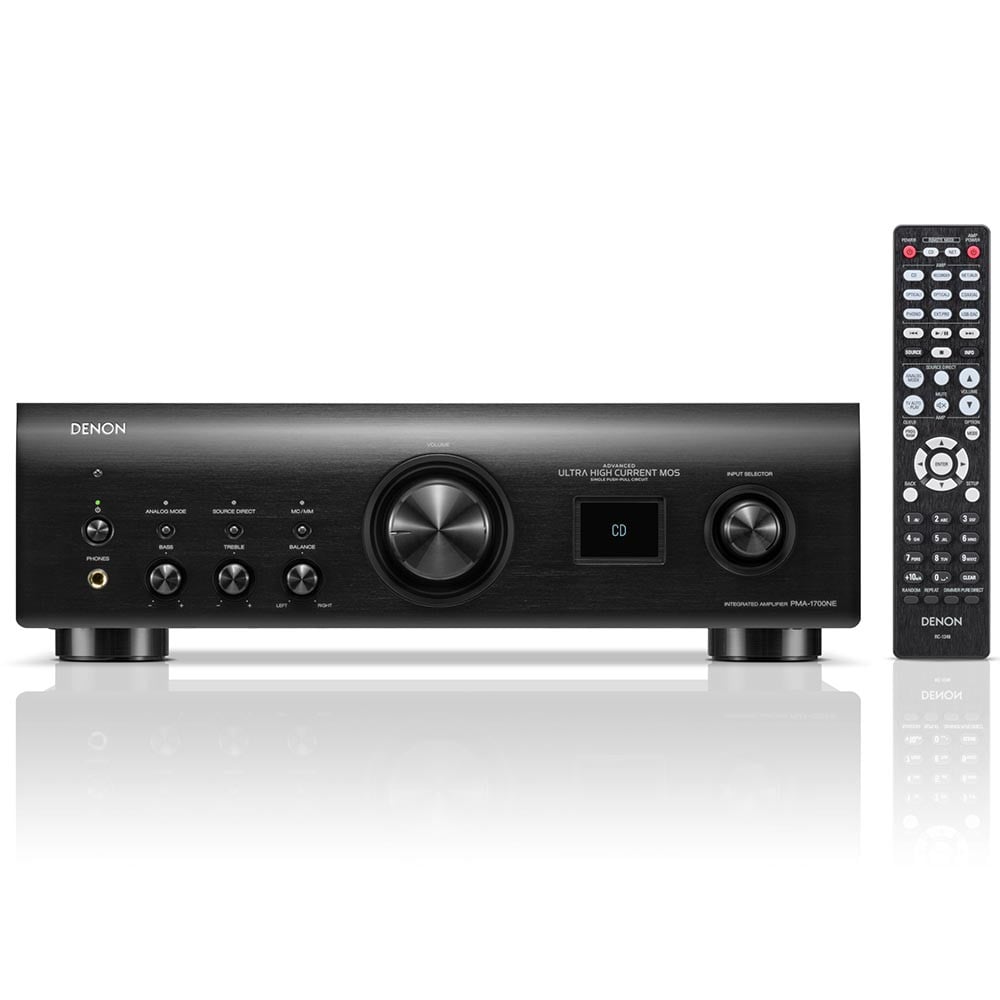

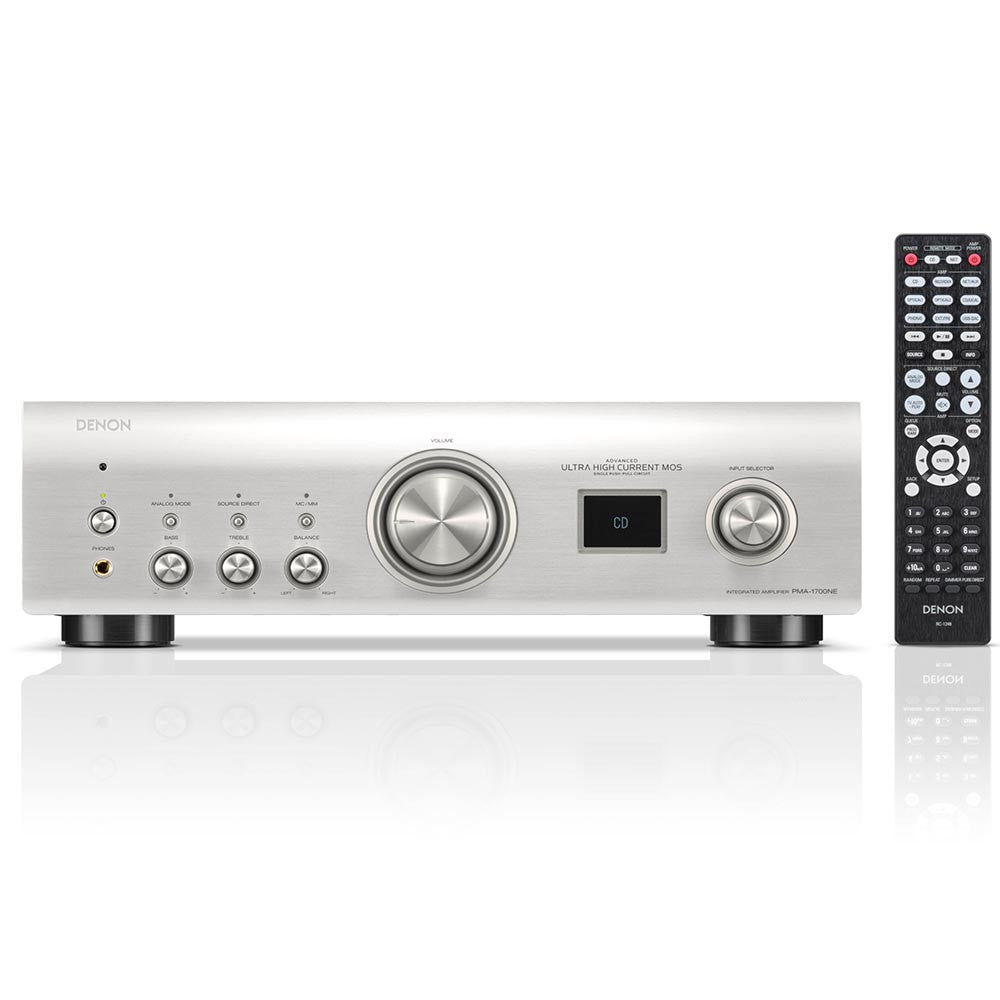

- Remote Controller: System Remote (w/CD Player Control)
- Unit control (Button): Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC
- Unit control (Knob): 5, VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
- LED: POWER: 1 Red / Green, ANALOG MODE: 1 Green, SOURCE DIRECT: 1 Green, MM / MC :1 Green
- Front Panel Display: Yes, (OLED 128 x 100 dot) MXS4036-A
- Display Language: Alphabetical
- Dimmer for Front Display: Bright / Dim / Dark / Off
- Control with App via Network Player (Use Remote Control Bus): Yes
- TV Auto-play (Opt/Coax digital-in detector): Yes
- Last Function Memory: Yes
- Auto Standby Mode: Yes
-
Owner's Manual: Web Manual, E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian), E3: (English, French, Spanish), E1C: (Simplified Chinese), JP: (Japanese) Paper, JP: (Japanese)
-
Quick Start Guide: Paper, E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian), E3: (English, French, Spanish), E1C: (Simplified Chinese), JP: (Japanese)
- Remote Controller: Yes
- Battery: Yes (AAA x2)
- Power Cord: Yes
