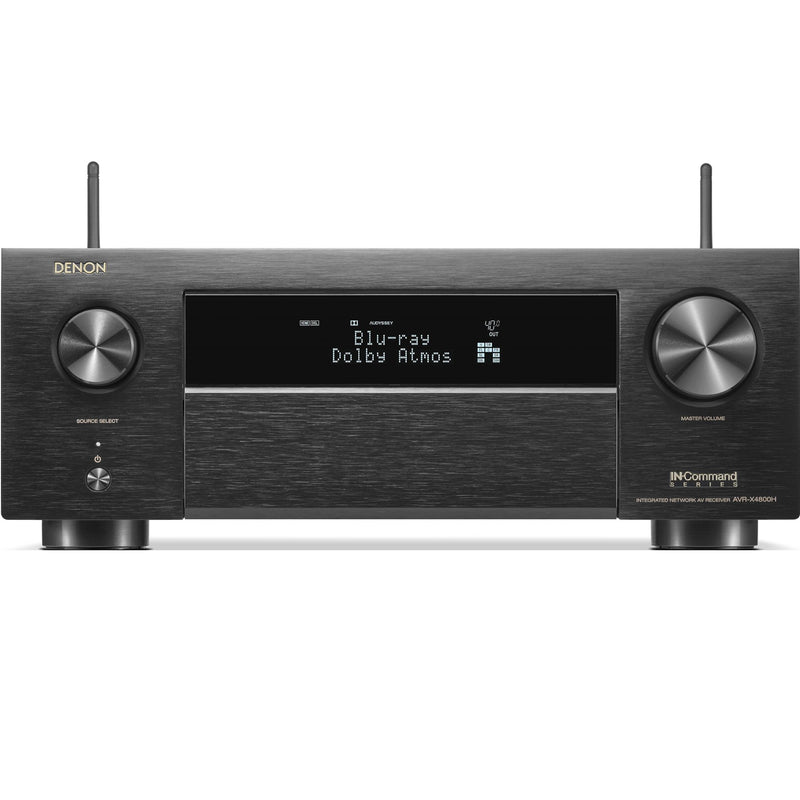

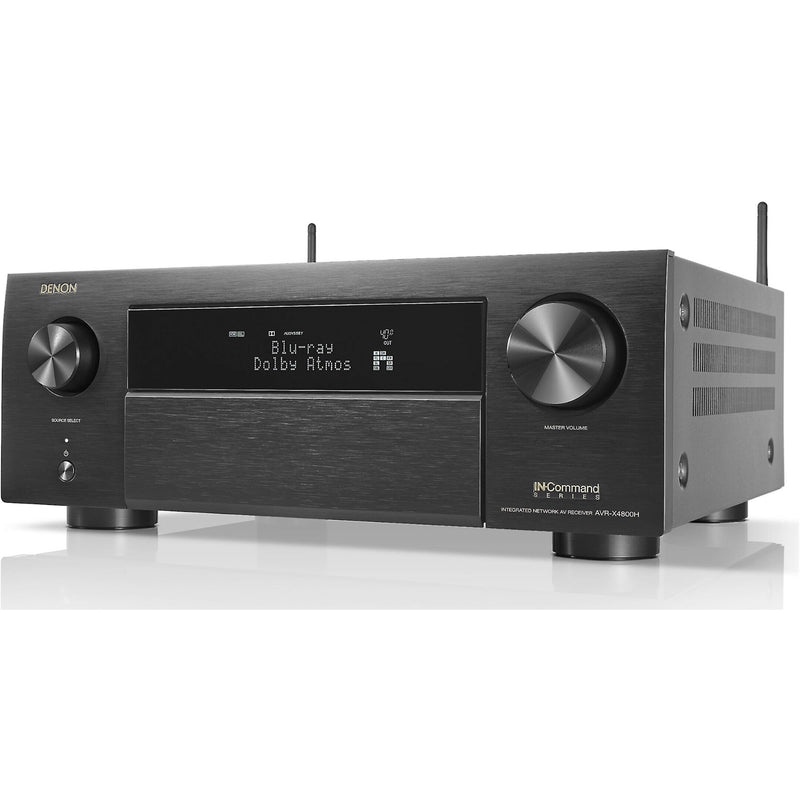

Denon AVR-X4800H 9.4 Channel 8K AV Receiver - Denon
The Denon AVR-X4800H 9.4 channel 8K home theater receiver can power the most demanding speakers
This is a very special receiver that should be considered for any larger room project
Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
Enveloping 3D audio
Feel like you're in the center
of the action with enveloping 3D sound.
Expert ready
Take advantage of the wide variety of configuration options to best fit your space.
Denon craftsmanship
Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.
Optimize for your room
Enhance performance
with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).
TECHNICAL SPECIFICATIONS:
Multichannel Surround
- DTS HD Master, DTS:X, DTS:X Pro: yes, yes, no
- DTS Neo:X, DTS Neural:X: no, yes
- DTS Virtual:X: yes
- IMAX Enhanced: yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: yes, yes, yes, yes
- Dolby ProLogic Ilz, Dolby Surround: no, yes
- Auro 3D: yes
- 360 Reality Audio / MPEG H: yes, yes
- Multichannel Stereo: yes
- Max. Number of Processing (Pre-Amp) Channels: 11.4
Sound Enhancements
- Discrete Power Amplifier: yes
- D.D.S.C. HD Digital: yes (32 bit)
- Pure Direct: yes
- Clock Jitter Reducer: yes
- Alpha Processing: AL32 Processing Multichannel
- Audyssey: MultEQ XT32
- Audyssey Dynamic EQ, Dynamic Volume: yes, yes
- Audyssey LFC: yes
- Dirac Live Upgradability: yes
- Compressed Audio Restorer: yes
Network
- Media Server: yes
- HEOS Wireless Multi-Room Technology: yes
- Alexa / Google Voice Assistant / Apple HomePod: yes, yes, yes
- Lossy Formats: MP3, WMA, AAC: yes, yes, yes
- Lossless Formats: FLAC, ALAC, WAV: yes, yes, yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): yes, yes, yes
- DSD Audio Streaming: yes (2.8/5.6MHz)
- AirPlay 2: yes
- TuneIn: yes
- Spotify Connect: yes
- Pandora: yes
- SiriusXM*: yes
- Roon Tested: yes
- HEOS App Control: yes
- Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
- Ethernet Ports: yes
- Wi-Fi: yes
- Bluetooth: yes
HDMI
- HDMI Inputs: Back, Front: 7, no
- HDCP2.3 support: yes
- HDMI Outputs: Main, Zone: 2, 1
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: yes, yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: yes, yes, yes, yes, yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming: yes
- Variable Refresh Rate, Quick Flame Transport, Quick Media Switching: yes, yes, no
- 3D Signal Pass-through: yes
- 8K Signal Pass-Through, Scaling, GUI Overlay: yes, yes, yes
- DSD Audio Capability: yes
- Audio Return Channel (ARC), Enhanced ARC: yes, yes
- Auto LipSync: yes
Multi-room CI
- Multi-Room Zones: 3
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out: yes, yes
- Zone HDMI Output from HDMI Source: yes
- IP Control, RS232 Control, Web Control, App Control: yes, yes / yes, yes
- Remote In / Out: yes, yes
- DC Trigger Output: 3
- HDMI Diagnostics: yes
Others
- Auto Speaker Setup by Microphone: Audyssey MultEQ XT32, Dirac Live (upgrade)
- Front Display: 2-Line FLD
- GUI Languages: 3
- Setup Assistant: yes
- Quick Select Plus, Quick Select: yes, no
- Variable Crossover: yes
- Optimized Bass Redirection: yes
- Bass Sync: yes
- ECO Mode: yes
- Auto Power Off: yes
- Sleep Timer: yes

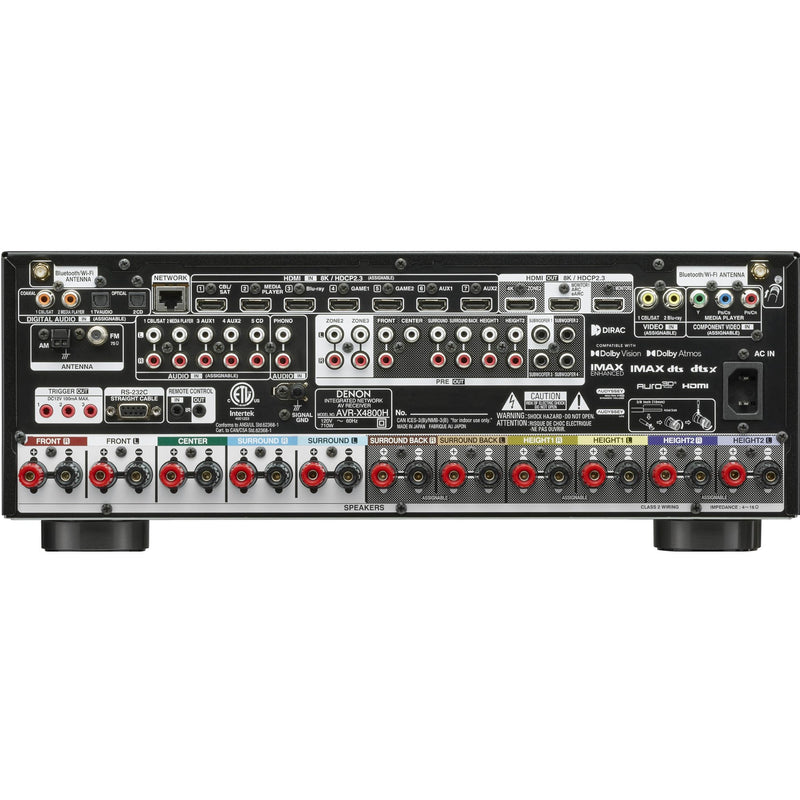

Inputs Outputs
- HDMI In, Out: 7, 3
- Multi-Room Video Out: Video, HDMI: no, yes
- Analog In, Out: 5, no
- Phono (MM) In: yes
- Digital In: Optical, Coaxial: 2, 2
- Multi-Room Out: Analog, Digital: 2, no
- Multichannel Pre-out: Yes (11.4)
- Subwoofer Out: 4 (independent)
- Speaker Terminal: Gold-Plated Screw, Regular Screw: no ,yes
- Number of Speaker Terminals: 11
- Speaker A / B: Assignable
- Bi-amp Drive: Assignable
- Multi-Room Speaker Terminal: Assignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone: Yes, No, No
- AM/FM Tuner: Yes
Specifications
- Number of Power Amps: 9
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 165W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 235W
General
- Metal Front Panel: Yes

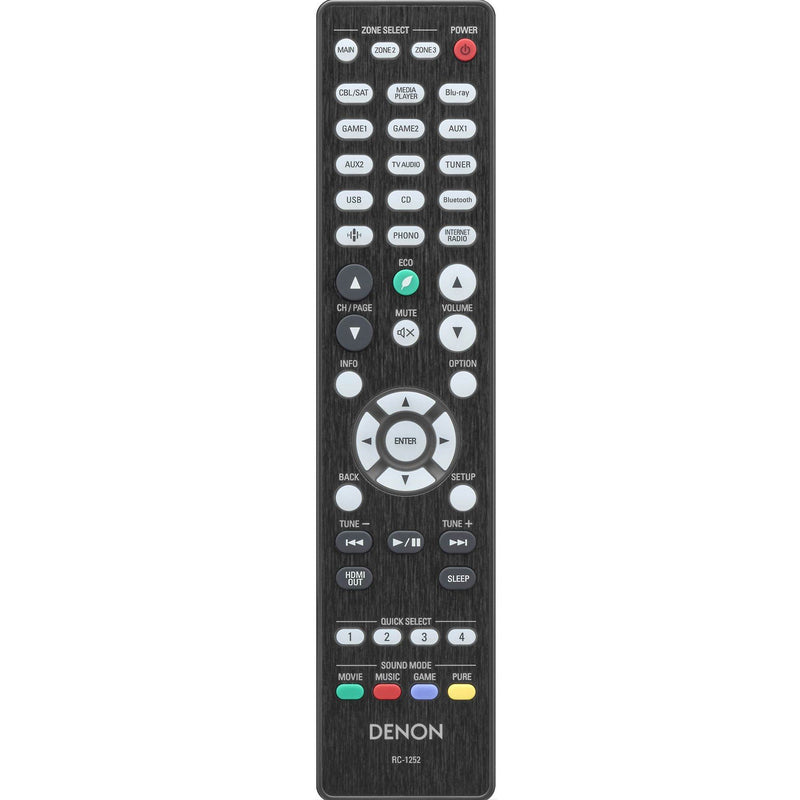

- System Remote Control: RC-1252
- Pre-Programmed, Learnable, LCD Display: yes, no, no
- Power Consumption in W: 710
- Power Consumption No-Sound (ECO On / Off) in W: 65W/110W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
Dimensions
- Antenna: Horizontal: (W x D x H) in Inches:17.1 x 15.3 x 6.6
- Antenna: Vertical: (W x D x H) in Inches: 17.1 x 15.3 x 9.3
- W/O Antenna: (W x D x H) in Inches: 17.1 x 14.9 x 6.6
- Weight in LBS: 29.1
- Weight in LBS (Packaging): 34.9
