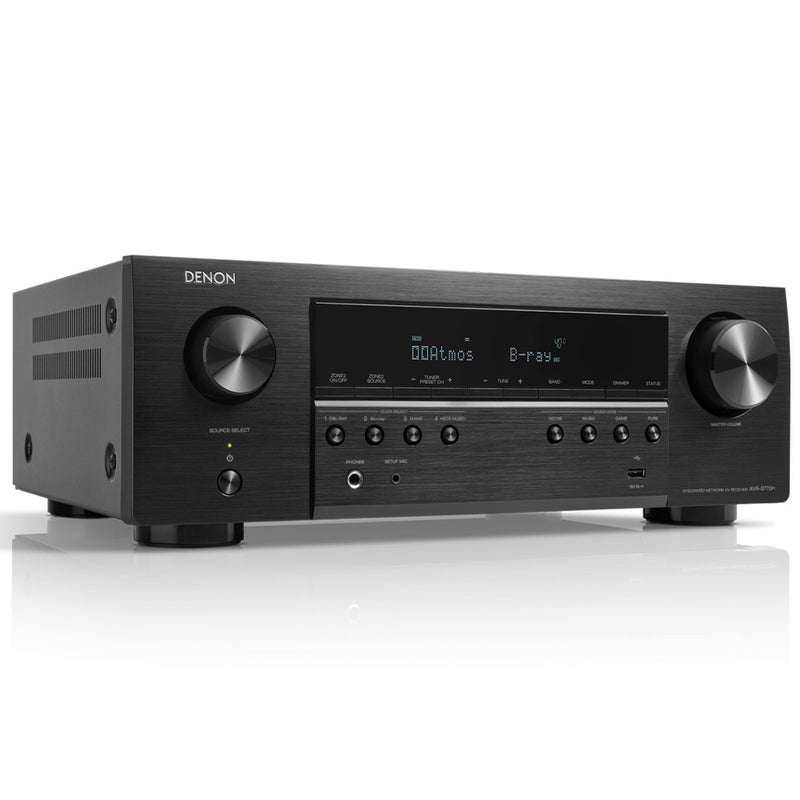

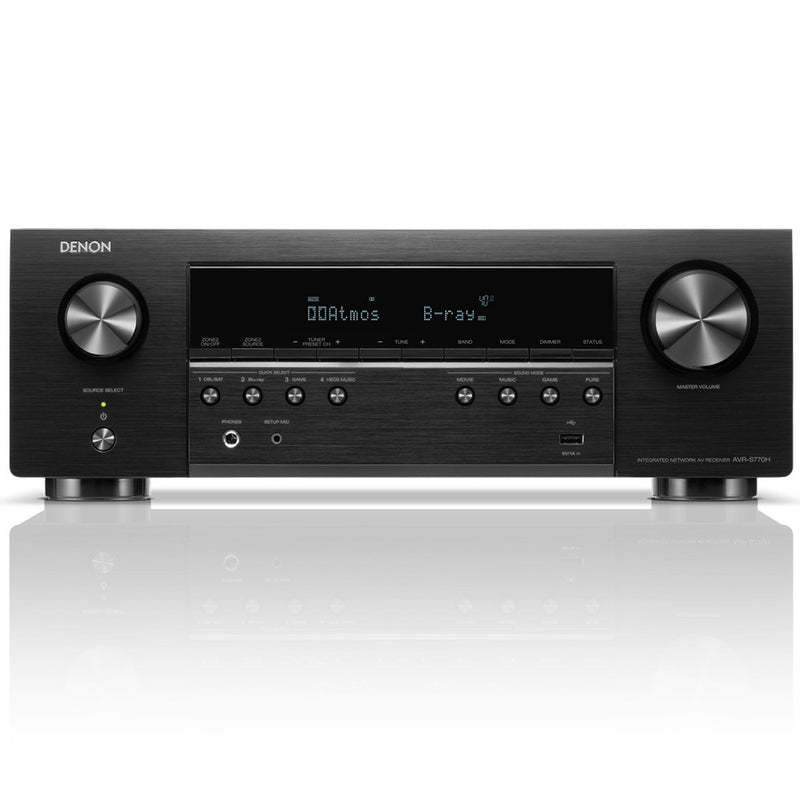

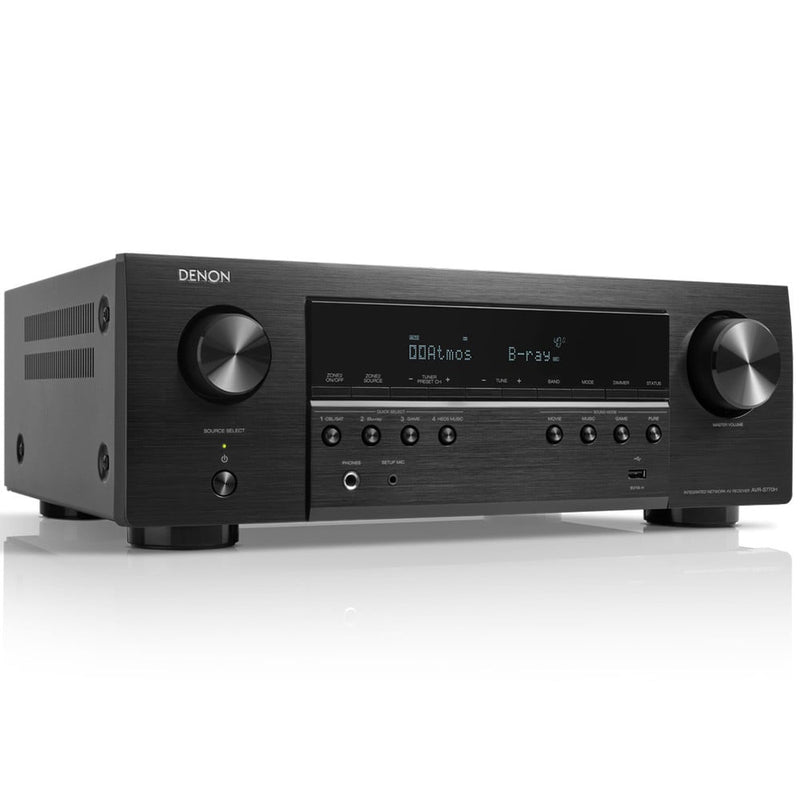

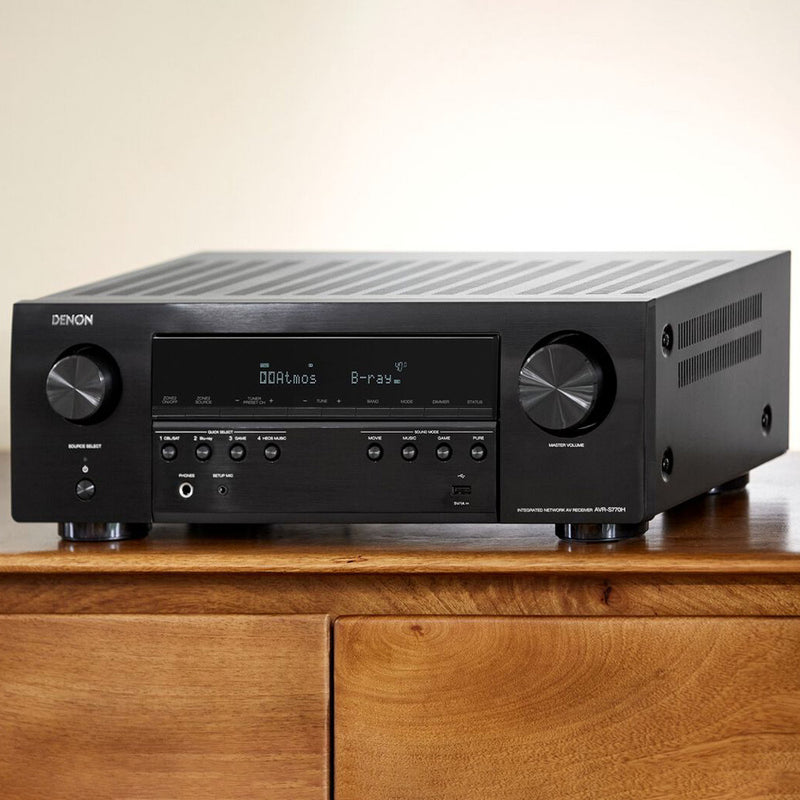

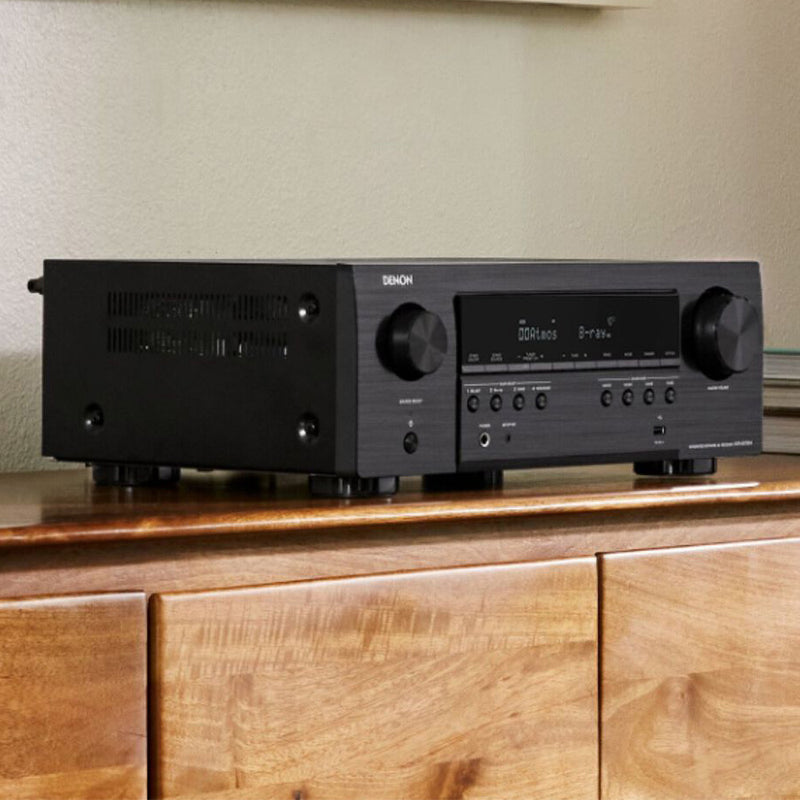

Denon AVR-S770H 7.2 Ch. 8K Home Theater Receiver with HEOS Built-in - Denon
Enjoy incredible 8K video and 3D audio from the AVR-S770H. Fill small to mid-size rooms with sound from a 7.2 or 5.2.2 surround sound set up with Dolby Atmos and DTS:X. And with HEOS® Built-in, you can stream and share music to any HEOS-enabled speaker throughout your home.
- 7.2 channels
- 8K HDMI
- Wi-Fi and Bluetooth
- 3D audio from Dolby Atmos and DTS:X
- HEOS® Built-in
- Audyssey room correction
This is the heart of your home theater
Enjoy 8K video and true surround sound from a 5.2-channel receiver with HEOS® wireless music streaming.
Enjoy 8K video and spectacular 3D sound
Denon quality sound
Fill a small to mid-size room with dynamic Denon sound.
Spectacular 3D audio
Feel like you’re in the middle of a movie with Dolby Atmos.
Geared for 8K
Enjoy amazing video quality from the latest 8K technology.
Enjoy incredible 8K video and 3D audio
Music streaming throughout your home
With HEOS® Built-in, easily access streaming music and share with HEOS-enabled speakers in other rooms.
High performance discrete 7-channel amplifier
Discrete high-current amplifiers on all channels deliver up to 75W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive most speakers in a mid-size room.
Built-in Wi-Fi and Bluetooth
Provides both Wi-Fi and Bluetooth connectivity for your wireless network or direct music streaming from your smart devices. Use AirPlay to stream Apple Music.
Simple setup and Audyssey room correction technology
Our award-winning guided setup assistant provides clear, step-by-step instructions to get you started. Includes Audyssey MultEQ software for accurate calibration that optimizes the listening experience in your room.
Over a century of innovation
Founded in 1910, Denon enables the moments that matter through the relentless pursuit of quality, innovation, and audio performance.
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
Details & Specifications:
- Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro: Yes / Yes / No
- DTS Neo:6 / DTS Neural:X: No / Yes
- DTS Virtual:X: Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music: Yes / Yes / Yes / Yes
- Dolby ProLogic Il / Dolby Surround: No / Yes
- Multichannel Stereo: Yes
- Dialog Enhancer: Yes
- Max. number of processing (preamp) channels: 7.1
- Sound Enhancements
- Discrete Power Amplifier: 7
- Audyssey: MultEQ
- Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
- Compressed Audio Restorer: Yes
- Network
- Media Server: Yes
- HEOS Wireless Multi-Room Technology: Yes
- Bluetooth Re-Transmit for Bluetooth Headphones: Yes (with volume control)
- Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
- Lossy Formats: MP3 / WMA / AAC: Yes / Yes / Yes
- Lossless Formats: FLAC / ALAC / WAV: MP3 / WMA / AAC: Yes / Yes / Yes
- Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz
- FLAC HD 192/24: Yes
- WAV 192/24: Yes
- ALAC 192/24: Yes
- Gapless playback: Yes (FLAC, WAV, ALAC, DSD)
- AirPlay Audio Streaming: Yes (AirPlay2)
- Internet Radio: Yes (AirPlay2)
- Spotify: Yes (connect)
- Pandora: Yes
- SiriusXM: Yes
- Other Streaming Services: Amazon Music HD /Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
- Roon Tested: Yes
- HEOS App Control: Yes
- Compatible with Remote APP for Smart Phones: Denon AVR Remote
- Compatible with Remote APP for Tablets: Android / iOS / Amazon Kindle
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- HDMI
- HDMI Inputs: Back/Front: 6 (3x 8K) / Yes
- HDMI Outputs: Main/Zone: 1 / No
- HDMI max Resolution (8k / 4k): 8k / 60 - 4k / 120
- HDMI to HDMI Scaling: up to 8K 60 / 50
- HDMI: 8K / 4K / CEC / eARC: Yes / Yes / Yes / Yes
- HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG: Yes / Yes / Yes / Yes
- HDMI: ALLM / QMS / QFT / VRR: Yes / No / Yes / Yes
- HDMI Pass-Though in Standby Mode: Yes
- Multiroom / CI
- HEOS Multiroom integrated: Yes
- TV Sound grouping: Yes
- Multiroom zones: 2
- Main room multichannel audio - Zone stereo downmix: Yes
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Pre-Out: Yes / No
- Web Browser Setup: Yes
- IP Control / RS232 Control / Web Control / App Control: Yes / No / Yes / Yes
- Others
- Voice Control - Works with Amazon Alexa: Yes
- Voice Control - Google Assistant / Apple Siri: Yes
- Auto speaker setup by microphone: Audyssey MultiEQ
- Front Display: 1 line FLD
- Graphic User Interface - GUI: High Definition 1080p
- GUI languages: 9
- Setup Assistant: Yes
- Quick Select Plus / Quick Select: Yes / No
- Firmware Update by Network / USB: Yes / Yes
- Variable Crossover: Yes
- Optimized Bass Redirection: Yes
- HDMI Diagnostic Mode: Yes
- ECO Mode: Yes
- Auto Power off: Yes
- Sleep Timer: Yes

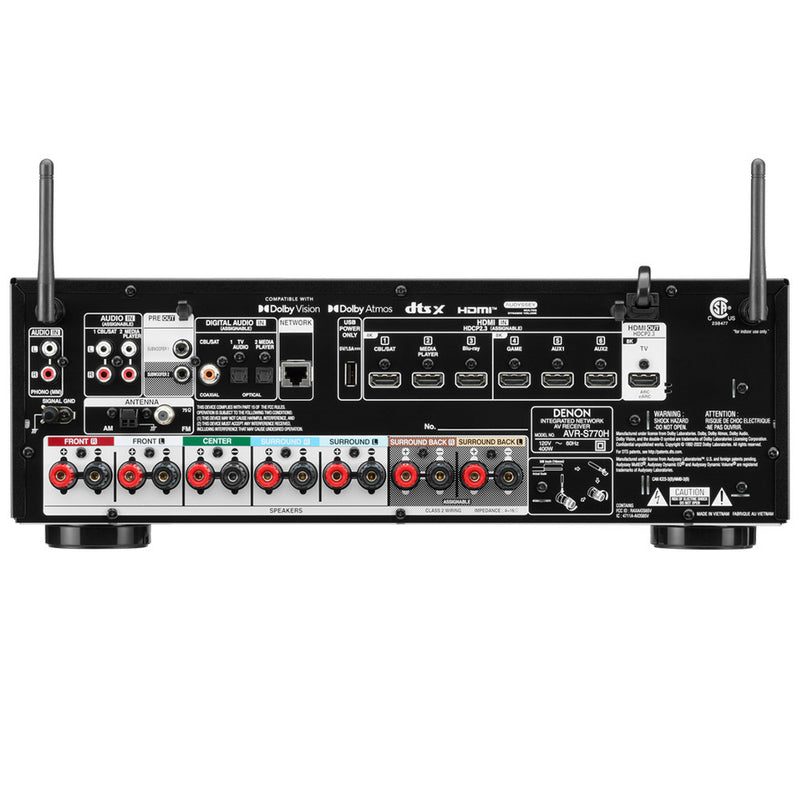

- Inputs/Outputs
- HDMI In/Out: 6 / 1
- Analog In/Out: 2 / No
- Phono (MM) In: Yes
- Digital in: Optical/Coaxial: 2 / No
- Multichannel Pre-Out: Yes (0.2)
- Subwoofer Out: 2
- Speaker Terminal: Gold-Plated Screw / Regular Screw: No / Yes
- Number of Speaker Terminals: 7
- Multi-Room Speaker Terminal: assignable
- USB Audio Input Front: Yes
- USB Power 5V/1.5A Rear: Yes
- FM Tuner with RDS: Yes
- Specifications
- Number of Power Amps: 7
- Power Output (8 ohm, 20 Hz–20 kHz, 0.08% 2ch Drive): 75 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 110 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 140 W
- General
- Available colors: Black / Premium Silver: Yes / No
- System Remote Control: RC-1257
- Power Consumption in W: 400
- Power Consumption No-Sound (ECO on / off) in W: 29 W / 39 W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
- Maximum Dimensions
- Antenna: Horizontal:(W x D x H) in mm: 434× 339 × 151
- Antenna: Vertical :(W x D x H) in mm: 434 x 339 x 215
- Carton Maximum Dimensions (W x D x H) in mm: 523 x 435 x 232
- Weight in kg: 8.6
- Carton Weight (inc. product) in kg: 10.6
