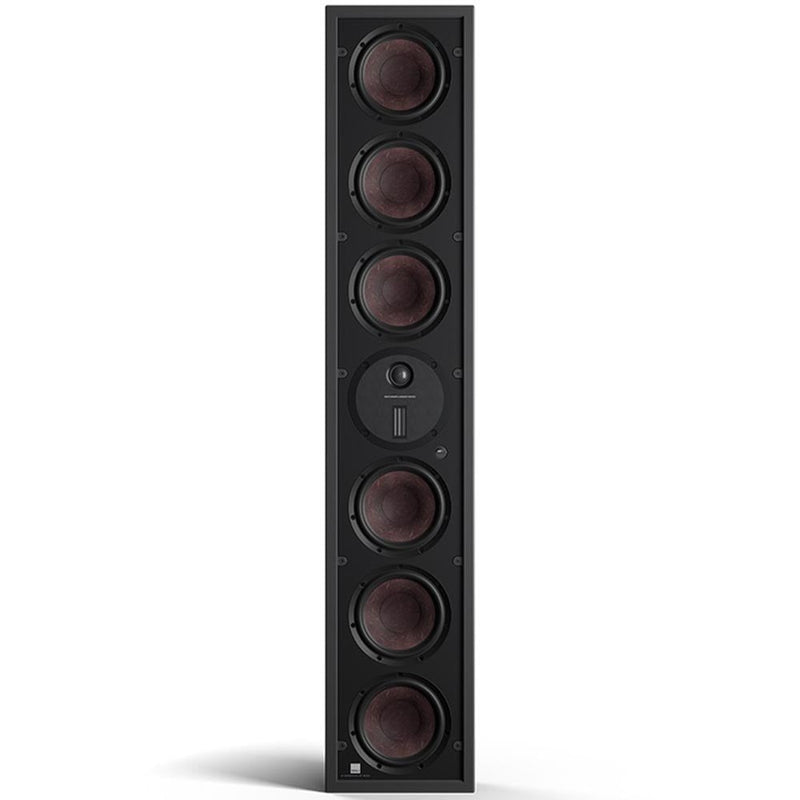

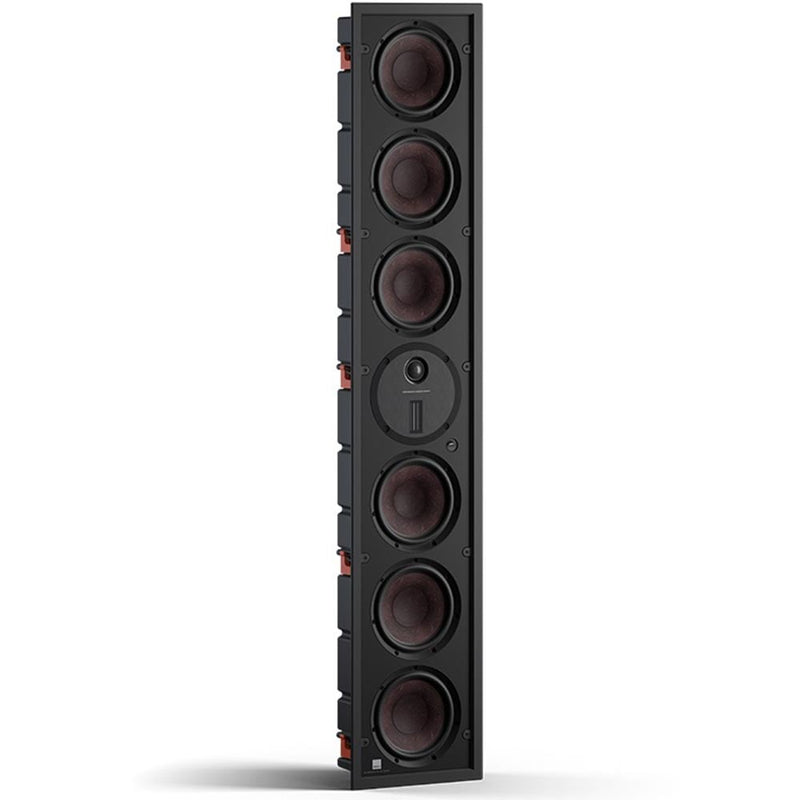

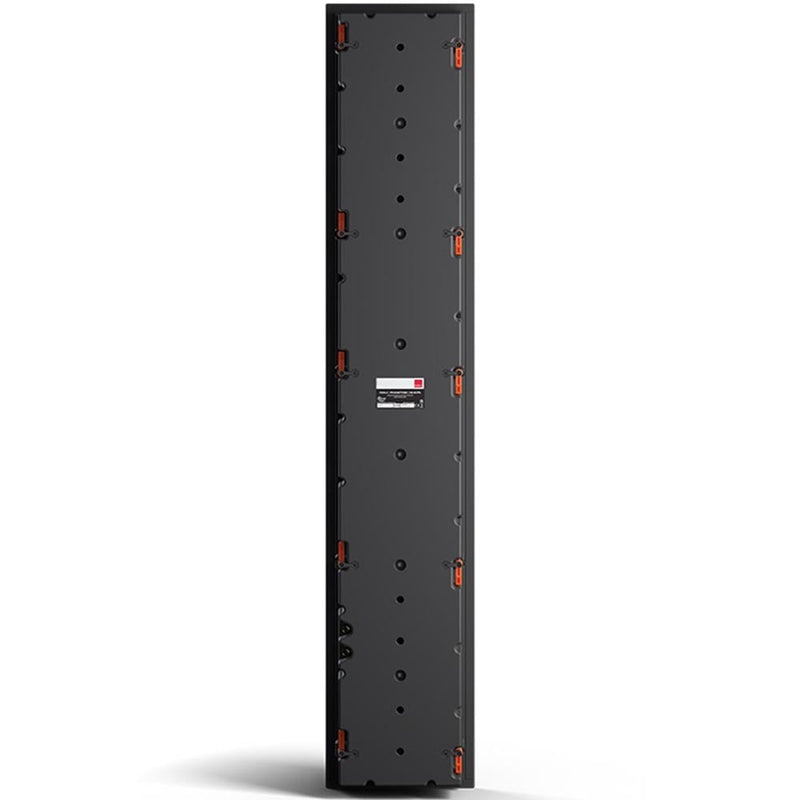

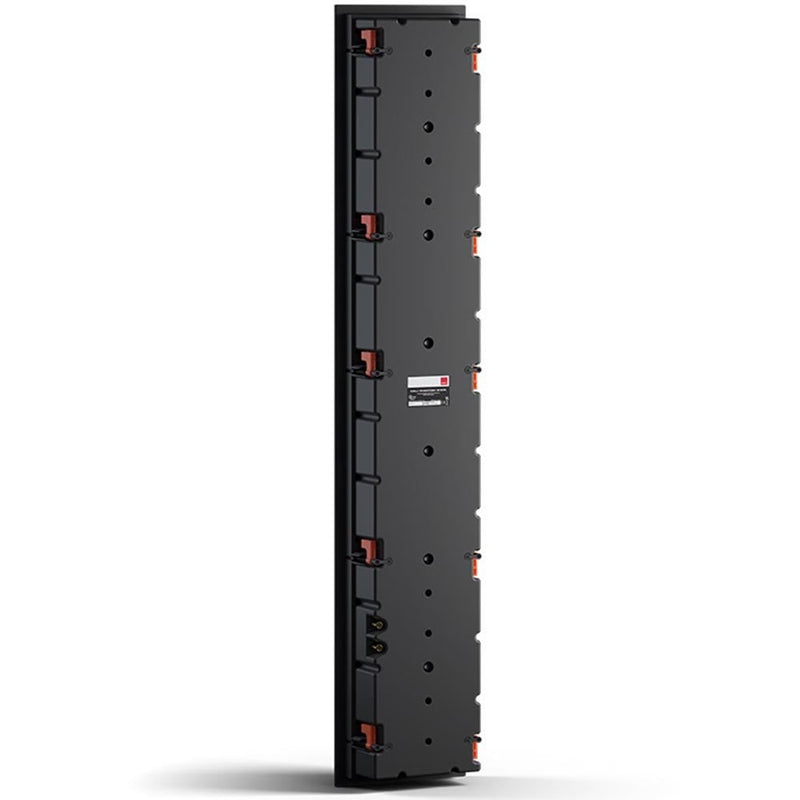

Dali PHANTOM M-675 In-Wall Speaker (Each) - Dali
The PHANTOM M-675 is a large and slim high-performance in-wall speaker designed for high-end/high performance CI home-cinema installations, and features eight drive units, all developed in-house for the very best sound quality.
PHANTOM M-675 FEATURES
AMAZING SOUND QUALITY
Designed for high-end home cinema installations - with extended bass response and the ability to fill bigger rooms.
INTEGRATED BACKBOX
The M-675 uses fully closed cabinet, making installation extremely easy as you don't need to install it into a backbox.
EASY INSTALLATION
Ready for mounting out-of-the-box. Install using the six high quality spring-loaded doglegs, ensuring firm installation with no rattling.
DISCRETE DESIGN
The PHANTOM M-675 offers a slimmer profile than our PHANTOM S series, making installation below or to the sides of a TV more easy on the eyes.
DISCREET MULTICHANNEL
Extremely versatile, slim and flexible
The M-675 is a step up in size and sound quality compared to the smaller models in the PHANTOM M range. Still, it's extremely versatile, slim and flexible and has been developed to deliver outstanding multi-channel sound. The M-675 is the natural choice mounted vertically or horizontally in a larger home cinema setup and performs equally well as a surround speaker.
LOW-LOSS WOOFERS
Stiff, custom wood fiber cones with top-class characteristics
The bass and midrange drivers feature upgraded rubber surrounds and new voice-coils for improved LF response and higher power handling. They're supported by no less than four 7" passive radiators with custom lightweight paper and wood fiber cone membranes for added stiffness and reduced coloration. The structural stiffness of the cone provides exceptional characteristics with very low loss of information. The result is a speaker that's easier to drive with an even, piston-like movement that significantly reduces the possibility of surface resonance, even at low volume levels.
SPREAD THE JOY
A true master in the horizontal dispersion of high frequencies
The PHANTOM M-675 features our trademark hybrid tweeter, comprising a ribbon/dome tweeter pairing. The ribbon tweeter is a true master in the horizontal dispersion of high frequencies and complements the soft dome tweeter's amazing dynamics in the lower part of the high frequency range. The oversized 28 mm soft dome tweeter is also manufactured in-house and built for great power handling and seamless integration with the midrange frequencies.
LOW-PROFILE CABINET
Extremely compact for a serious in-wall speaker
The PHANTOM M-675 features a shallow mounting depth of only 100 mm. To create the maximum possible inner volume for producing the low frequencies, the cabinet is manufactured from glass-reinforced ABS material. The front baffle and rim are matte-black lacquered, while the slim bezels of the magnetic and paintable front grille allow for an even more discreet installation.
REDUCING DISTORTION
DALI's patented SMC (Soft Magnetic Compound)
The use of SMC (Soft Magnetic Compound) in the PHANTOM M-675 greatly reduces mechanical distortion caused by hysteresis and eddy currents. The result is a magnet motor system with a drastic reduction in third-order distortion, which translates to significantly improved bass control and reproduction of microdetails, as well as great transient capabilities.
Specs:
- Frequency Range (+/-3 dB) [Hz]: 49 - 25,000 Hz
- Sensitivity (2.83V/1m): 90 dB
- Nominal Impedance: 4 ohm
- Maximum SPL: 110 dB
- Crossover Frequency: 1,000 / 2,800 / 16,000 Hz
- Recommended Amplifier Power: 40 - 300 Watt
- High-Frequency Driver(s): 1 x 28 mm soft dome, 1 x 17 x 45 mm ribbon
- Low/Mid Frequency Driver: 2 x 7 inch
- Low/Mid Frequency Diaphragm: Wood fiber cone
- Connection Input: Single wire
- Enclosure Type: Closed box, 4 x 7 inch passive radiators
- Recommended Placement: Front / Center / Rear / Surround
- Functions: Normal / HF+
- Dimensions (H x W x D): 1322 x 250 x 106 mm / 52 x 9.8 x 4.1 in
- Cut-out dimensions: 1298 x 226 x 100 mm / 51,1 x 8.9 x 3.9 in
- Recommended min. Depth: N/A
- Weight: 17.7 kg / 39 lbs
- Accessories: Manual / Cut-out template
- Optional accessories: N/A
