Classé Delta Stereo Power Amplifier

Classé Delta Stereo Power Amplifier - Classé

AMPLIFICATION
The first 12.5W of power output are pure Class A, and with a total of 250W per channel at its command (over 350W/Ch @ 2Ω), this compact, powerful amplifier drives loudspeakers with utmost confidence.

• Up to 12.5W per Channel delivered in pure Class A operation
• 250W per Channel total
• Massive, high-quality power supply

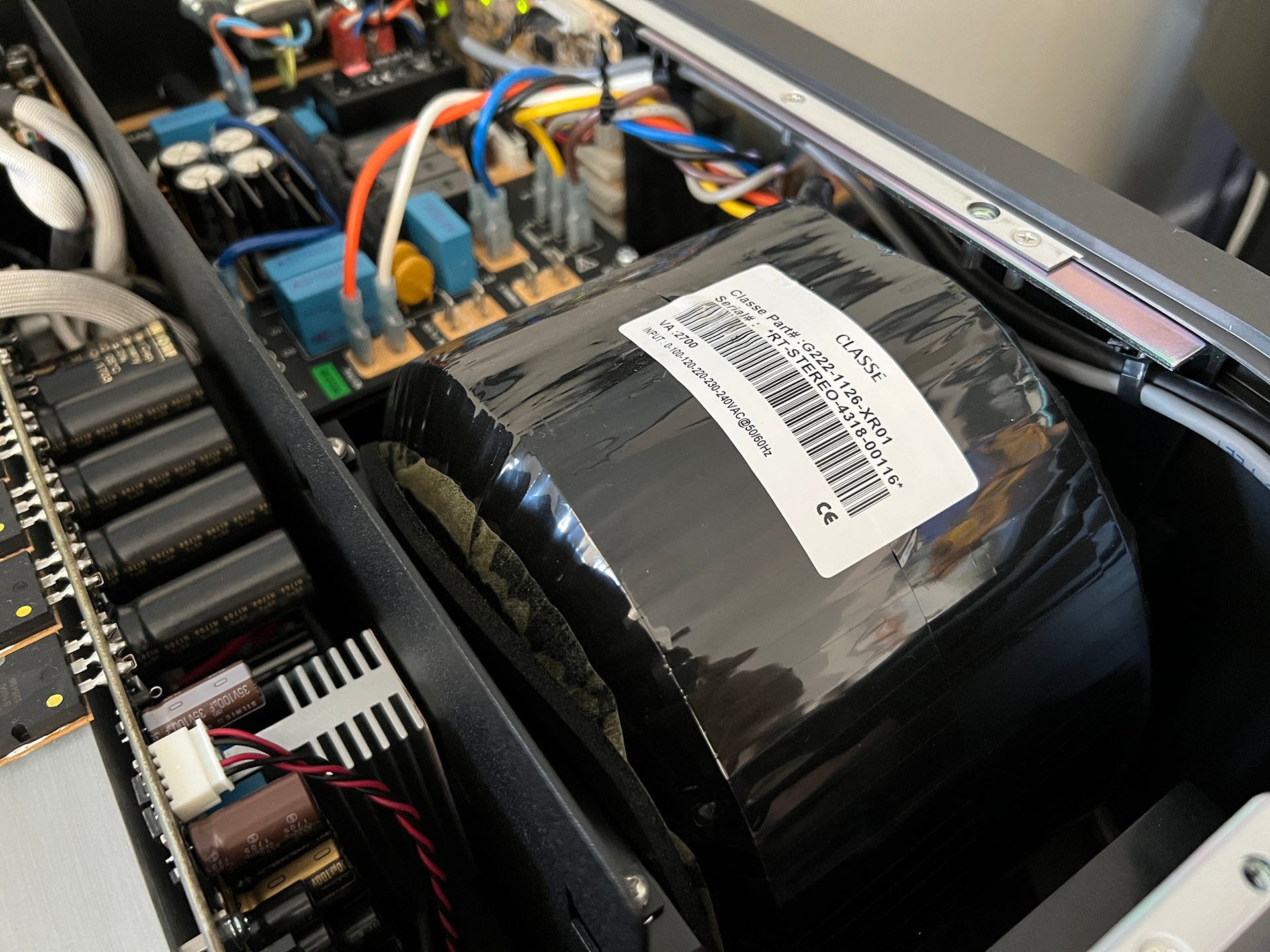

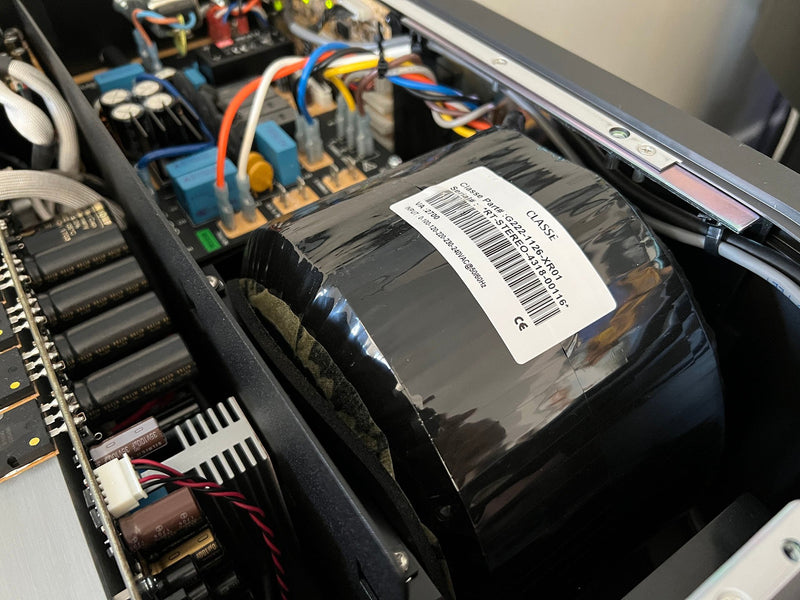

• Custom toroidal transformer

CLARITY
Delta STEREO delivers exceptional clarity. Every effort has been made to preserve complete separation between channels, delivering the natural, expansive sound that Classé is legendary for.

• Hand-laid circuit boards
• 6-layer circuit boards provide for shortened signal and power pathways with lowest noise
• 22 4-pole Mundorf® capacitors
• Custom-made Navcom® feet to absorb vibrations

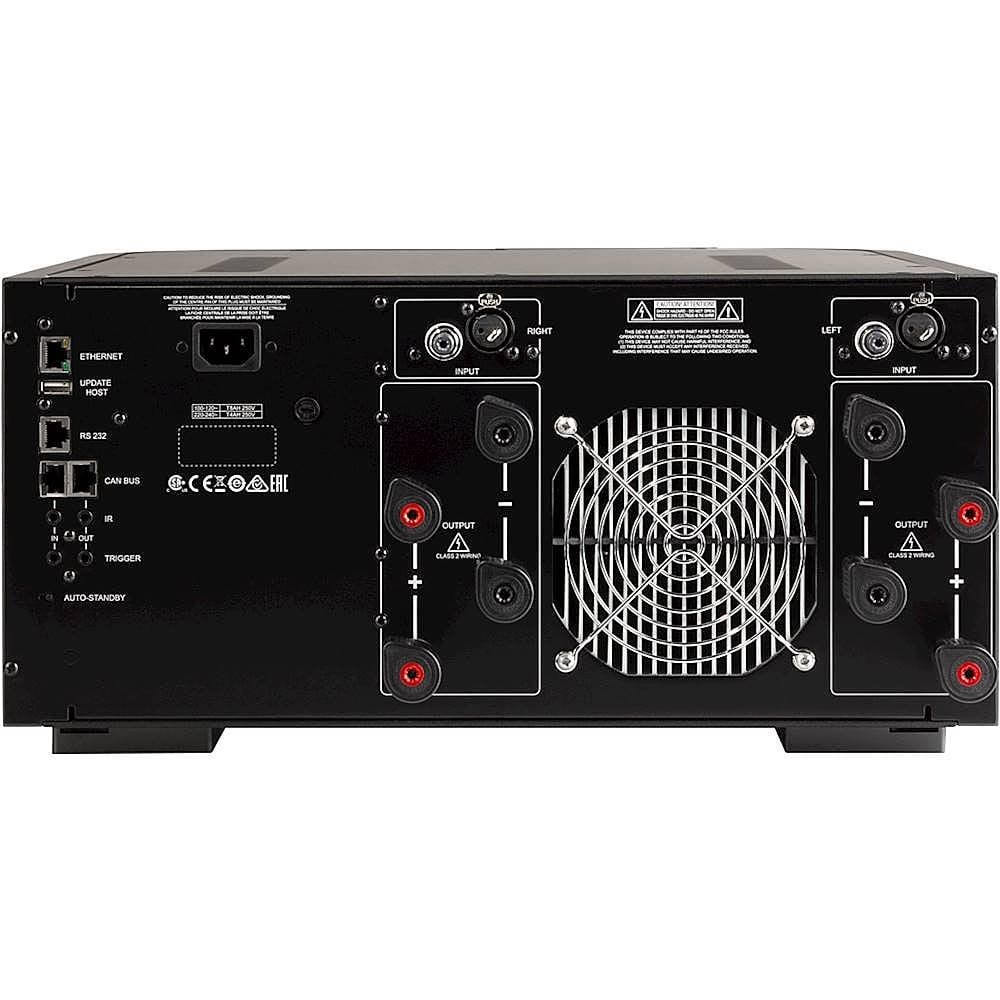

• Furutech® rhodium-plated RCA and torque-guard speaker connectors

DESIGN
Delta STEREO has presence. Its capabilities are expressed through design and it looks fantastic in any room or installation.

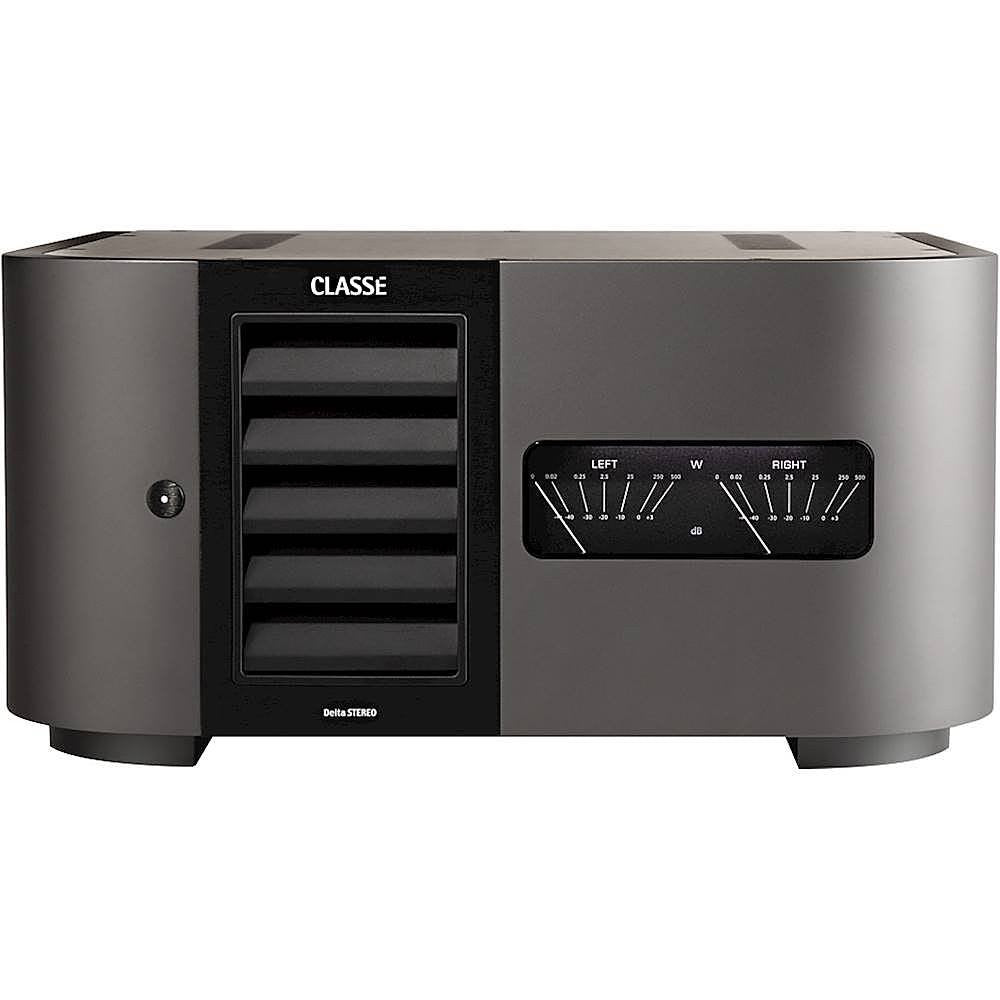

Superb material finishes and a pair of custom-designed illuminated VU meters display power output for both channels beautifully.
Delta Series design concept is to create a monument to sound. This amplifier looks every bit as capable as it sounds.

Product Details:

• OVERALL DIMENSIONS
• Width: 17.50 in (444 mm)
• Depth: 19.37 in (492 mm)
• Height: 8.74 in (222 mm)
• WEIGHT
• Gross Weight: 116.4 lbs (52.8 kg)
• Net Weight: 102.3 lbs (46.4 kg)
• GENERAL
• Frequency Response (-3dB, 50Ω source impedance): 1Hz – 650kHz
• Continuous Output Power (at 1kHz, 0.1% THD+N): 12.5W / 8Ω delivered in pure class A operation, 250W / 8Ω, 500W / 4Ω (with AC line held constant), 350W / 2Ω (with AC line held constant)
• Harmonic Distortion (measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8 Ω): <0.0016% at 1kHz <0.002% at 10kHz <0.003% at 20kHz
• Harmonic Distortion (measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8 Ω): <0.0007% at 1kHz <0.001% at 10kHz <0.0025% at 20kHz
• Peak Output Voltage (nominal AC line): 129Vp-p into 8Ω, 138Vp-p no load
• Input Impedance (at 1kHz, BAL / SE): 82kΩ
• Voltage Gain (at 1kHz, BAL / SE): 29dB
• Intermodulation Distortion (SMPTE 4:1) (8Ω or 4Ω, BAL / SE): <0.0018%
• Intermodulation Distortion (CCIF) (8Ω or 4Ω, BAL / SE): <0.004%
• Signal-to-Noise Ratio (A wtd in parenthesis) (22kHz BW): 118dB (120dBA)
• Crosstalk (one channel driven to 250W / 8Ω): 124dB (100Hz), 107dB (1kHz), 90dB (10kHz)
• Slew Rate: 75V / μs
• Output Impedance: 0.009Ω (100Hz), 0.009Ω (1kHz), 0.012Ω (10kHz)
• Damping Factor (at 1kHz, ref 8Ω): 850

What to expect in the box:

• Delta Stereo Power Amplifier
