Chord Electronics Qutest DAC

Chord Electronics Qutest DAC - Chord

Qutest is Chord’s ‘pure’ DAC (it does not contain headphone amplification or rechargeable batteries like some of its range stablemates) and is designed to improve sound quality in the home. It is the latest evolution of our most affordable standalone DAC, the multi-award-winning 2Qute, which it directly replaces.

Qutest, which is a What Hi-Fi? Star of CES 2018, is based on Chord’s award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits Chord’s digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernize ageing digital source components.

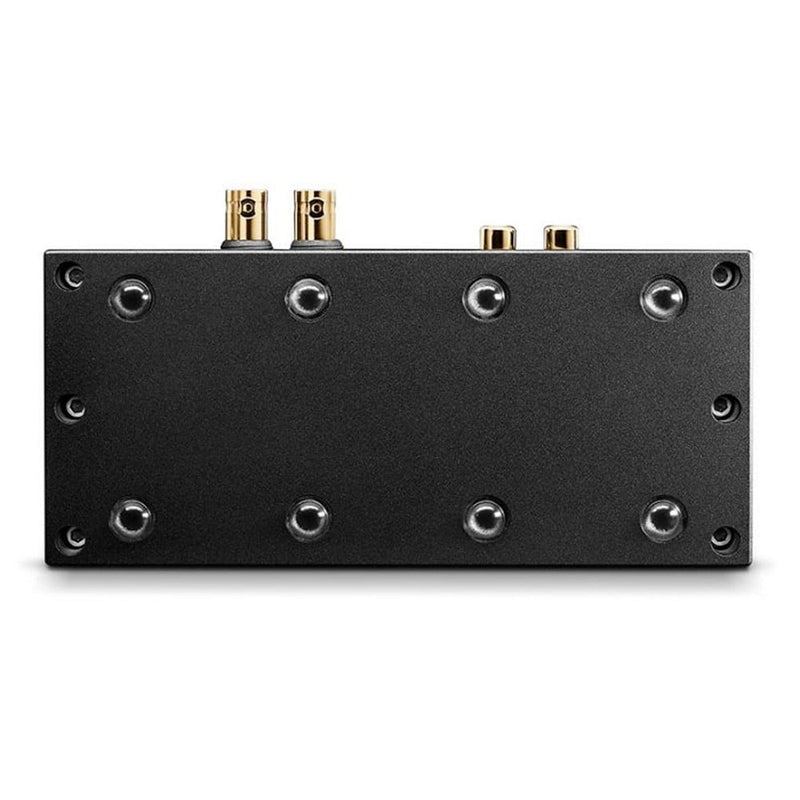

The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminum billet. The Qutest PCB nestles within a shallow cavity in the solid aluminum chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.

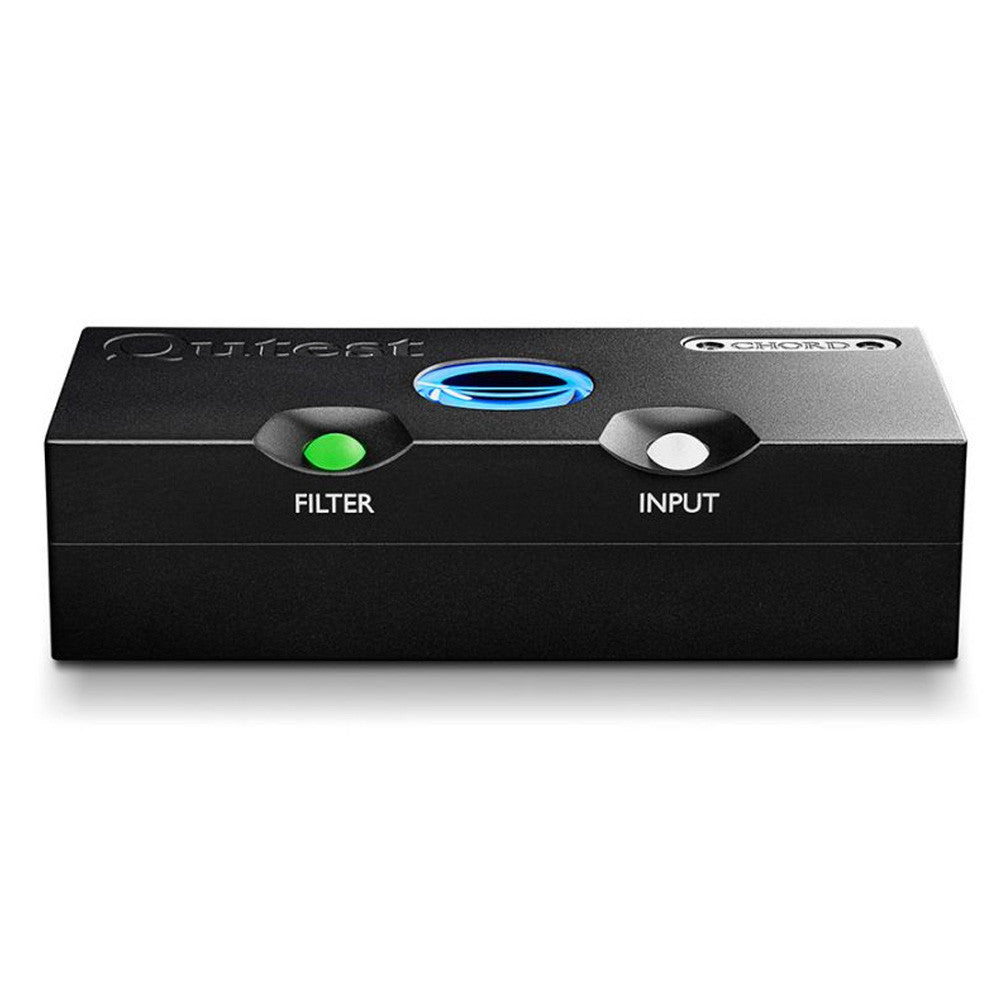

Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.

A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.

Features:

• Materials: Precision machined aluminum casing with polycarbonate buttons and glass viewing portal. Available in black.
• Device Power Supply: 5v 2amp Micro USB

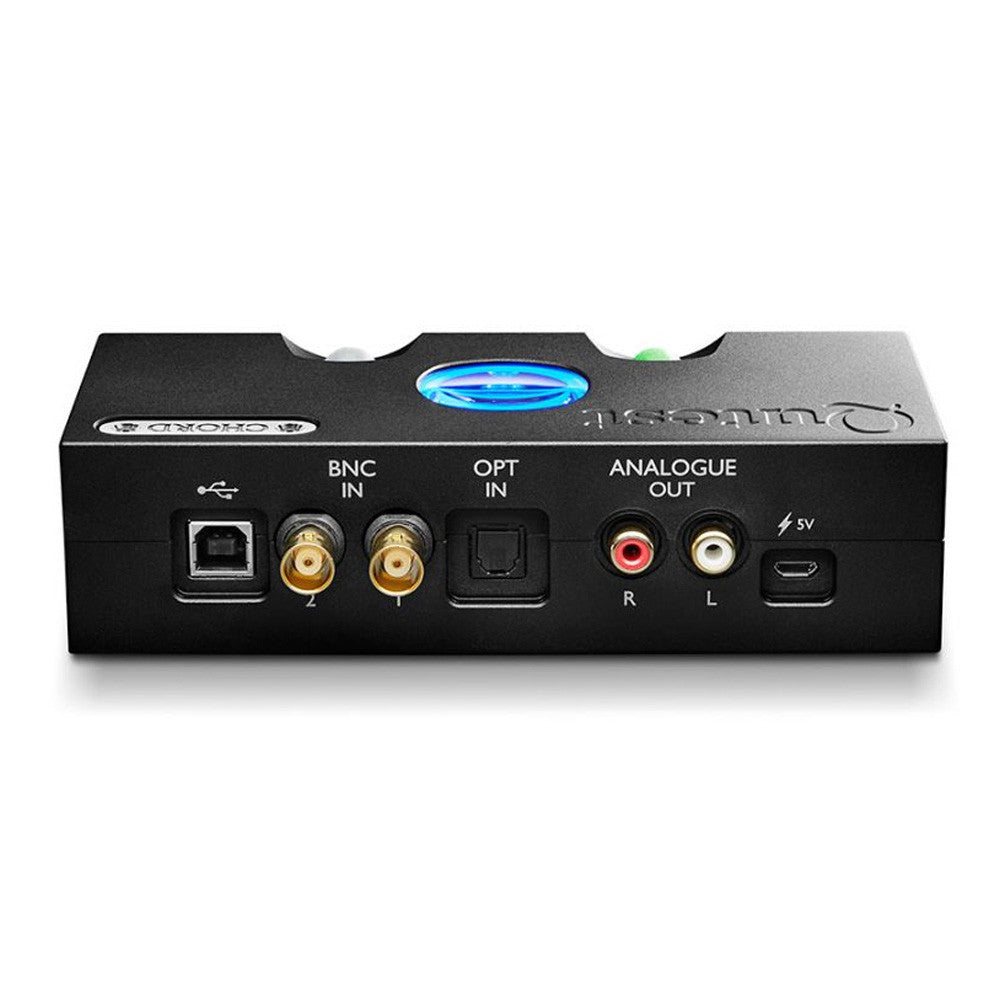

• Connectivity (input)
• USB Type B (White): 44.1kHz – 768kHz – 16bit – 32bit
• 2x BNC Coax (Red): 44.1kHz – 384kHz – 16bit – 32bit
• 1x Dual data mode input (using both BNC coax inputs together): 44.1kHz – 768kHz – 16bit – 32bit
• Optical (Green): 44.1kHz – 192kHz – 16bit – 24bit
• Connectivity (output): 1x stereo pair of RCA (Left and Right)
• PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz.
• DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD
• Variable output: Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup
• Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS
• Digital Designer: Rob Watts
• Mechanical Designer: John Franks
• Country of manufacture: England

Included Accessories

• 1.5m 5v 2a Switching Micro USB Power Supply
• 2m Type A to Type B USB Cable
• Qutest Owners Overview Manual
• Raw Silk Drawstring Bag

Specs

• Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
• Tap-length: 49,152
• Pulse array: 10 element pulse array design
• Frequency response: 20Hz – 20kHz +/- 0.2dB
• Output stage: Class A
• THD: <0.0001% 1kHz 3v RMS 300Ω
• THD and noise at 3v RMS: 117dB at 1kHz 300ohms ‘A’ weighted (reference 2.5v)
• Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
• Channel separation: 138dB at 1kHz 300 ohms
• Weight: 1.7 lbs.
• Dimensions: 1.61” (H) x 6.29” (W) x 2.83” (D)
• Boxed Weight: 3.3 lbs.
• EAN: 5060295370122
• MPN: CHCH250B
