Cambridge Audio MXW70 Compact Power Amplifier - Cambridge Audio
Small Yet Mighty
Designed in London, MXW70 has been meticulously engineered to deliver outstanding high-fidelity amplification from a compact case that can fit into an existing setup or form the basis for a minuscule modern system.
Power aplenty
Don’t let its size fool you, MXW70 offers 70 Watts per channel of refined stereo power, bridgeable into mono mode for an impressive 250 Watts.
Super-compact system
Combine the MXW70 with our award-winning MXN10 Music Streamer to form a complete compact streaming hi-fi stack. Add the DacMagic 200M DAC for further digital clarity and a hi-res headphone output.
Compact footprint
At just 215mm wide, MXW70 conveniently fits wherever you need it, whether on a desk, in an entertainment unit or tucked away in a cupboard.
Wired for sound

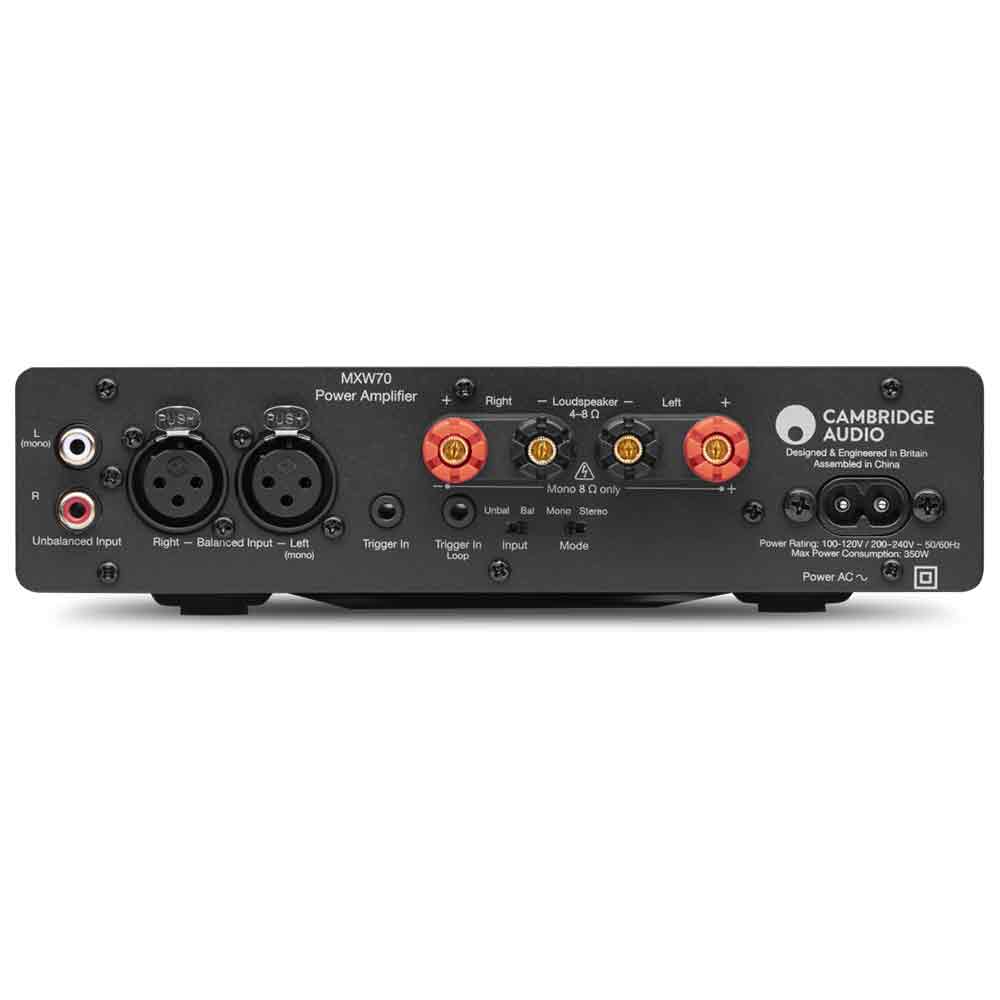

As well as high-quality speaker outputs and stereo RCA inputs, MXW70 offers premium XLR inputs for noise-free, studio-grade signal transmission.
Full metal jacket
No compromises have been made in the build of our half-width champions. MXW70 features premium all-metal casework with a minimalist timeless design, flawlessly finished in our trademark Lunar Grey.
What to expect in the box:
- MXW70 Compact Power Amplifier
- Power cords
- Welcome letter
- Registration Card
- Safety guide
Product Details:
- Power Output: 2x70W (8ohm stereo), 2x 125W (4ohm stereo), 250W (8ohm mono)
- Amplification: Class-D, Hypex nCORE
- Frequency Response: 10Hz - 30kHz (-1dB)
- Power Supply: SMPS
- Bi-wiring possible: 1 set of terminals.
- Analogue RCA Inputs: 1 stereo
- Balanced XLR Input: 1 stereo
- Other inputs: 12v Trigger
- Speaker Outputs: 1 set
- Other outputs: 12v Trigger pass-through
- THD+N (unweighted): <0.015% @ 5W/8ohm
- S/N Ratio (REF 1W - 20k BW): >92dB (XLR), >89dB (RCA)
- Crosstalk @1kHz: <-82dB
- Gain: 22.2dB (XLR), 28.8dB (RCA)
- Input Sensitivity: 3.6V (mono XLR), 1.65V (mono RCA), 0.9V (stereo RCA), 1.9V (stereo XLR)
- Input Impedances: 22kohm (RCA), 35kohm (XLR)
- Power Amp Damping Factor: >180 @ 1kHz 8ohm
- Max Power Consumption: 300w
- Standby Power Consumption: <0.5W
- Dimensions (H x W x D): 57 x 215 x 215mm
- Weight: 1.65kg
