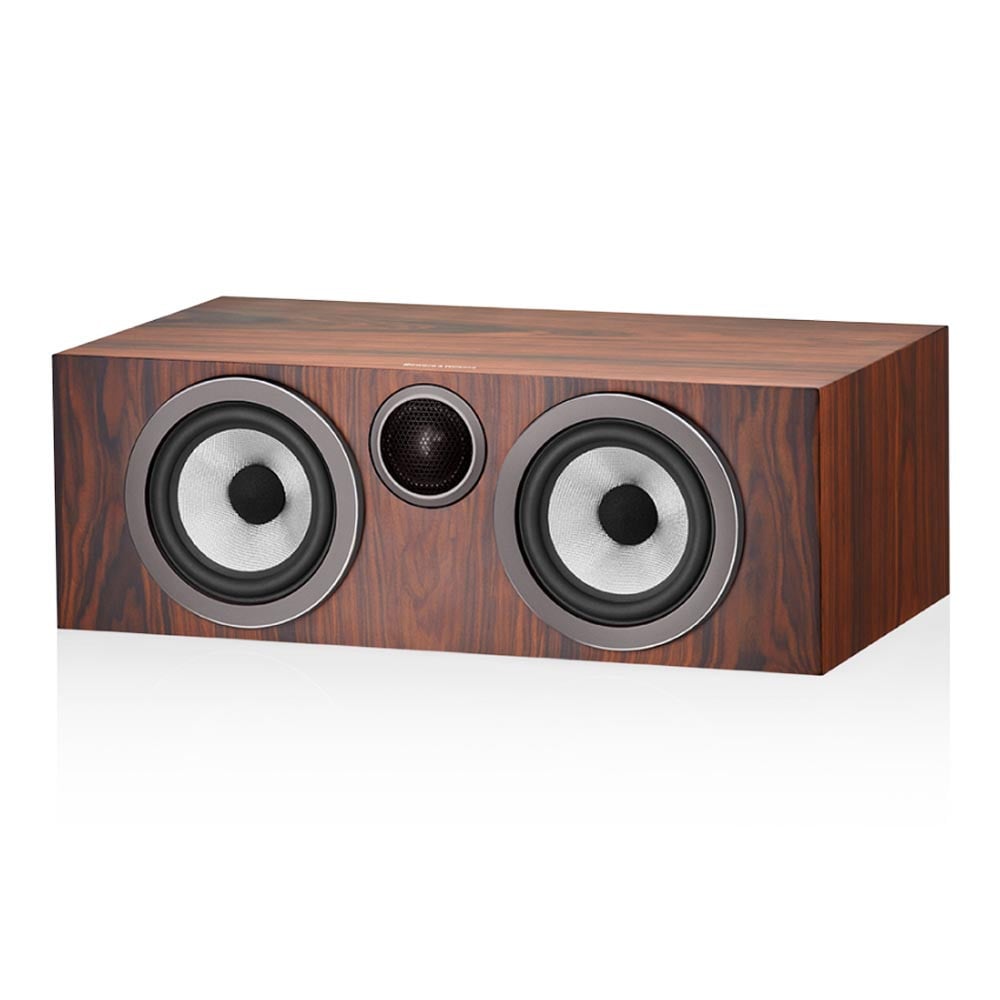

Bowers & Wilkins HTM72 S3 Center Channel Speaker

Bowers & Wilkins HTM72 S3 Center Channel Speaker - Bowers & Wilkins

HTM72 S3 is the more compact center-channel speaker in the new 700 Series. It features a Carbon Dome tweeter and twin Continuum cone Mid/Bass drivers. It’s the perfect partner for a home theater system based around the 704 S3, 706 S3 or 707 S3.

Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Specifications:

Size & weight

• Dimensions
• Height: 165 mm (6.5 in) cabinet only
• Width: 477 mm (18.8 in) Cabinet only
• Depth: 266 mm (10.5 in) Cabinet only, 302 mm (11.9 in) including grille and terminals
• Net weight: 9.66kg (21.3 lb)

Technical details

• Decoupled Carbon Dome tweeter
• Continuum cone bass / midrange
• Flowport
• Description: 2-way vented-box system
• Frequency range: 48Hz and 33kHz
• Sensitivity: 87dB spl (2.83Vrms, 1m)
• Nominal impedance: 8Ω (minimum 4.3Ω)
• Max recommended cable impedance: 0.1Ω
• Drive units: 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency, 2x ø130mm (5 in) Continuum cone bass / midrange
• Frequency response: 70Hz - 28kHz ±3dB
• Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m on axis), <1% 100Hz - 22kHz, <0.5% 200Hz - 22kHz
• Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme

Finishes

• Cabinet finishes: Gloss Black, Satin White, Mocha
• Grille finishes: Black, Grey (Satin White only)
