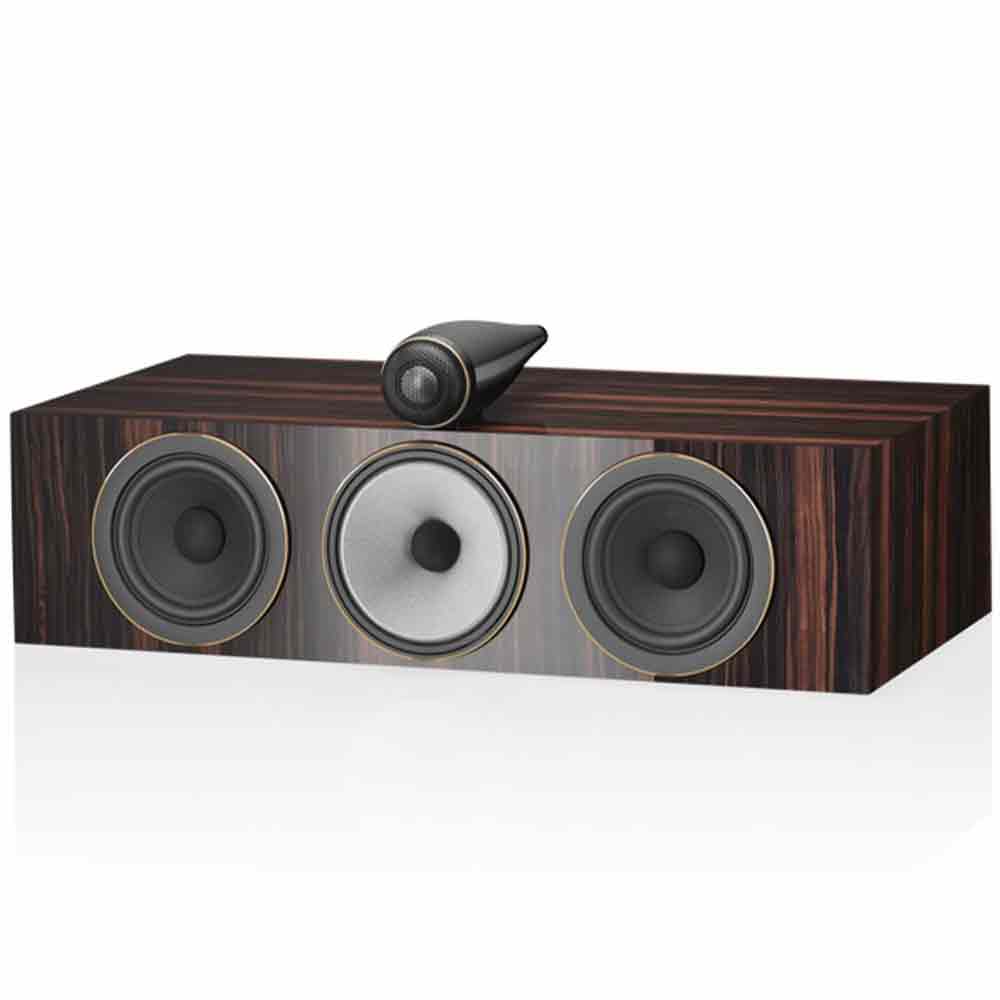

Bowers & Wilkins HTM71 S3 Signature Center Channel Speaker - Bowers & Wilkins
Crafted. Honed. Perfected.
HTM71 S3 Signature features optimized technologies, such as our proprietary decoupled Continuum midrange drive unit and Tweeter-on-Top, plus upgraded bass motor systems, improved capacitors, revised speaker terminals, and a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
Product Details:
- Size & weight
- Net weight: 43.9lb
- Dimensions
- Height: 165mm (6.5in) cabinet only, 233mm (9.2in) including tweeter
- Width: 628mm (24.7in) cabinet only
- Depth: 318mm (12.5in) cabinet only, 356mm (14.0in) including grille and terminals
- Technical Details
- Drive units
- 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
- 1x ø130mm (5in) Continuum cone FST midrange
- 2x ø130mm (5in) Aerofoil Profile bass
- Frequency range: -6dB 45Hz - 33kHz
- Frequency response: 50Hz - 28kHz ± 3dB
- Harmonic distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 90Hz - 22kHz
- <0.5% 120Hz - 20kHz
- Nominal impedance: 8 Ω (minimum 3.1Ω)
- Recommended amplifier power: 30W - 200W into 8Ω on unclipped programme
- Sensitivity: 89dB spl (2.83Vrms, 1m)
- Technical features
- Decoupled Carbon Dome tweeter
- Solid Body Tweeter-on-Top
- Continuum™ cone FST™ midrange
- Aerofoil™ Profile bass cones
- Flowport™
- Description: 3-way vented-box system
- Max recommended cable impedance: 0.1Ω
- Finishes
- Cabinet finishes: Datuk Gloss, Midnight Blue Metallic
- Grille finishes: Black
- Datuk Brown Version UPC: 714346339921
- Datuk Brown Version MPN: FP43567

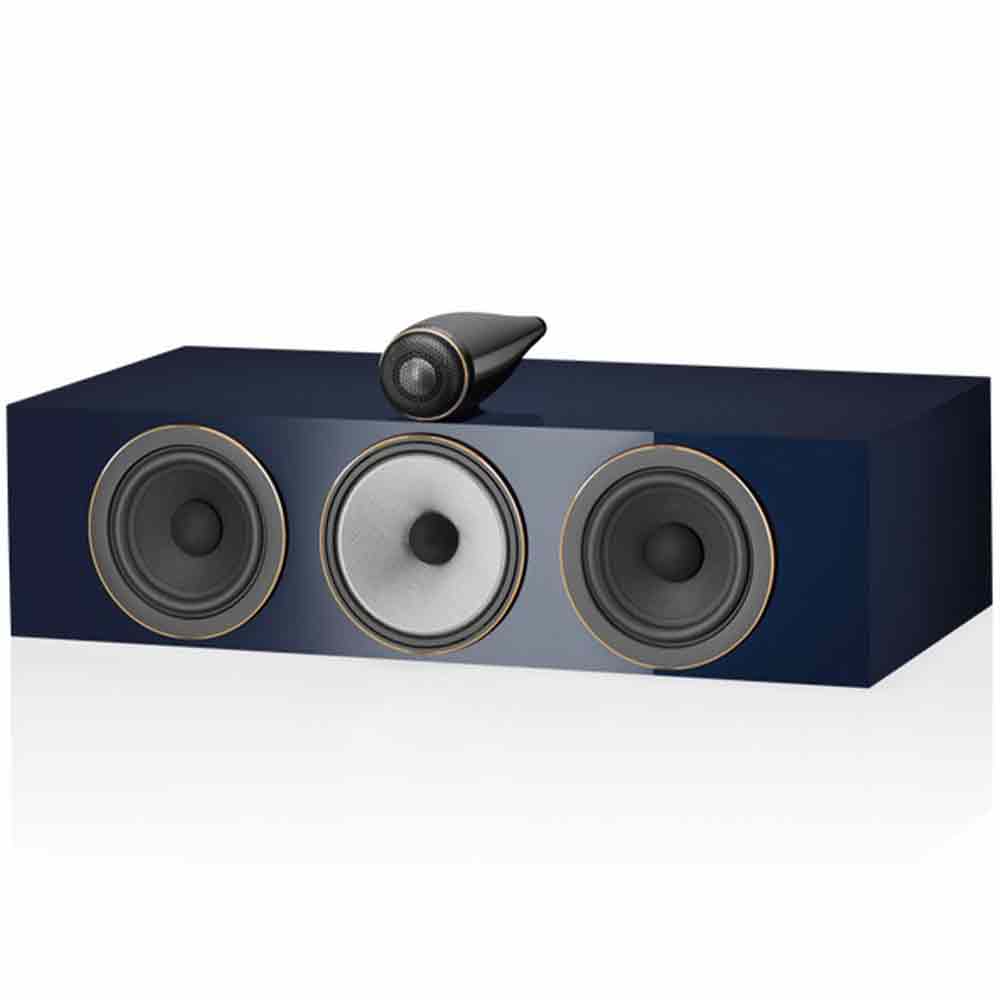

- Midnight Blue Metallic Version UPC: 714346339952
- Midnight Blue Metallic Version MPN: FP43591
What to expect in the box:
- HTM71 S3 Signature Center Channel Speaker
