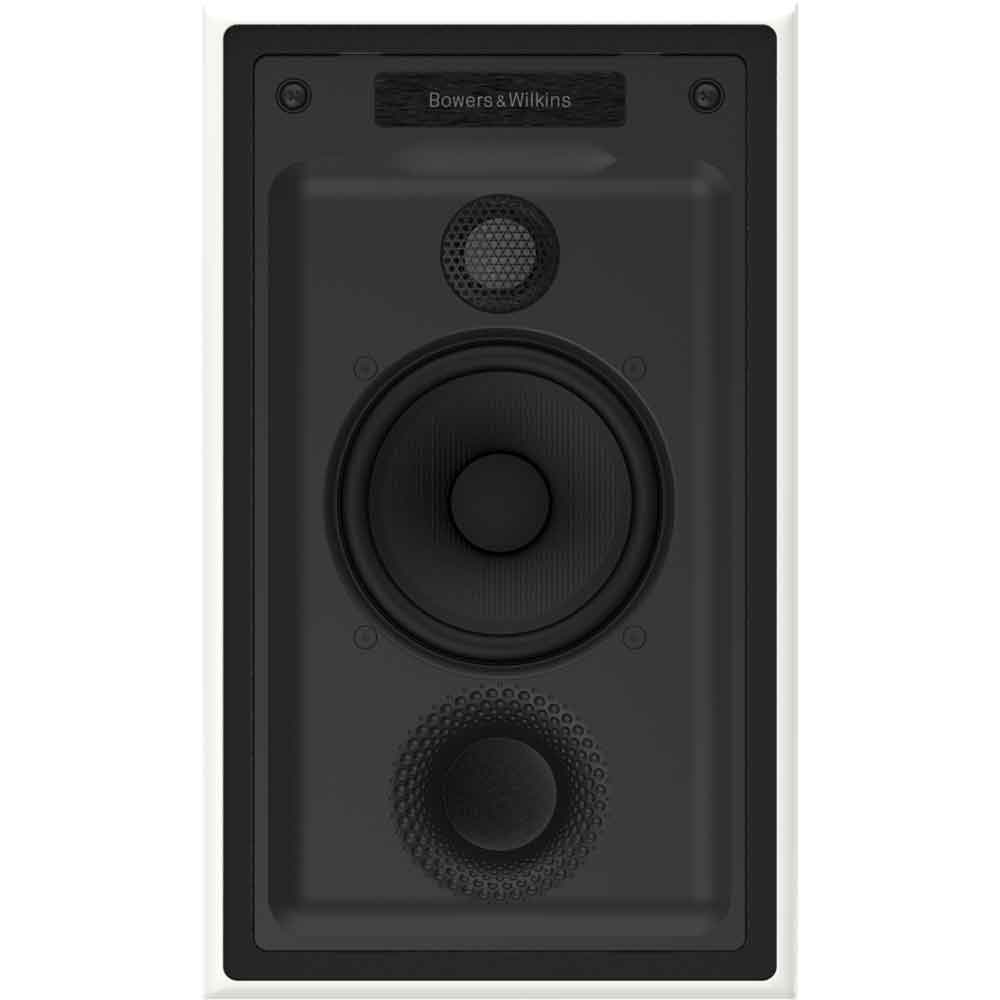

Bowers & Wilkins CWM7.5 S2 In-Wall Speaker - Bowers & Wilkins
See nothing, hear everything
The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theater application.
What to expect in the box:
- CWM7.5 S2 In-Wall Speaker
Product Details:
- Technical features: Carbon Dome tweeter Continuum mid/bass Flowport™
- Description: 2-way in-wall system
- Drive units: 1x ø25mm (1 in) Carbon Dome high-frequency 1x ø130mm (5 in) Continuum cone mid/bass
- Frequency range (-6dB): -6dB at 43Hz and 33kHz
- Frequency Response -3dB: 45Hz - 28kHz ±3dB
- Sensitivity: 86dB spl (2.83Vrms, 1m)
- Harmonic distortion: 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz <0.5% 120Hz - 33kHz
- Nominal impedance: 8Ω (minimum 3.8Ω)
- Recommended amplifier power: 25W - 150W into 8Ω on unclipped programme
- Frame height: 356mm (14in)
- Frame width: 212mm (8.5in)
- Depth (behind surface): 102mm (4in)
- Cut-out height: 331mm (13in)
- Cut-out width: 187mm (7.4in)
- Cut-out height w/PMK: 336mm (13.2in)
- Cut-out width w/PMK: 192mm (7.6in)
- Reservoir box height: 385mm (15.2in)
- Reservoir box width: 181mm (7.1in)
- Protrusion: 8mm (0.32in)
- PMK: 7.5W
- Net weight: 3.8kg (8.38 lb)
- Finishes: Back box: White Grille: White
