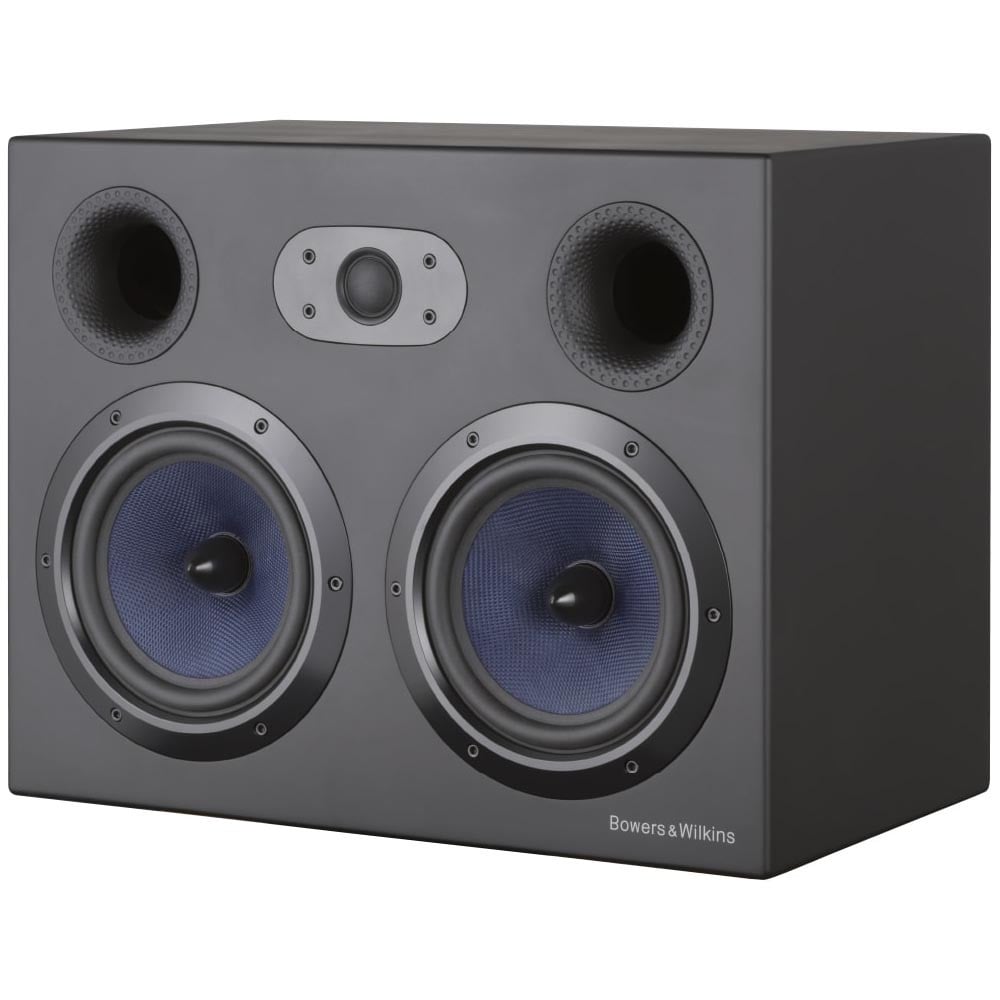

Bowers & Wilkins CT7.4 LCRS 2-way Custom Install Speaker - Bowers & Wilkins

Listening is believing
Experience home cinema as it was meant to be heard with B&W’s Custom Theatre 700 Series. Our new range of dedicated custom theater loudspeakers brings B&W 700 Series technology and craftsmanship to your home cinema set-up at a cost-effective mid-range price.
The three models in the range integrate seamlessly with home theater cabinetry and can each be positioned as left, center, right or surround speakers. Each speaker uses high sensitivity Nautilus™ tube-loaded tweeters designed specifically for the reproduction of movie soundtracks along with first-order tweeter crossover filters for minimal signal degradation. Combined with our unique Aramid Fiber drive units, the result is extraordinarily life-like, dynamic movie sound quality.
The mid-point in the range, the CT7.4 LCRS offers superior performance at lower frequencies through its two 6 inch Aramid Fiber CT700 series bass/midrange drive units

Technical Specifications:

• Technical features
• Nautilus™ tube loaded tweeter
• Aramid Fiber bass/midrange cone Flowport™
• Magnetically attached grille
• Description: 2-way vented-box system
• Drive units
• 1x ø25mm (1 in) cloth dome high-frequency
• 2x ø165mm (6.5 in) woven Aramid Fiber cone bass/ midrange
• Frequency range: -6dB at 43Hz and 28kHz
• Frequency response: 49Hz – 22kHz ±3dB on reference axis
• Dispersion - Within 2dB of reference response
• Horizontal: over 60º arc
• Vertical: over 10º arc
• Sensitivity: 94dB spl (2.83V, 1m)
• Harmonic distortion 2nd and 3rd harmonics (90dB, 1m): <1% 90Hz – 20kHz
• Nominal impedance: 8Ω (minimum 4.0Ω)
• Crossover frequency: 4kHz
• Recommended amplifier power: 50W – 150W into 8Ω on unclipped programme
• Max. recommended cable impedance: 0.1Ω
• Dimensions
• Height: 343mm (13.5 in)
• Width: 444mm (17.5 in)
• Depth: 265mm (10.5 in)
• Depth with grille: 288mm (11.3 in)
• Net Weight: 15.75kg ( 34.7lb
• Finishes
• Cabinet Black painted
• Grille Black cloth
