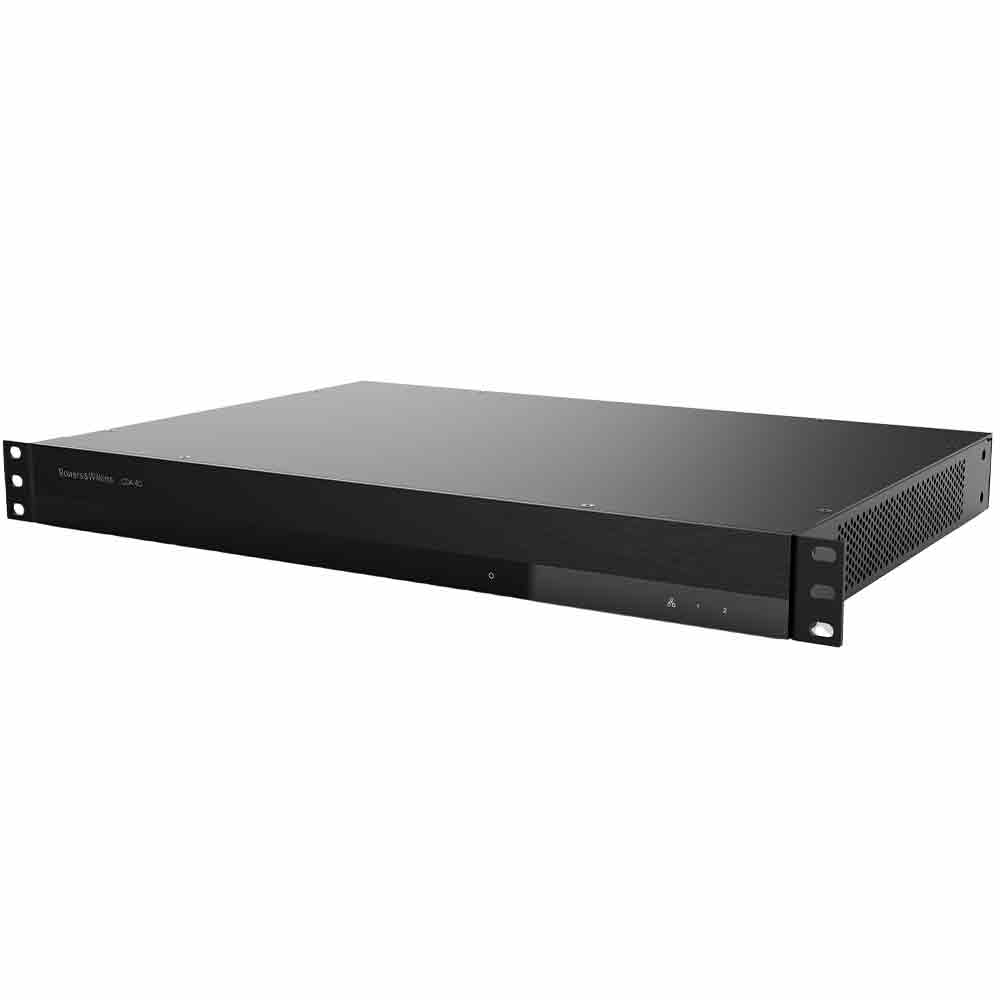

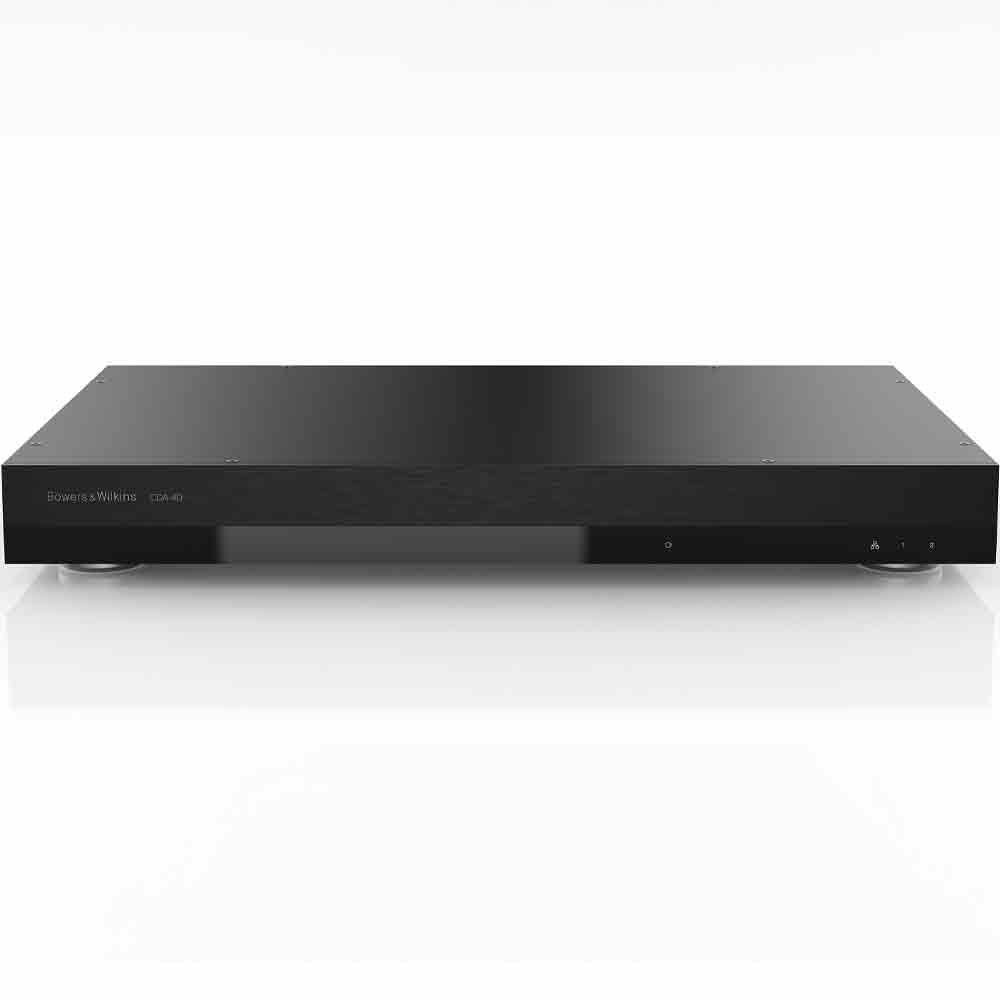

Bowers & Wilkins CDA-4D DSP Amplifier - Bowers & Wilkins
The CDA-4D is a compact distribution amplifier, designed to power current and future Bowers & Wilkins Custom Installation loudspeakers, Embedded DSP allows optimisation of a wide range of products and dynamic EQ for Bowers & Wilkins subwoofers. It boasts four channels of 125 watts each, and its full-rack-width 1U design delivers high-performance from minimum rack space.
Impressively smart
To ensure the CDA-4D delivers in the modern custom installation system, it is equipped with Digital Signal Processing (DSP). This allows it to be used in a wide variety of situations, provides control over IP and configuration, and for providing dynamic EQ for Bowers & Wilkins subwoofers.
Compact powerhouse
CDA-4D’s 1U size means that it takes up the minimum of rack real estate. But with four channels of 125 watts of Class D amplification on hand it can deliver power when required. Plus, as it’s bridgeable this can be configured to 2 x 250 watts, or a 2.1 setup (2 x 125 watts and 1 x 250 watts), where needed.
Flexible
Whether you are looking to upgrade an in-situ installation or planning a new one, the CDA-4D DSP amplifier is ideal. It can drive two zones, and works with a wide variety of Bowers & Wilkins products, both current and future.
Product Details:
- Audio Specifications
- Load Impedance Range: >3Ω
- Output Power per channel: 60W into 8Ω
- Output Power per channel non-clipped: 125W into 4Ω
- Output Power bridge mode: 250W into 8Ω
- Output Power total, all channels: 500W short term, >125W continuous
- DC offset voltage: <50mV
- Frequency Response (-3dB): <10Hx to >30kHz, any load impedance
- Frequency response accuracy 20Hz - 20kHz: +/-1dB
- Dynamic range: >85dB A-Weighted
- THD + N (1kHz, 500W, 4Ω: less than 1%
- Voltage Gain: 15 dB to 39dB, adjustable
- Input impedance: 10kΩ
- Maximum input voltage: 4 Vrms
- Signal sense threshold: 2.5mV (independent of Gain setting)
- Wake-up time: <0.2s (if other zones active), <2s (From all zones inactive)
- Turn-off time: 15 minutes from last signal detected
- 12V trigger input threshold: Typically 3V (recommended input is 5-15V)
- Controls & Indicators

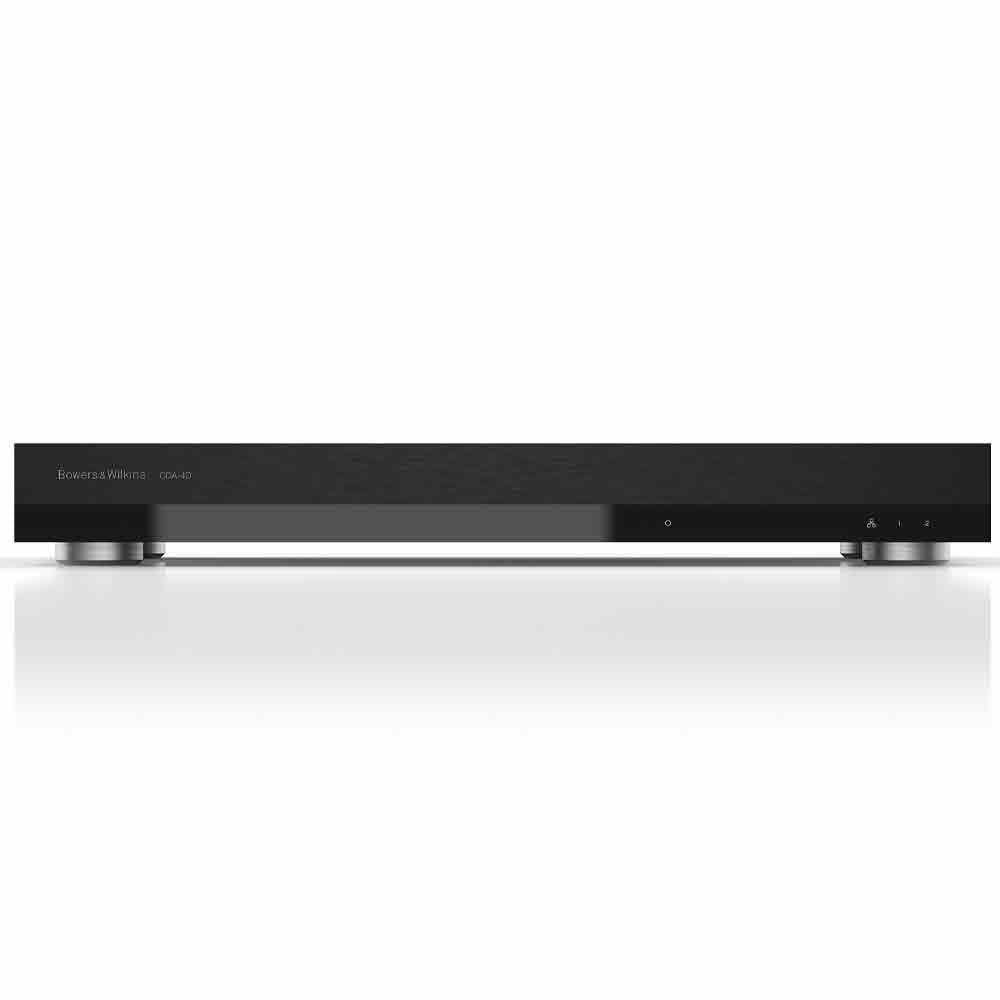

- Front Panel: 1 x Power LED (unit active - White, Fault - Red), 1 x Network status LEDs (Network present - White, Fault - Red), 2 x Zone status LEDS (Signal present - White, Fault - Red)
- Rear: Panel: 1 x Reset button

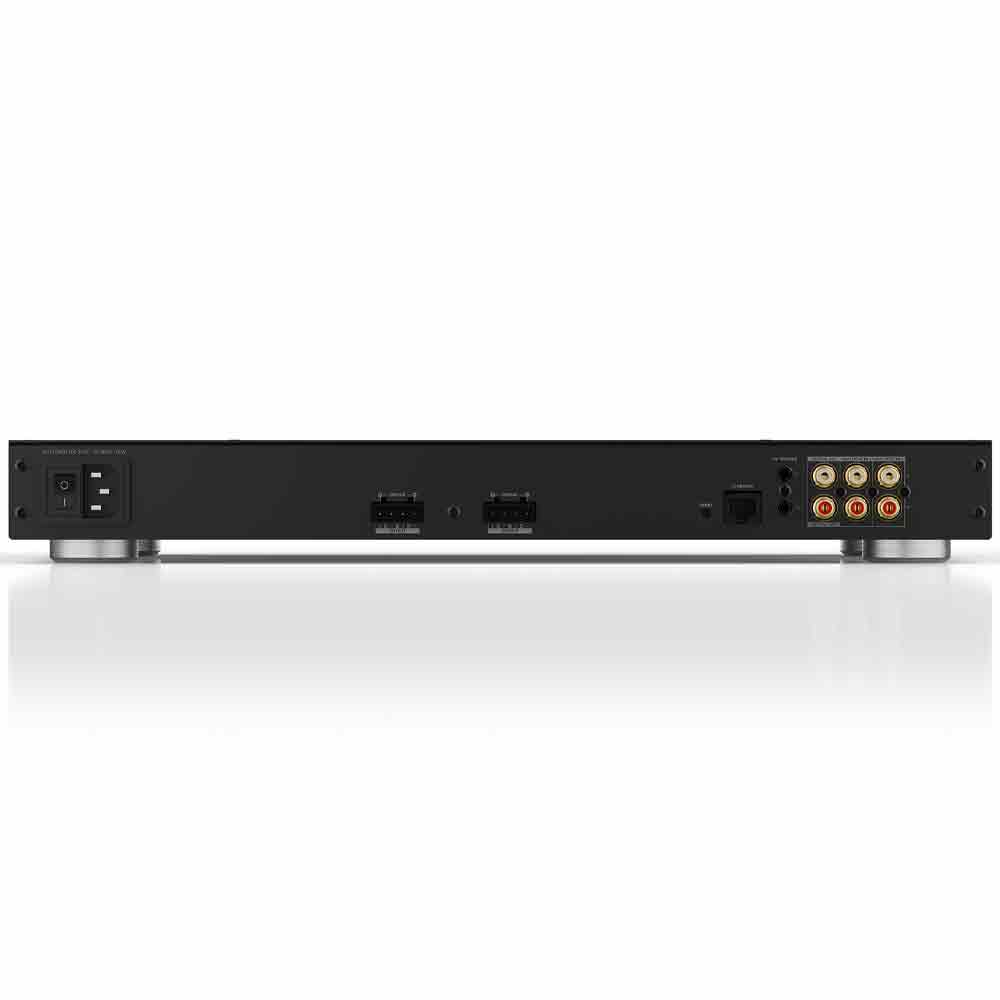

- Connectors
- Input: 2 x RCA (pair) Phono socket, Analogue line in, 2 x RCA Phono socket, Digital line in, 1 x Ethernet
- Output: 2 x 5.08mm Pitch 4-way Phoenix Combicon syle
- 12V trigger control: 1 x 3.5mm jack - 12V trigger IN, 1 x 3.5mm jack - 12V trigger OUT (Maximum 100mA pass-through)
- Power
- Power consumption: <0.5W Standby, WoL disabled/enabled, 130W maximum average
- AC supply: 100-240V 50/60Hz
- AC inlet: IEC C14, switched
- Thermal
- Thermal dissipation: 1.7 BTU/hr (standby), 130 BTU/hr (Idle), 500 BTU/hr (max)
- Dimensions
- Height: 42.5mm (1.7in), 1U (55.5mm (2.2in) plus feet)
- Width: 437mm (17.2in)
- Depth: 310mm (12.2in)
- Net weight: 4.1kg (9.0lb)
- MISC
- Finish: Black
- UPC: 714346339983
- MPN: FP43621
