Bowers & Wilkins CCM664SR Single Stereo In-Ceiling Speaker (each)

Bowers & Wilkins CCM664SR Single Stereo In-Ceiling Speaker (each) - Bowers & Wilkins

See nothing, hear everything

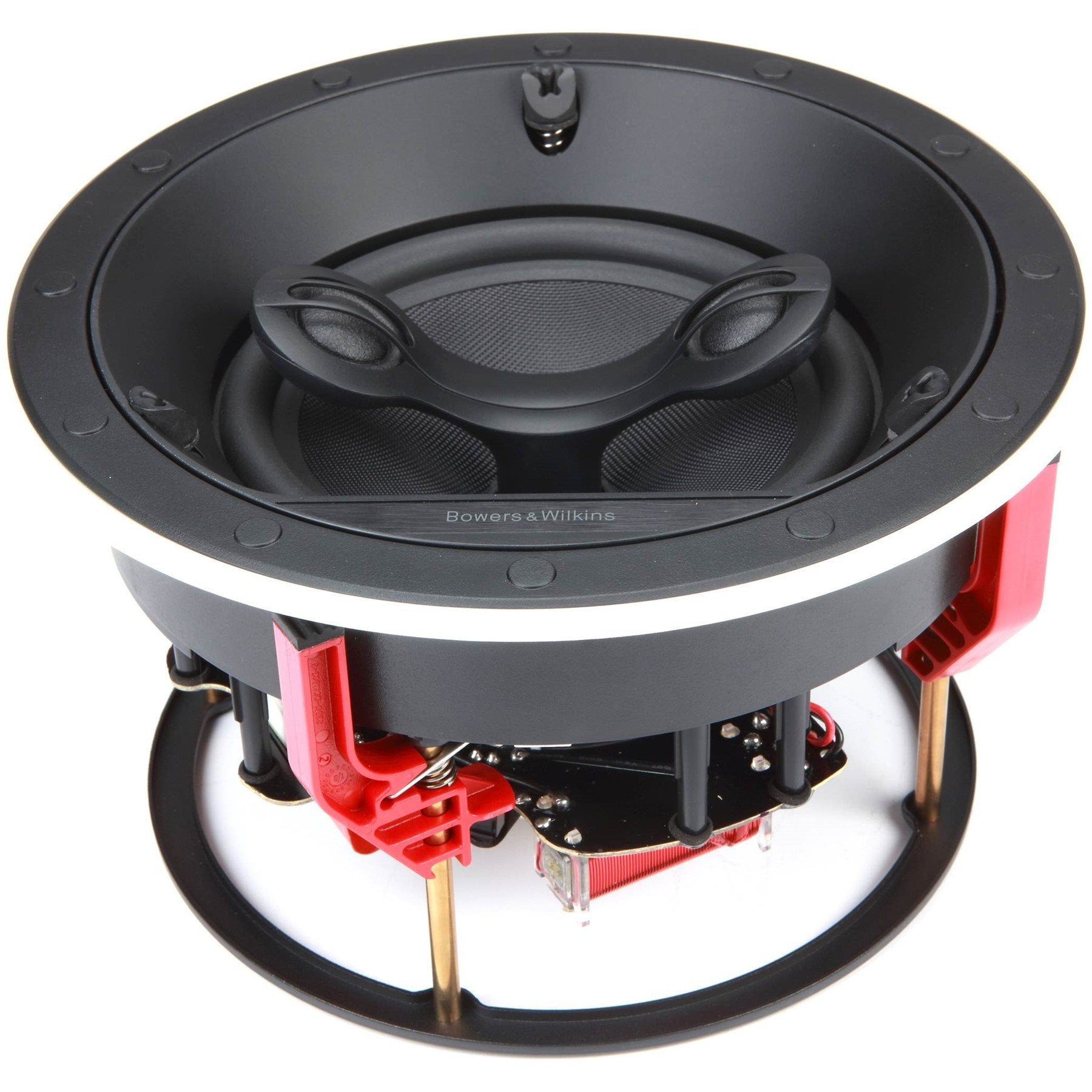

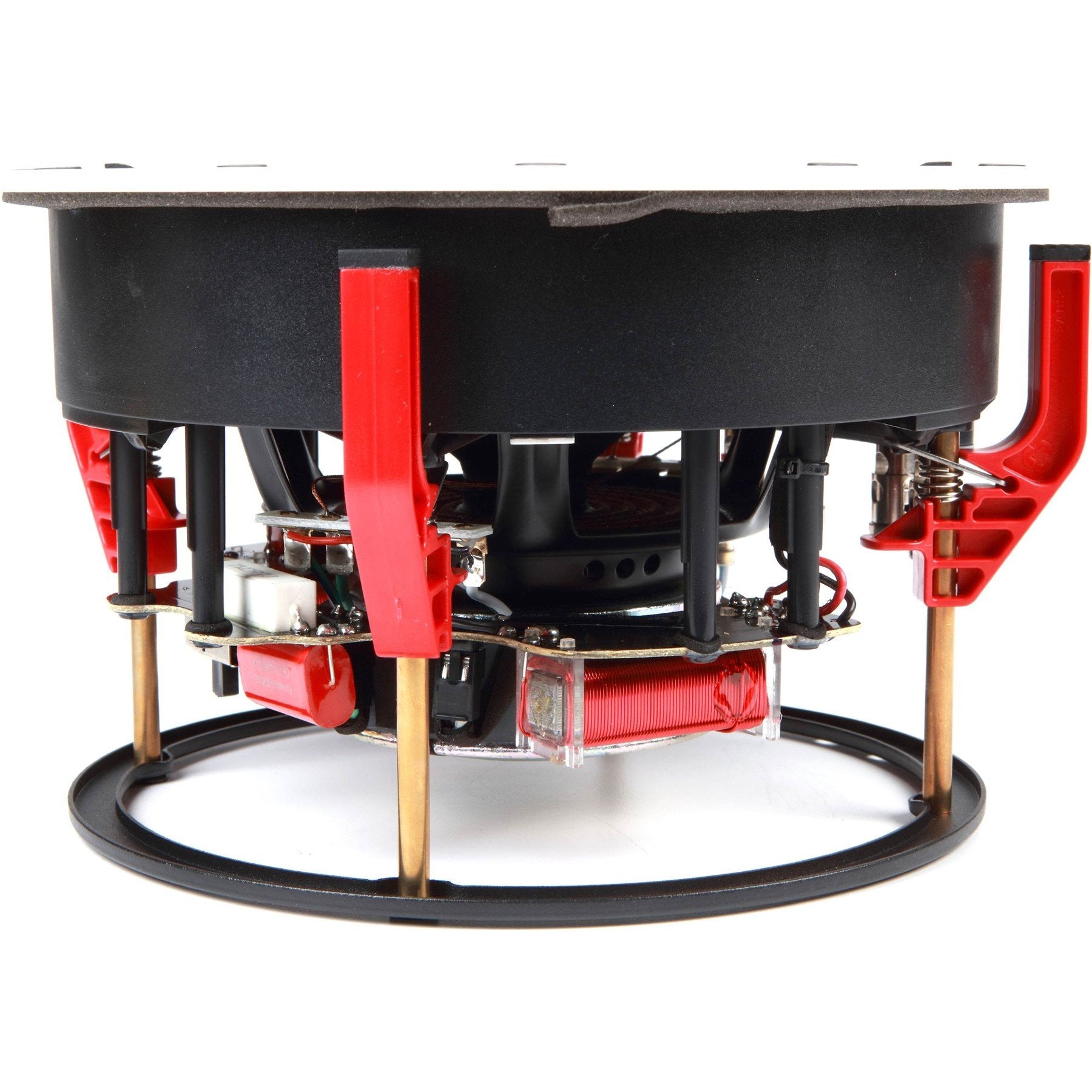

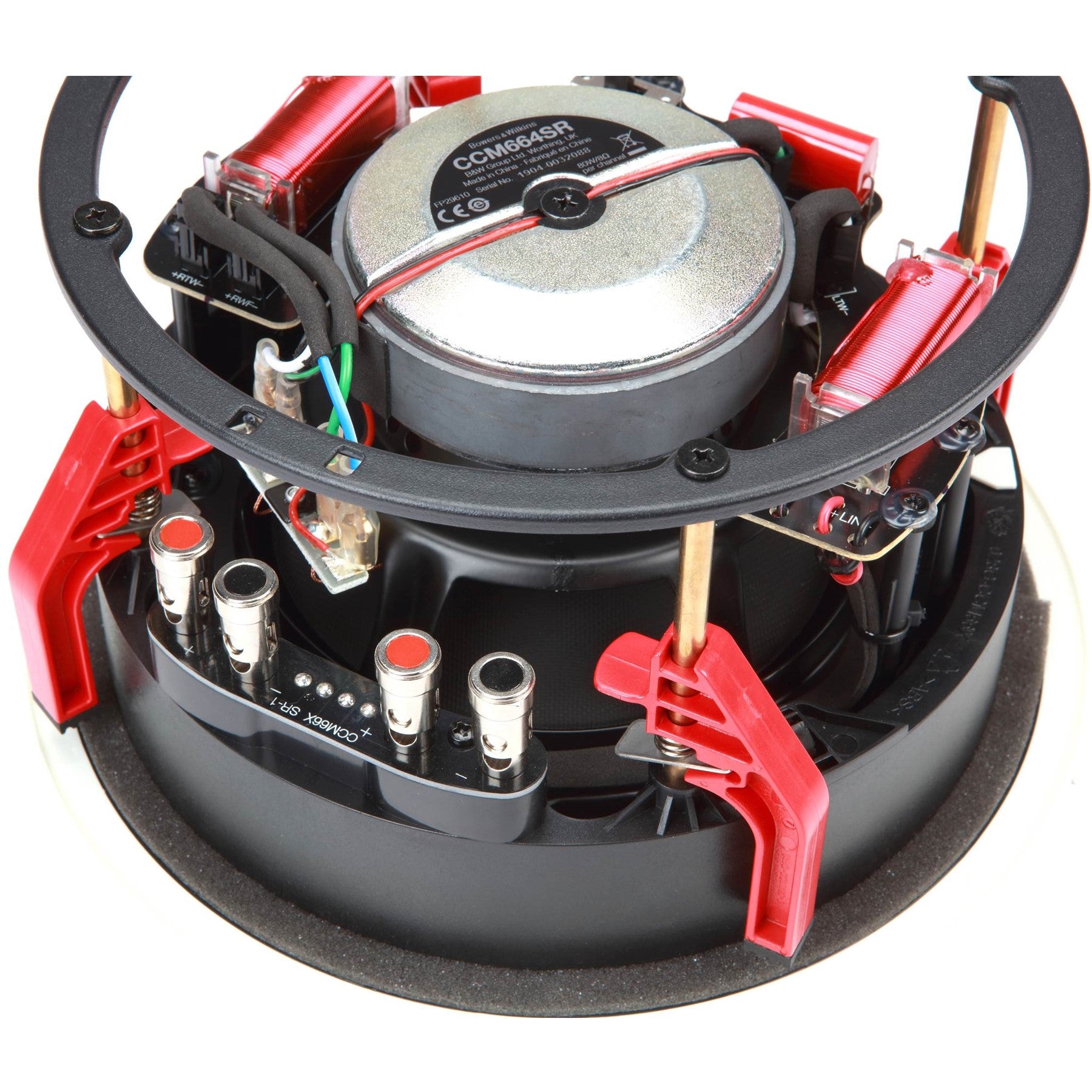

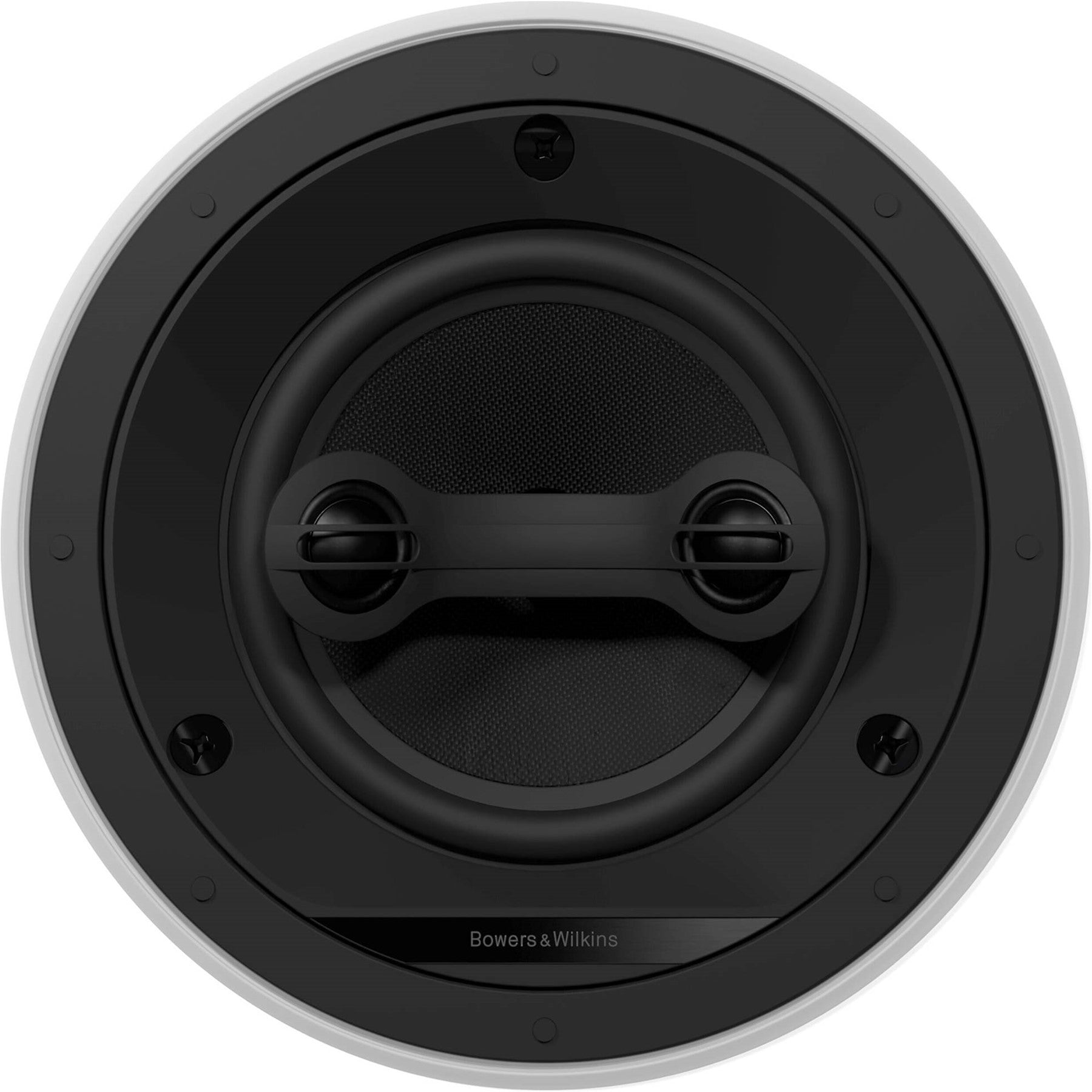

The CCM664SR is a dual, two-way ceiling speaker featuring a 6" woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality it is quick and easy to install.

Technical Specifications:

• Description: 2-way dual channel in-ceiling system

Drive Units

• Dual 1" soft dome tweeter
• 6" black glass fiber cone bass/midrange
• Frequency Range (-6dB): 48Hz – 30kHz
• Recommended Amp Power: 25 – 80w (per channel)
• Sensitivity SPL (2.83V, 1m)
• 82dB (per channel)
• 88dB (both channels driven)
• Impedance Nominal (min): 8Ω (4Ω) (per channel)
• Frame diameter: 9.5"
• Cut-out diameter: 8"
• Depth behind surface: 5.2"
• Protrusion: 0.2"
• Pre-mount Kit: C6
• Back Box: 6C
