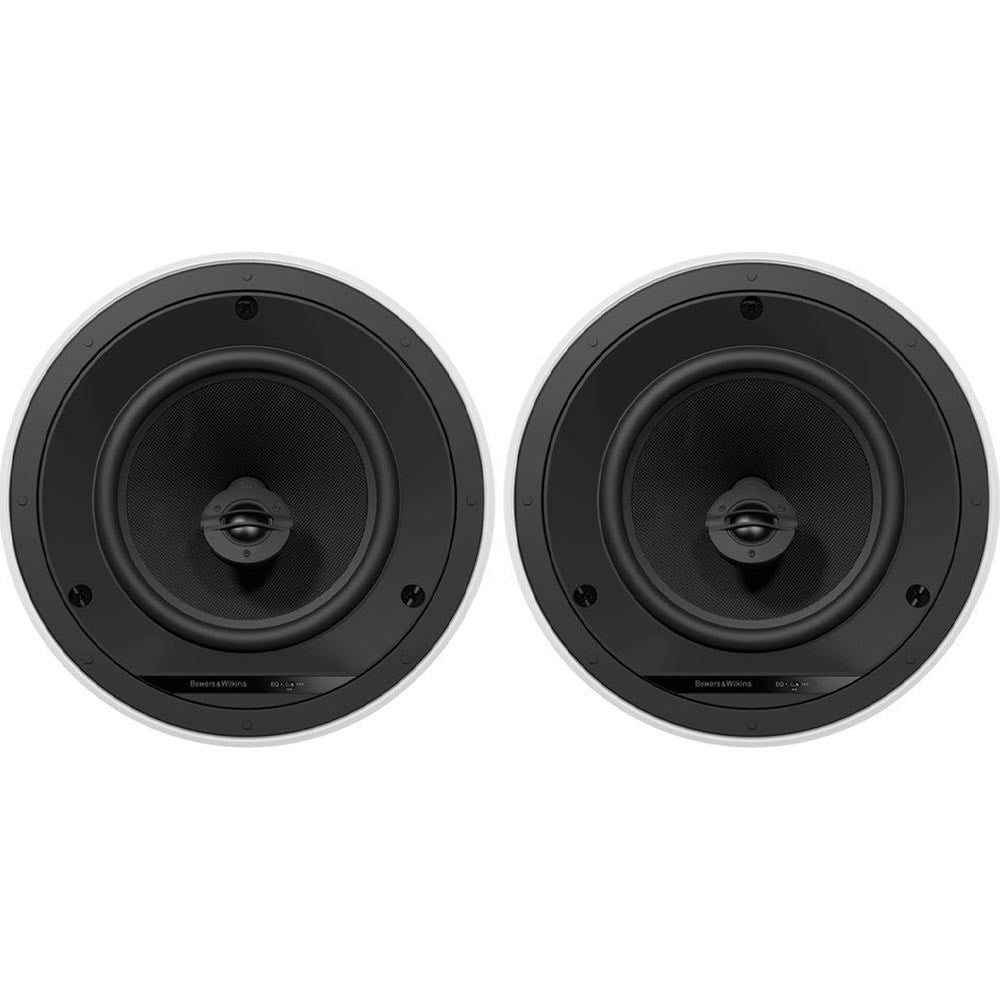

Bowers & Wilkins CCM 684 In-Ceiling Speaker (Pair)

Bowers & Wilkins CCM 684 In-Ceiling Speaker (Pair) - Bowers & Wilkins

See nothing, hear everything

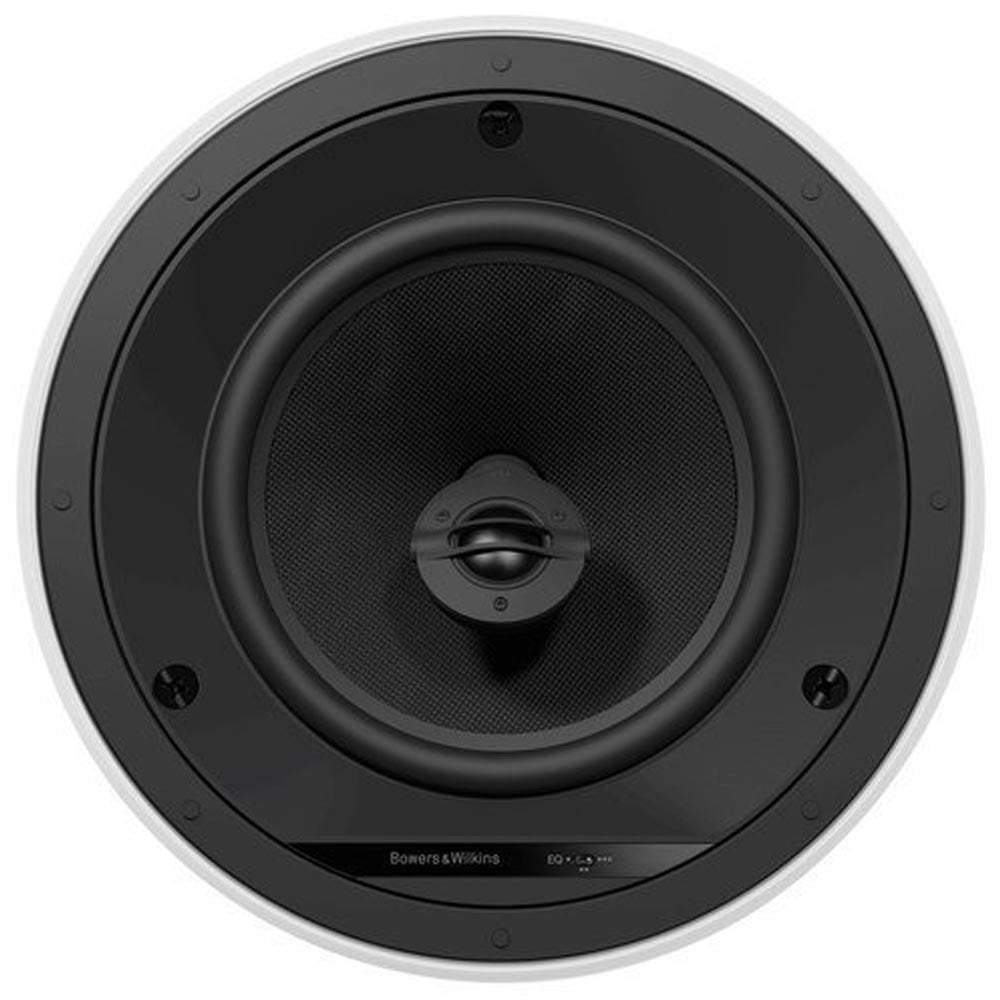

The CCM684 is a high performance ceiling speaker that’s simplicity itself to install and use. A two-way design, featuring a 200mm (8in) woven glass fiber cone bass/midrange driver and a soft dome tweeter in a neat circular ceiling mount chassis. The tweeter housing pivots for adjustable off-axis treble response and the speaker also features a three-position EQ switch for a better off-axis response. Incorporating QuickDogs™ and a plug-and-play functionality it is quick and easy to install.

Technical Specifications:

• Description: 2-way in-ceiling system
• Drive Units
• 1x ø25mm (1in) soft dome tweeter
• 1x ø200mm (8in) black Glassfiber cone bass/midrange
• Frequency Range (-6dB): 35Hz – 35kHz
• Recommended Amp Power: 25 – 130w
• Sensitivity SPL (2.83V, 1m): 88dB
• Impedance Nominal (min): 8Ω (4.5Ω)
• Frame diameter: 290mm (11.4in)
• Cut-out diameter: 250mm (9.8in)
• Depth behind surface: 133mm (5.2in)
• Protrusion: 4mm (0.2in)
• Pre-mount Kit: C8
• Back Box: 6C
