Bowers & Wilkins CCM 683 In-Ceiling Speaker (pair)

Bowers & Wilkins CCM 683 In-Ceiling Speaker (pair) - Bowers & Wilkins

See nothing, hear everything

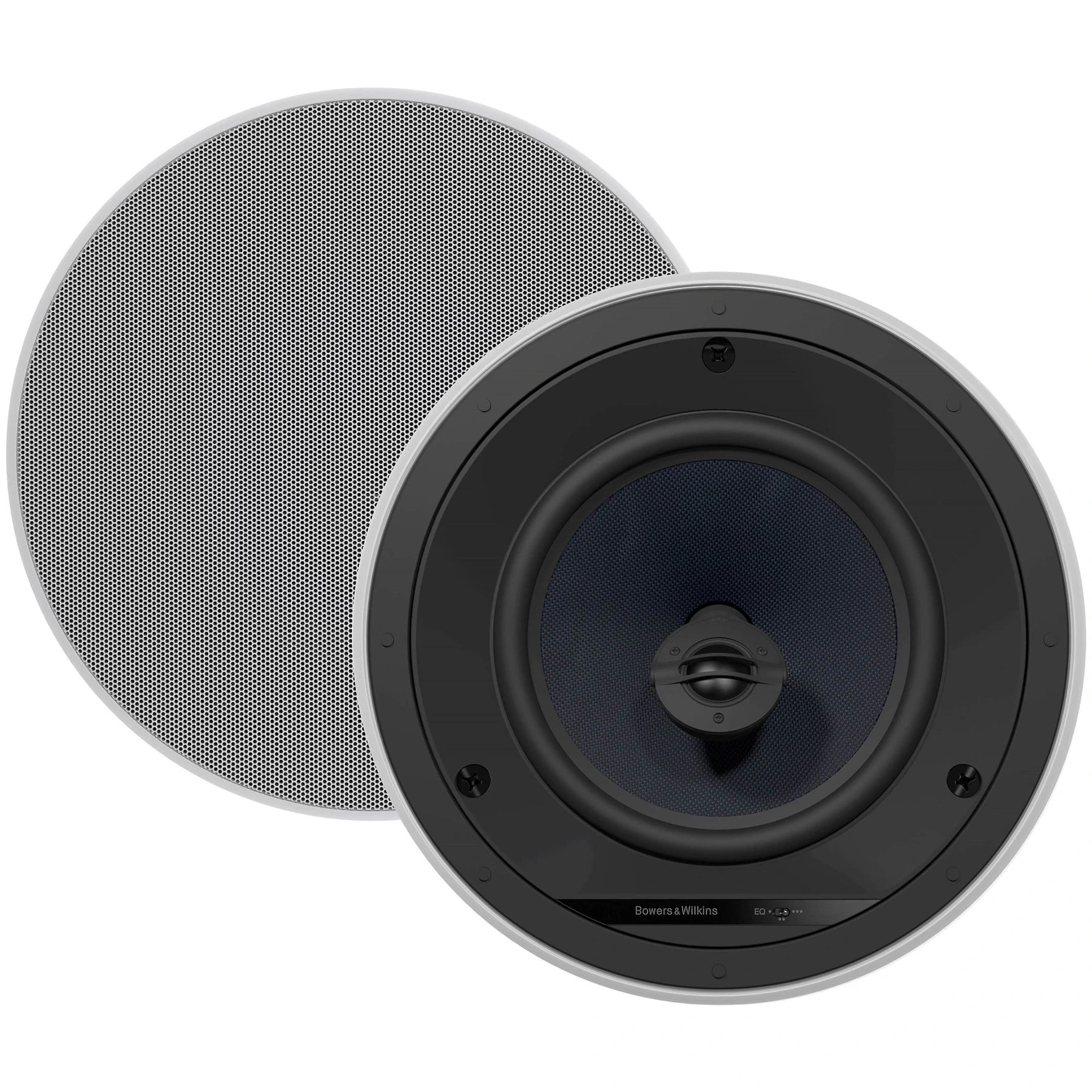

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Kevlar® cone bass/midrange driver and an aluminum tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the diecast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Kevlar® cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.

Technical Specifications:

• Description: 2-way in-ceiling system

Drive Units

• 1" Nautilus™ swirl loaded aluminum dome tweeter
• 8" Blue Kevlar® cone bass/midrange
• Frequency Range (-6dB): 35Hz – 50kHz
• Recommended Amp Power: 25 – 130w
• Sensitivity SPL (2.83V, 1m): 88dB
• Impedance Nominal (min): 8Ω (4.5Ω)
• Frame diameter: 290mm (11.4in)
• Cut-out diameter: 250mm (9.8in)
• Depth behind surface: 133mm (5.2in)
• Protrusion: 4mm (0.2in)
• Pre-mount Kit: C8
• Back Box: 6C
