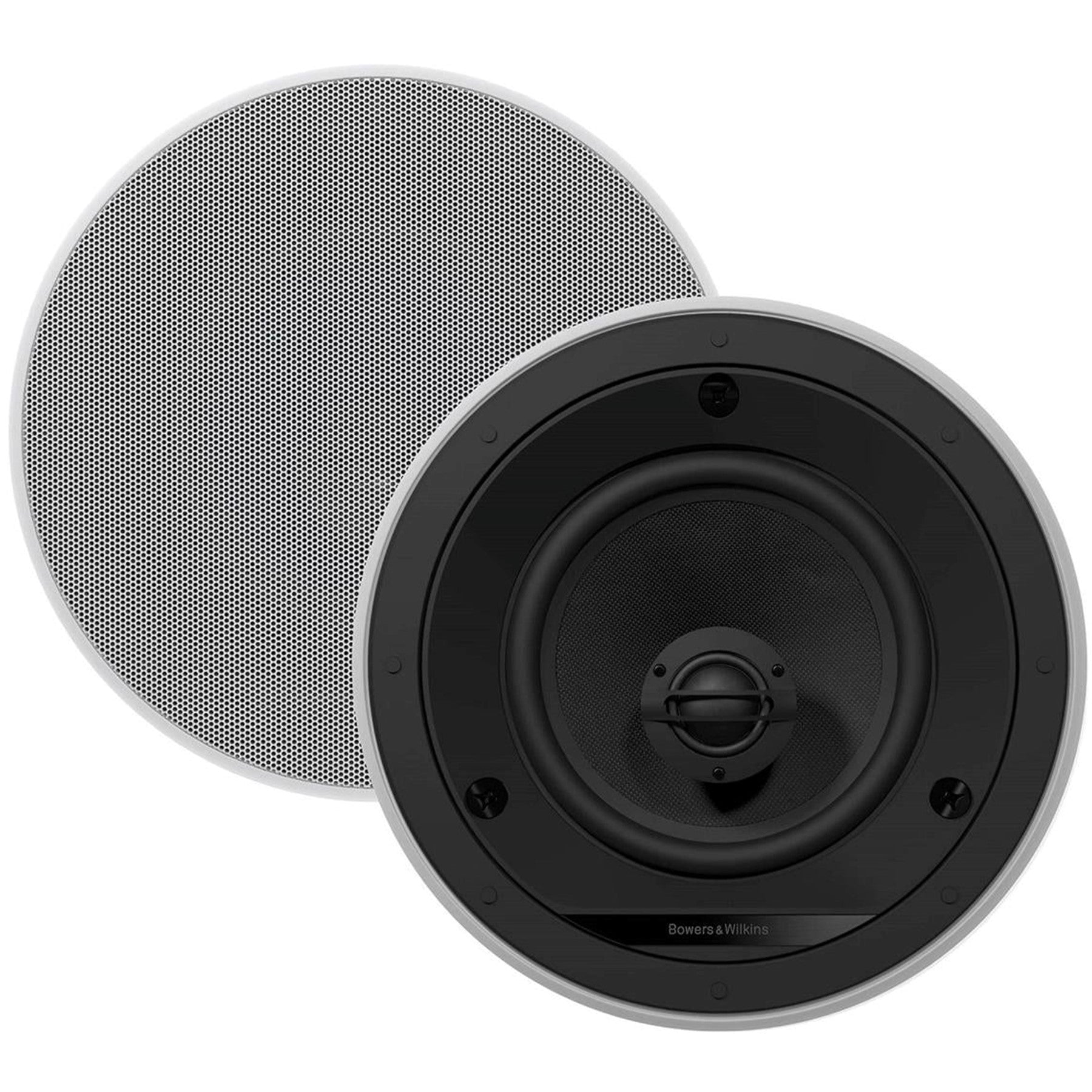

Bowers & Wilkins CCM 663 RD Reduced Depth In-Ceiling Speaker (pair)

Bowers & Wilkins CCM 663RD Reduced Depth In-Ceiling Speaker (pair) - Bowers & Wilkins

See nothing, hear everything

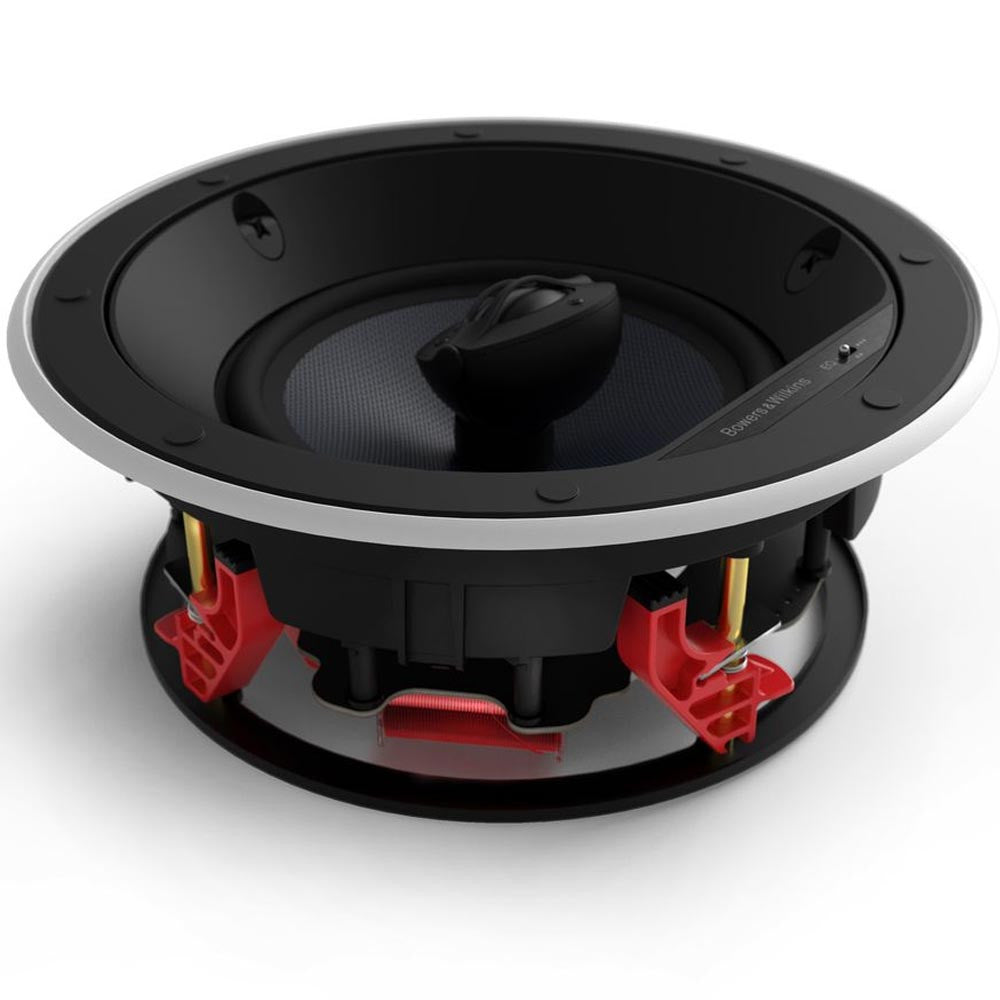

RD stands for Reduced Depth – so this speaker will fi t into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi t QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker.

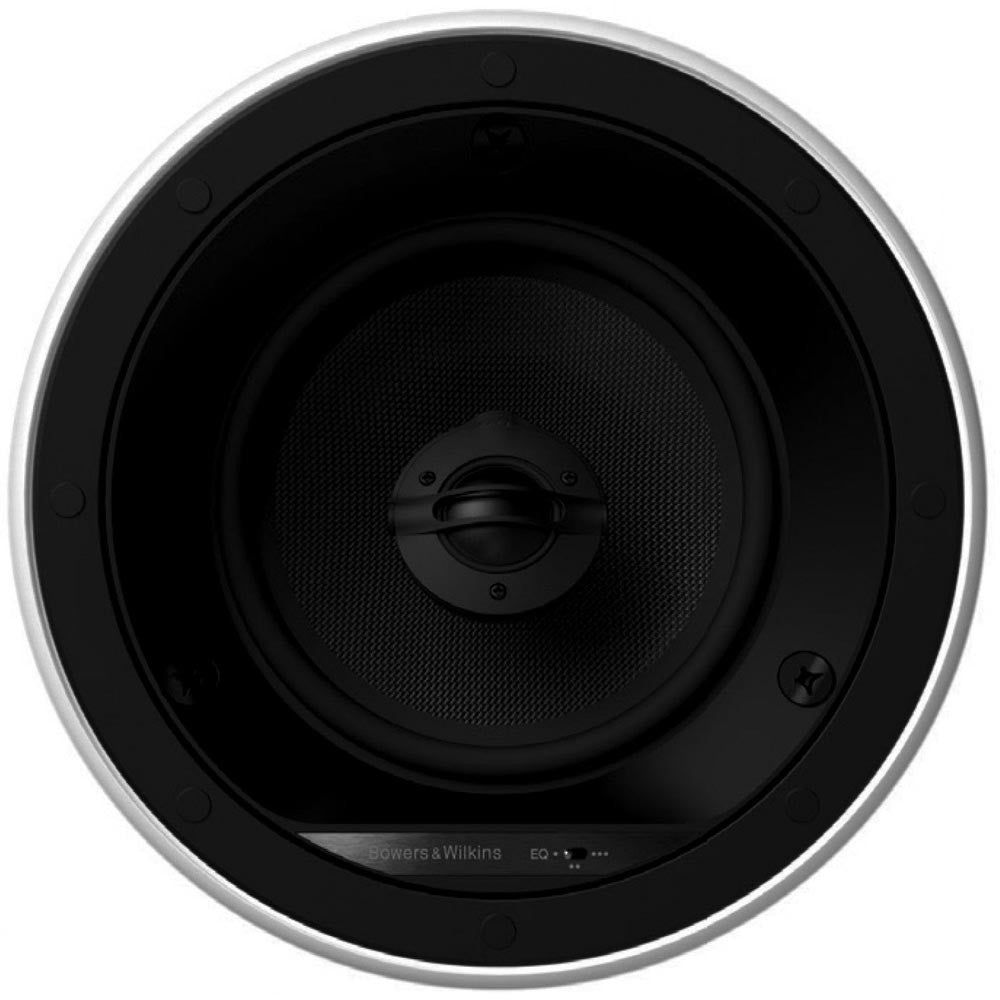

The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminum dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around.

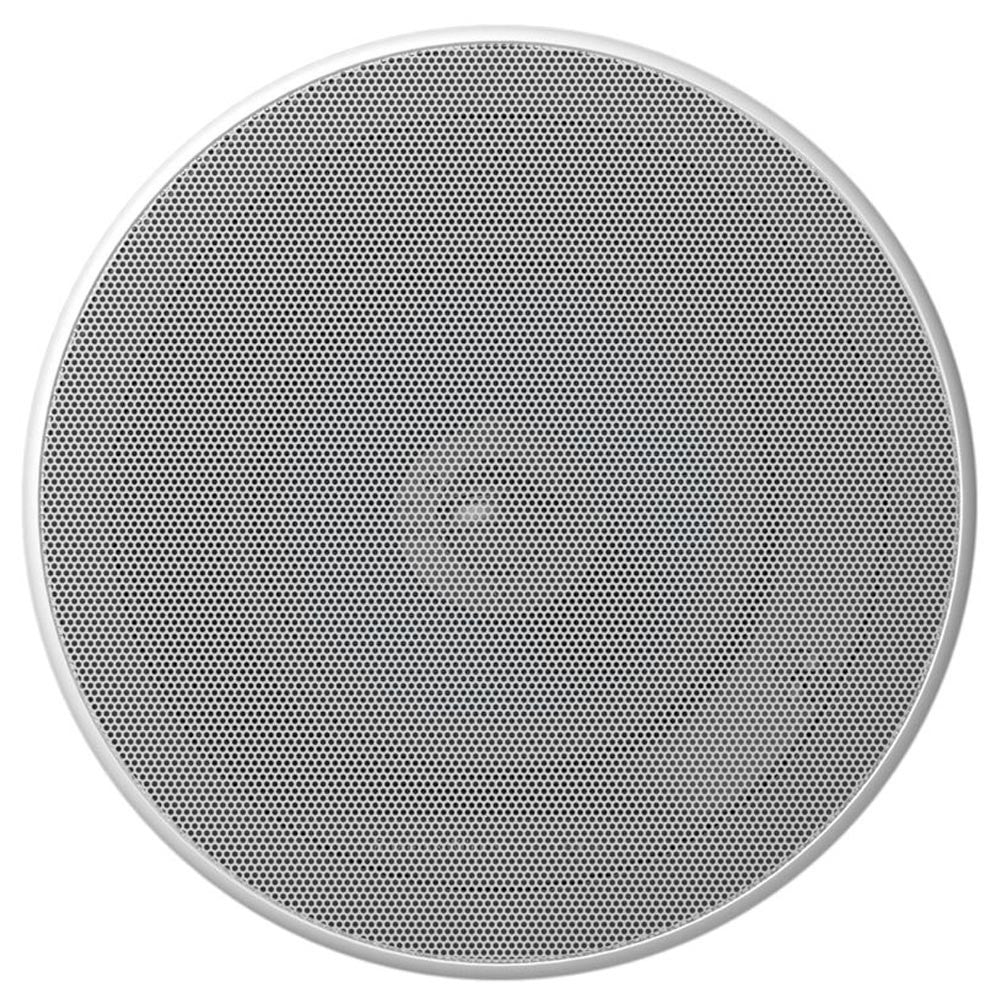

If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.

Technical Specifications:

• Description: 2-way in-ceiling system

Drive Units

• 1" Nautilus™, swirl loaded aluminum dome tweeter
• 6" blue Kevlar®, cone bass/midrange
• Frequency range (-6dB): 35Hz – 50kHz
• Recommended Amplifier Power: 25W – 100W
• Sensitivity: 86dB (2.83V, 1m)
• Nominal Impedance: 8Ω (4.8Ω minimum)
• Overall diameter: 9.4"
• Cut-out diameter: 8"
• Depth behind surface: 3.6"
• Protrusion: 0.3"
• Net weight: 5 lbs.
• Pre-mount Kit: PMK C6
• Back Box: BB6W or BB125C
