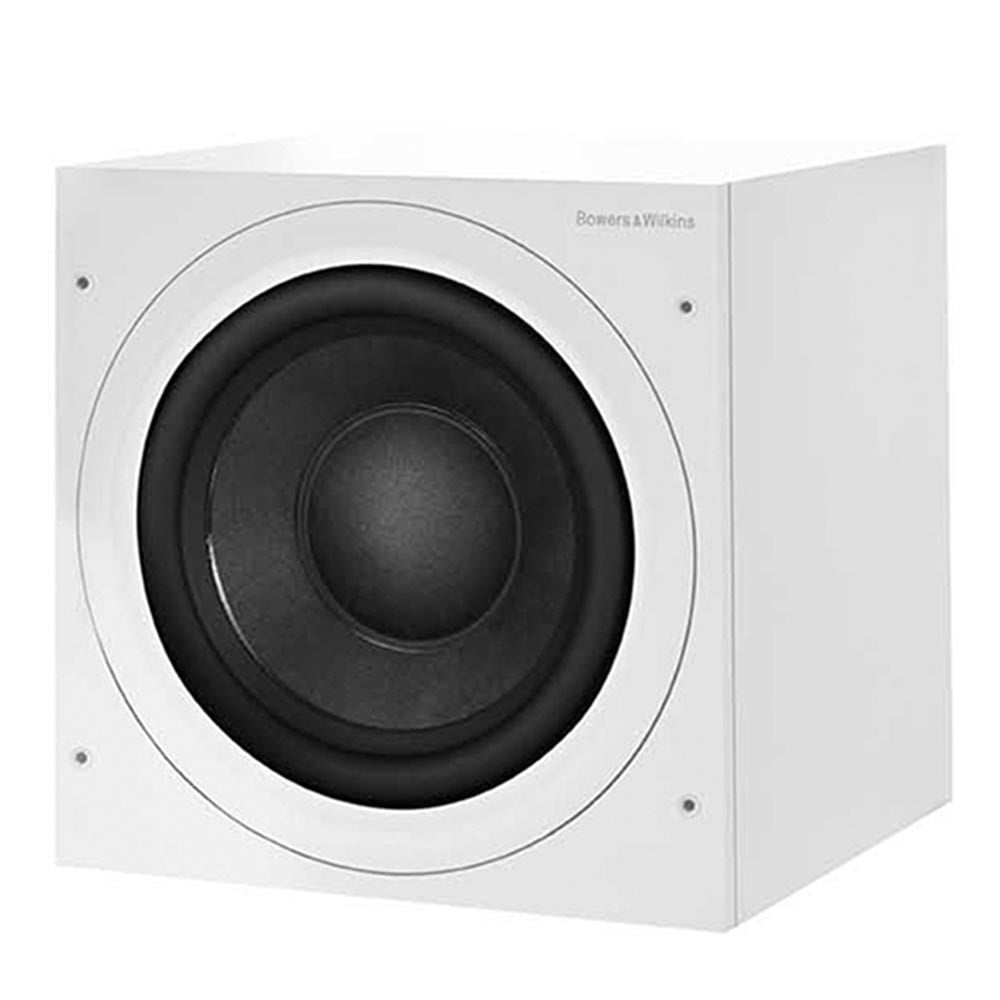

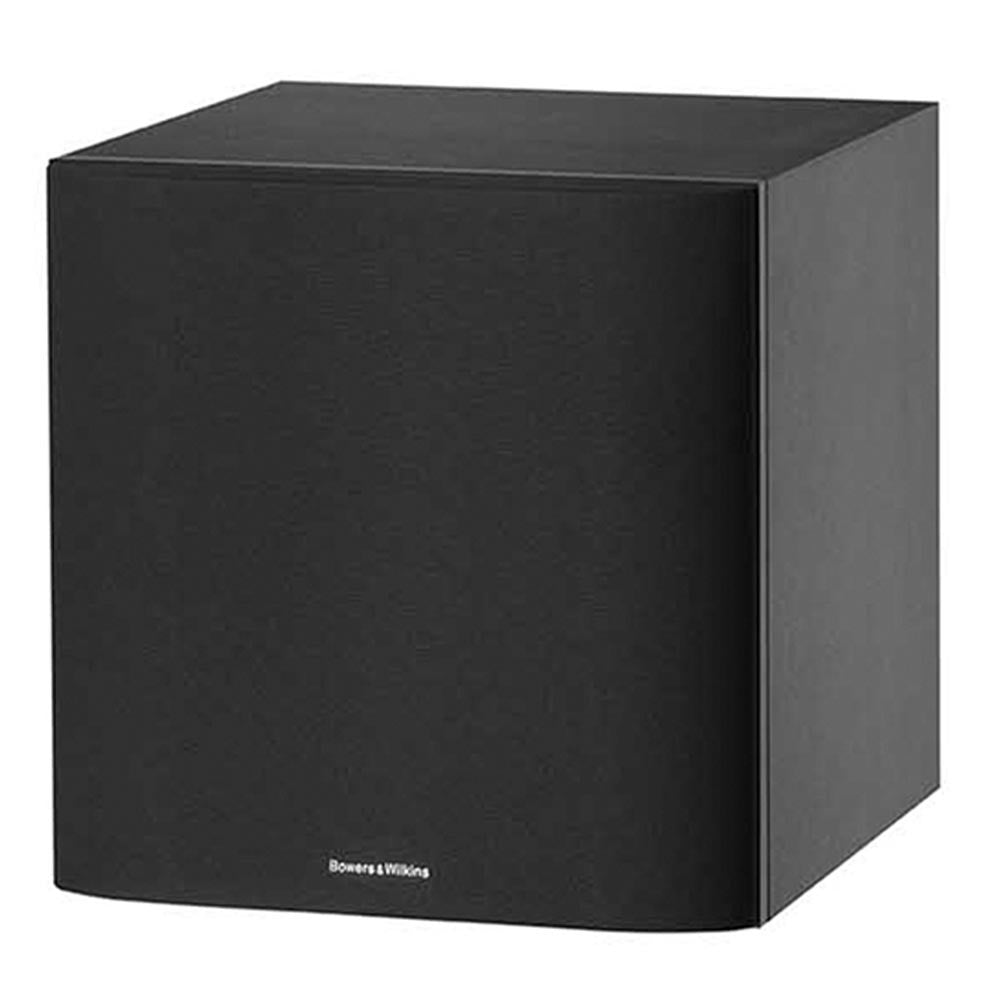

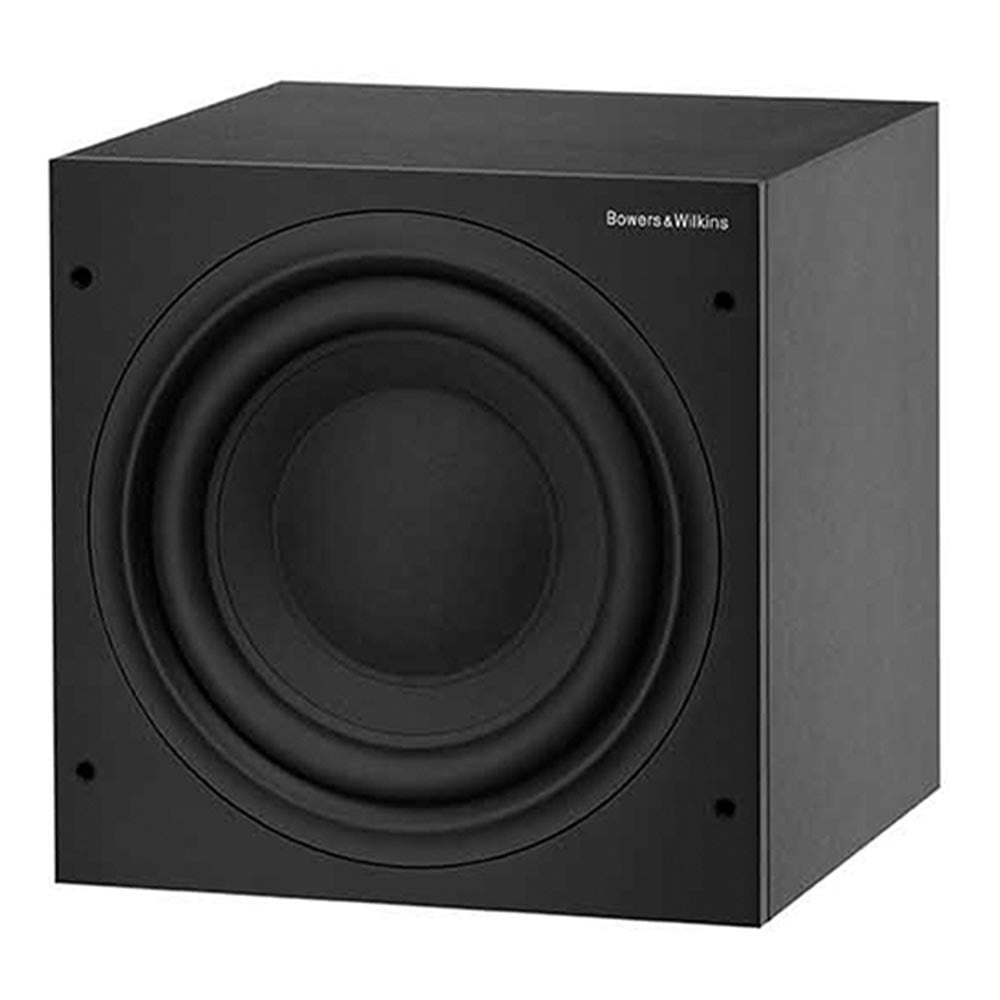

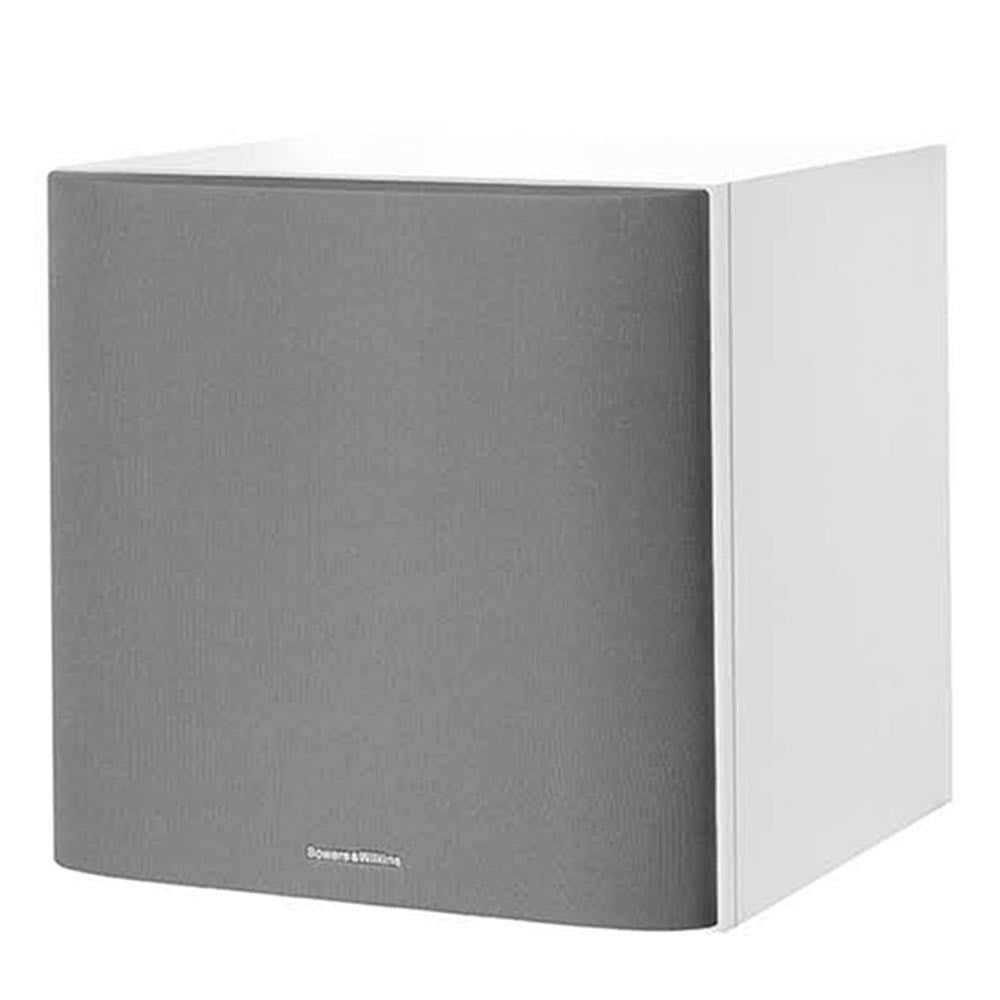

Bowers & Wilkins ASW610 Subwoofer - Bowers & Wilkins
Subwoofer
ASW610's long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.
Fill the room with bass, not speakers
ASW610 is compact, making it a subwoofer you can squeeze in anywhere. Or maybe use two for more bass control?
Sealed tight
ASW610’s sealed enclosure keeps the bass good and tight (and exciting!).
Technical Specifications:
- Features: Input level (line in), Input level (speaker in), Low-pass filter bypass, Bass extension, Bass roll-off alignment, Auto sense on / standby, Phase switch
- Description: Active closed-box subwoofer system
- Drive unit: ø250mm (10 in) paper / Aramid fiber cone long-throw
- Frequency range: -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)
- Frequency response: ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
- Bass extension: -6dB at 20Hz (position A), -6dB at 25Hz (position B), -6dB at 30Hz (position C)
- Power Output: 200W
- Rated power consumption: 40W / 0.5W standby
- Input impedance: 33kΩ
- Signal / noise: >90dB

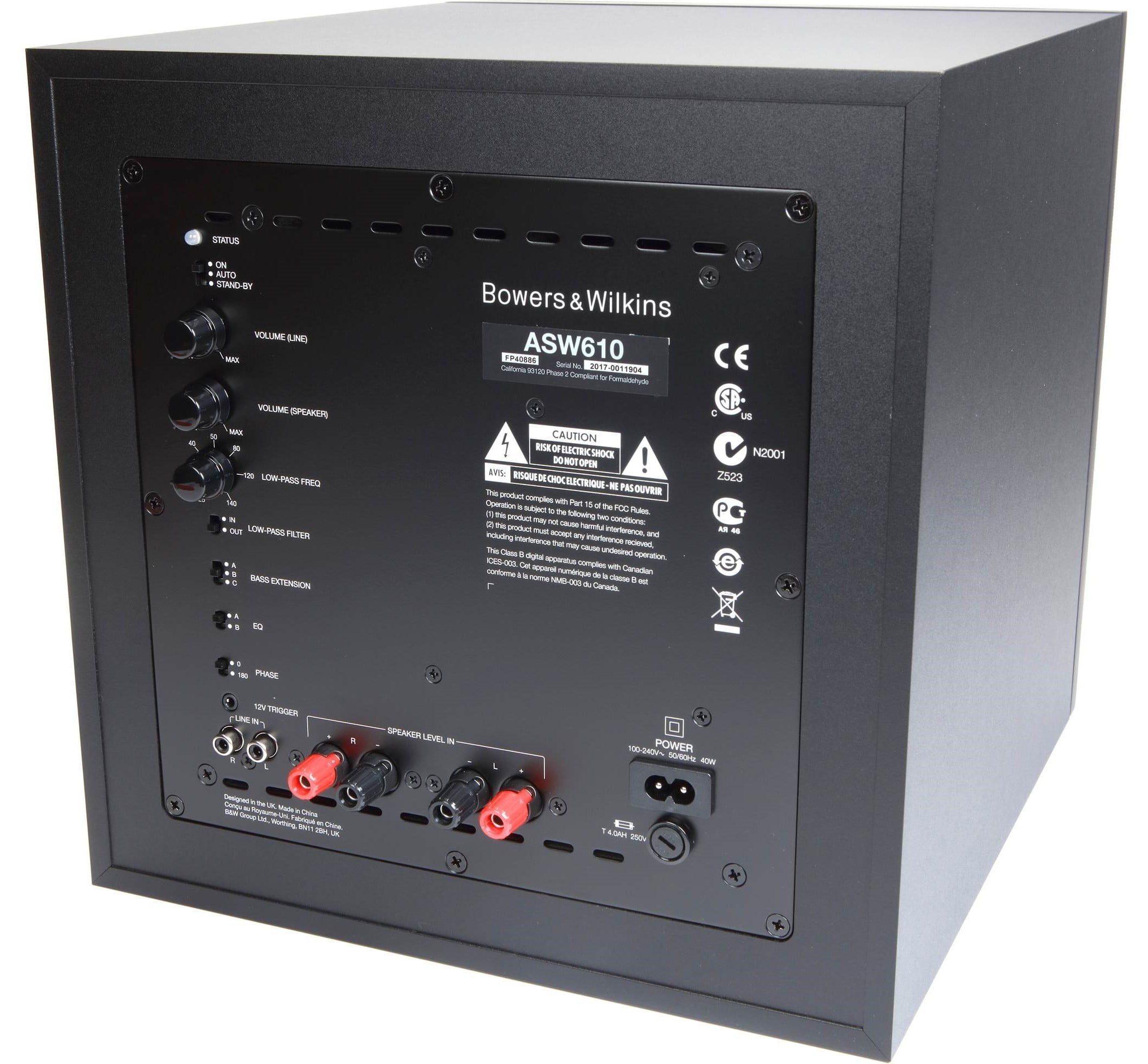

- Inputs: Line in (RCA Phono), Speaker in (Binding post), 12v trigger (3.5mm jack), Low-pass filter, Active 4th-order, variable cut-off frequency
Dimensions
- Height: 310mm (12.2 in) not including feet or spikes, 322mm (12.7in) including feet, 338mm (13.3in) including spikes
- Width: 310mm (12.2 in)
- Depth: 347mm (13.66in) not including grilles, 375mm (14.8 in) including grilles and controls
- Net weight: 12.5kg (27.6 lb)
- Cabinet finishes: Black, White
- Grille finishes: Black, Grey
