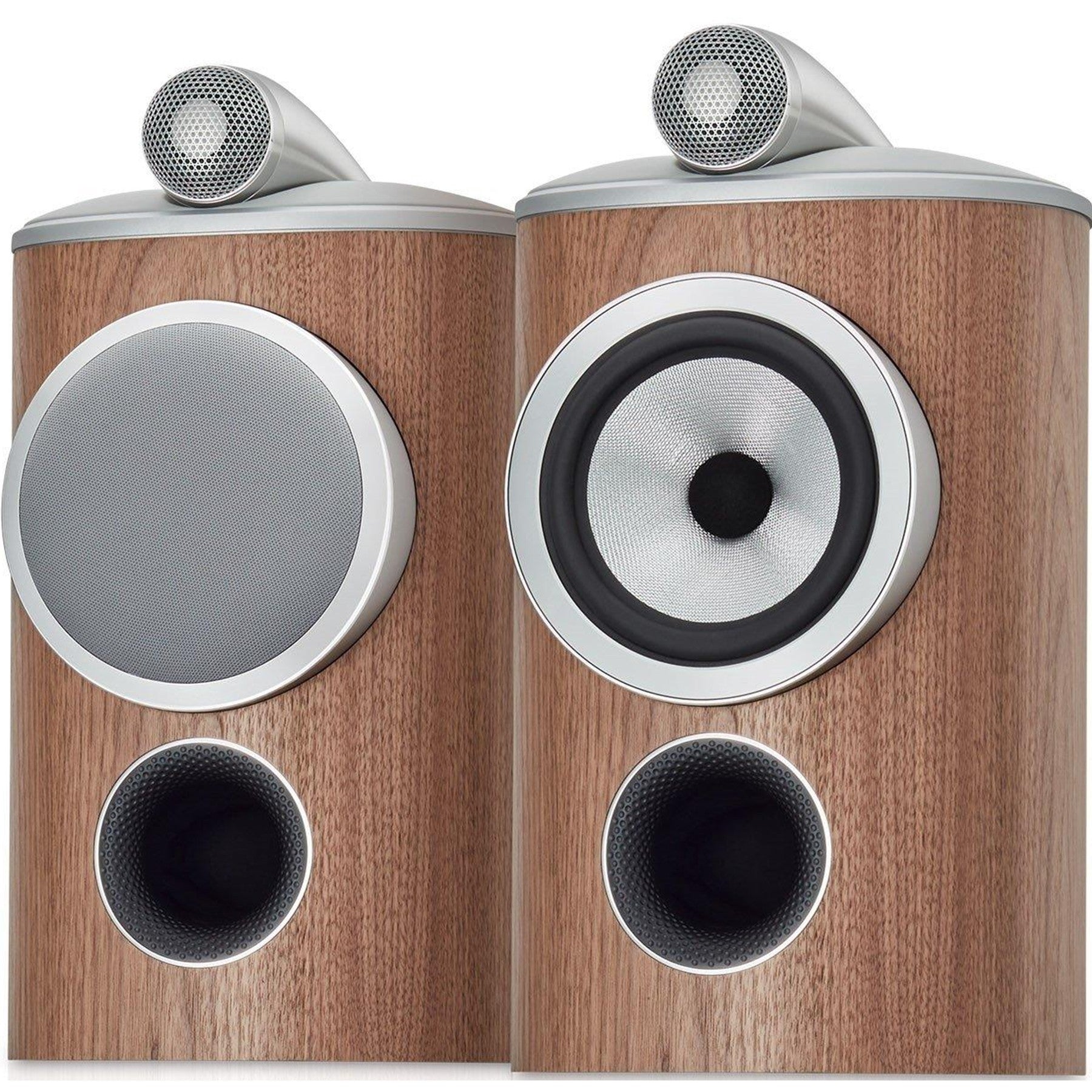

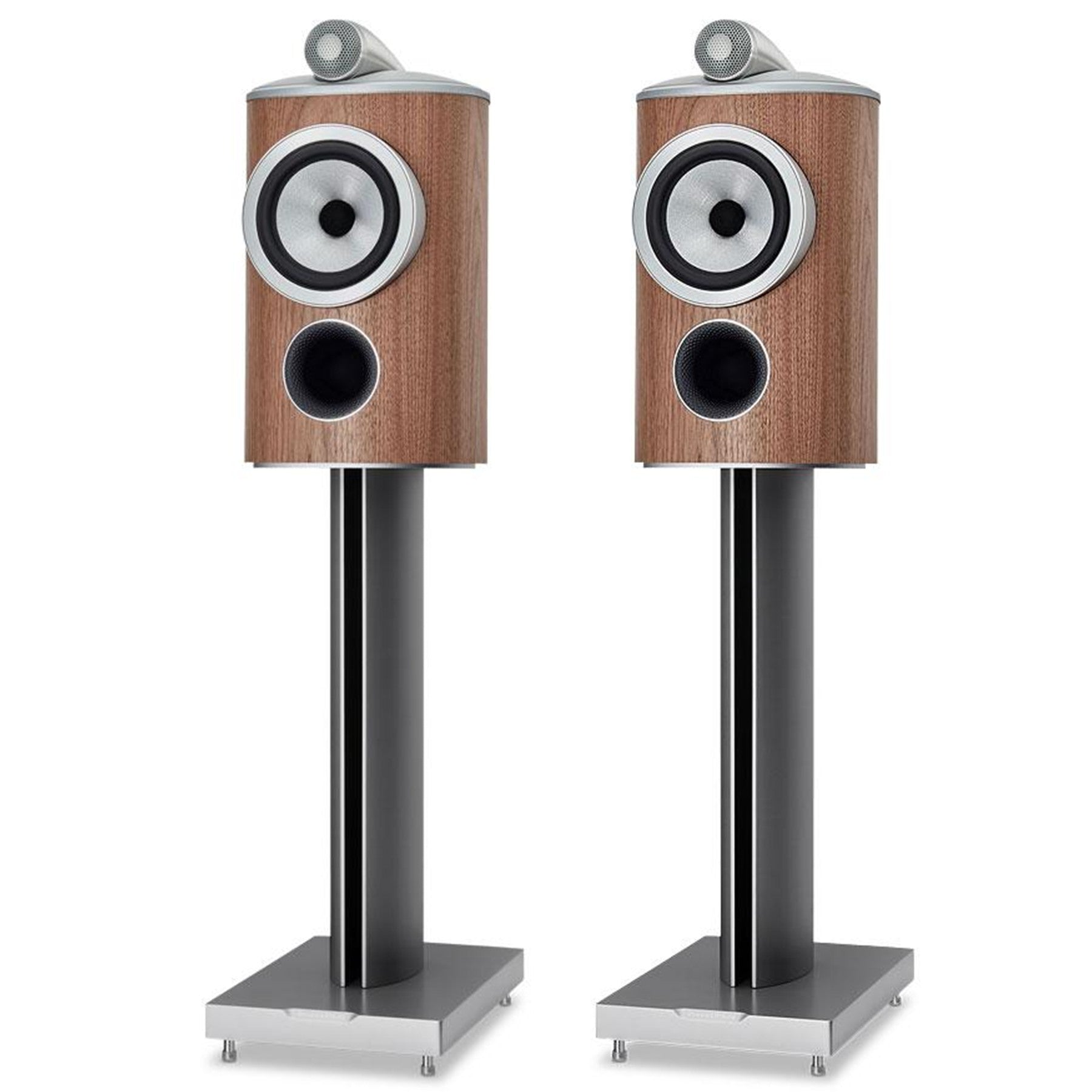

Bowers & Wilkins 805 D4 Stand-Mount Speaker with Matching Stands

The Bowers & Wilkins 805 D4 stand head and shoulders above its peers with industry leading performance
The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it’s still packed with advanced technologies, including the Diamond dome tweeter and the Solid Body Tweeter-on-Top.

Little Diamond
805 D4 might be smaller than its floor-standing siblings, but it’s no lightweight: its beautifully constructed Reverse-Wrap cabinet, stiff aluminum bass pods and 165mm (6.5in) Continuum™ mid-bass cone afford it exceptional bass extension and scale for a relatively compact speaker.

Diamond dome tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.

Solid Body Tweeter assembly
Our newest Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, producing an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

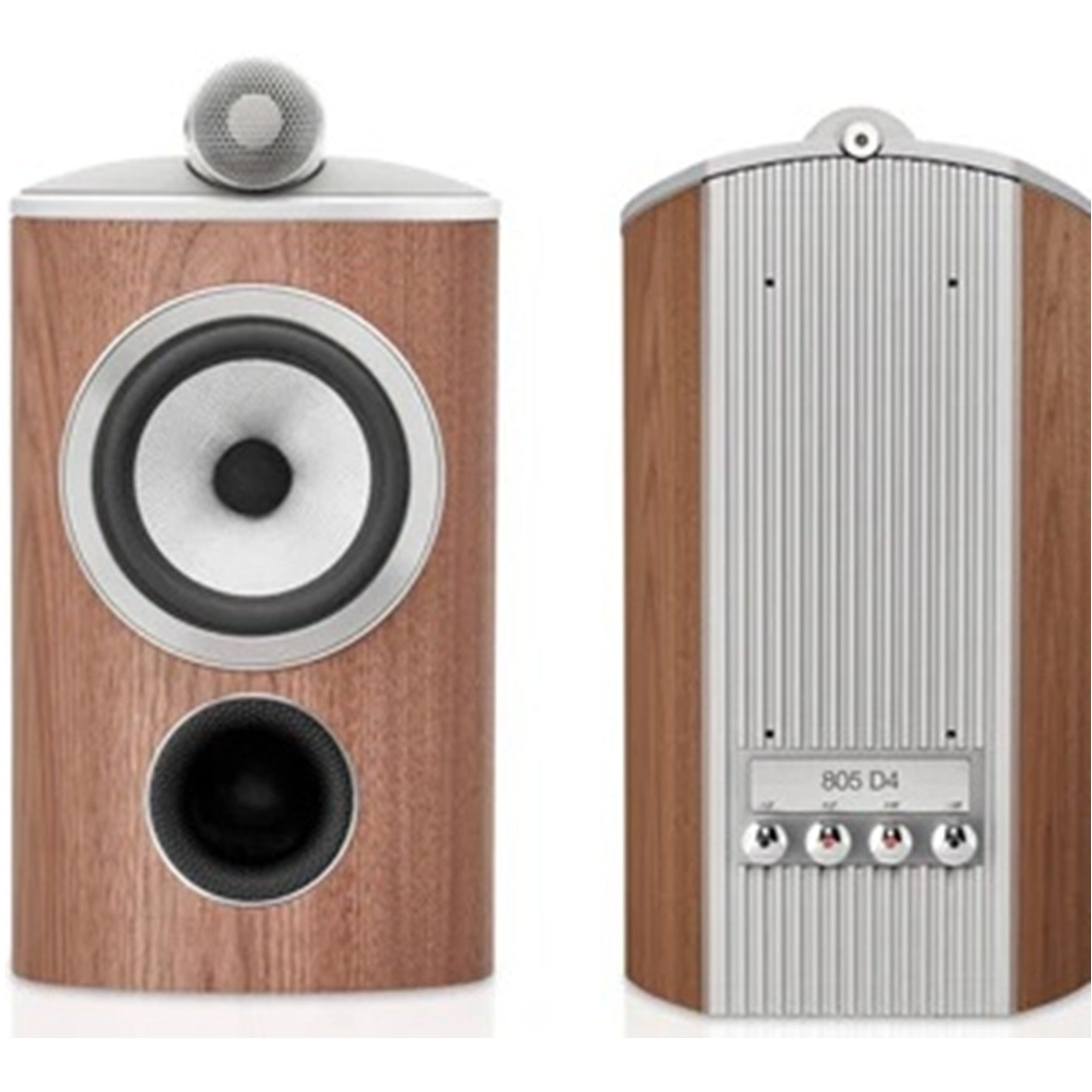

Rear-mounted crossover
The new reverse-wrap orientation of the cabinet on 805 D4 means we can place its sensitive crossover components inside their own, dedicated space within the cabinet, which has critical benefits to both performance and serviceability. We’ve taken the opportunity to upgrade the speaker terminals, too.

The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.

Reverse Wrap cabinet
Instead of a flat-fronted speaker with a curving back, Bowers & Wilkins' cabinets are formed from one continuous curve, held together with a spine of solid aluminum. Fewer joins make for a stiffer, more inert structure and a curved front means less baffling around the drive units. So sound dispersion is improved, and cabinet reflection is reduced.

Continuum cone
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Aluminum top-plate
Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet design with an all-new aluminum top section for even greater stiffness. The same design also provides a perfect mounting point for all-new Leather by Connolly cabinet detailing, with luxurious black leather for dark cabinets and light grey for lighter finishes.

Crossover
All stereo models in the new 800 Series Diamond range now use rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Leather by Connolly
The top section of every stereo model features an aluminum top plate, covered in all-new Leather by Connolly trim. Bowers & Wilkins uses luxurious, full-grain black leather for Gloss Black and Satin Rosenut finishes, and a light grey leather for White and Satin Walnut.

Technical features

• Diamond tweeter
• Solid body Tweeter-on-Top
• Continuum™ cone bass/mid Anti-Resonance plug
• Matrix™
• Flowport

Description

• 2-way vented-box system

Drive units

• 1" Diamond dome high-frequency tweeter
• 6.5" Continuum cone bass midrange

Frequency range

• 34Hz to 35kHz

Frequency response

• 42Hz to 28kHz (+/-3dB from reference axis)

Sensitivity

• 88dB (on axis at 2.83Vrms at 1m)

Harmonic distortion

• 2nd and 3rd harmonics (90dB,1m on axis)
  • <1% 90Hz – 20kHz
  • <0.3% 120Hz – 20kHz

Nominal impedance

• 8Ω (minimum 4.6Ω)

Recommended amplifier power

• 50W – 120W into 8 ohms on unclipped program
• Max recommended cable impedance0.1 ohm

Size & weight
