BlueSound PULSE M Omni-Hybrid Wireless Music Streaming Speaker - BlueSound
BOUNDARY-FREE LISTENING.
Take your listening 360 degrees. The PULSE M is a wireless multi-room streaming speaker featuring a new Omni-Hybrid design – an upfiring, omnidirectional woofer and two tweeters mounted and offset at 45 degrees, driven by a DSP-enabled 80 watt smart amplifier, all working together to create lush, room filling sound at nearly any listening angle.
STUNNING SOUND AND DESIGN.

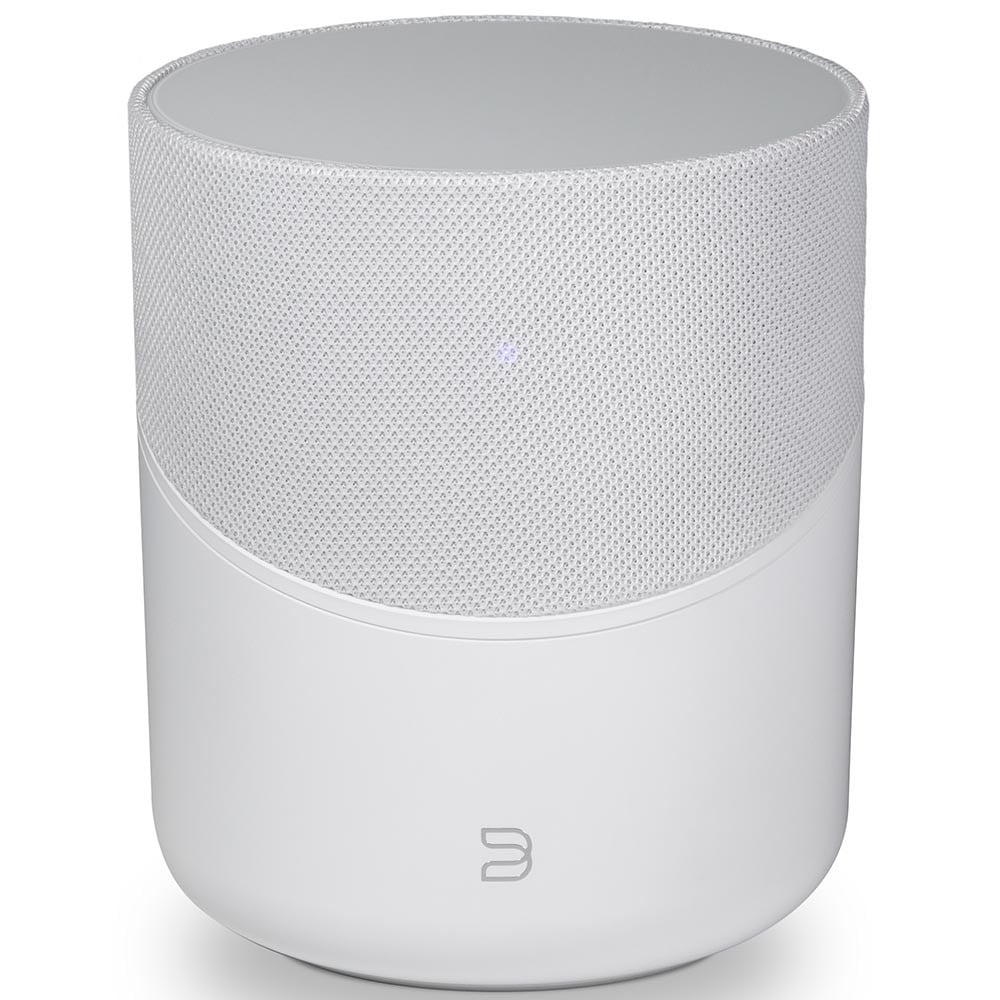

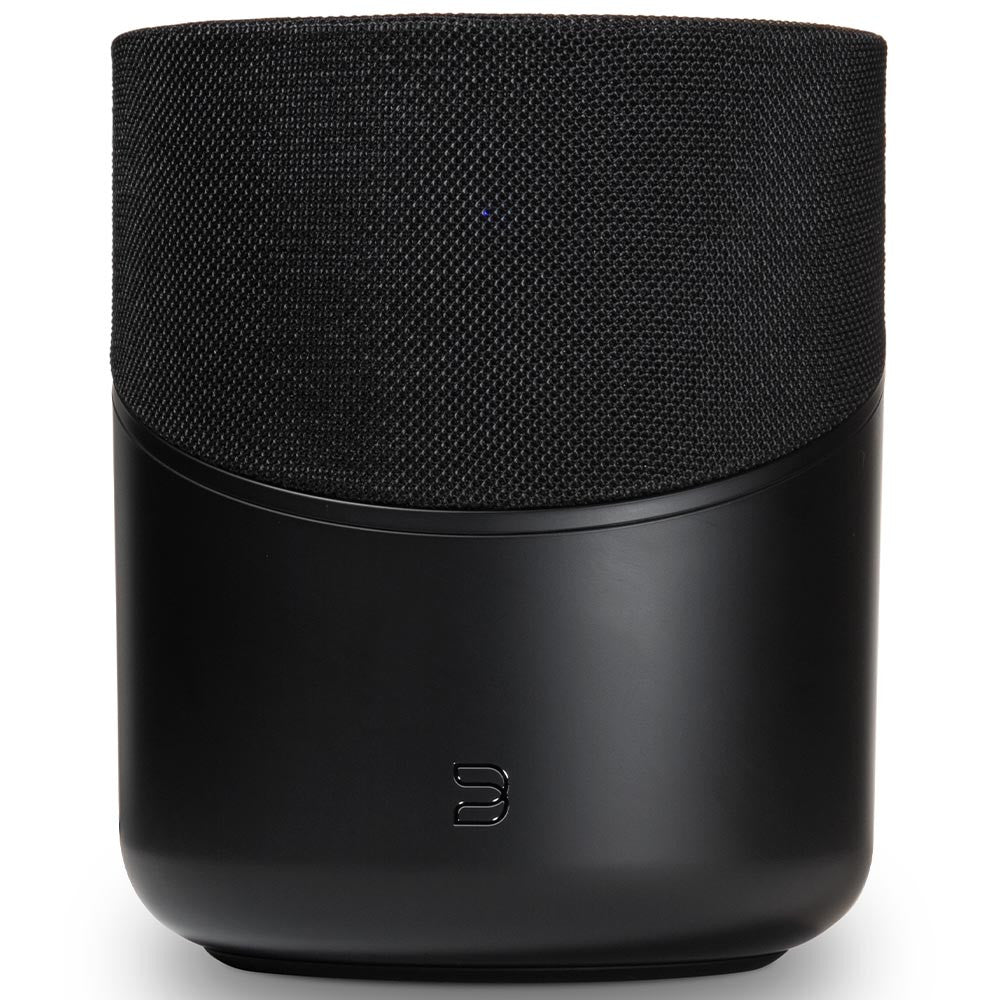

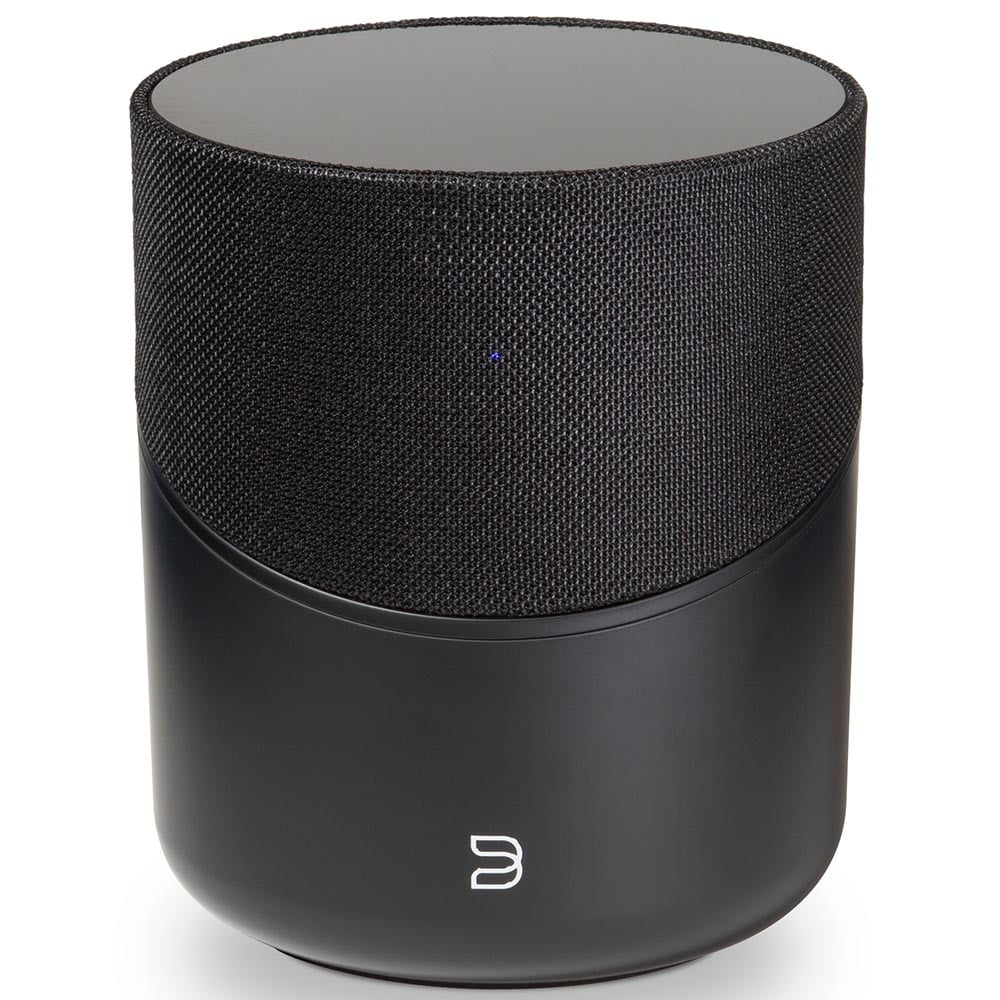

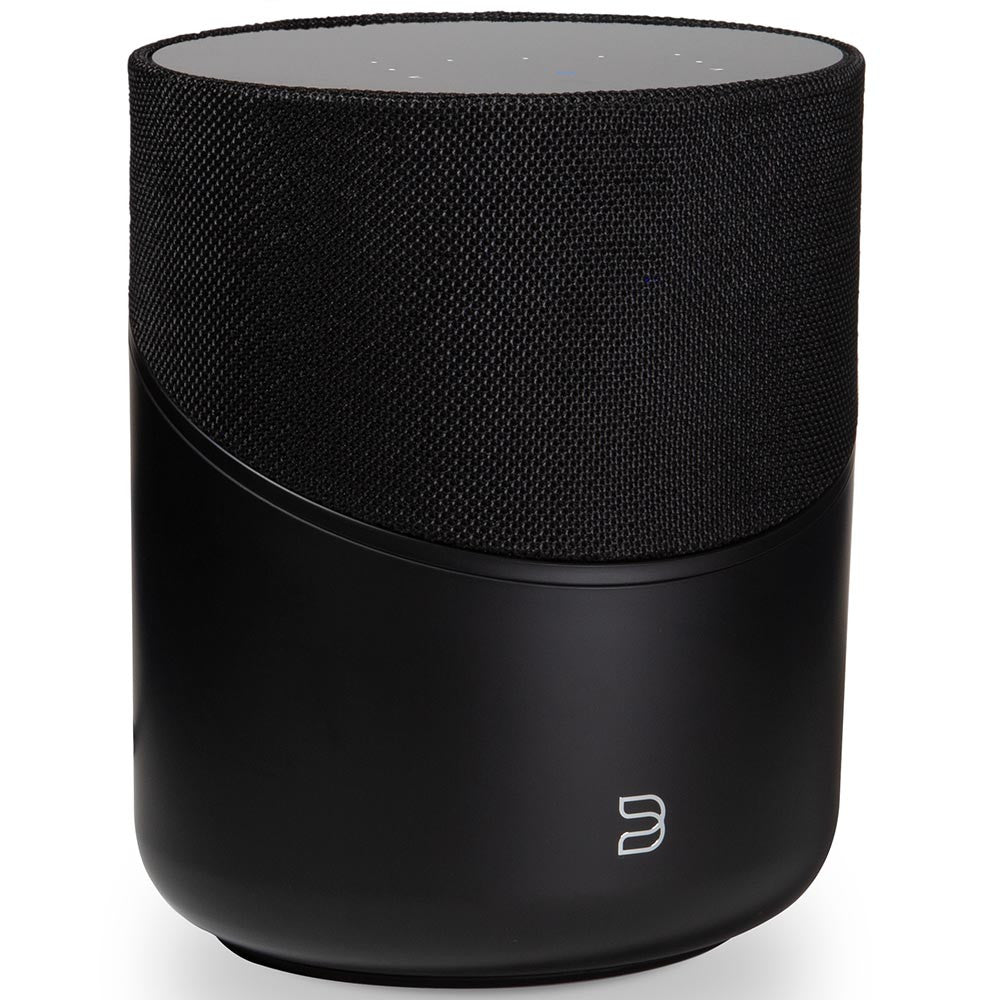

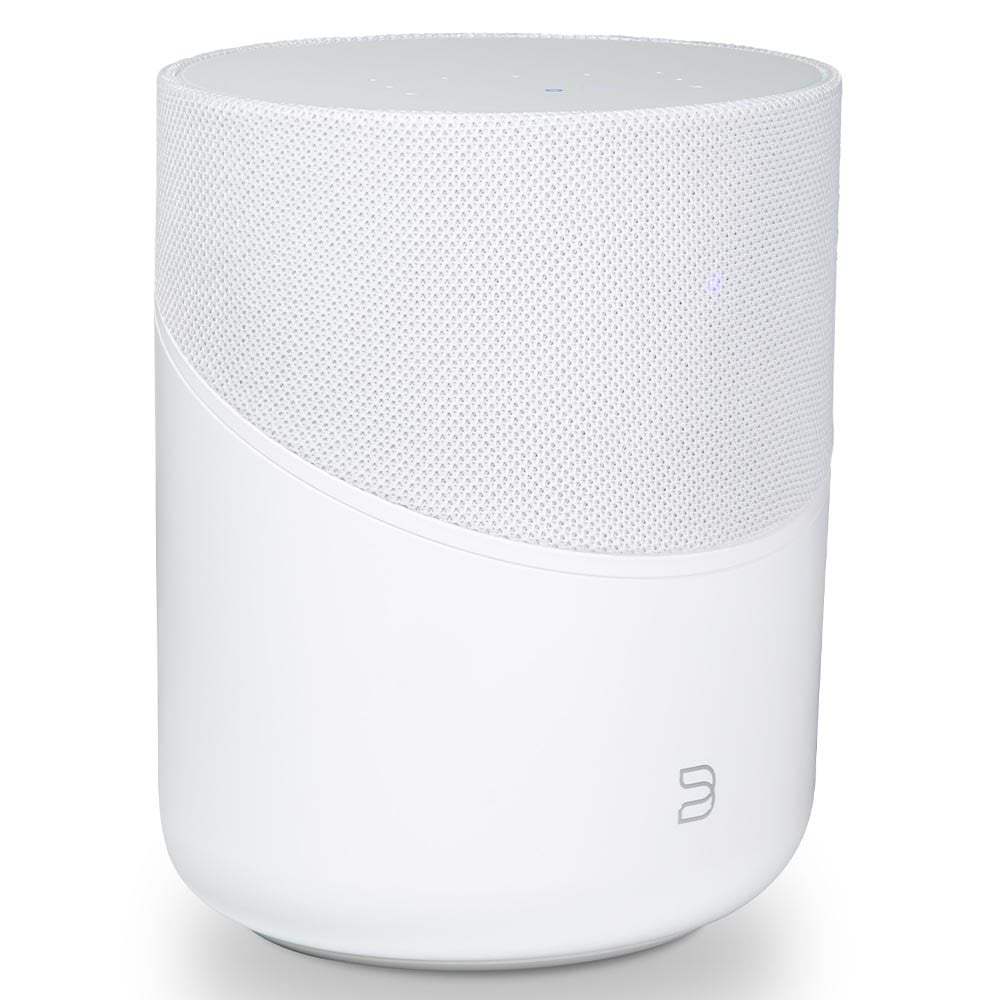

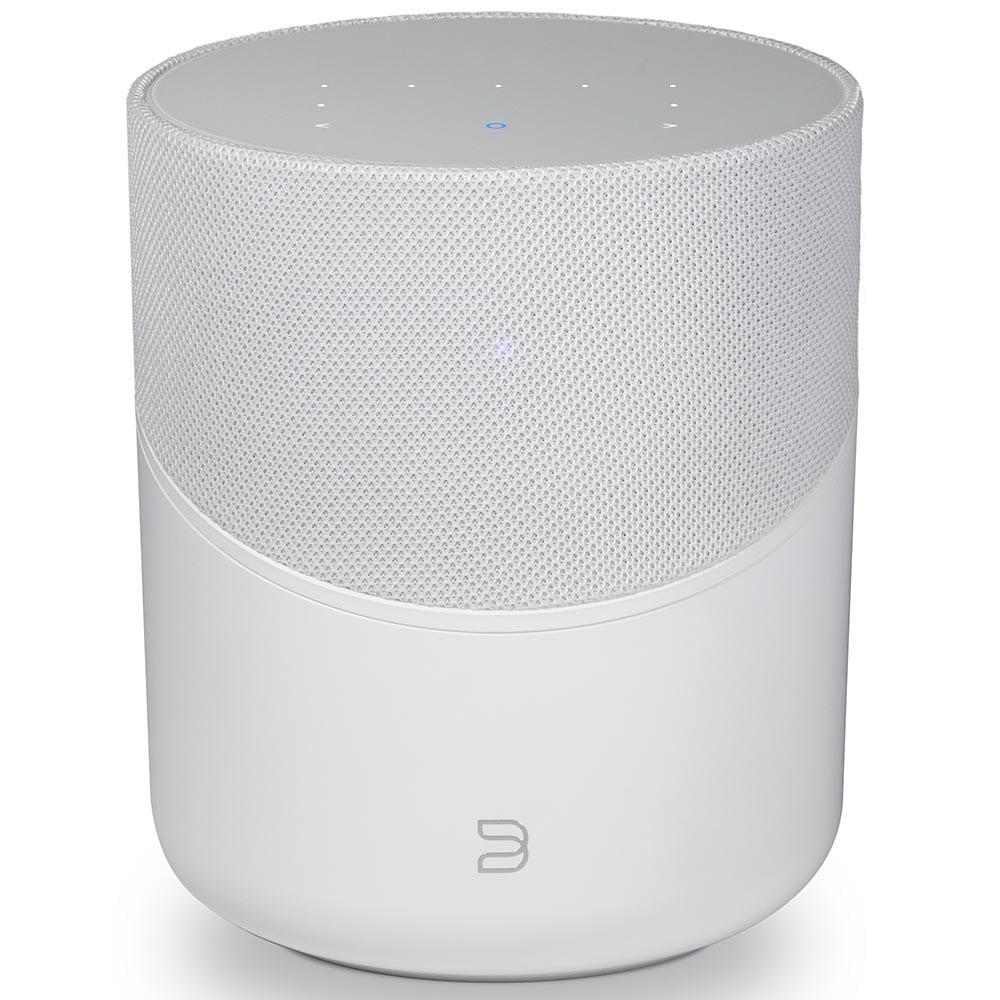

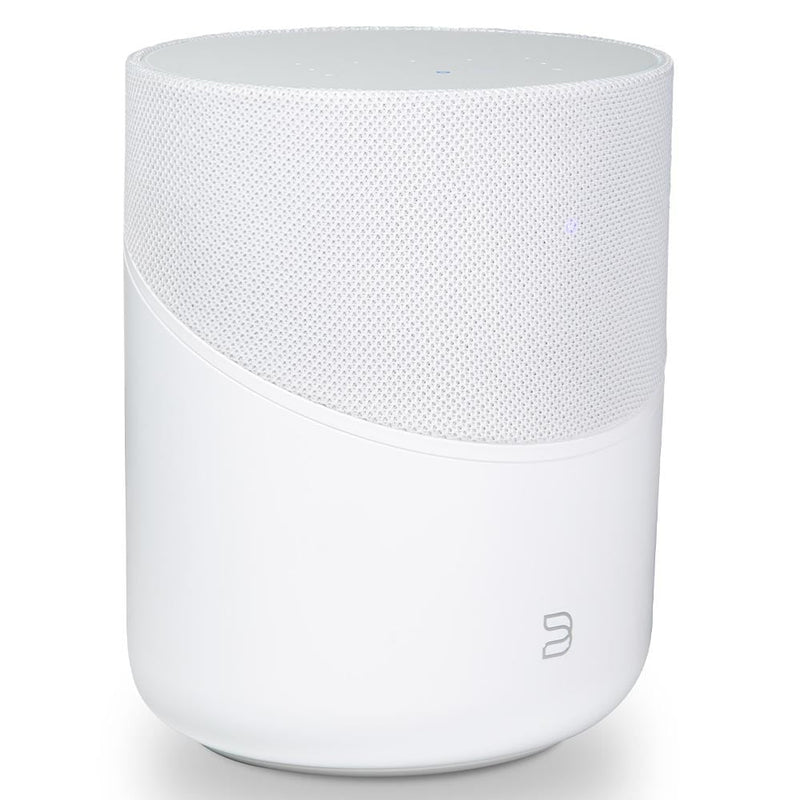

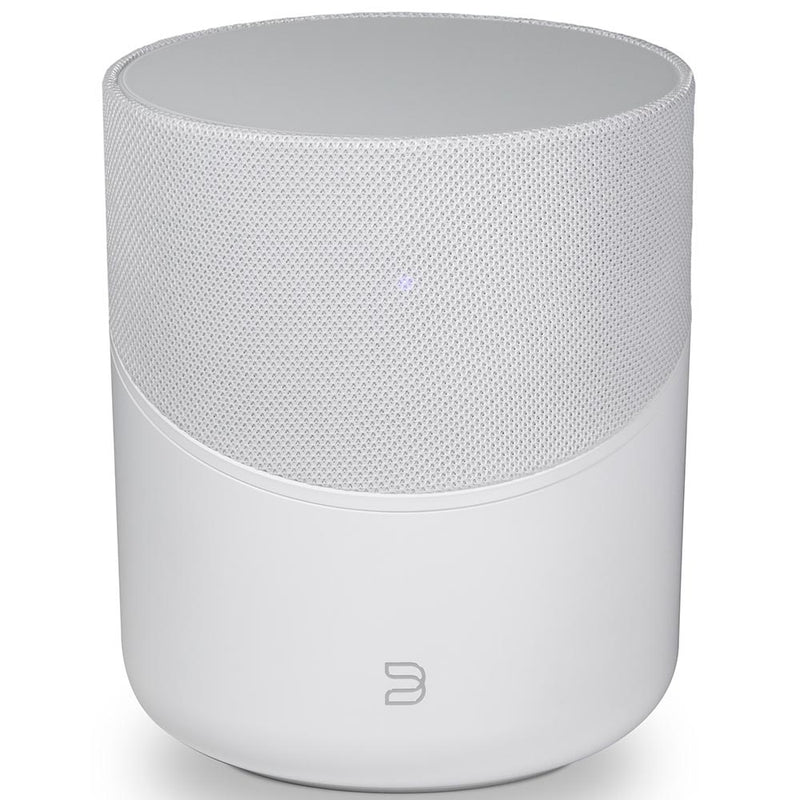

The PULSE M configures its unique Omni-Hybrid system inside of an elliptical cabinet to make a space-saving design that easily fits into the nooks and crannies of your home. Enjoy placement flexibility with the optional WM230 wall mount accessory or the FS230 floorstands. An acoustically transparent fabric grille combined with Black or White finish options makes for an all-around sensational speaker in both sound and design.
ONE OR MANY
Thanks to impeccable engineering, the PULSE M can also be paired to create a true two-channel listening experience with an ultra-wide soundstage, even at off-axis listening angles. TV watchers, movie enthusiasts, and gamers can use PULSE Ms as rear surrounds in a Bluesound home theater group to create a truly immersive experience. The PULSE M can work with other players in a Bluesound ecosystem to deliver hi-res, multi-room audio to one or many rooms, simultaneously.
CONNECT AND CONTROL.

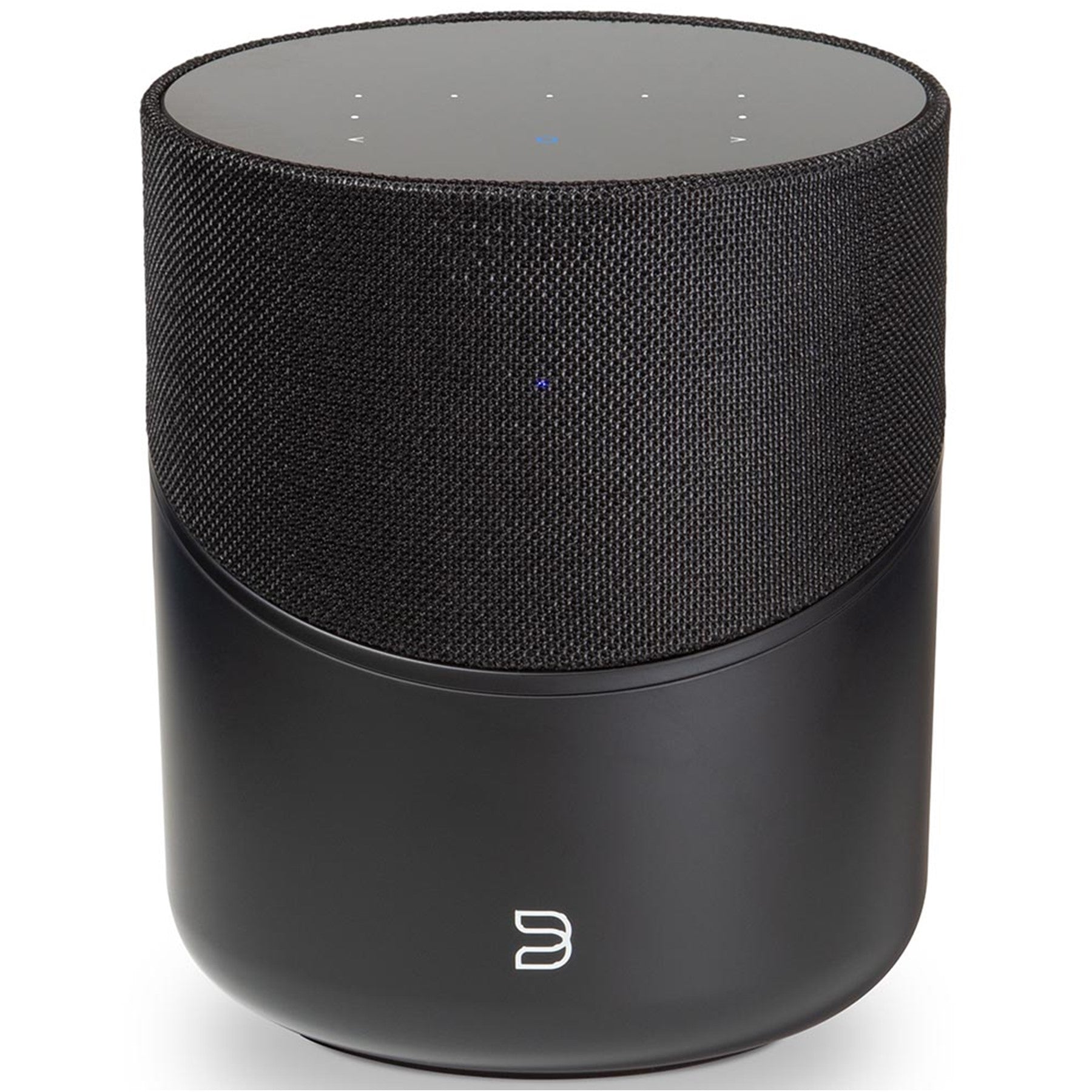

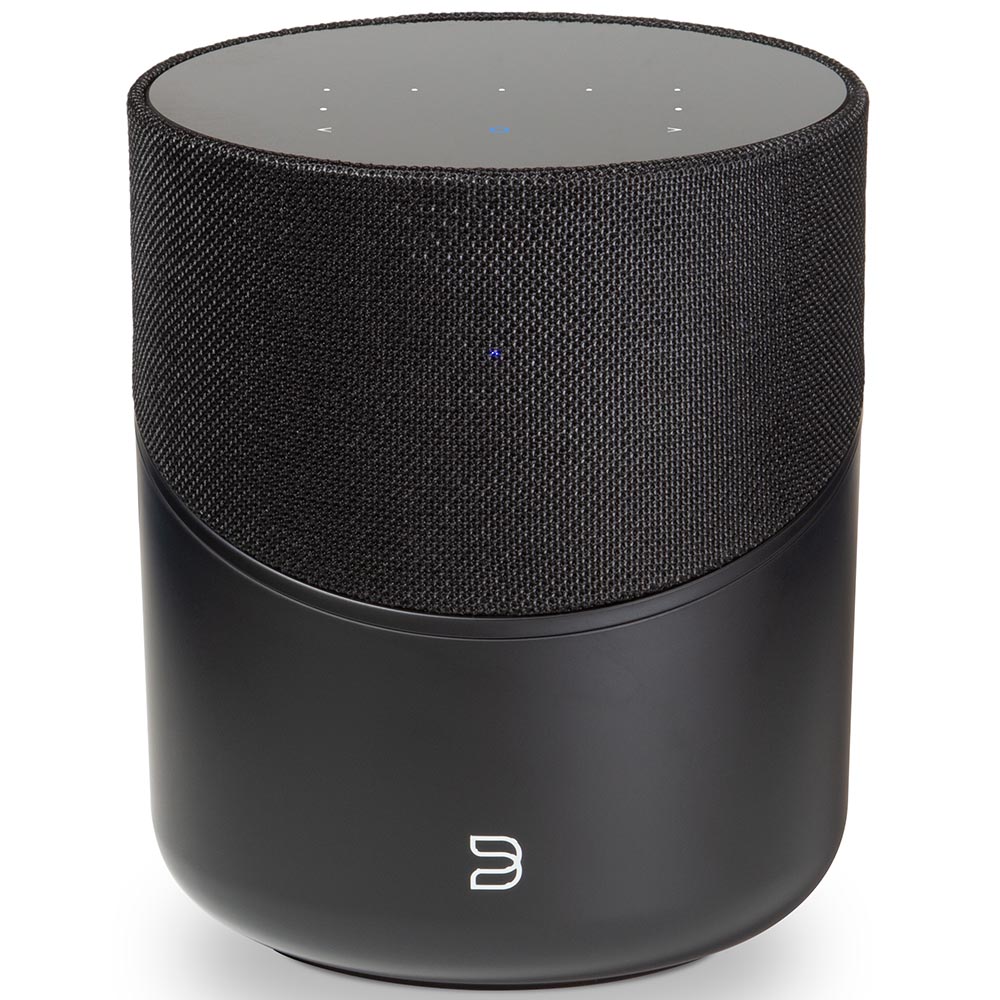

Built-in access to over 20 natively-integrated music services and thousands of internet radio stations is available from the BluOS Controller app. Alternatively, connect to your music through WiFi, Ethernet, AirPlay 2, two-way aptX HD Bluetooth, USB-A, 3.5mm dual analog/digital input, or the 3.5mm headphone jack. In the BluOS Controller app, select your music, group players, and adjust an array of settings. Quick-access playback, including volume controls and 5 programmable presets, is available right on the top of the player with a proximity-sensing touch panel display, or through voice control assistants like Siri, Alexa, or Google Home. The PULSE M also fits right into smart homes, with drivers for Crestron, Control4, RTI, URC, Lutron and other home control systems.
Features:
- SMART DSP AMPLIFIER
- 80 WATTS TOTAL SYSTEM POWER
- OMNI-HYBRID™ SPEAKER DESIGN
- 5 PROGRAMMABLE QUICK-TOUCH PRESETS
- PROXIMITY SENSING TOUCH CONTROLS
- ACOUSTICALLY TRANSPARENT FABRIC GRILLE
- OPTICAL & ANALOG AUDIO COMBO INPUT
- QUAD-CORE 1.8GHz ARM® CORTEX™ A53 PROCESSOR
- BluOS™ WIRELESS MULTI-ROOM PLATFORM
- STEREO PAIR AND HOME THEATER GROUPING
- MQA AND HI-RES MUSIC STREAMING
- AIRPLAY 2 INTEGRATION
- WORKS WITH AMAZON ALEXA AND GOOGLE ASSISTANT
- DUAL-BAND WI-FI + GIGABIT ETHERNET
- TWO-WAY aptX™ HD BLUETOOTH
- WIRED & WIRELESS HEADPHONE OUTPUT
- WIRELESS SUBWOOFER OUTPUT
- IR REMOTE LEARNING CAPABILITY
- SIMPLE WALL AND STAND MOUNTING SYSTEM
- Black or White finish
Specifications:
AUDIO
- Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
- Supported Hi-Res Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
- Native Sampling Rates: up to 192 kHz
- Bit Depth: 16-24
- Audio Controls & EQ: BluOS Controller App
- Distortion: THD+N, 0.030%
- Amplification: Smart DSP Amplifier
- Rated Power Output: 80W total system power, dual amp, 50W x 1 Woofer; 15W x 2 Tweeter
- Speakers: 5.25" (133mm) x 1 Woofer; 0.75" (19mm) x 2 Tweeter
- Frequency Response 60Hz-20kHz ±1.5 dB, -10 dB @ 40Hz
SOFTWARE & INTEGRATIONS
- Operating System: BluOS
- App Controller Operating System: iOS, Android, Windows, macOS
- Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
- Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
- Album Art Supported: JPG, PNG
- Music Services & Internet Radio: 23+
- 3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
- Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
- Voice Control Integrations: Amazon Alexa Skills; Actions on Google
- BluOS Home Theater: Use as rear surround channels

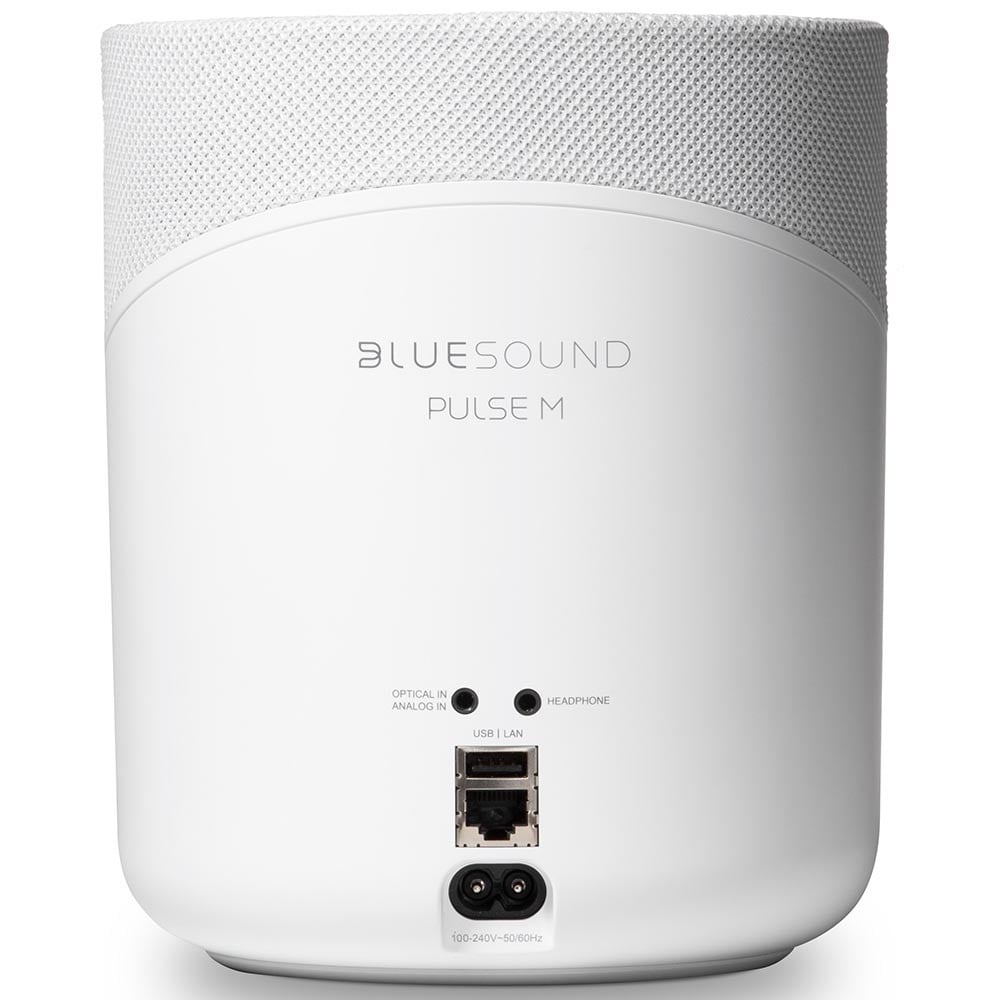

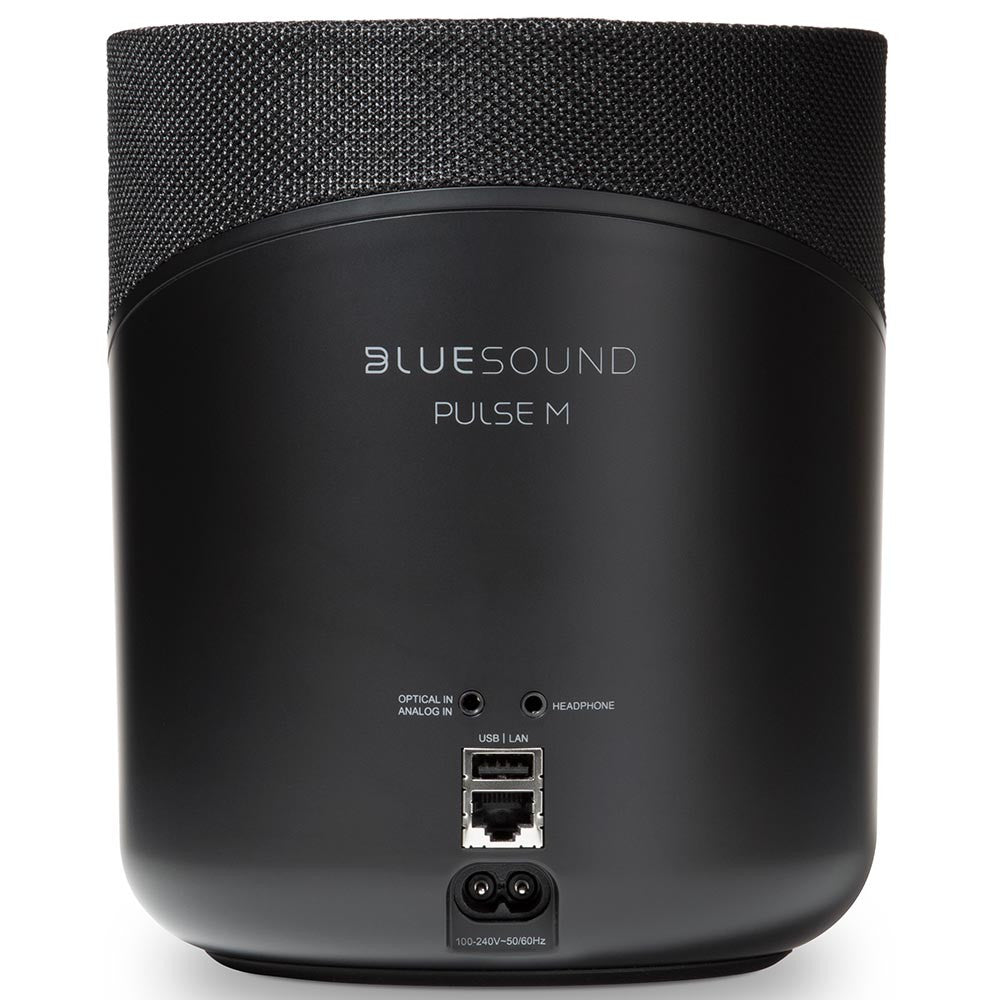

CONNECTIONS
- Power Supply: Universal bi-pin AC cord input (100-240AC)
- Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
- Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
- Bluetooth Quality: Bluetooth 5.0 aptX HD
- Bluetooth Connectivity: Two-Way (transmit & receive)
- IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
- Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm
- USB IN: Type A (Fat32 Formatted)
- Headphone Output: 3.5mm Stereo; Bluetooth
- Subwoofer Output: Wireless to PULSE SUB+
USER INTERFACE & CONTROL
- Status Indicator: LED x 2
- Play/Pause Button: Touch LED
- Volume Control Buttons: Touch Slider LED
- Previous/Next Track Buttons: Touch LED
- Preset Buttons: Touch LED x 5
- Proximity Sensor: Yes
GENERAL
- Max Power Consumption: 79W
- Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
- Operating Environment: 0°C to 40°C
- Finish: Black/White; Matte Satin Paint
- Version: P230
Product Dimensions
- 6.7" wide x 8" high x 5.9" deep
- Weight: 5.6lbs
Included Accessories
- 120V AC Power Cord
- Ethernet Cable
- TOSLINK Optical to 3.5mm Mini Adapter
- Safety/Warranty Guide
- Quick Setup Guide
