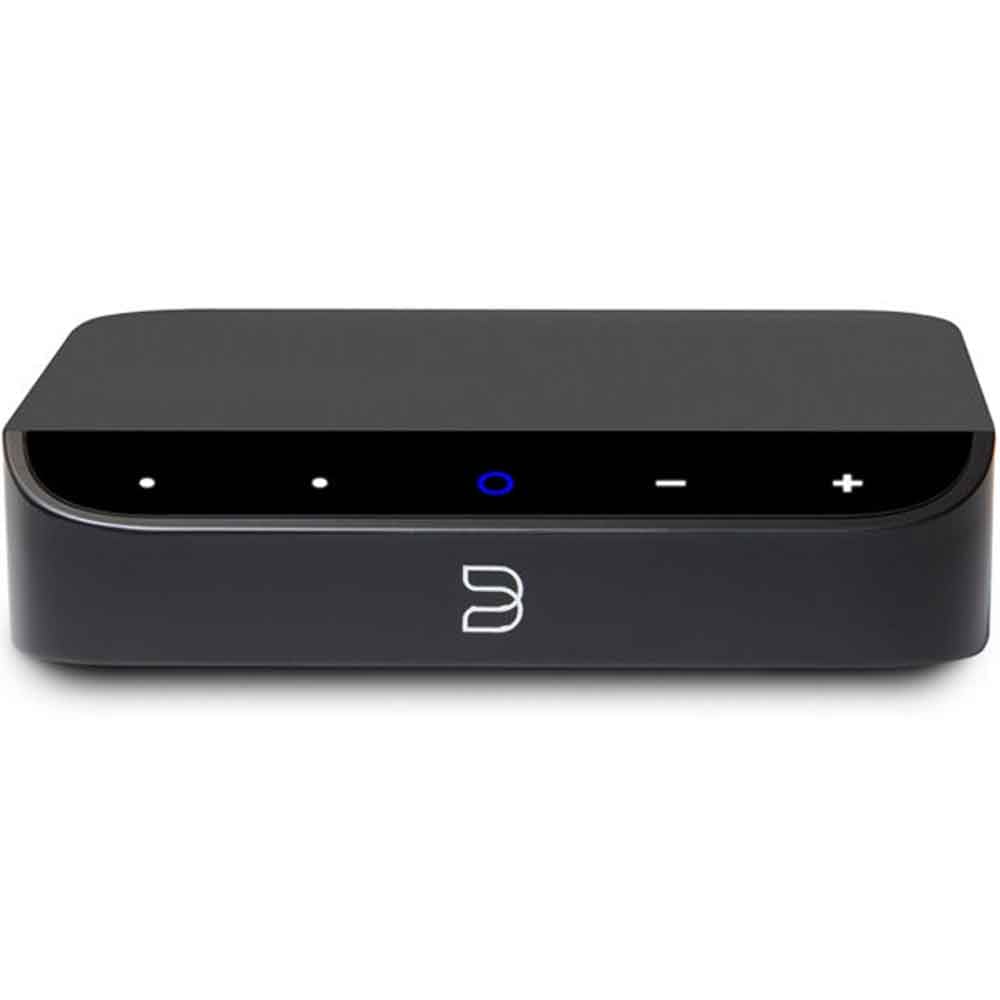

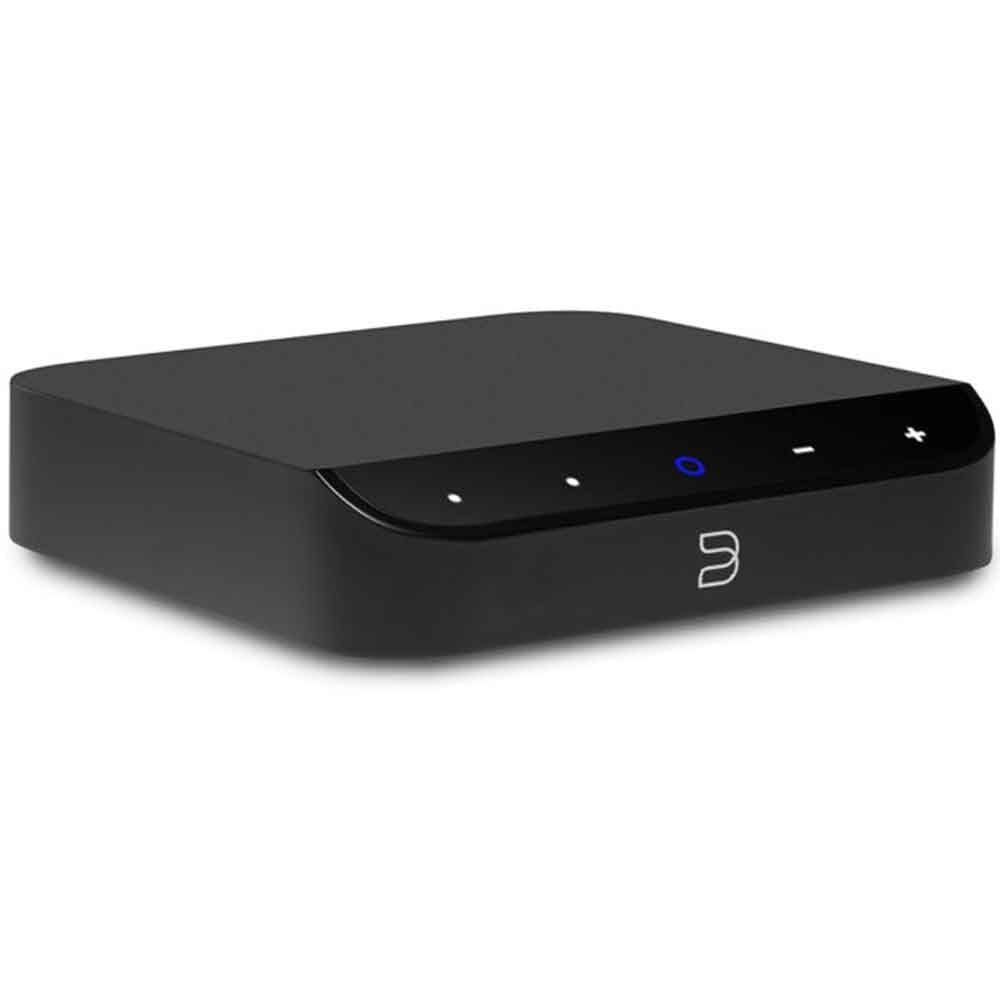

Compact High-Resolution BluOS Streaming for Existing Hi-Fi Systems
The Bluesound NODE NANO brings BluOS high-resolution streaming and ESS SABRE digital conversion to virtually any stereo system in an exceptionally compact chassis. Its ESS ES9039Q2M DAC supports music up to 24-bit/192kHz along with DSD256 playback, providing a straightforward way to add streaming services, internet radio, network libraries and multi-room playback to an integrated amplifier, receiver, preamplifier or powered-speaker system.
Stereo RCA outputs allow the NODE NANO to use its internal DAC, while coaxial, optical and USB Audio 2.0 outputs make it equally useful as a dedicated digital transport for an external DAC. Dual-band Wi-Fi 5, Gigabit Ethernet, AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz Connect and Roon Ready integration provide extensive network flexibility, while the compact 5.6-inch-square enclosure can be placed discreetly on a shelf or mounted using its bottom-panel keyhole slot.
Highlights & Benefits
-
ESS ES9039Q2M SABRE DAC — High-performance Hyperstream IV conversion delivers excellent clarity, low distortion and wide dynamic range from a compact streamer.
-
24-Bit/192kHz & DSD256 Playback — Supports high-resolution PCM and DSD files along with FLAC, WAV, AIFF, ALAC and other popular formats.
-

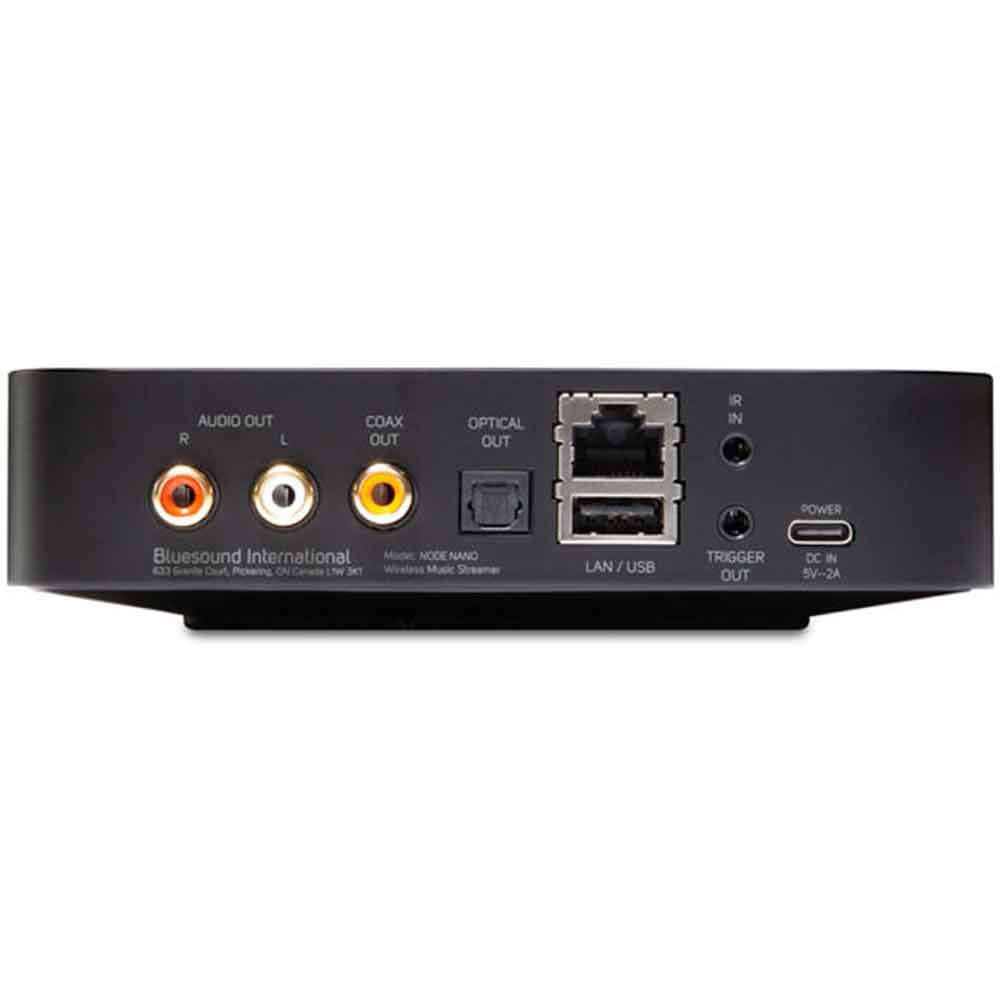

RCA, Coaxial, Optical & USB Outputs — Use the internal DAC through RCA or connect the NODE NANO digitally to a compatible external DAC.
-
BluOS Multi-Room Streaming — Access more than 20 supported music services, internet radio, network libraries and synchronized playback throughout a BluOS system.
-
Compact, Flexible Installation — The small 143 × 36 × 143mm enclosure fits easily into existing systems and includes a bottom-panel keyhole slot for discreet mounting.
Technology & Design
ESS SABRE Hyperstream IV DAC — The ES9039Q2M converter is engineered for low noise and distortion while supporting high-resolution PCM and DSD playback.
1.8GHz Quad-Core Processing — An ARM Cortex-A53 processor powers BluOS streaming, library indexing, high-resolution decoding and multi-room synchronization.
Gigabit Ethernet & Dual-Band Wi-Fi — Fast wired and wireless networking helps maintain reliable high-resolution streaming and multi-room operation.
USB-C Powered Architecture — The NODE NANO uses a compact 5V/2A USB-C power supply, helping reduce chassis size and simplify placement within an existing audio system.
FAQ — Bluesound NODE NANO
Does the Bluesound NODE NANO have a built-in DAC?
Yes. The NODE NANO uses an ESS ES9039Q2M SABRE DAC and provides stereo RCA analog outputs for direct connection to an amplifier, receiver, preamplifier or powered speakers.
Can I connect the NODE NANO to an external DAC?
Yes. It provides coaxial, Toslink optical and USB Audio 2.0 digital outputs, allowing BluOS streaming to be sent to a compatible external DAC.
Does the NODE NANO support Dirac Live or HDMI eARC?
No. Those features are available on higher-level NODE models. The NODE NANO is focused on compact music streaming and does not include HDMI eARC, Dirac Live Ready room correction or THX AAA headphone amplification.
What is the difference between the NODE NANO and the standard NODE?
The NODE NANO is the simpler and more compact model. It retains the ESS ES9039Q2M DAC, BluOS, DSD256 and digital outputs, while the standard NODE adds HDMI eARC, analog and optical inputs, THX AAA headphone amplification and Dirac Live Ready capability.
