High-Resolution Streaming, DAC and Analog Control in One Reference Preamplifier

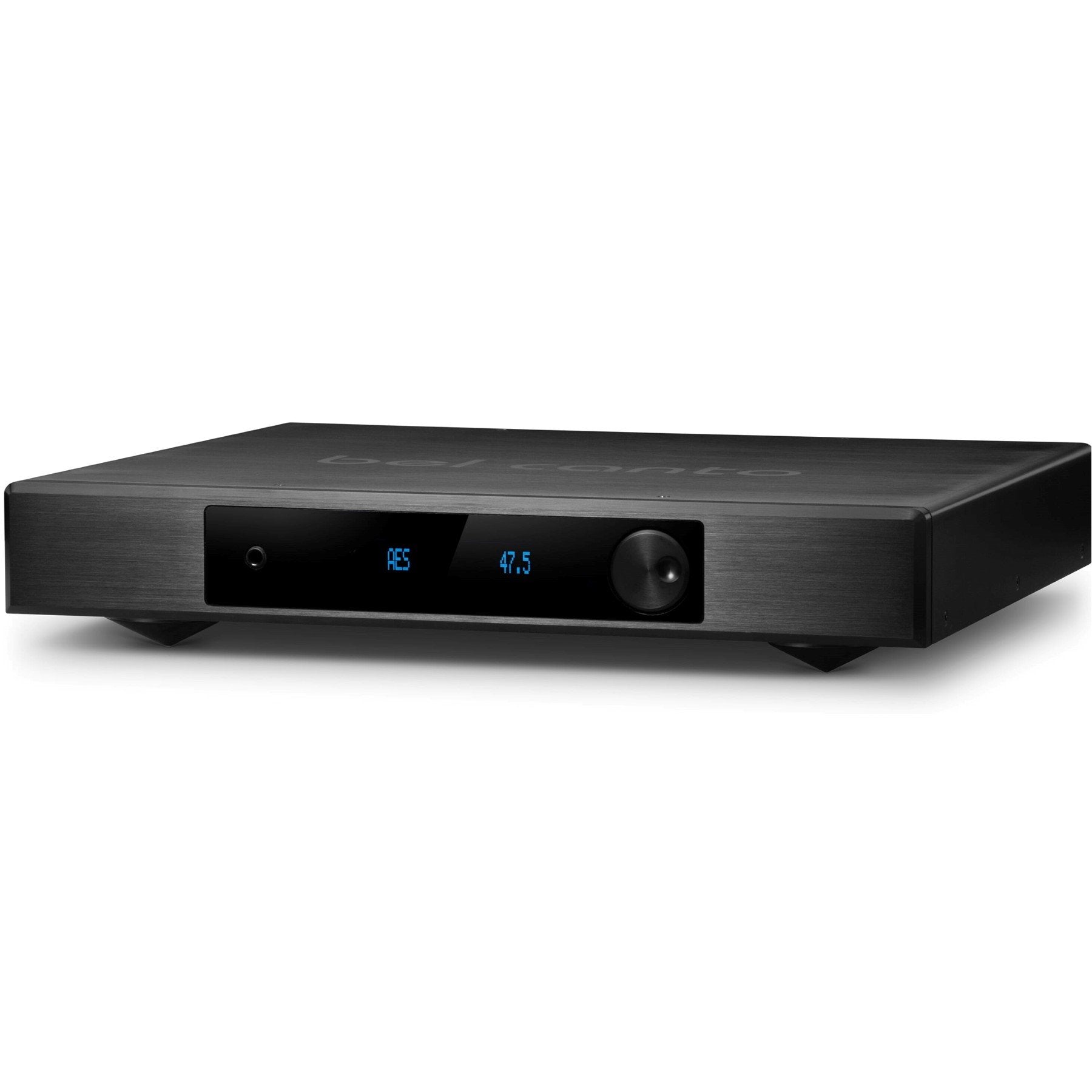

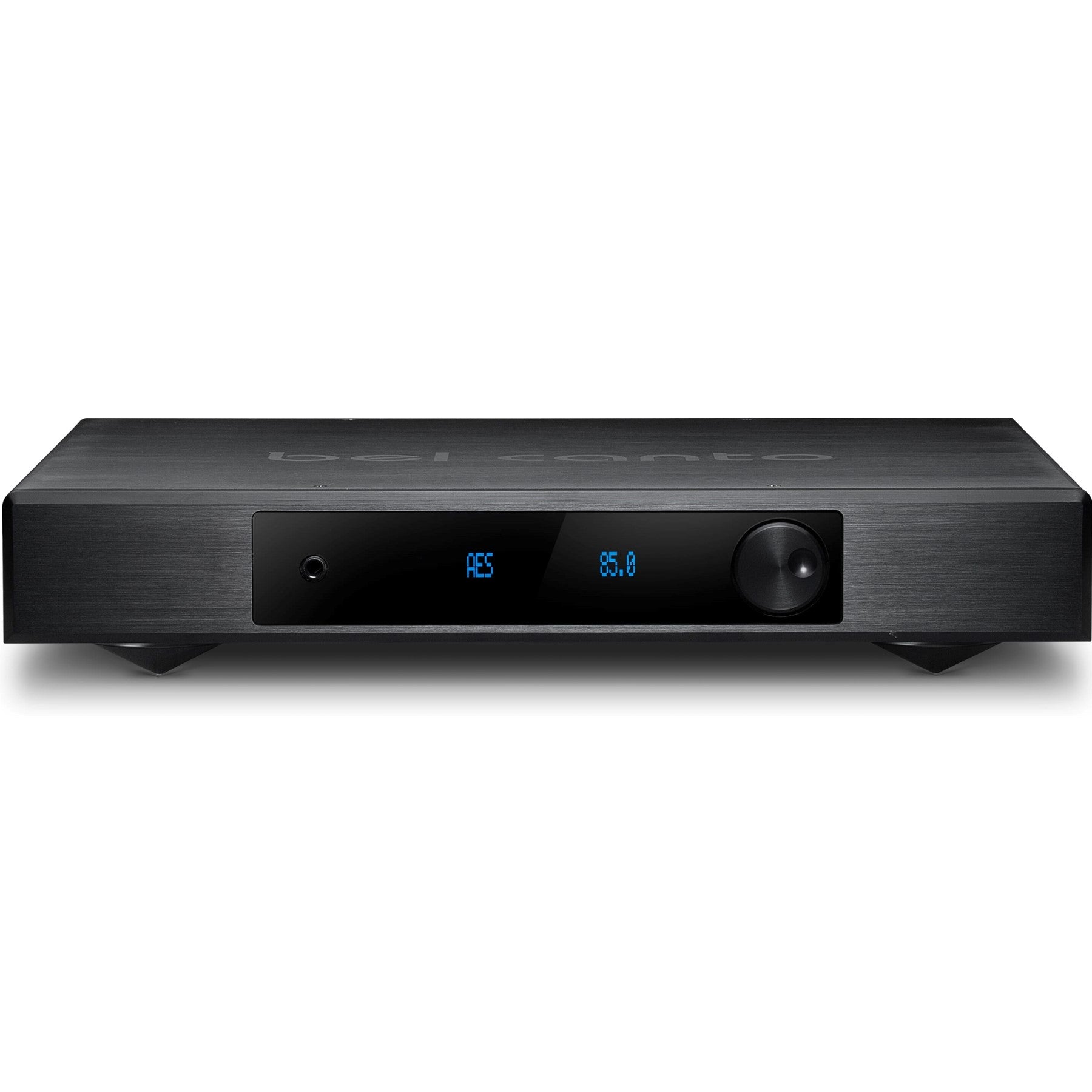

The Bel Canto e1X Stereo Pre-amplifier With Built-in DAC combines high-resolution digital conversion, network streaming, analog source control and precision preamplifier functionality in a single E1X chassis. Bel Canto's HDR-II DAC core and AMiP asynchronous multi-input platform manage Ethernet, USB and conventional digital sources while preserving low noise, low jitter and exceptional dynamic range throughout the signal path.
The E1X platform also supports analog sources through line-level inputs and a programmable MM/MC phono stage, making it equally capable in digital and vinyl-based systems. Balanced XLR and RCA outputs can feed compatible power amplifiers directly, while bass management, a dedicated high-current headphone output, Roon endpoint capability, remote control and network-based firmware updates make the E1X a complete stereo control center for sophisticated two-channel systems.
Highlights & Benefits
-
HDR-II DAC Core — Bel Canto's advanced digital architecture provides 126dB of dynamic range with asynchronous re-clocking and ultra-low-phase-noise master clocks.
-
24-Bit/384kHz Network Streaming — Ethernet playback supports high-resolution PCM up to 384kHz along with DSD64, DSD128 and MQA.
-
Programmable MM/MC Phono Stage — Accommodates moving-magnet and low-output moving-coil cartridges with selectable loading and software-controlled gain.
-

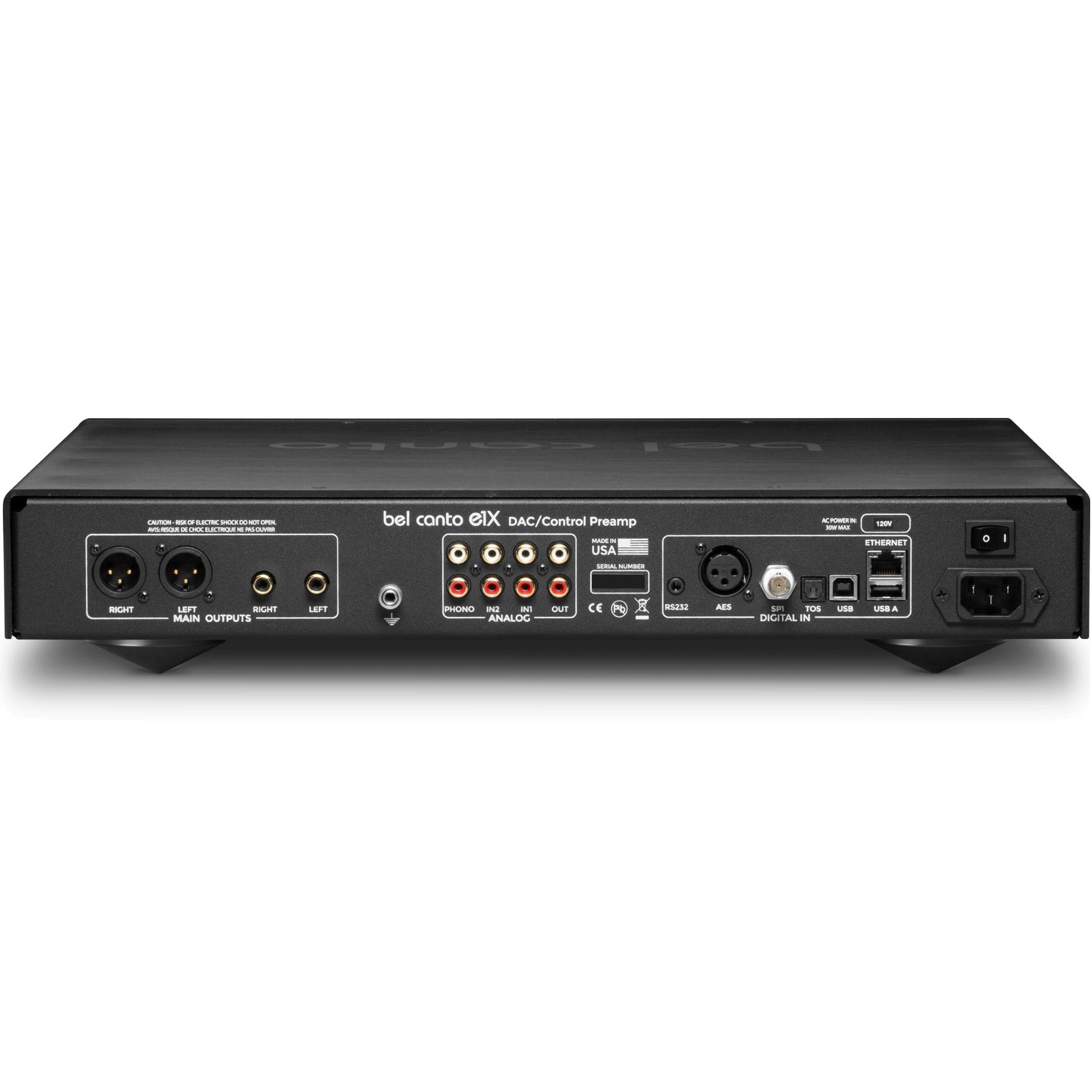

Balanced XLR & RCA Outputs — Provides high-quality analog connections for direct use with stereo power amplifiers or active loudspeakers.
-
Headphone & Bass Management Capability — A dedicated headphone DAC/output stage and DSP-based bass management support both personal listening and subwoofer integration.
Technology & Design
AMiP Asynchronous Multi-Input Platform — Multiple XMOS, ARM and dedicated audio processors manage Ethernet, USB, conventional digital inputs, analog line sources and phono signals while asynchronously re-clocking incoming data.
HDR-II High Dynamic Resolution DAC — The DAC section uses a free-running Ultra-Low Phase Noise master clock and a fully balanced conversion architecture designed to achieve 126dB of dynamic range and exceptionally low distortion.
64-Bit DSP Processing — A dedicated audio DSP provides transparent bass management, tilt adjustment, bass EQ and precise control over functions such as phono RIAA equalization.
Constrained-Layer Aluminum Chassis — The rigid E1X enclosure uses all-aluminum construction and constrained-layer damping to provide a low-vibration platform for sensitive digital and analog circuitry.
FAQ — Bel Canto e1X Stereo Pre-amplifier
Does the Bel Canto e1X have a built-in DAC?
Yes. The E1X uses Bel Canto's HDR-II DAC architecture and supports network, USB, AES/EBU, coaxial S/PDIF and optical digital sources.
Can the e1X connect directly to a power amplifier?
Yes. The E1X functions as a complete control preamplifier and provides variable balanced XLR and RCA outputs for direct connection to compatible power amplifiers.
Does the Bel Canto e1X support turntables?
Yes. The current E1X DC1 configuration includes a programmable MM/MC phono stage supporting moving-magnet cartridges from approximately 2.5–5mV and moving-coil cartridges from approximately 0.25–0.5mV.
Does the e1X support Roon and high-resolution streaming?
Yes. The E1X is a Roon endpoint and supports Ethernet playback up to 24-bit/384kHz PCM as well as DSD64 and DSD128.
