High-Current E1X Stereo Amplification with 500-Watt Dynamic Capability
The Bel Canto e1X Stereo Amplifier, also designated the E1X S500, combines substantial output capability with Bel Canto's low-noise, high-current amplifier architecture. Delivering 250 watts per channel into 8 ohms and 500 watts per channel into 4 ohms, the E1X S500 is designed to control demanding loudspeakers while preserving musical detail, dynamic contrast and tonal clarity across a wide range of listening levels.
Bel Canto's proprietary SSHA Single Stage High-Current input module works with an advanced NCore-based output stage and switch-mode power supply to deliver up to 27 amps of peak current. Balanced XLR and single-ended RCA inputs provide flexible system integration, while selectable gain, WBT NextGen binding posts and a rigid constrained-layer aluminum chassis make the E1X Stereo Amplifier a powerful foundation for reference-level two-channel systems.
Highlights & Benefits
-
250W / 8Ω & 500W / 4Ω Output — Substantial stereo power provides excellent dynamic headroom and control with demanding high-performance loudspeakers.
-
27A Peak Output Current — High-current capability helps maintain composure through difficult impedance swings and large musical transients.
-
SSHA High-Current Input Stage — Bel Canto's proprietary Single Stage High-Current architecture provides fast response, low noise and high open-loop bandwidth.
-

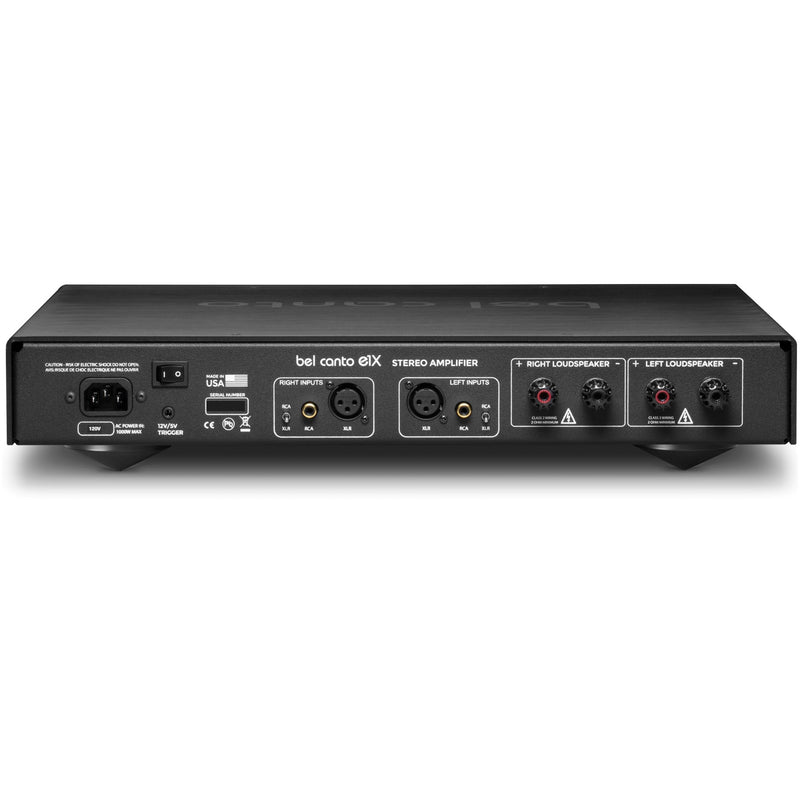

Balanced XLR & RCA Inputs — Supports both balanced and single-ended preamplifier connections for flexible system configuration.
-
126dB Dynamic Range — Exceptionally low noise helps preserve fine musical information while maintaining substantial headroom for high-level passages.
Technology & Design
SSHA Single Stage High-Current Amplifier — Bel Canto's proprietary input-stage module uses a fast folded-cascode architecture with more than 500mA of peak current capability, helping maintain low distortion throughout the audio band.
NCore-Based Output Architecture — The high-efficiency output stage delivers significant power using a short signal path and minimal output devices, reducing heat generation while maintaining strong dynamic performance.
Ultra-Low Noise & Distortion — A specified 0.002% THD+N at 1 watt and 0.0003% CCIF IMD contribute to clean reproduction of low-level information and complex musical transients.
Constrained-Layer Aluminum Chassis — The rigid E1X enclosure uses constrained-layer damping to provide a stable, low-vibration platform for the amplifier's sensitive input and high-power output circuitry.
FAQ — Bel Canto e1X Stereo Amplifier
How much power does the Bel Canto e1X Stereo Amplifier produce?
The E1X S500 delivers 250 watts per channel into 8 ohms and 500 watts per channel into 4 ohms at 1% THD.
Can the E1X Stereo Amplifier drive low-impedance speakers?
Yes. Bel Canto specifies a minimum loudspeaker load of 2 ohms along with 27 amps of peak output current, making the amplifier suitable for many demanding loudspeaker designs.
Does the Bel Canto e1X Stereo Amplifier have balanced inputs?
Yes. The amplifier provides both balanced XLR and single-ended RCA inputs. Balanced input impedance is specified at 20k ohms, while RCA input impedance is 10k ohms.
What preamplifier can be paired with the E1X Stereo Amplifier?
Natural Bel Canto partners include the E1X DC1 DAC/Control Preamp and E1X DS1 Streaming DAC/Control Preamp. The amplifier can also be used with another compatible preamplifier providing RCA or balanced XLR outputs.
