High-Resolution Streaming, DAC Conversion and Precision Preamplifier Control

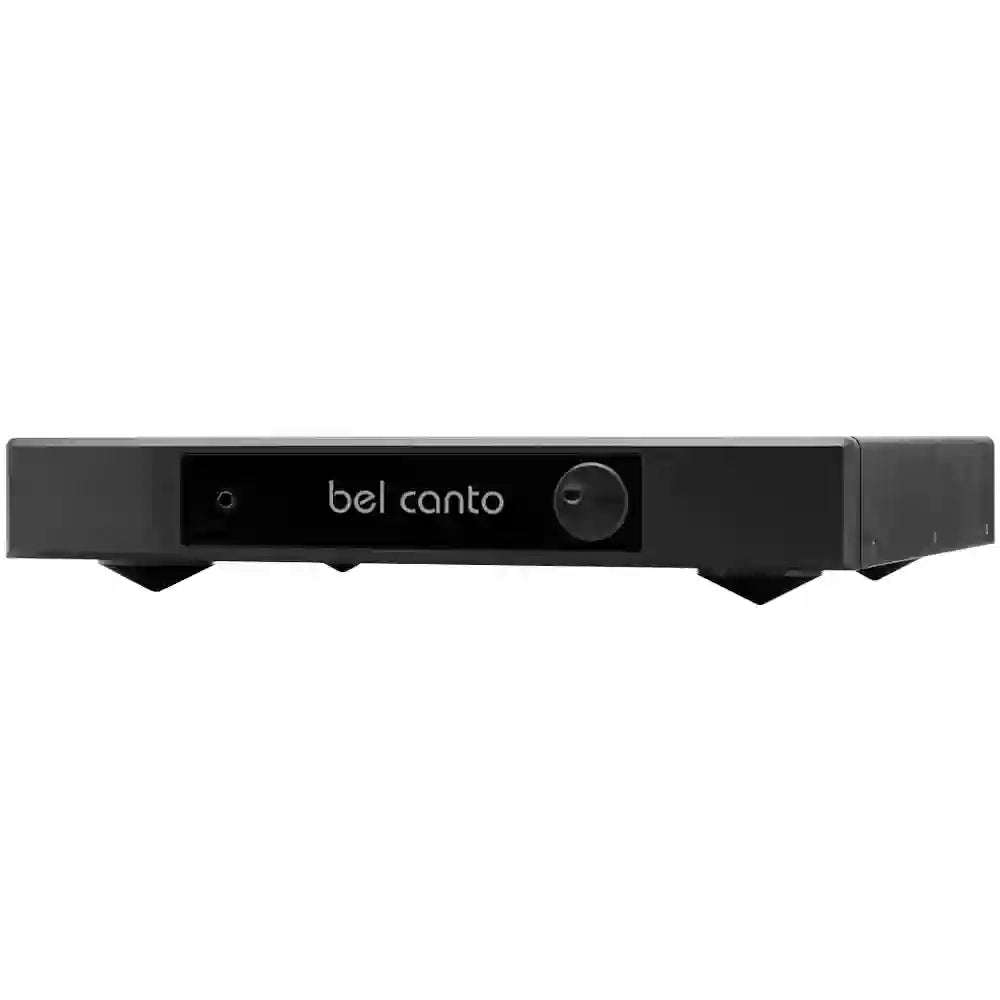

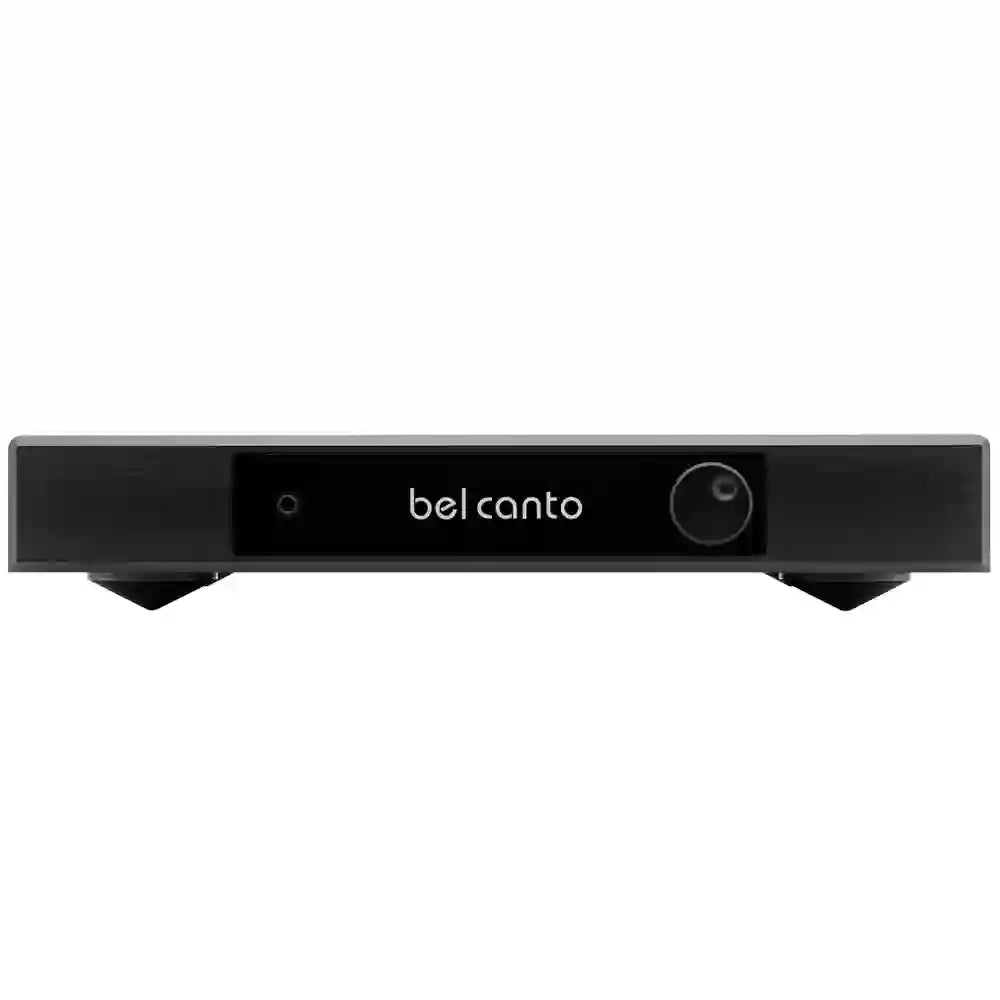

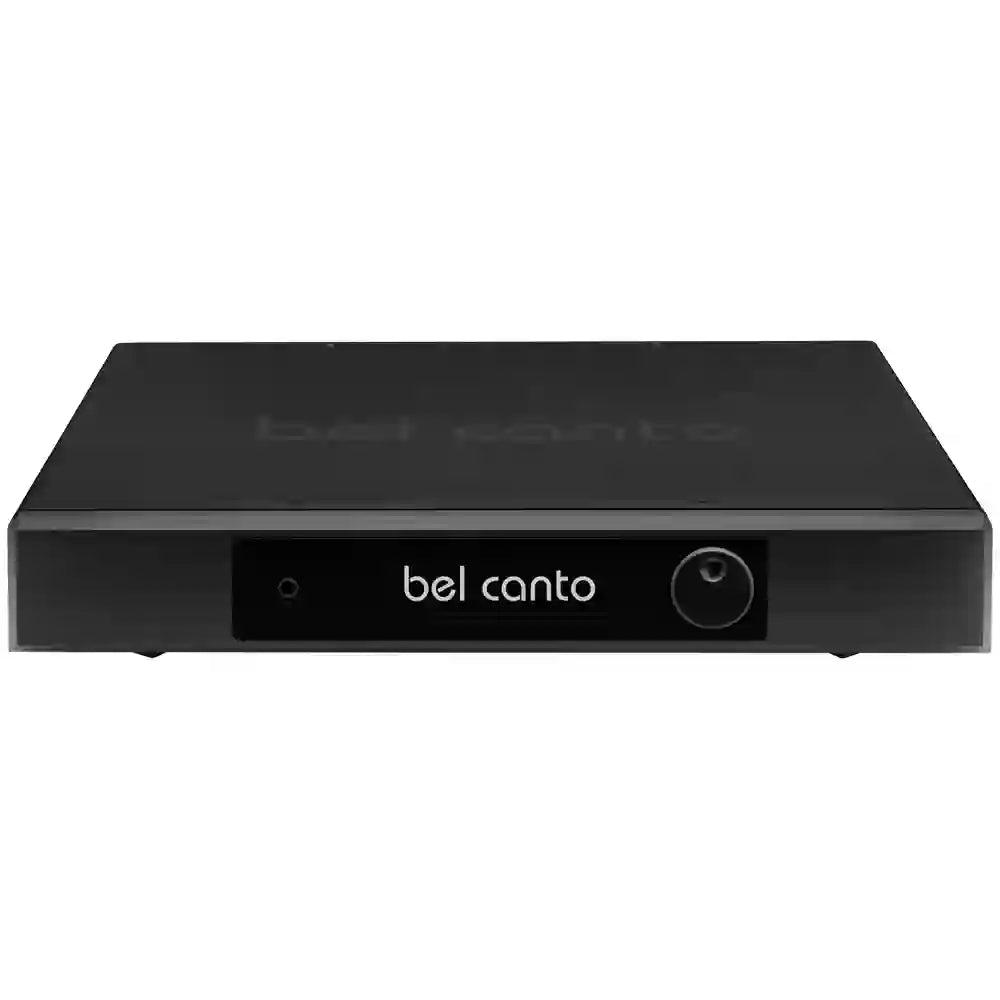

The Bel Canto E1X DS1 Streaming DAC/Control Preamp combines Bel Canto's HDR-II Core digital architecture, asynchronous Ethernet streaming and precision volume control in a streamlined component designed to serve as the digital center of a high-performance stereo system. Its fully balanced DAC architecture delivers a specified 126dB of dynamic range while Bel Canto's Ultra Low Noise master clock and asynchronous re-clocking system reduce source-related jitter and timing errors before digital-to-analog conversion.
The E1X DS1 supports Ethernet streaming along with AES/EBU, coaxial S/PDIF and optical digital sources, providing high-resolution network playback up to 24-bit/384kHz plus DSD64 and DSD128. Balanced XLR and RCA analog outputs allow direct connection to compatible power amplifiers or active loudspeakers, while Roon endpoint capability, SEEK app control, RS-232 integration and a dedicated high-current headphone output make the DS1 equally useful in dedicated two-channel, headphone and custom-installed audio systems.
Highlights & Benefits
-
HDR-II Core DAC Architecture — Bel Canto's advanced DAC platform combines asynchronous re-clocking, Ultra Low Noise master-clock circuitry and Class A differential analog conversion.
-
24-Bit/384kHz & DSD128 Network Playback — Asynchronous Ethernet supports high-resolution PCM, MQA and DSD playback from compatible network sources.
-
126dB Dynamic Range — Exceptional low-noise performance helps preserve fine musical detail while maintaining substantial headroom for dynamic recordings.
-

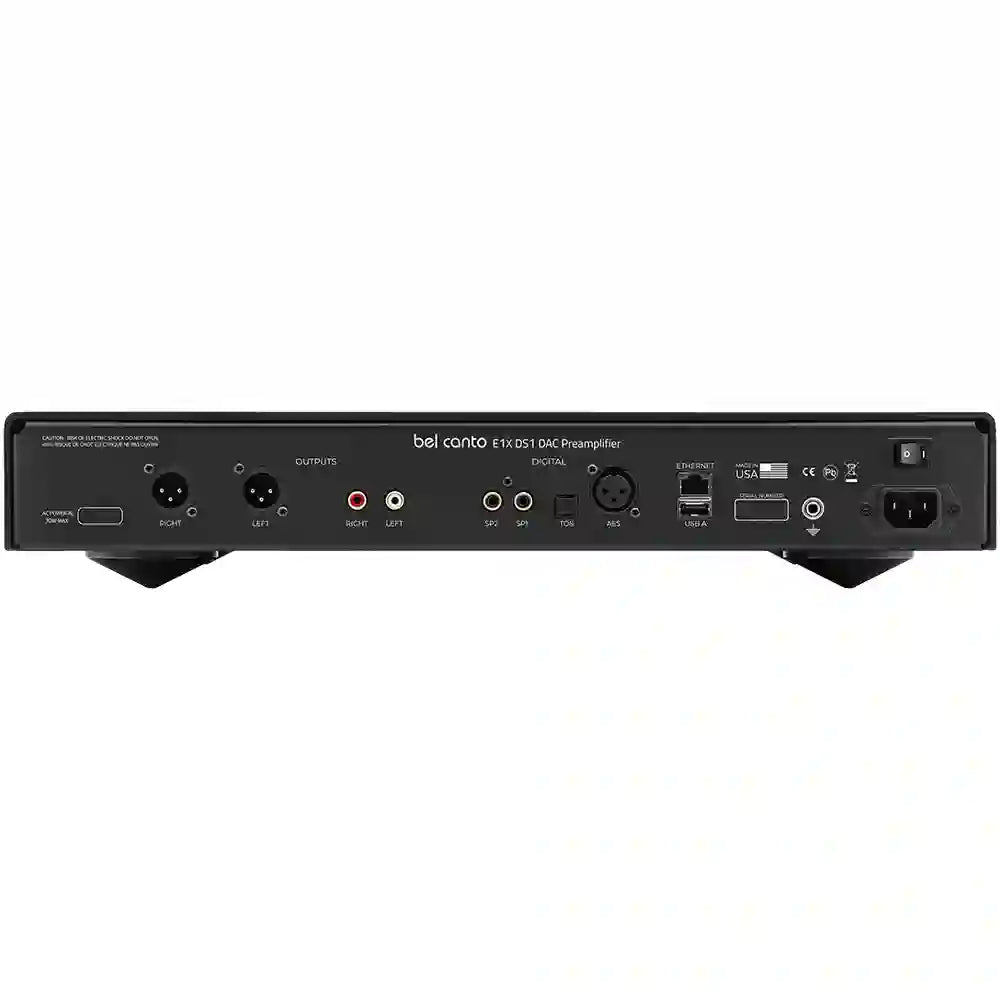

Balanced XLR & RCA Preamp Outputs — Variable analog outputs allow the DS1 to connect directly to power amplifiers, active speakers or other compatible audio equipment.
-
Dedicated Headphone Amplifier — A separate 112dB dynamic-range DAC and high-current output buffer confidently drive headphones with impedances as low as 32 ohms.
Technology & Design
HDR-II Advanced Segment DAC — Bel Canto combines multi-bit and delta-sigma conversion techniques with a Class A Differential Current Mode analog output stage to achieve high resolution while maintaining low distortion throughout the musical dynamic range.
Asynchronous Re-Clocking — Incoming sources are stripped of their original clocks and re-timed using Bel Canto's Ultra Low Noise master clock, helping reduce jitter and data-related distortion before conversion.
24-Bit Precision Volume Control — Digital-domain volume management allows the DS1 to function as a complete control preamplifier and eliminates the need for an additional conventional preamp in suitable systems.
Constrained-Layer Aluminum Chassis — The E1X enclosure uses all-aluminum construction and constrained-layer damping to provide a rigid, low-vibration mechanical platform for the sensitive digital and analog circuitry.
FAQ — Bel Canto E1X DS1
Can the Bel Canto E1X DS1 connect directly to a power amplifier?
Yes. The DS1 is a DAC and control preamplifier with variable balanced XLR and RCA outputs. It can therefore connect directly to compatible power amplifiers such as the Bel Canto E1X S500 or REF501S without requiring a separate analog preamplifier.
What high-resolution audio does the E1X DS1 support?
Ethernet streaming supports PCM up to 24-bit/384kHz along with DSD64, DSD128 and MQA. AES/EBU, coaxial S/PDIF and optical digital inputs support PCM up to 24-bit/192kHz.
Does the E1X DS1 support Roon?
Yes. Bel Canto describes the E1X DS1 as a Roon endpoint, allowing it to receive network audio from a compatible Roon system. Network playback can also be controlled through Bel Canto's SEEK app on iOS devices or compatible third-party control software on Android.
Does the Bel Canto E1X DS1 have a built-in power amplifier?
No. The DS1 is a streaming DAC, headphone amplifier and control preamplifier. A separate power amplifier or active loudspeaker system is required for loudspeaker playback.
