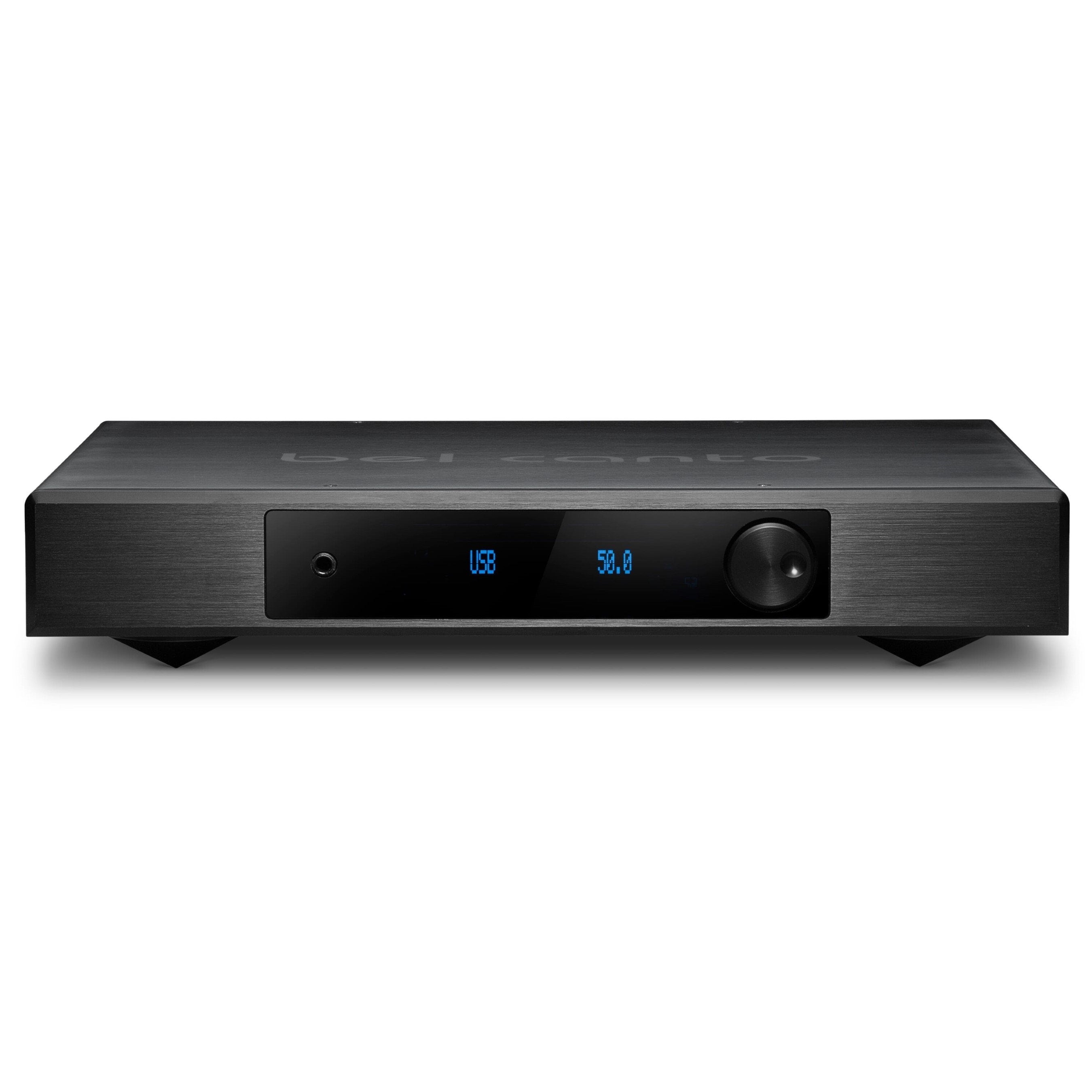

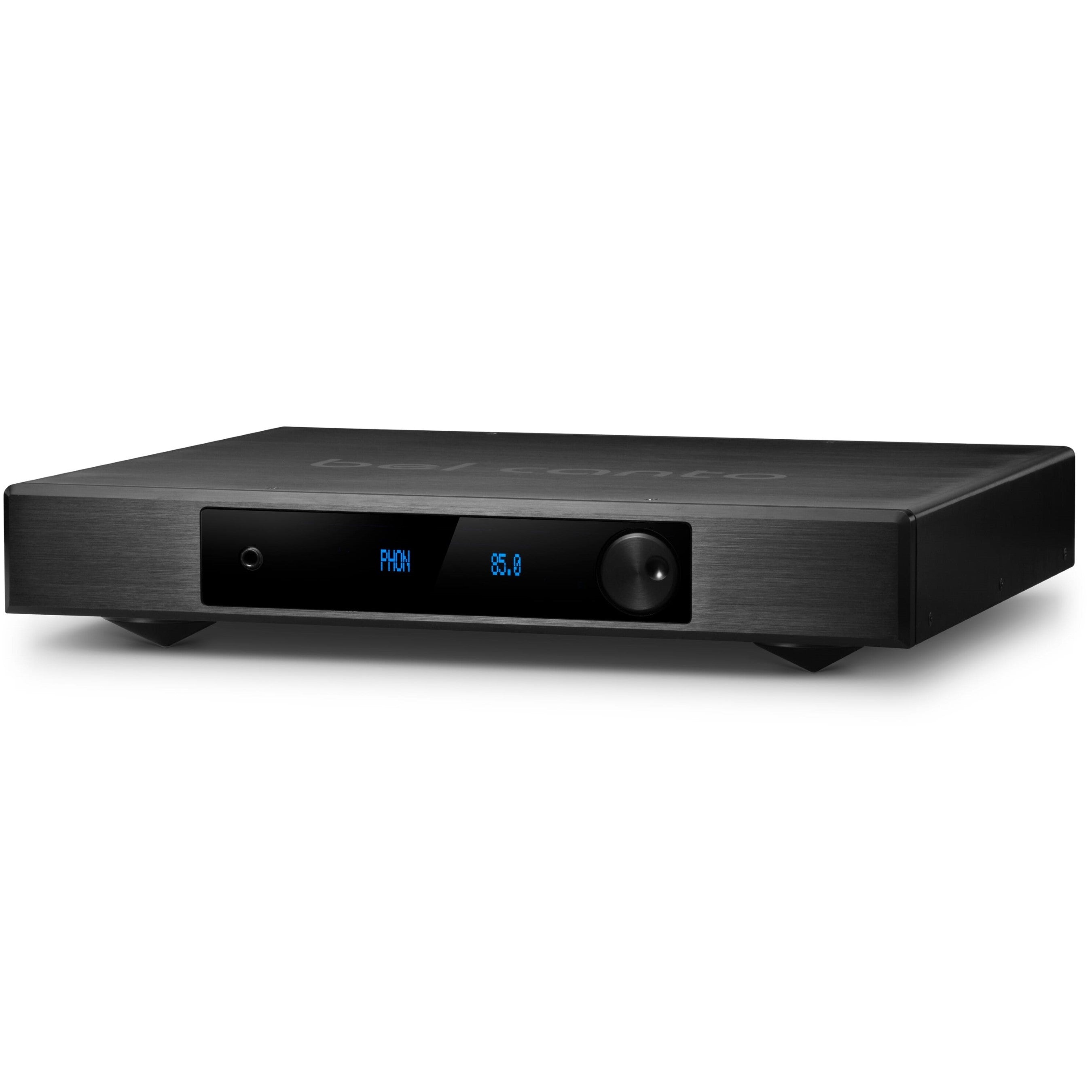

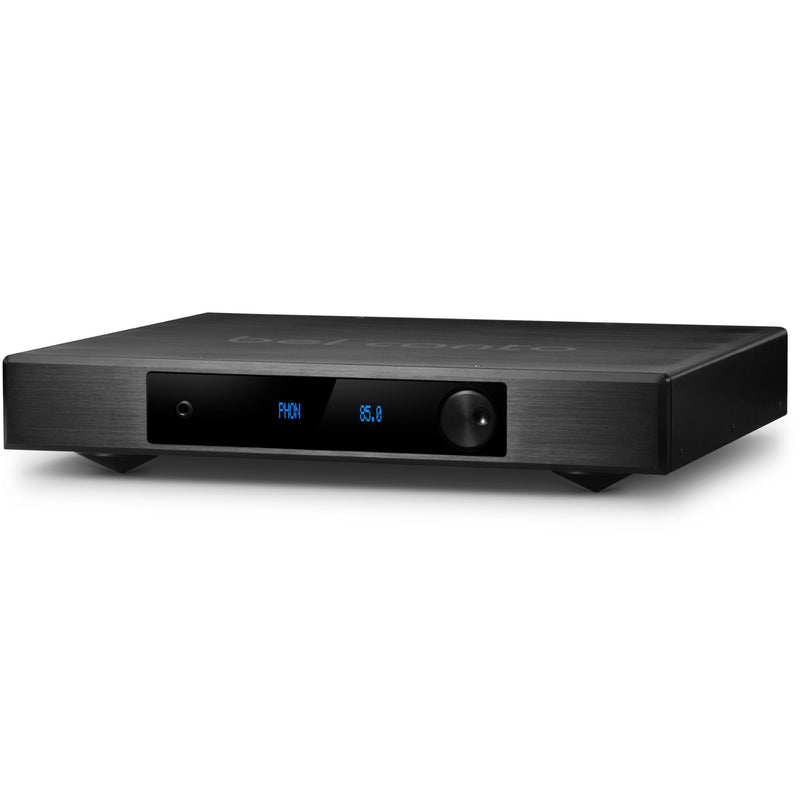

All-in-One Bel Canto Performance for Streaming, Vinyl, Digital and Analog Music
The Bel Canto E1X All in One Integrated Amplifier combines high-resolution streaming, digital conversion, analog source control, phono playback, headphone listening and powerful stereo amplification in a single E1X chassis. Bel Canto's HDR-II DAC core and AMiP asynchronous multi-input platform manage network, USB and conventional digital sources, while the power-amplifier section delivers 150 watts per channel into 8 ohms and 250 watts per channel into 4 ohms.

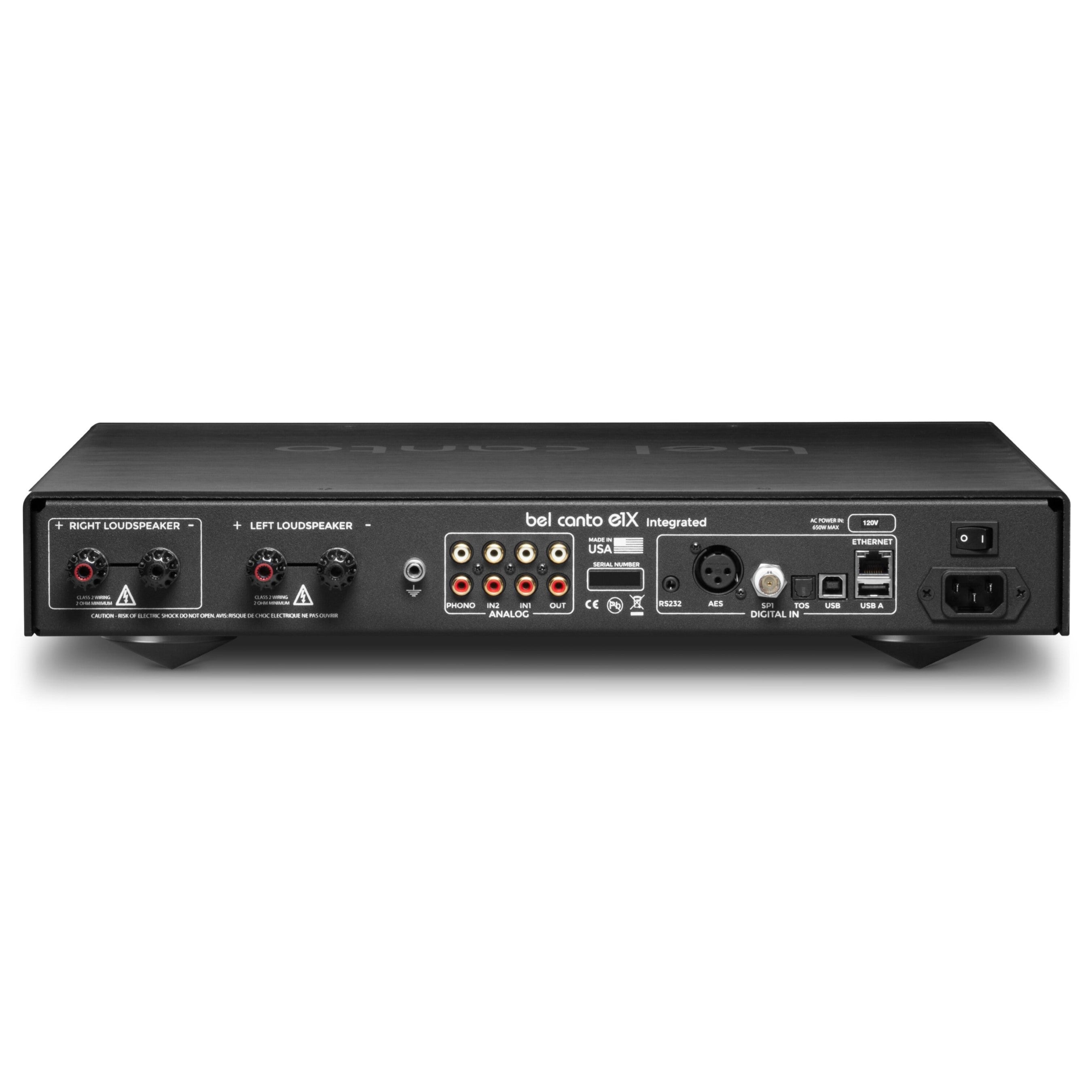

Analog listeners are equally well served with line-level inputs and a programmable MM/MC phono stage, while Ethernet streaming, USB audio, AES/EBU, coaxial and optical digital inputs accommodate modern digital systems. Bass management, a variable line-level output for powered-subwoofer integration, a dedicated headphone amplifier, RS-232 control and WBT NextGen speaker terminals make the E1X an exceptionally versatile centerpiece for a high-performance two-channel system.
Highlights & Benefits
-
Complete All-in-One Architecture — Combines streaming, DAC conversion, preamplification, MM/MC phono, headphone listening and stereo power amplification in one component.
-
150W / 8Ω & 250W / 4Ω Amplification — High-current output supports demanding loudspeakers with loads down to 2 ohms.
-
HDR-II DAC & Ethernet Streaming — Bel Canto's advanced digital architecture supports high-resolution network playback along with USB and conventional digital sources.
-
Programmable MM/MC Phono Stage — Accommodates moving-magnet and low-output moving-coil cartridges with selectable loading and gain optimization.
-
Bass Management & Headphone Output — Adjustable crossover functions simplify subwoofer integration, while the dedicated high-current headphone stage supports personal listening.
Technology & Design
HDR-II High Dynamic Range DAC — Bel Canto's DAC architecture combines precision digital processing, asynchronous re-clocking and ultra-low-phase-noise master clocking to reduce jitter and preserve fine musical detail.
AMiP Asynchronous Multi-Input Platform — Multiple dedicated processors manage network, USB, digital, analog and phono sources while optimizing each signal path for low noise and accurate timing.
Software-Controlled MM/MC Phono Stage — Adjustable analog gain and cartridge loading allow the phono section to accommodate high-output moving-magnet cartridges and low-output moving-coil designs.
High-Current Output Amplification — The amplifier section delivers up to 18 amps of peak output current with wide bandwidth and low distortion, helping maintain control across complex loudspeaker loads.
FAQ — Bel Canto E1X All in One Integrated Amplifier
How much power does the Bel Canto E1X Integrated Amplifier produce?
The E1X delivers 150 watts per channel into 8 ohms and 250 watts per channel into 4 ohms. Bel Canto specifies a minimum loudspeaker load of 2 ohms and peak output current of 18 amps.
Does the E1X have built-in music streaming and a DAC?
Yes. The E1X includes Ethernet network streaming and Bel Canto's HDR-II DAC architecture, along with USB audio, AES/EBU, coaxial S/PDIF and optical digital inputs.
Can I connect a turntable directly to the E1X?
Yes. The integrated programmable phono stage supports moving-magnet cartridges with approximately 2.5–5mV output and moving-coil cartridges with approximately 0.25–0.5mV output.
What is the current model name for the E1X All in One Integrated Amplifier?
Bel Canto currently identifies this full-featured digital and streaming integrated amplifier as the E1X D250 DAC/Control Integrated. It is distinct from the E1X A500, which is an analog-only integrated amplifier with higher power output.
