Reference-Level Analog Control with 500-Watt High-Current Amplification
The Bel Canto E1X A500 Analog Integrated Amplifier combines a fully balanced analog preamplifier with exceptionally powerful stereo amplification in Bel Canto's rigid E1X chassis. Designed specifically for listeners using premium analog source components, the A500 delivers 250 watts per channel into 8 ohms and 500 watts per channel into 4 ohms, with substantial current capability for controlling demanding loudspeakers while maintaining exceptionally low noise and distortion.

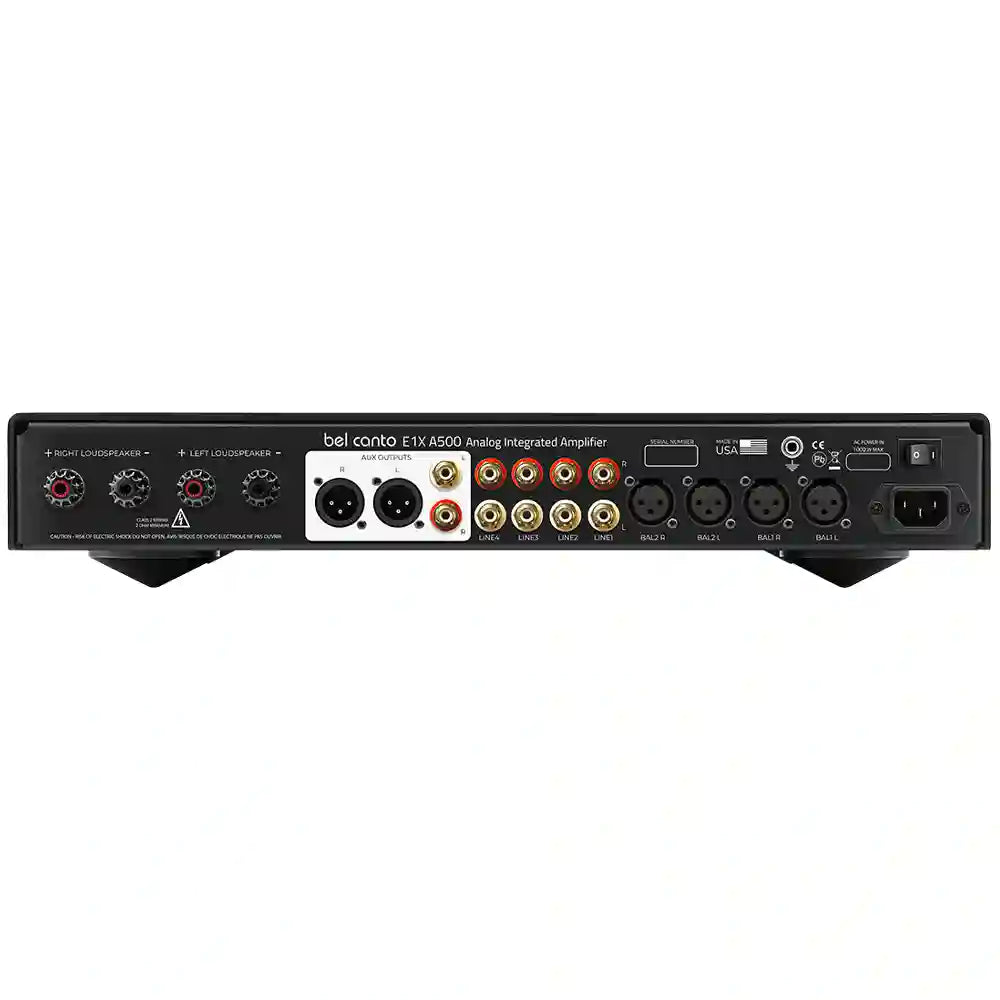

Two pairs of balanced XLR inputs and four high-quality Cardas RCA inputs provide extensive analog source flexibility, while independently buffered XLR and RCA outputs allow the A500 to integrate with additional amplification or other compatible components. A dedicated headphone output, precision volume control, WBT NextGen speaker terminals and Bel Canto's constrained-layer aluminum chassis complete a sophisticated one-box amplifier designed around signal purity, dynamic range and high-current loudspeaker control.
Highlights & Benefits
-
250W / 8Ω & 500W / 4Ω Output — Substantial stereo power provides the headroom and current delivery required for demanding high-performance loudspeakers.
-
Fully Balanced Analog Preamplifier — Bel Canto's balanced architecture is engineered to maintain low noise and distortion while preserving fine musical information.
-
Two XLR & Four Cardas RCA Inputs — Six analog source connections provide extensive flexibility for DACs, phono stages, streamers and other line-level components.
-
126dB Dynamic Range — Extremely low noise and high dynamic capability help preserve subtle low-level information as well as large musical transients.
-
Buffered Outputs & Headphone Listening — Independently buffered RCA and balanced XLR outputs are joined by a dedicated headphone output for expanded system flexibility.
Technology & Design
Discrete SSHA / SSHC Input Architecture — Bel Canto's proprietary Single Stage High Current amplifier topology uses a fast, low-noise folded-cascode architecture with wide open-loop bandwidth and more than 500mA of peak current capability to preserve dynamic contrast and low-level detail.
High-Efficiency NCore Power Stage — The A500's Class D output architecture delivers substantial power with high efficiency, minimizing thermal modulation and reducing the output-stage bias changes associated with conventional high-power amplifier designs.
Fully Balanced Signal Path — Precision resistors, discrete high-current buffers and carefully designed low-noise power supplies maintain signal symmetry through the analog preamplifier and into the power-amplifier section.
Constrained-Layer Aluminum Chassis — Bel Canto's all-aluminum E1X enclosure incorporates constrained-layer damping to create a rigid, low-vibration platform for the sensitive preamplifier circuitry and high-power output stage.
FAQ — Bel Canto E1X A500
How much power does the Bel Canto E1X A500 produce?
Bel Canto rates the E1X A500 at 250 watts per channel into 8 ohms and 500 watts per channel into 4 ohms at 1% THD. The amplifier is rated for loudspeaker loads as low as 2 ohms.
Does the E1X A500 have a built-in DAC or streamer?
No. The E1X A500 is specifically an analog integrated amplifier. It does not include the DAC, Ethernet streaming, USB audio or digital inputs found in Bel Canto's digital-focused E1X components. Digital sources require a separate DAC or streamer with analog outputs.
Does the Bel Canto E1X A500 have a built-in phono stage?
No dedicated phono input is specified for the A500. A turntable should be connected through a separate compatible phono preamplifier, which can then feed one of the amplifier's RCA or balanced line-level inputs.
Does the E1X A500 have balanced inputs?
Yes. The A500 provides two pairs of balanced XLR inputs in addition to four Cardas single-ended RCA inputs. It also provides independently buffered balanced XLR and RCA line outputs.
