Reference Monoblock Power with High Current, Low Distortion and Exceptional Control

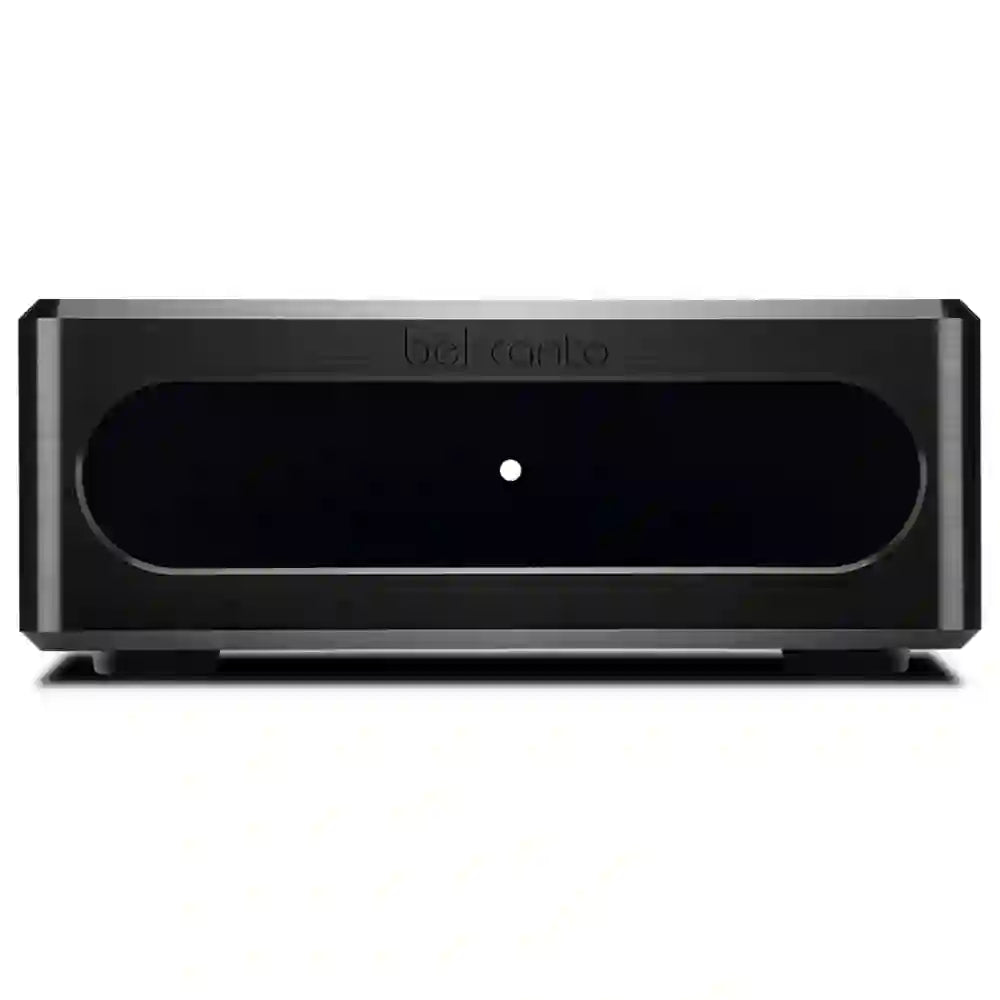

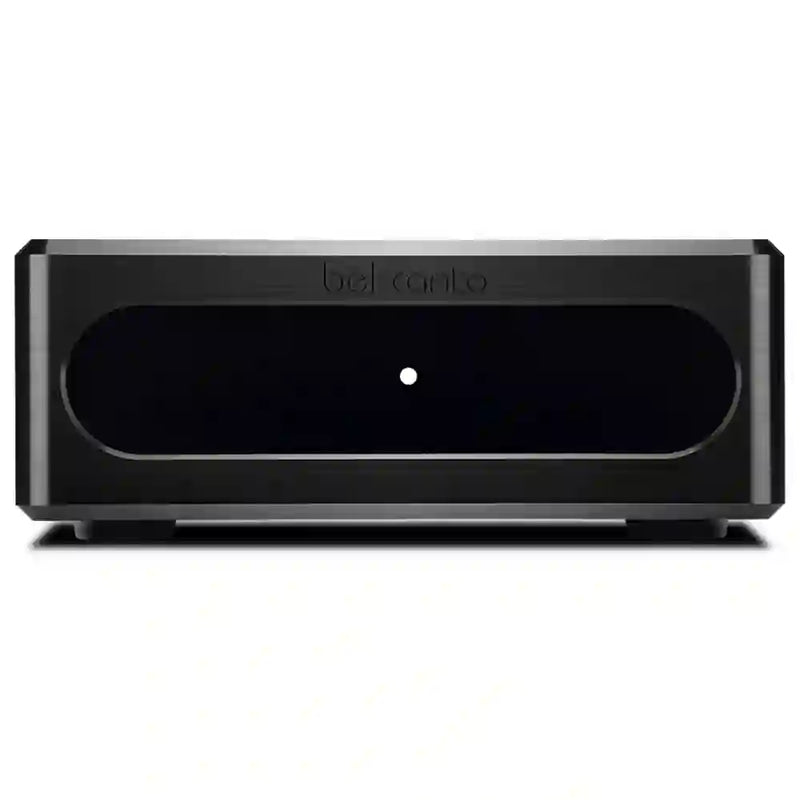

The Bel Canto e.One REF601M Monoblock Amplifier delivers reference-level power from Bel Canto's compact e.One platform, combining substantial current capability with extremely low noise and distortion. Each REF601M powers a single loudspeaker channel with 300 watts into 8 ohms and 600 watts into 4 ohms, while a 27-amp peak output-current capability and 2-ohm minimum-load rating provide the authority needed to control demanding high-performance loudspeakers.
Bel Canto combines its high-efficiency power architecture with an impedance-optimized balanced input stage designed for high common-mode rejection and low output impedance. Balanced XLR and single-ended RCA inputs provide flexible system integration, while selectable 27dB or 33dB gain allows the REF601M to be matched to different preamplifiers and source components. A greater-than-1000 damping factor, WBT NextGen speaker terminals and power-trigger capability complete a compact amplifier designed for serious two-channel systems.
Highlights & Benefits
-
600W into 4 Ohms — Delivers 300 watts into 8 ohms and 600 watts into 4 ohms from a compact monoblock chassis.
-
27A Peak Output Current — Substantial current capability helps the amplifier remain composed during demanding musical transients and difficult loudspeaker loads.
-
>1000 Damping Factor — Extremely low output impedance provides strong electrical control over connected loudspeaker drivers.
-

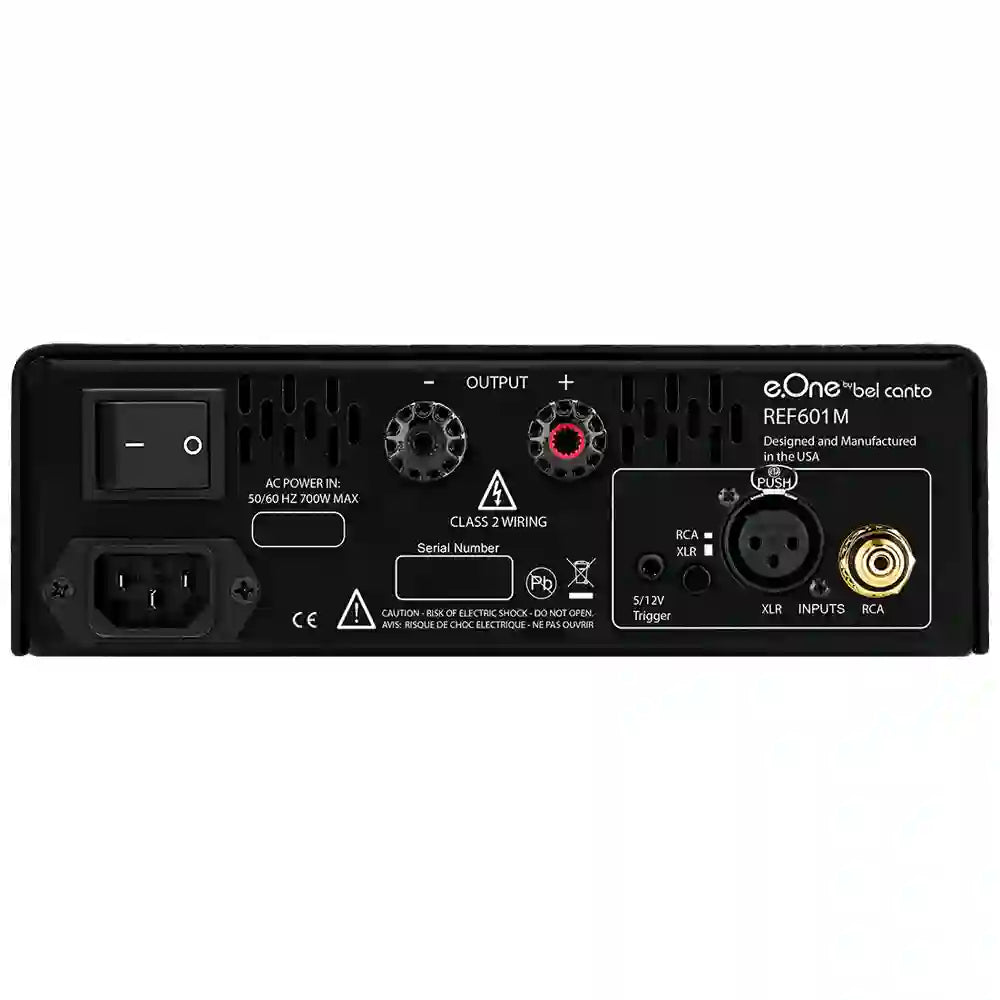

Balanced XLR & RCA Inputs — Supports both balanced and single-ended preamplifier connections for flexible system configuration.
-
Selectable 27dB / 33dB Gain — Internal gain selection makes it easier to optimize compatibility with different preamplifiers and system architectures.
Technology & Design
Impedance-Optimized Input Stage — Bel Canto's balanced input architecture combines high common-mode rejection with a low-output-impedance driver to help preserve dynamic information and reduce susceptibility to noise.
High-Efficiency Power Architecture — The REF601M combines the speed and efficiency associated with modern Class D amplification with a design voiced for natural midrange presence and refined high-frequency reproduction.
Ultra-Low Output Impedance — Output impedance is specified below 8 milliohms at 100Hz, contributing to a damping factor greater than 1000 and tight loudspeaker control.
WBT NextGen Speaker Connection — Premium WBT NextGen five-way binding posts provide a secure, low-resistance connection for high-quality speaker cables while minimizing the connector's influence on the signal.
FAQ — Bel Canto REF601M
Is the Bel Canto REF601M a stereo amplifier?
No. The REF601M is a monoblock power amplifier, meaning one amplifier powers one loudspeaker channel. A conventional two-channel stereo system requires two REF601M amplifiers.
How much power does the REF601M produce?
Bel Canto rates the REF601M at 300 watts into 8 ohms and 600 watts into 4 ohms at 1% THD. It also supports loudspeaker loads down to 2 ohms and provides up to 27 amps of peak output current.
Does the REF601M have balanced inputs?
Yes. The REF601M provides both balanced XLR and single-ended RCA inputs. Bel Canto specifies a 200k-ohm balanced input impedance and a 100k-ohm RCA input impedance.
What preamplifier pairs well with the REF601M?
Bel Canto's e.One PRE5 is a natural analog preamplifier partner. The REF601M can also be used with compatible Bel Canto DAC/control preamps or other high-quality preamplifiers that provide suitable RCA or balanced XLR outputs.
